Bently Nevada 200350-00-00-00 Safety-Enhanced Vibration Accelerometer

Bently Nevada 200350-00-00-00 Safety-Enhanced Vibration Accelerometer: Reliable Control in Harsh Industrial Sites

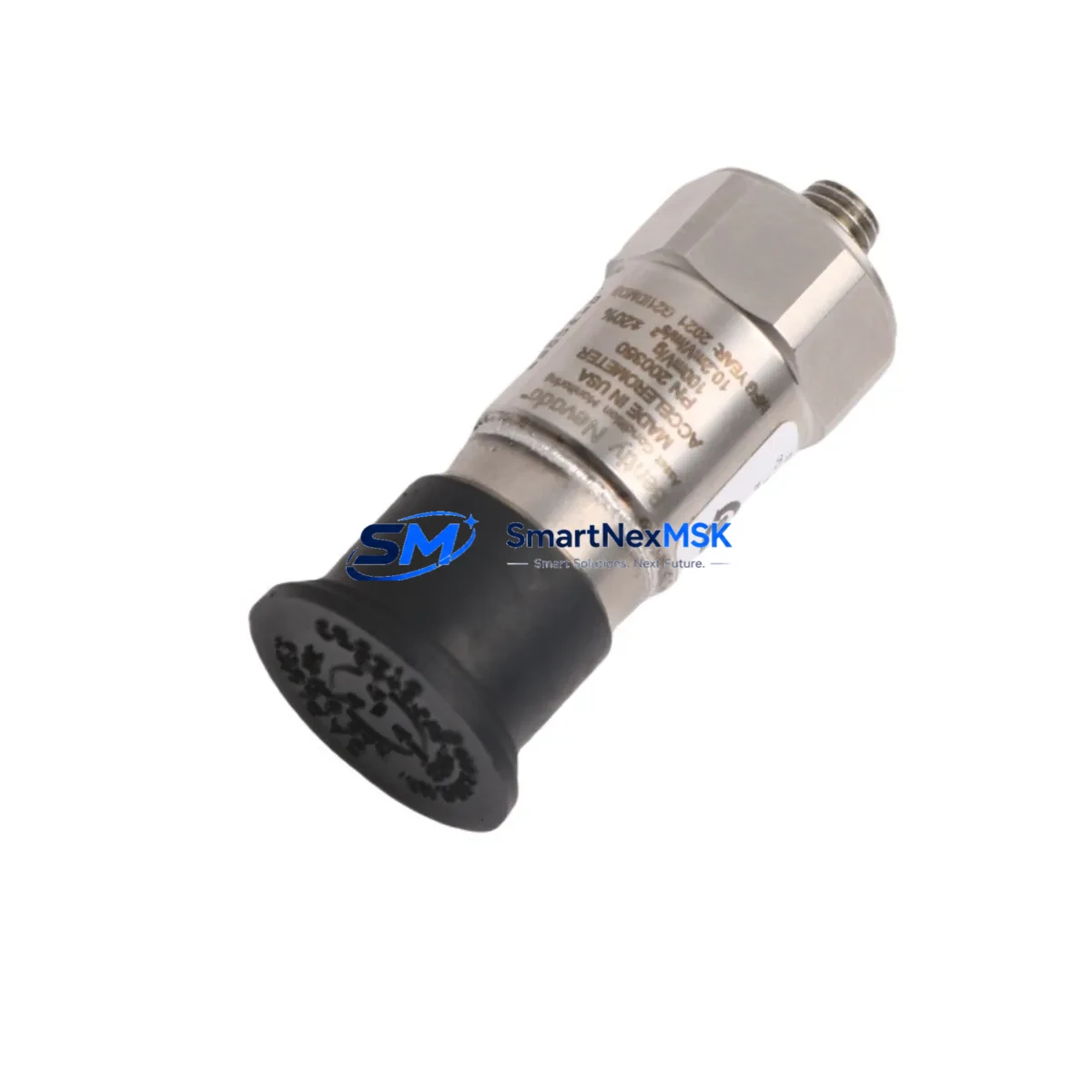

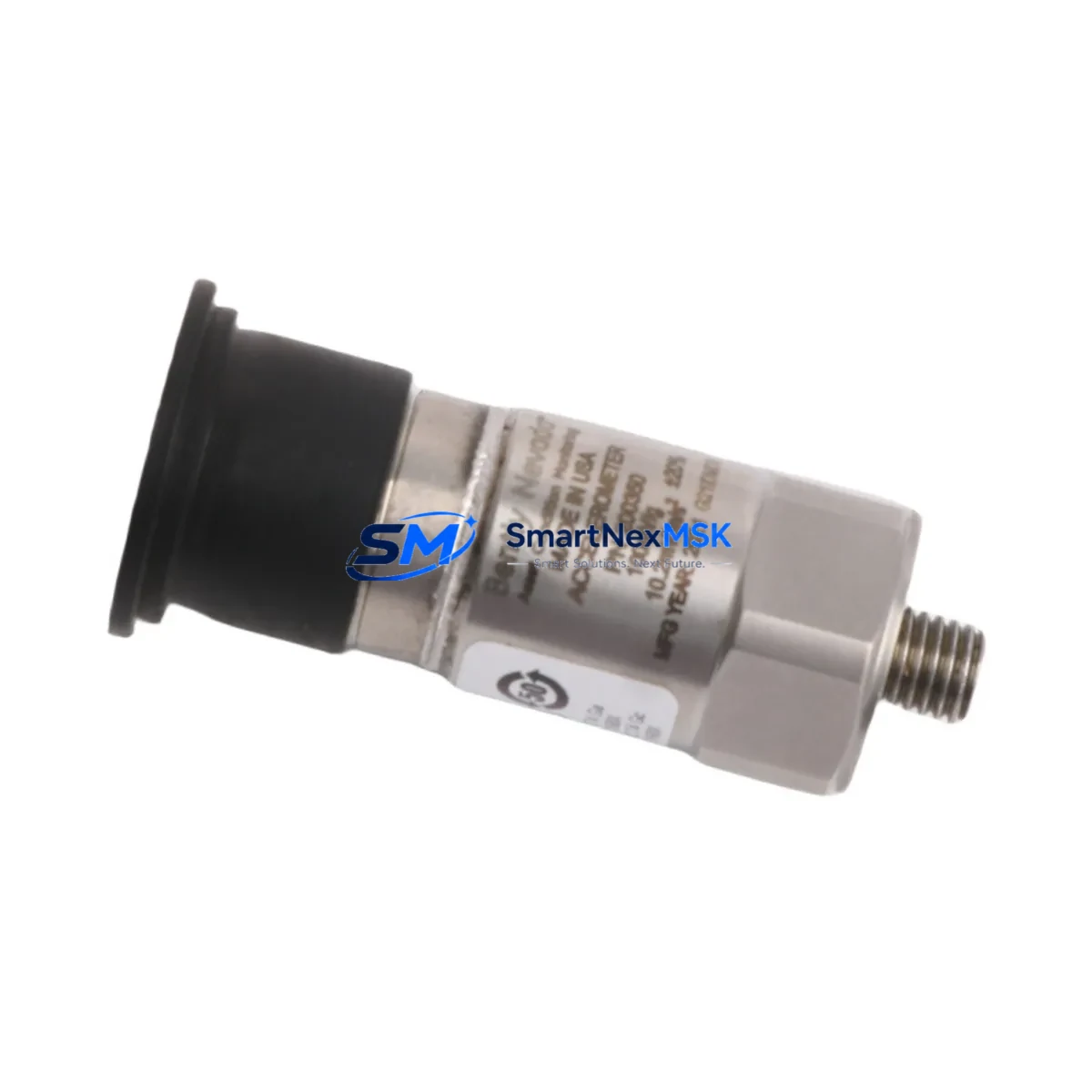

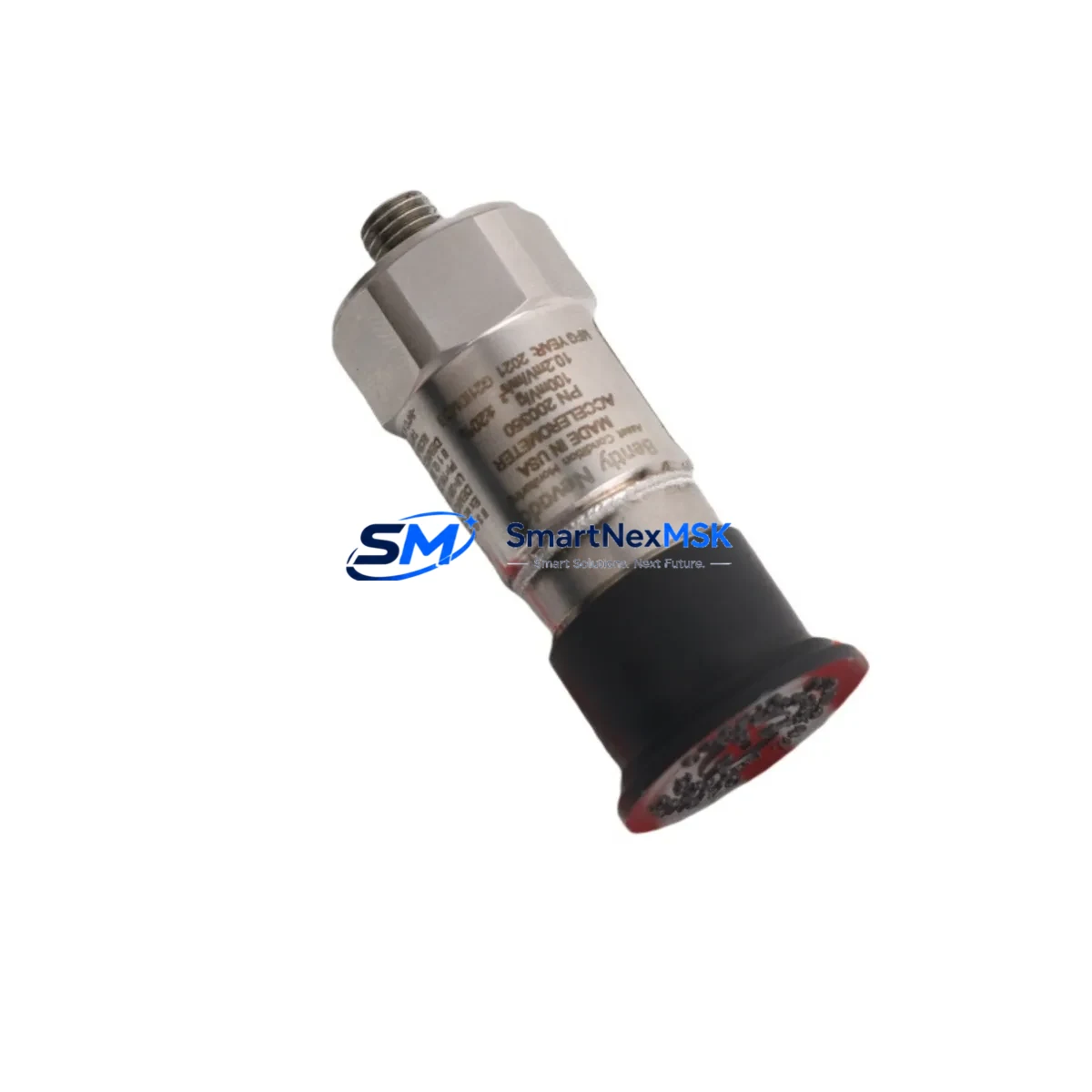

The Bently Nevada 200350-00-00-00 is a ruggedized piezoelectric vibration accelerometer engineered for continuous, safety-critical machinery protection in the most demanding industrial environments. Designed as a core sensing element within the Bently Nevada 3500 Series machinery protection system, this accelerometer delivers high-fidelity vibration signals that enable early fault detection, prevent unplanned shutdowns, and protect rotating equipment in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port machinery systems.

In high-load, high-interference production environments where control interruption carries severe safety and financial consequences, the 200350-00-00-00 provides the signal integrity and mechanical robustness required for dependable interlock and protection loop performance. Its stainless steel housing and hermetically sealed construction resist moisture ingress, chemical exposure, and mechanical shock — conditions routinely encountered in continuous process industries where sensor failure is not an option.

Safety Reliability Table

Control Cabinet Protection Strategy

The 200350-00-00-00 accelerometer does not operate in isolation — it is one element of a layered machinery protection architecture. In a properly configured control cabinet or machinery protection panel, this sensor feeds vibration data directly into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor, which processes the signal and triggers alarm or trip outputs when vibration thresholds are exceeded. The 3500 rack system, including the Bently Nevada 3500/01 Rack Interface Module and 3500/05 System Display and Reset Module, provides the backbone for centralized monitoring and operator interface.

To protect the integrity of the vibration signal from electromagnetic interference — a persistent challenge in variable-frequency drive environments and high-current switchgear rooms — the accelerometer’s output cable should be routed separately from power conductors and shielded using appropriate cable management. Pairing the 200350-00-00-00 with a Bently Nevada 330130 Proximitor® Sensor on the same shaft allows simultaneous radial vibration and axial position monitoring, providing a comprehensive view of rotor dynamics without adding complexity to the protection logic.

For power supply stability within the protection panel, a dedicated Bently Nevada 3500/15 Power Supply Module ensures that voltage fluctuations and transient surges on the plant bus do not propagate into the monitoring system. Surge protection devices installed at the panel entry point further reduce the risk of transient-induced module malfunction. In safety instrumented system (SIS) architectures, the vibration trip signal from the 3500 monitor is typically hardwired to a Pilz PNOZ safety relay or equivalent SIL 2-rated logic solver, ensuring that a confirmed high-vibration condition results in a controlled, safe machine shutdown without relying on the DCS communication path.

Communication between the 3500 rack and the plant DCS is commonly handled via Bently Nevada System 1® software over Modbus TCP or OPC DA/UA, allowing condition monitoring data to be integrated into the plant historian and alarm management system. Where Profibus DP is the plant standard, a Bently Nevada 3500/92 Communication Gateway Module provides the necessary protocol conversion. Maintaining a spare 200350-00-00-00 accelerometer alongside a spare 3500/42M monitor card in the site warehouse is a recognized best practice for minimizing mean time to repair (MTTR) in critical rotating equipment protection circuits.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In compressor trains, reactor feed pumps, and cooling tower fans operating under continuous duty cycles, the 200350-00-00-00 provides the early-warning vibration data needed to schedule predictive maintenance before a bearing failure escalates into a process safety event. Its resistance to hydrocarbon vapors and high ambient temperatures makes it suitable for Zone 2 classified areas when installed with appropriate conduit sealing.

Power Generation: Steam turbine and gas turbine protection systems demand sensors that maintain calibration accuracy across wide temperature swings and high-frequency mechanical noise. The 200350-00-00-00’s flat frequency response and low noise floor ensure that blade-pass frequencies and sub-synchronous instabilities are captured accurately, enabling the 3500 system to discriminate between normal operational vibration and developing faults.

Mining and Mineral Processing: Ball mills, SAG mills, and conveyor drive motors in mining operations are subject to extreme shock loading and abrasive dust environments. The hermetically sealed housing of the 200350-00-00-00 prevents contamination-induced drift, while its high shock rating ensures survival through the mechanical impacts inherent in ore processing equipment.

Water and Wastewater Treatment: High-service pumps and blower units in water treatment facilities run continuously, often unattended. Integrating the 200350-00-00-00 into the pump protection circuit allows the SCADA system to receive real-time vibration health data, enabling remote condition assessment and reducing the need for manual inspection in confined-space environments.

Metallurgy and Steel Production: Rolling mill drives, ladle transfer cars, and continuous casting equipment generate intense electromagnetic interference from large thyristor drives. The 200350-00-00-00’s robust signal conditioning and shielded cable options maintain signal integrity in these high-EMI environments, ensuring that the protection system receives clean, actionable vibration data rather than noise-corrupted readings that could cause nuisance trips or, worse, mask genuine fault signatures.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 200350-00-00-00?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional anomalies that arise under normal operating conditions. If the unit fails to meet its published sensitivity or frequency response specifications within the warranty period, we will provide a replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 200350-00-00-00 accelerometer undergoes functional verification prior to shipment, including sensitivity check at reference frequency (typically 159.2 Hz), insulation resistance test, and visual inspection for housing integrity and connector condition. A test report is available upon request for units destined for SIL-rated protection loops.

Q3: Is the 200350-00-00-00 a direct drop-in replacement for existing 3500 Series installations?
Yes. The 200350-00-00-00 is designed as a direct replacement for compatible Bently Nevada 3500 Series seismic channel inputs. It uses the standard 2-pin MIL-spec connector and is electrically compatible with the 3500/42M and 3500/45 monitor cards without requiring reconfiguration of the rack or software parameters. Always verify the cable length and mounting thread specification against your existing installation before ordering.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
We maintain standing inventory of the 200350-00-00-00 and can support blanket purchase orders for customers with critical spare parts programs. Lead times for in-stock units are typically 3–7 business days for international shipments. For customers requiring guaranteed availability, we recommend establishing a consignment or scheduled delivery arrangement to ensure continuity of supply for planned maintenance outages.
