Bently Nevada 21000-00-00-00-015-04-02 Safety Proximity Probe

Bently Nevada 21000-00-00-00-015-04-02 Safety-Enhanced Proximity Probe Housing for Harsh Industrial Sites

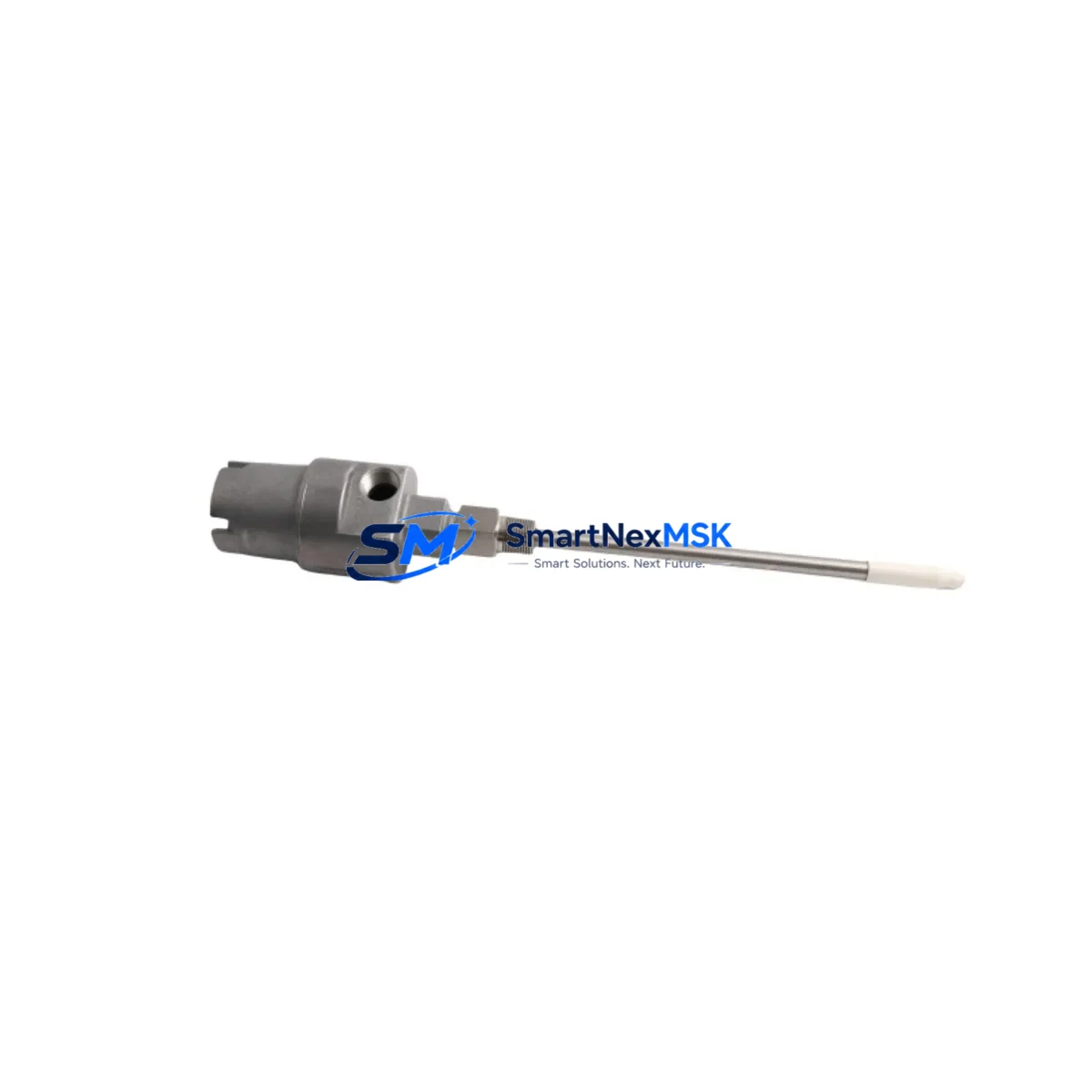

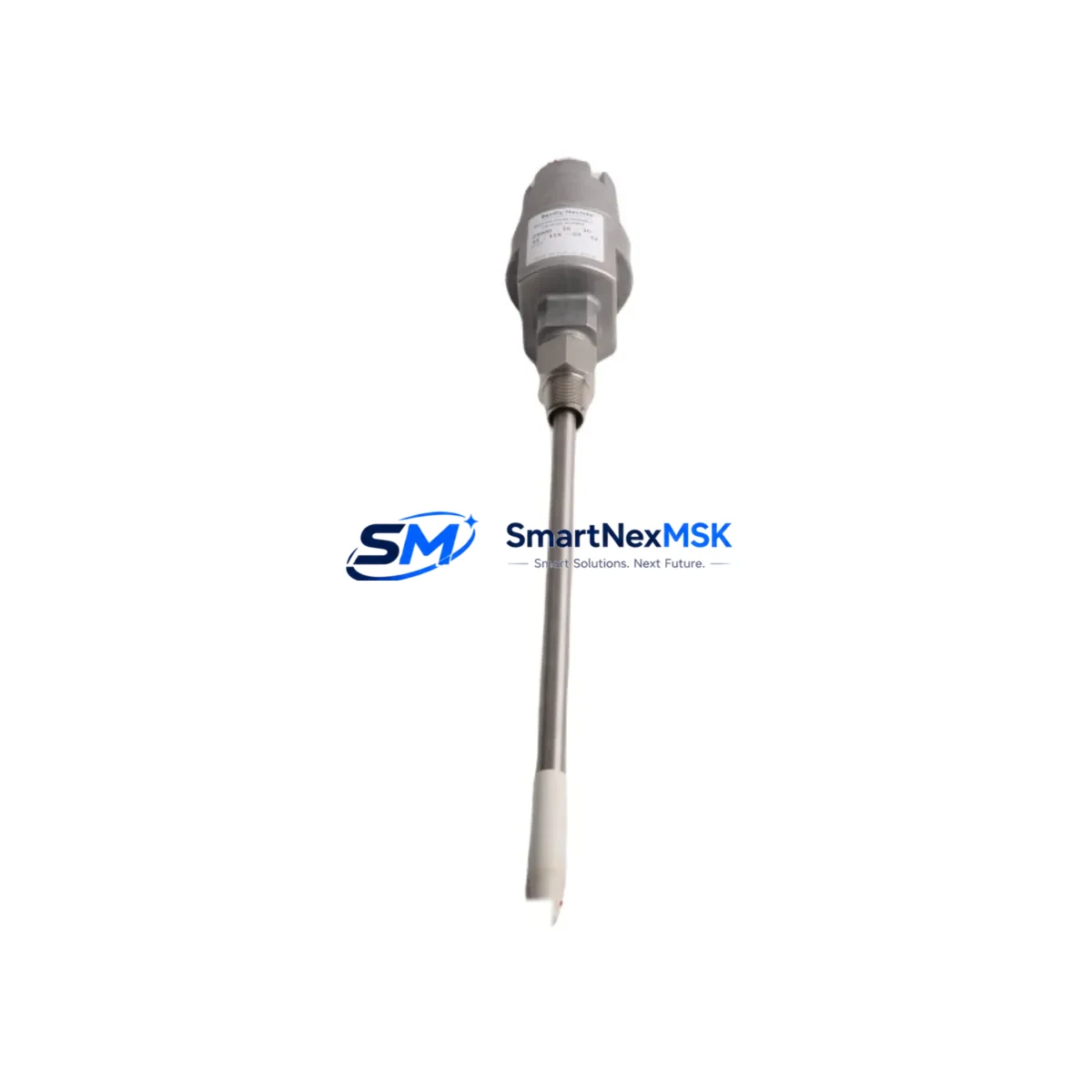

The Bently Nevada 21000-00-00-00-015-04-02 is a ruggedized proximity probe housing assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to integrate seamlessly with the Bently Nevada 3300 Series and 7200 Series proximity systems, this housing provides the mechanical and electromagnetic shielding necessary to maintain signal integrity across high-load rotating machinery, high-vibration compressor trains, and safety-instrumented control loops where measurement failure is not an option.

In petrochemical plants, power generation facilities, offshore platforms, and heavy metallurgical operations, proximity probes are the first line of defense against catastrophic rotating equipment failure. The 21000-00-00-00-015-04-02 housing protects the probe tip and cable assembly from mechanical impact, chemical exposure, and electromagnetic interference — ensuring that the eddy-current gap signal transmitted to the 3300 XL 8mm Proximitor Sensor or the 7200 Series Proximitor remains stable, drift-free, and within calibrated tolerance at all times.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe housing and extends through every component in the measurement chain. The 21000-00-00-00-015-04-02 housing is the mechanical anchor of a complete Bently Nevada proximity system. When installed correctly, it works in concert with the 3300 XL 8mm Proximitor Sensor (330180-91-00) to deliver a linear, low-noise output voltage proportional to shaft gap — a signal that feeds directly into the 3500/42M Proximitor Monitor for real-time overspeed, radial vibration, and eccentricity alarming.

In a typical turbomachinery protection cabinet, the probe housing assembly connects via the 3300 XL Extension Cable (330130-045-00-CN), which routes the signal through the control cabinet’s cable entry glands into the 3500 Rack (3500/05-01-02-00-00-01). The rack’s backplane distributes conditioned signals to the 3500/22M Transient Data Interface for waveform capture and to the 3500/32 4-Channel Relay Module for hardwired trip output to the emergency shutdown system (ESD).

To protect the entire signal chain from power-side disturbances, the control cabinet typically incorporates a Bently Nevada 3500/15 Power Supply Module with redundant input capability, ensuring that a single power feed failure does not interrupt the monitoring system. Surge protection devices installed at the cabinet entry points — such as DIN-rail-mounted transient voltage suppressors rated for the 24 VDC Proximitor supply — further reduce the risk of surge-induced module damage or false trip events.

For plants operating under IEC 61511 or ISA 84 safety integrity requirements, the proximity measurement loop anchored by the 21000-00-00-00-015-04-02 housing can be validated as part of a Safety Instrumented Function (SIF). The 3500/53 Overspeed Detection System is commonly paired in the same rack to provide a redundant, voted trip channel for high-speed machinery where a single-channel failure could result in catastrophic overspeed. Communication to the plant DCS is handled via the 3500/92 Communication Gateway Module, which supports Modbus TCP and OPC-DA protocols for integration with Emerson DeltaV, Honeywell Experion, or ABB 800xA distributed control systems.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In fluid catalytic cracking (FCC) units, ethylene compressor trains, and boiler feed pump turbines, continuous shaft vibration monitoring is mandated by API 670. The 21000-00-00-00-015-04-02 housing withstands the hydrocarbon-laden, high-humidity atmospheres of these facilities while maintaining probe alignment under thermal cycling and process vibration loads. A single undetected bearing failure in a critical compressor can result in multi-million-dollar unplanned shutdowns; this housing ensures the proximity probe remains mechanically stable and electrically shielded throughout the machinery’s service interval.

Power Generation — Steam and Gas Turbines: Steam turbine shaft monitoring in coal-fired and combined-cycle power plants demands probe housings that can tolerate sustained temperatures above 100°C and resist the ingress of steam condensate. The stainless steel construction and IP67 rating of the 21000-00-00-00-015-04-02 make it suitable for installation in turbine bearing pedestals where ambient conditions are severe. Accurate radial vibration data from this probe feeds the plant’s turbine supervisory instrumentation (TSI) system, enabling operators to trend bearing wear and schedule maintenance before a forced outage occurs.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate extreme vibration levels and expose instrumentation to abrasive dust and corrosive process fluids. The ruggedized housing design of the 21000-00-00-00-015-04-02 protects the probe from physical impact during maintenance activities and from the electromagnetic interference generated by large variable-frequency drives (VFDs) commonly used in mineral processing circuits.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blower trains in water treatment facilities require continuous condition monitoring to prevent unplanned service interruptions that could affect public health infrastructure. The corrosion-resistant housing material ensures long service life in the humid, chemically active environments typical of these facilities.

Metallurgy and Steel Production: Rolling mill drives, continuous casting machine drives, and large induction furnace cooling pumps operate in environments with intense electromagnetic fields, high ambient temperatures, and mechanical shock. The integral EMI shielding of the 21000-00-00-00-015-04-02 housing prevents signal corruption in these electrically noisy environments, ensuring that vibration alarms and trips are triggered by actual machinery events — not by electrical interference.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 21000-00-00-00-015-04-02?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions. Warranty claims are processed with priority to minimize plant downtime, and replacement units are dispatched from in-stock inventory where available.

Q2: What pre-shipment testing and inspection is performed?
Every 21000-00-00-00-015-04-02 unit undergoes a full pre-shipment inspection protocol including dimensional verification of the probe thread interface, visual inspection of the housing body and cable entry seal, and functional continuity testing of the integral cable shield. Units are individually packaged with inspection documentation to support your incoming quality control process.

Q3: Is this housing compatible with both the 3300 Series and 7200 Series Proximitor systems?
Yes. The 21000-00-00-00-015-04-02 housing is designed to the standard Bently Nevada M10 × 1 probe thread interface and is mechanically and electrically compatible with both the 3300 XL 8mm and 5mm probe families and the 7200 Series proximity system. Always verify the probe tip diameter and extension cable length against your system’s calibration records before installation.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
Yes. We maintain dedicated stock of the 21000-00-00-00-015-04-02 and related Bently Nevada proximity system components to support plant spare parts programs, scheduled turnaround (TAR) events, and emergency replacement requirements. Customers operating multiple units across a facility are encouraged to contact our sales team to discuss consignment stock arrangements and priority supply agreements that ensure zero-delay access to critical replacement parts.
