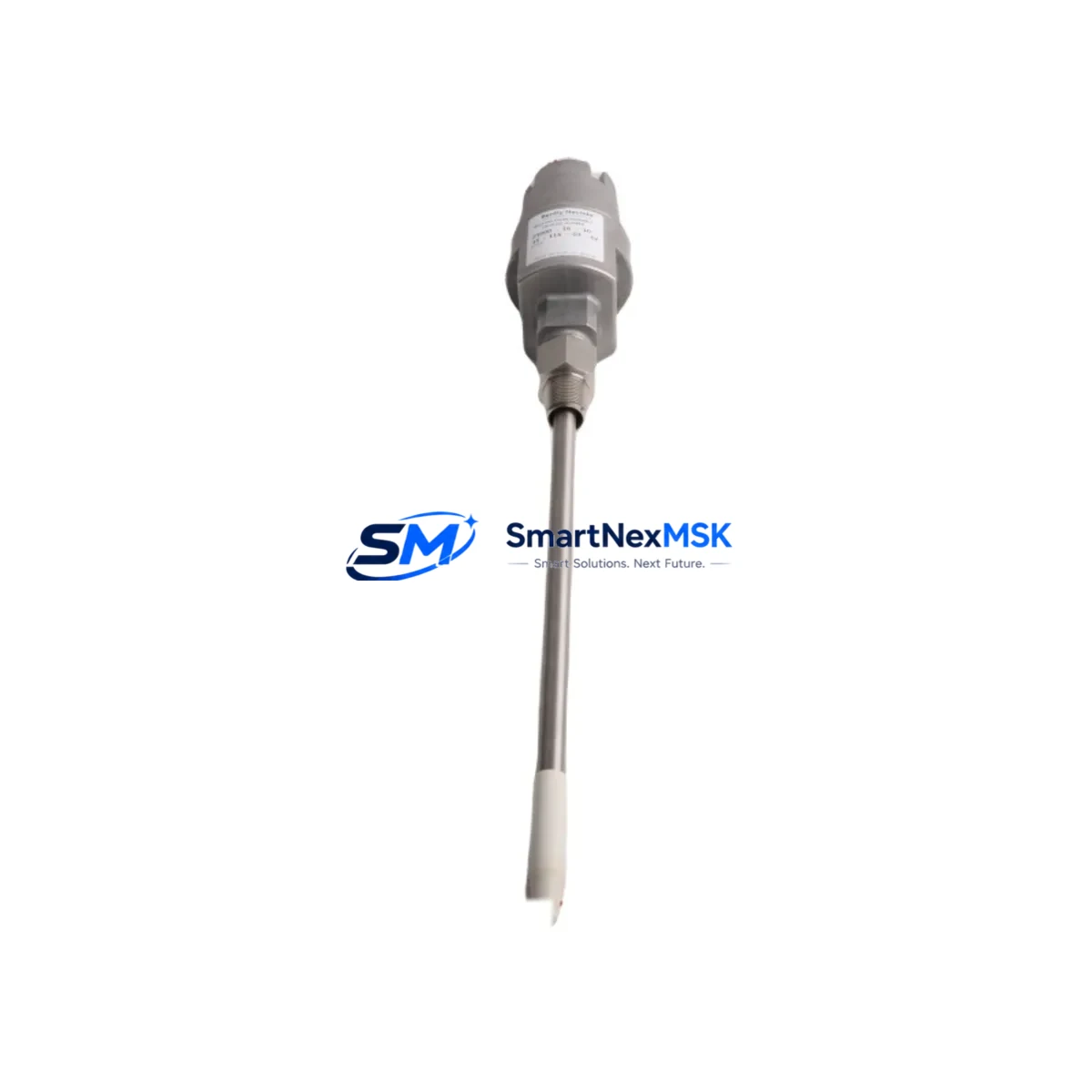

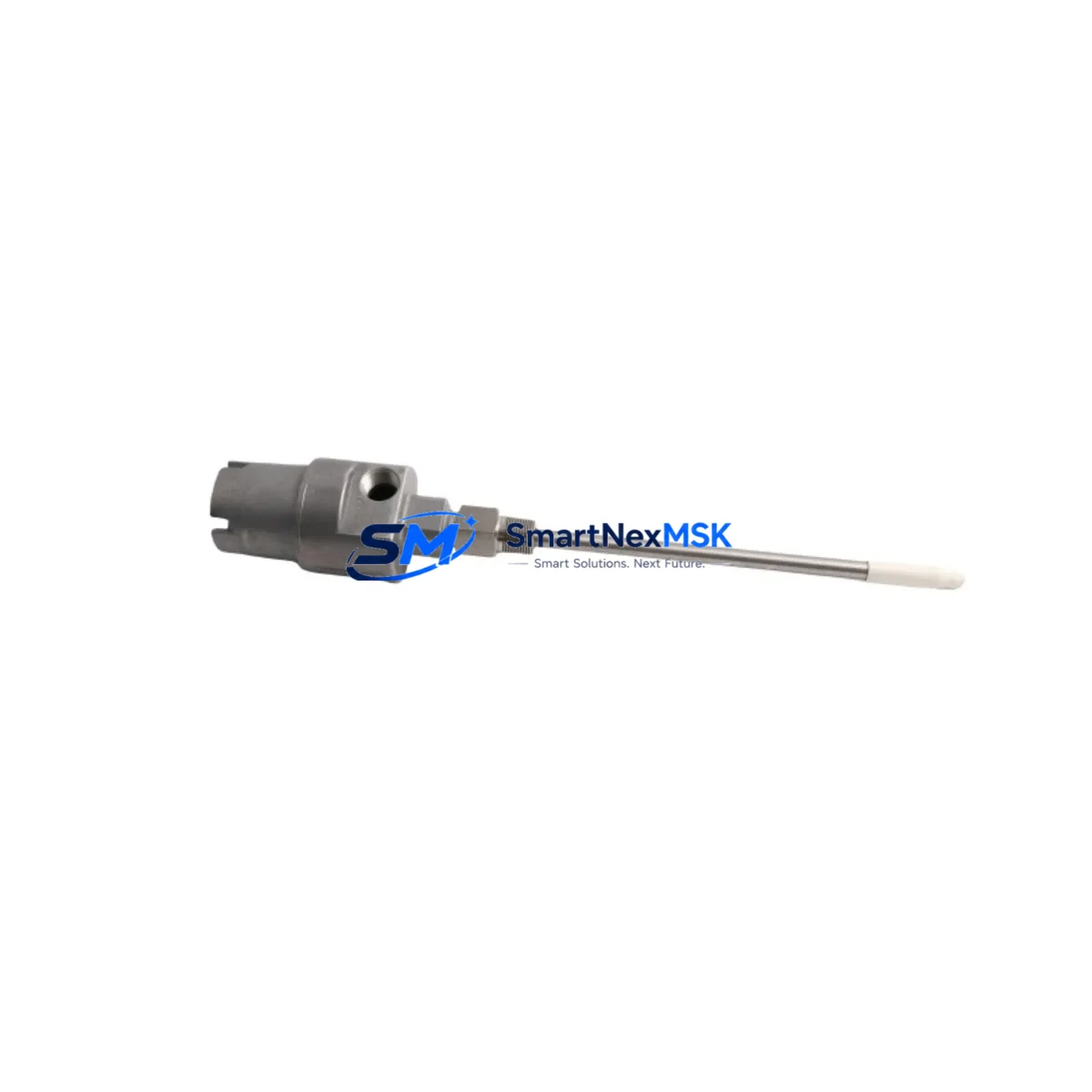

Bently Nevada 21000-00-00-00-039-03-02 Maintenance-Ready Spare for 21000 Series Automation
The Bently Nevada 21000-00-00-00-039-03-02 is an original proximity probe housing assembly engineered for continuous-duty vibration monitoring in rotating machinery protection systems. Designed as a direct maintenance spare for the 21000 Series, this component supports rapid field replacement to minimize unplanned downtime in turbine, compressor, and pump protection loops. Each unit is sourced, inspected, and dispatched with a 12-month warranty, ensuring long-term supply reliability for maintenance engineers managing aging or legacy Bently Nevada installations.
For maintenance and procurement engineers operating Bently Nevada 3500 or 7200 Series rack-based monitoring systems, the 21000-00-00-00-039-03-02 housing assembly is a critical interface component between the field probe and the signal conditioning chain. Its dimensional and electrical compatibility with the 21000 Series probe tip and extension cable assemblies makes it the preferred replacement when housing corrosion, mechanical damage, or connector wear is identified during scheduled inspections or fault isolation routines.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 21000-00-00-00-039-03-02 |
| Brand | Bently Nevada |
| Series | 21000 Series |
| Product Type | Proximity Probe Housing Assembly |
| Application | Rotating machinery vibration monitoring, shaft displacement measurement |
| Compatibility | Bently Nevada 3500 Series, 7200 Series monitoring racks; 21000 Series probe and extension cable assemblies |
| Installation Environment | Industrial plant floor, turbine hall, compressor station, pump skid |
| Connector Type | Standard Bently Nevada coaxial interface (per 21000 Series specification) |
| Origin | USA |
| Condition | Original, new spare |
| Maintenance Recommendation | Replace at first sign of housing corrosion, connector wear, or mechanical deformation; inspect during every planned outage |
| Warranty | 12 Months |
| Lead Time | In-stock; same-day or next-day dispatch available |
Maintenance Planning for Continuous Operation
When replacing the 21000-00-00-00-039-03-02 housing assembly, a thorough site inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should simultaneously verify the condition of the paired 21000 Series extension cable — cable jacket abrasion or connector oxidation at the housing junction is a common secondary fault that can cause erratic gap voltage readings even after a housing swap.
The proximitor/driver module mounted in the 3500 Series rack (such as the 3500/42M or 3500/40M position monitor) should be checked for correct bias voltage output, typically –18 VDC to –24 VDC, confirming the driver is not contributing to the fault. If the system uses a 7200 Series proximitor, inspect the proximitor enclosure for moisture ingress and verify the output cable termination at the rack input card.
At the rack level, the 3500 Series I/O module terminal blocks and field wiring should be inspected for loose terminations, especially in high-vibration environments where terminal screws can back off over time. The 3500 Series power supply module (such as the 3500/15 or 3500/20) should be load-tested to confirm stable DC rail output, as supply sag can cause false alerts on proximity channels. Fuse integrity on the power distribution rail should also be confirmed.
For systems integrated with a DCS or safety PLC via 4–20 mA or relay outputs, the signal isolator or barrier between the 3500 rack and the DCS I/O card should be tested for correct scaling and isolation resistance. Where Modbus or other serial communication is used for rack configuration, the communication module and its wiring should be inspected for continuity and correct termination resistance.
If the installation includes a Bently Nevada 3500/22M transient data interface or a System 1 condition monitoring software node, confirm that the channel configuration reflects the replacement probe’s sensitivity factor (typically 7.87 mV/µm or 200 mV/mil) to avoid miscalibrated alarm setpoints after the spare is installed. Finally, the HMI or operator workstation displaying vibration trends should be checked to confirm the channel returns to a healthy baseline after replacement, with no residual latched alarms in the monitoring rack.
Site Replacement Workflow
Replacing the 21000-00-00-00-039-03-02 in the field follows a structured sequence to minimize downtime and maintain system compatibility. Begin by isolating the affected channel at the 3500 or 7200 Series rack, placing the channel in bypass mode to prevent spurious trips during the swap. Disconnect the extension cable from the housing, noting the installed gap distance (typically 1.0 mm to 2.0 mm for standard 21000 Series probes) for re-verification after installation.
Remove the damaged housing assembly and inspect the mounting threads and sealing surfaces on the machinery casing. Install the replacement 21000-00-00-00-039-03-02 housing, torquing to the manufacturer’s specification and applying thread sealant appropriate for the process environment. Reconnect the extension cable and re-measure the gap voltage at the proximitor output, adjusting the probe position until the bias voltage falls within the linear range specified on the 3500 Series channel configuration sheet.
Once gap voltage is confirmed, remove the channel bypass and monitor the vibration reading for a minimum of 15 minutes at operating speed to confirm stable, noise-free output. Document the replacement in the site maintenance management system, recording the part number, installation date, gap voltage, and technician ID. This record supports future predictive maintenance scheduling and spare parts lifecycle planning.
For legacy systems where the 21000 Series has been superseded by newer Bently Nevada probe families, the 21000-00-00-00-039-03-02 remains the correct OEM spare to maintain system certification and avoid recalibration of the entire monitoring loop. Substituting non-OEM housings in certified machinery protection systems can invalidate the system’s functional safety rating and is not recommended.
Spare Parts Support FAQ
Q: Is the 21000-00-00-00-039-03-02 compatible with both 3500 and 7200 Series monitoring racks?
A: Yes. The 21000 Series proximity probe housing assembly is designed for use with Bently Nevada 3500 and 7200 Series rack-based monitoring systems. Compatibility depends on the paired extension cable and proximitor model; always verify the complete probe system configuration (probe + extension cable + proximitor) before installation.
Q: What is the warranty coverage and how is it validated at delivery?
A: Every 21000-00-00-00-039-03-02 unit ships with a 12-month warranty from the date of dispatch. Each unit undergoes pre-shipment inspection including dimensional verification and connector integrity testing. A test report is available upon request. Warranty claims are supported by our technical team with replacement or refund options.
Q: How quickly can this spare be dispatched for emergency maintenance situations?
A: In-stock units are available for same-day or next-business-day dispatch. For emergency downtime recovery, contact our sales team directly to confirm stock availability and arrange priority shipping. We maintain buffer stock of high-demand 21000 Series components to support unplanned outage scenarios.
Q: Can this housing be used as a long-term replacement for an end-of-life 21000 Series installation?
A: Yes. We provide long-term supply support for 21000 Series spare parts to extend the operational life of legacy Bently Nevada installations. Stocking a minimum of two to three housing assemblies per monitored machine train is recommended as part of a proactive spare parts strategy, particularly for critical rotating equipment where monitoring continuity is required for operational safety compliance.
