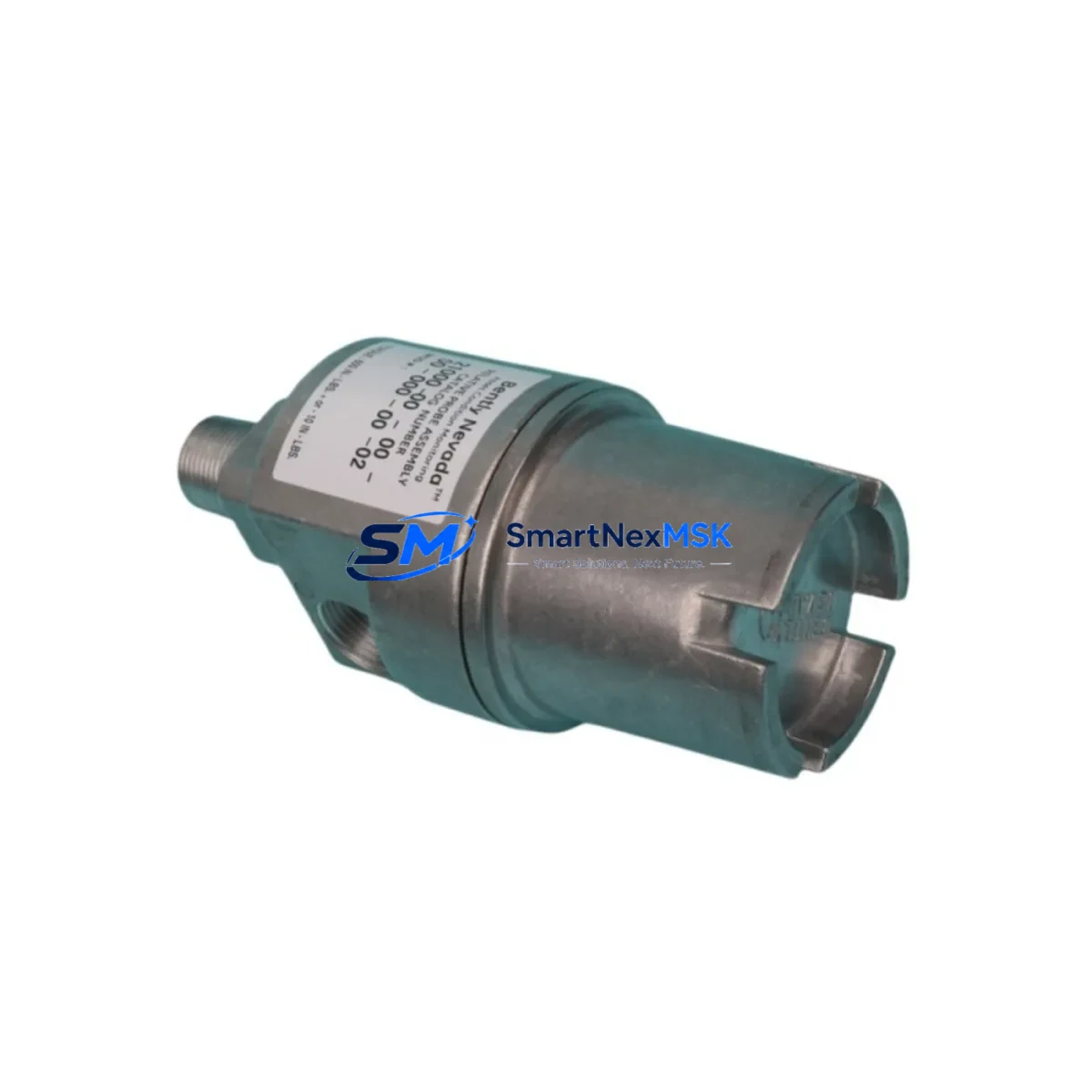

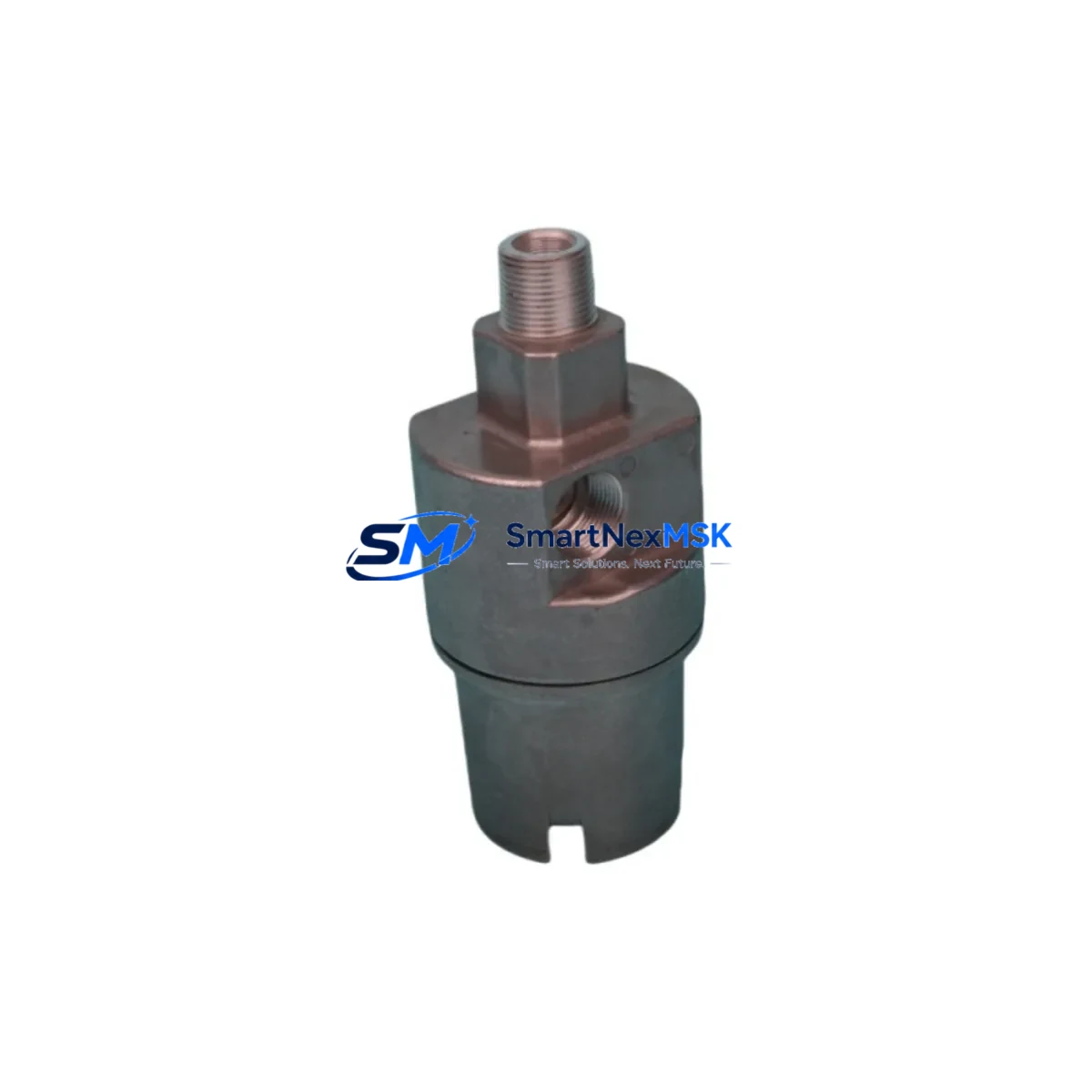

Bently Nevada 21000-00-00-00-110-04-02 Spare 21000

Bently Nevada 21000-00-00-00-110-04-02 Spare 21000: Maintenance-Ready Proximity Probe for Industrial Downtime Control

The Bently Nevada 21000-00-00-00-110-04-02 is a precision eddy-current proximity probe from the industry-proven 21000 Series, engineered for continuous vibration and position monitoring in rotating machinery across heavy industrial environments. For maintenance engineers and procurement teams managing critical rotating equipment — turbines, compressors, pumps, and motors — this probe represents a foundational spare that must be on-hand before a fault occurs, not after. Unplanned downtime in petrochemical, power generation, or metallurgical facilities can cost tens of thousands of dollars per hour; having a verified, tested replacement of the 21000-00-00-00-110-04-02 in your spare parts inventory is one of the most cost-effective risk mitigation strategies available.

This probe operates as part of the Bently Nevada 3300 XL and 21000 Series proximity transducer system, working in conjunction with the extension cable and proximitor/oscillator driver to deliver a calibrated, low-noise output signal to the monitoring system. When replacing this probe in the field, maintenance teams should treat the replacement as a full transducer system inspection — not just a probe swap. The extension cable (typically matched 21000 Series extension), the proximitor driver module, and the signal conditioning pathway all require verification to ensure the replacement probe performs within the system’s calibrated range.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for rotating machinery instrumented with the 21000-00-00-00-110-04-02 proximity probe requires a systems-level approach. The probe does not operate in isolation — it is the sensing element of a complete transducer chain. When scheduling a planned inspection or responding to a vibration alarm, maintenance engineers should simultaneously inspect the matched extension cable (Bently Nevada 330130 or equivalent 21000 Series extension), the proximitor/oscillator driver (such as the Bently Nevada 3300 XL 8mm proximitor), and the field wiring termination at the I/O terminal block of the monitoring rack.

Within the control cabinet, the 3500 Series monitoring rack — which houses the 3500/42M proximity I/O module — should be checked for secure seating, backplane connector integrity, and any indication of moisture ingress or corrosion on the terminal strips. The 3500/15 power supply module feeding the rack should be verified for stable DC output, as voltage fluctuations can cause false vibration readings that mimic probe degradation. If the facility uses a Bently Nevada 3500/22M transient data interface, its configuration should be reviewed to confirm the probe’s gap voltage and scale factor are correctly entered, preventing misdiagnosis during the replacement process.

For facilities running legacy Bently Nevada 7200 Series or 3300 Series systems alongside newer 3500 racks, the 21000-00-00-00-110-04-02 probe’s compatibility with both system generations makes it a versatile spare. However, procurement engineers should confirm the proximitor driver model — a 3300 XL 8mm proximitor is not interchangeable with a 3300 5mm driver — and ensure the replacement probe’s tip diameter and thread specification match the existing probe guide and mounting boss. Keeping a Bently Nevada 330180-51-05 or equivalent proximitor as a paired spare alongside this probe is strongly recommended for critical machinery trains.

Signal isolation between the proximity transducer output and the DCS or safety system input is another area requiring attention during replacement. If the facility uses a signal isolator or barrier (such as a Pepperl+Fuchs KFD2-series or MTL 5000-series galvanic isolator) between the Bently Nevada monitor and the DCS analog input card, the isolator’s calibration and loop resistance should be verified post-replacement. Fuse protection on the proximitor power supply circuit should also be inspected, as a blown fuse on the 24 VDC supply rail can be misidentified as a probe failure.

Site Replacement Workflow

Replacing the 21000-00-00-00-110-04-02 in the field follows a structured workflow designed to minimize downtime and eliminate re-work. Begin by documenting the existing probe’s gap voltage (typically -10.0 VDC ±0.5 VDC at the nominal gap) using the proximitor’s buffered output BNC connector and a calibrated digital multimeter. This baseline reading confirms the old probe’s final condition and provides a reference for the new probe’s commissioning check.

After de-energizing the proximitor driver — do not disconnect the probe cable while the proximitor is powered, as this can trigger a false trip in safety-instrumented systems — remove the probe from its mounting guide, noting the exact number of turns used to achieve the original gap setting. Install the replacement 21000-00-00-00-110-04-02 probe, threading it to the same approximate depth, then fine-adjust the gap using the proximitor’s buffered output until the gap voltage matches the documented baseline. Re-energize the proximitor and confirm the vibration monitor clears any Not OK status before returning the machine to service.

For old-system life extension scenarios — where the original Bently Nevada 21000 Series probes have been in service for 10+ years — a full transducer system replacement (probe, extension cable, and proximitor as a matched set) is preferable to a probe-only swap. This approach eliminates the risk of cable insulation degradation or proximitor drift contributing to measurement error after the new probe is installed. SMARTNEXMSK maintains stock of complete 21000 Series transducer sets to support this strategy, with all units tested and shipped with a 12-month warranty.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 21000-00-00-00-110-04-02?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. Each probe undergoes pre-shipment functional testing, including gap voltage verification and cable continuity checks, to confirm it meets Bently Nevada original performance specifications before leaving our facility.

Q2: How do I confirm compatibility with my existing Bently Nevada monitoring system?
The 21000-00-00-00-110-04-02 is compatible with Bently Nevada 3300 XL, 3500 Series, and legacy 7200 Series monitoring systems when paired with the correct 21000 Series extension cable and proximitor driver. Please provide your proximitor model number and existing probe tip diameter when inquiring, and our technical team will confirm the correct matched set for your application.

Q3: Can this probe replace other Bently Nevada proximity probe models?
Direct substitution depends on tip diameter, thread specification, cable length, and the proximitor driver in use. The 21000 Series uses an 8mm tip diameter. It is not a direct drop-in replacement for 5mm (3300 Series) or 11mm probes without verifying the mounting guide bore and proximitor compatibility. Contact SMARTNEXMSK with your existing part number for a confirmed cross-reference.

Q4: What is your lead time and long-term supply availability?
SMARTNEXMSK maintains dedicated inventory of Bently Nevada 21000 Series components to support both planned maintenance schedules and emergency replacement requirements. Standard orders ship within 1-3 business days. For facilities requiring long-term supply agreements or consignment stock arrangements, please contact our sales team to discuss a tailored spare parts support program.
