Bently Nevada 21000-00-00-15-030-04-02 Spare for 21000

Bently Nevada 21000-00-00-15-030-04-02 Spare for 21000 Series Automation

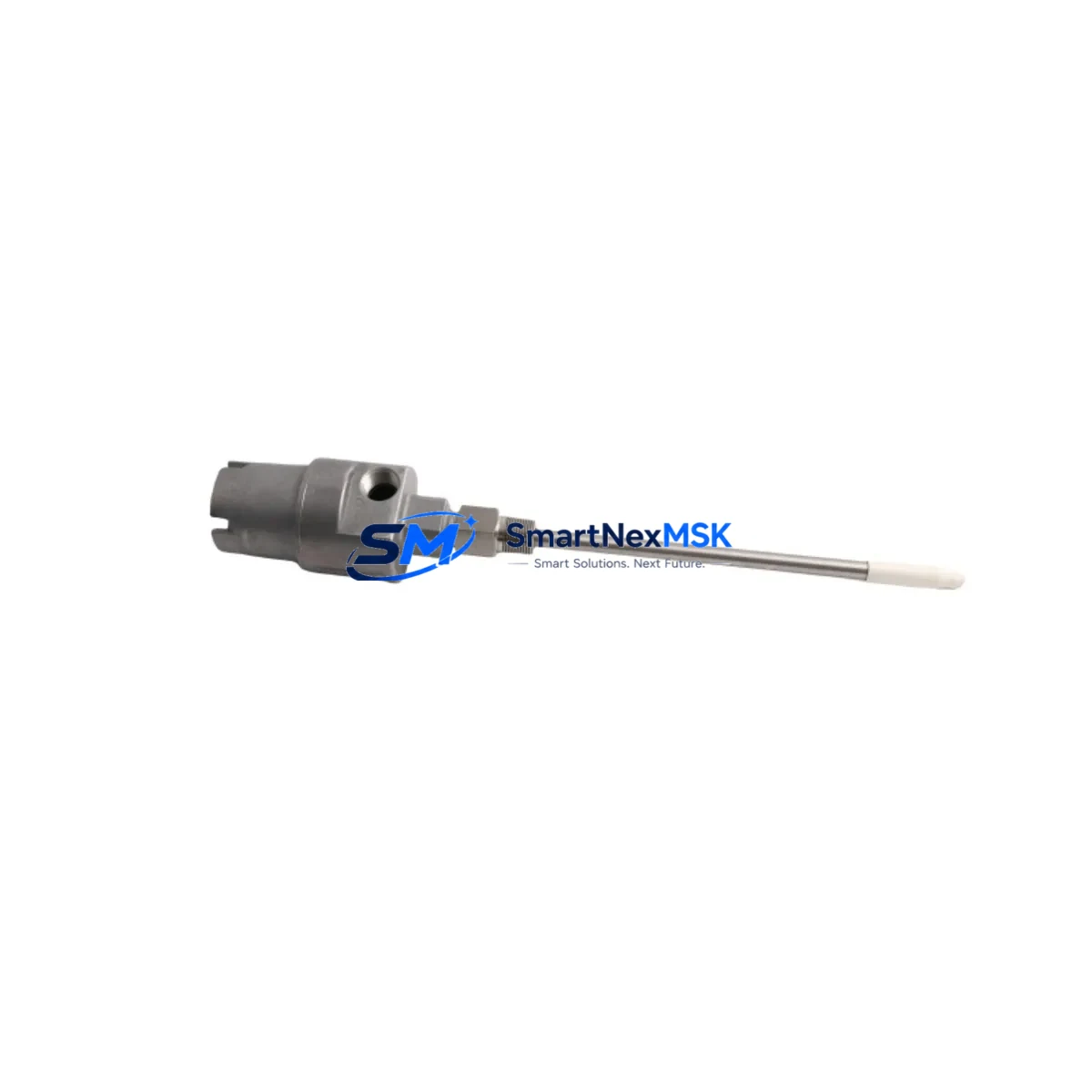

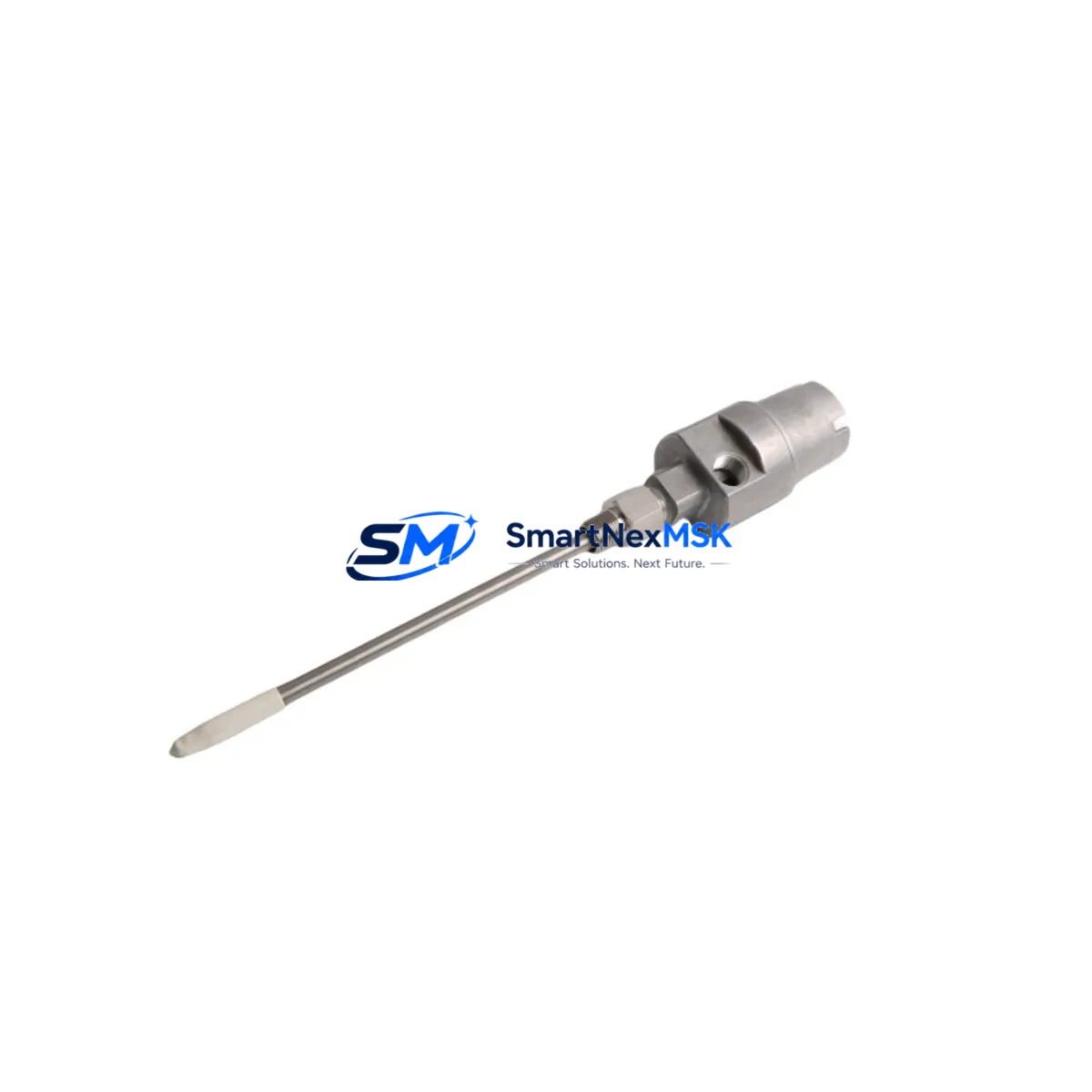

The Bently Nevada 21000-00-00-15-030-04-02 is an original proximity probe housing assembly designed for continuous vibration monitoring in rotating machinery protection systems. As a maintenance-ready spare, this component plays a critical role in preventing unplanned shutdowns across turbines, compressors, pumps, and other rotating equipment monitored by the Bently Nevada 3500 and 21000 Series platforms. Sourced from verified supply channels, each unit is inspected and tested prior to shipment, backed by a 12-month warranty, and ready for immediate site deployment.

For maintenance engineers managing rotating machinery protection panels, having a qualified replacement for the 21000-00-00-15-030-04-02 on the shelf is a fundamental element of any downtime-reduction strategy. Proximity probe housing assemblies are subject to mechanical wear, chemical exposure, and thermal cycling — all of which can degrade signal integrity over time. When a probe housing fails or drifts out of calibration tolerance, the entire vibration channel becomes unreliable, triggering false trips or — more dangerously — masking real machinery faults. Stocking this spare eliminates the lead-time risk associated with OEM procurement and keeps your protection system fully operational.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21000-00-00-15-030-04-02 housing assembly, a thorough site inspection of the surrounding measurement chain is essential to ensure the vibration channel is fully restored and no latent faults remain. Maintenance engineers should treat this replacement as an opportunity to audit the complete proximity measurement loop.

Begin by inspecting the 3500/42M Proximitor / Seismic Monitor or equivalent 3500 Series monitor card that processes the probe signal — connector pins, card seating, and channel configuration should all be verified. Check the 21000 Series extension cable (typically 5 m or 9 m) for jacket damage, connector corrosion, and continuity; a degraded cable is a common source of signal noise that is often misattributed to the probe itself. The Proximitor sensor driver (e.g., 3300 XL 8mm or 3300 XL 11mm series) should be inspected for output voltage at the standard –12 VDC bias and confirmed within the linear range for the new probe gap setting.

At the panel level, verify the 3500 Rack Power Supply (e.g., 3500/15 or 3500/05) is delivering stable DC rails; voltage sag under load can introduce measurement drift across all channels simultaneously. Inspect terminal blocks and field wiring in the junction box for loose terminations, moisture ingress, and correct shielding grounding — ungrounded shields on proximity probe cables are a frequent source of 50/60 Hz interference. If the machinery protection system interfaces with a DCS or safety PLC via 4–20 mA or relay outputs, confirm that the 3500 rack’s communication gateway module (Modbus, Profibus, or OPC) is still correctly mapped after the channel replacement.

For plants running extended machinery campaigns, also consider scheduling inspection of barrier isolators or Zener barriers used in hazardous-area installations, as these components age and can limit signal bandwidth. Spare 3500/22M Transient Data Interface modules and 3500/32 4-Channel Relay modules are worth stocking alongside the probe housing to cover the most common single-point failures in a 3500 rack. Finally, if the machinery is part of an API 670-compliant protection system, document the replacement in the site’s calibration records and re-verify the overall system trip setpoints before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the machinery per site LOTO procedures. Do not replace the probe housing on a running machine.

Step 2 — Record As-Found Gap: Before removal, record the existing probe gap voltage from the 3500 monitor front panel or DCS historian. This establishes the baseline for the new installation.

Step 3 — Remove Old Assembly: Disconnect the extension cable at the probe connector. Unthread the housing assembly carefully — avoid rotating the probe body against the target surface. Note the thread engagement depth for reference.

Step 4 — Install 21000-00-00-15-030-04-02: Thread the new housing assembly to the same engagement depth. Connect the extension cable. Apply anti-seize compound to threads if specified by the OEM installation guide.

Step 5 — Set and Verify Gap: Power the Proximitor and measure the DC output voltage. Adjust the probe gap to achieve the target voltage per the 21000 Series calibration curve (typically –10.0 VDC at nominal gap). Lock the housing with the jam nut to OEM torque specification.

Step 6 — Functional Check: Confirm the 3500 monitor channel shows a valid OK status, no alert or danger lamps are active, and the vibration reading is within expected baseline range for the machine at rest or at operating speed.

Step 7 — Documentation: Record the new as-left gap voltage, installation date, and technician ID in the site maintenance management system (CMMS). Update the spare parts inventory to reflect consumption and initiate a replenishment order to maintain minimum stock levels.

This workflow minimizes downtime, ensures system compatibility is maintained, and supports audit-ready maintenance records for API 670 and ISO 13373 compliance.

Spare Parts Support FAQ

Q1: Is the 21000-00-00-15-030-04-02 compatible with the Bently Nevada 3500 Series monitoring rack?
Yes. The 21000 Series proximity probe system — including this housing assembly — is designed to interface directly with the Bently Nevada 3500 Series machinery protection rack. The Proximitor sensor, extension cable, and monitor card must all be matched to the same probe series and gap range. Always verify the complete measurement chain (probe + extension cable + Proximitor driver) is from the same compatible family before installation.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Each 21000-00-00-15-030-04-02 unit undergoes electrical continuity verification, visual inspection for mechanical damage, and connector integrity checks prior to shipment. The 12-month warranty covers manufacturing defects and component failure under normal operating conditions. It does not cover damage resulting from incorrect installation, over-torquing, chemical exposure beyond rated limits, or use outside the specified operating environment.

Q3: How should I manage inventory levels for this spare to avoid unplanned downtime?
For critical rotating machinery (turbines, compressors, large pumps), industry best practice recommends maintaining a minimum of one spare probe housing assembly per monitored machine, with an additional buffer unit at the plant warehouse. Given typical probe service intervals of 2–4 years and the risk of extended OEM lead times, holding 2–3 units on the shelf is a cost-effective insurance against unplanned outages. Review consumption history annually and adjust par levels based on fleet size and criticality classification.

Q4: Can this part replace older or discontinued Bently Nevada proximity probe housing models?
The 21000-00-00-15-030-04-02 is a current-production part within the 21000 Series. For legacy installations using earlier Bently Nevada probe housings with the same thread specification and gap range, dimensional compatibility should be verified against the OEM installation drawing before substitution. Contact our technical team with your existing part number and installation drawing reference — we can confirm fit and function before you commit to the replacement.
