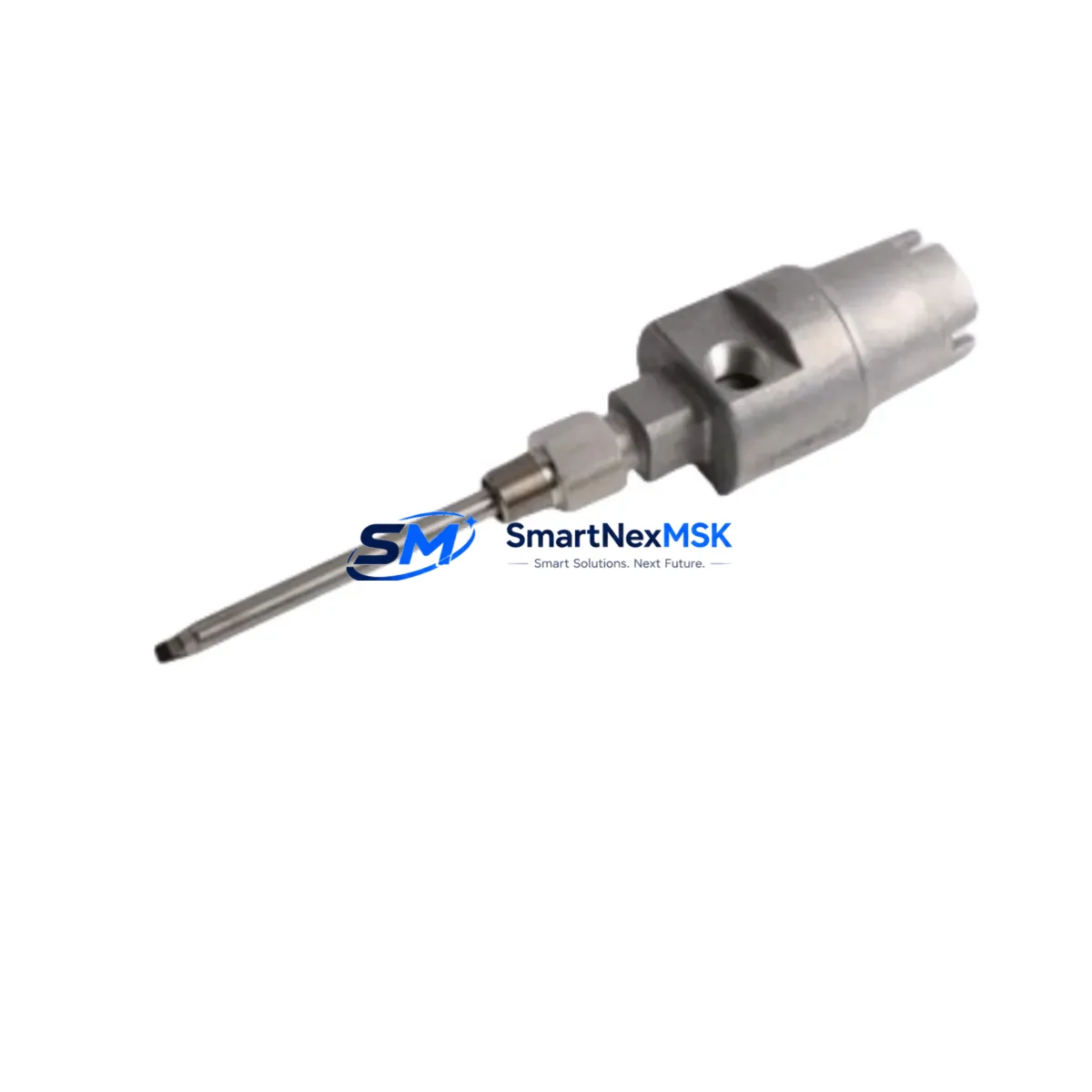

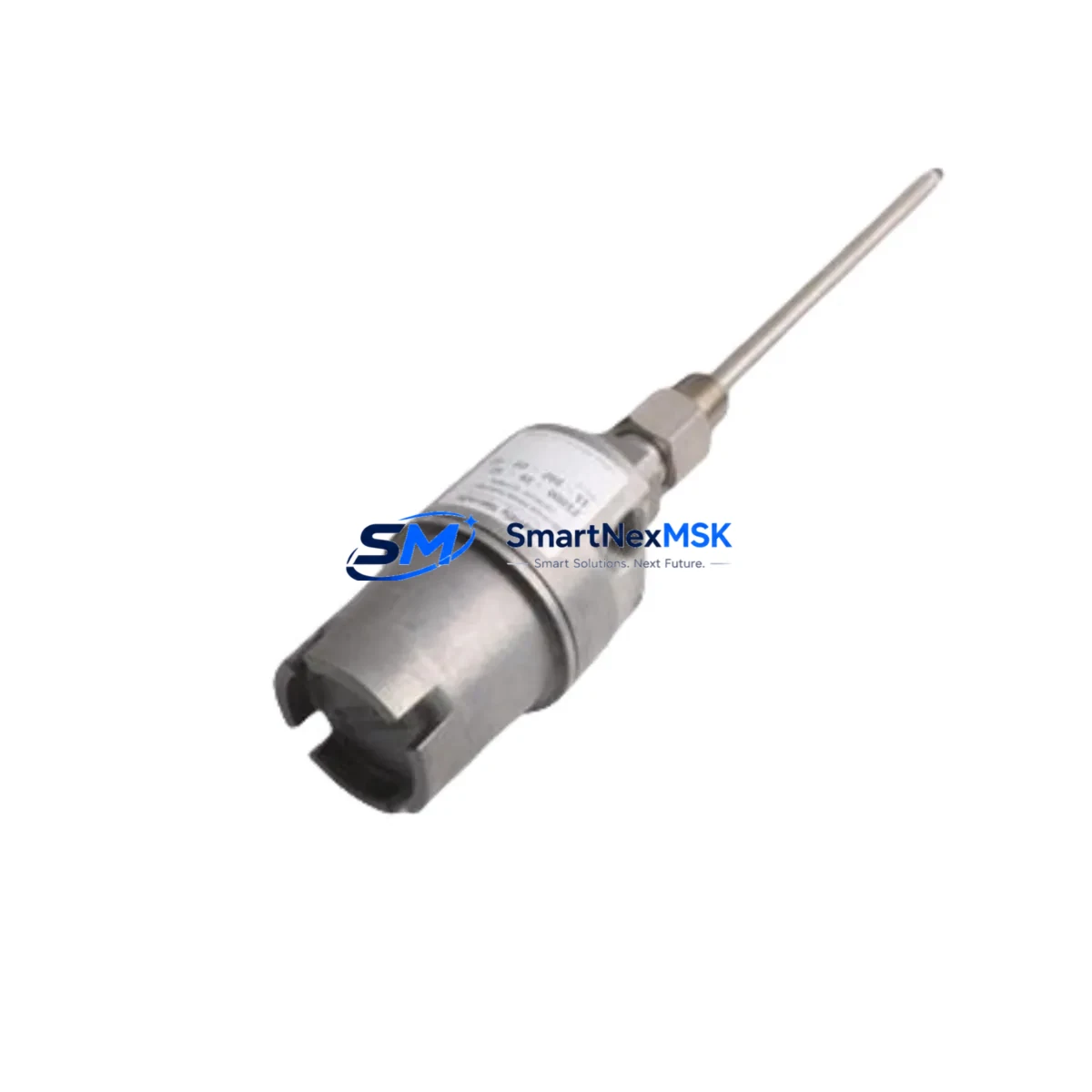

Bently Nevada 21000-16-05-00-019-03-02 Safety-Enhanced Proximity Probe Housing

Bently Nevada 21000-16-05-00-019-03-02 Safety-Enhanced Proximity Probe Housing for Harsh Industrial Sites

The Bently Nevada 21000-16-05-00-019-03-02 is a ruggedized proximity probe housing assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to integrate seamlessly with the Bently Nevada 3300 XL Series machinery protection system, this housing provides the mechanical and environmental shielding necessary to maintain signal integrity and measurement accuracy across high-load, high-interference, and hazardous-area installations.

In rotating machinery protection — whether applied to steam turbines, compressors, pumps, or gearboxes — the physical integrity of the probe housing is the first line of defense against signal drift, false trips, and undetected mechanical faults. The 21000-16-05-00-019-03-02 housing is constructed to withstand vibration, thermal cycling, chemical exposure, and mechanical shock, ensuring that the eddy-current sensing element within maintains its calibrated gap and output linearity over extended service intervals. This directly reduces the risk of nuisance shutdowns caused by probe displacement and eliminates the measurement uncertainty that can mask developing bearing failures or shaft instability.

In petrochemical plants and refinery compressor trains, where continuous operation is non-negotiable and unplanned downtime carries severe safety and financial consequences, the mechanical robustness of this housing supports the reliability of the entire vibration monitoring loop. The housing threads and locking features are precision-machined to maintain probe positioning under sustained vibration loads, preventing the axial drift that would otherwise introduce DC offset errors into the Bently Nevada 3300 XL 8-mm Proximity Transducer System signal chain.

Safety Reliability Table

Control Cabinet Protection Strategy

The 21000-16-05-00-019-03-02 housing operates as part of a layered machinery protection architecture. In a typical critical machinery control cabinet, the probe housing anchors the field-side sensing element, while the Bently Nevada 3300/16-05-01-01-00-00-00 Proximitor Sensor converts the eddy-current signal into a conditioned voltage output for the monitoring system. This signal is then processed by the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which provides the relay outputs and 4–20 mA analog signals used by the plant DCS or safety instrumented system (SIS).

To protect the integrity of the monitoring loop against power-side disturbances, the 3500 rack is typically powered through a Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to all monitor cards. Surge protection at the field cable entry points — using DIN-rail mounted surge arrestors compatible with the 3500 I/O terminal blocks — prevents transient overvoltages from damaging the Proximitor input circuits or corrupting the vibration signal baseline.

In installations where the machinery protection system must interface with a Rockwell Automation ControlLogix or Siemens S7-400H safety PLC, the 3500 system’s communication gateway — such as the Bently Nevada 3500/92 Communication Gateway Module — provides Modbus TCP or OPC DA connectivity, allowing real-time vibration data to be integrated into the plant-wide safety interlock logic without introducing latency that could delay a protective trip. The Bently Nevada 3500/22M Transient Data Interface further supports waveform capture for post-event analysis, enabling maintenance teams to distinguish between electrical interference artifacts and genuine mechanical fault signatures.

For installations in classified hazardous areas (Zone 1 or Zone 2 per IEC 60079), the probe housing and associated cabling are routed through Pepperl+Fuchs Zener barrier or galvanic isolator assemblies to maintain intrinsic safety compliance, ensuring that the vibration monitoring loop does not become an ignition source in the presence of flammable atmospheres.

Critical Industrial Safety Applications

The Bently Nevada 21000-16-05-00-019-03-02 proximity probe housing is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery applications, this housing protects the proximity probe on centrifugal compressors and expanders operating in hydrogen, ethylene, or hydrocarbon service — machines where a bearing failure without early warning can escalate to a catastrophic release. The housing’s corrosion-resistant construction withstands the aggressive chemical atmospheres present in these facilities.

In power generation plants — both thermal and combined-cycle — the housing is used on steam turbine shaft vibration monitoring points, where API 670 compliance mandates redundant proximity probe pairs. The mechanical stability of the 21000-16-05-00-019-03-02 housing ensures that both probes in a redundant pair maintain their calibrated gap, preventing false differential readings that could trigger spurious turbine trips.

In mining and mineral processing operations, large ball mills, SAG mills, and crusher drives are monitored using proximity probes housed in assemblies like the 21000-16-05-00-019-03-02, where the housing must resist dust ingress, high-amplitude structural vibration, and frequent wash-down cycles. Reliable vibration data from these machines allows maintenance teams to schedule bearing replacements during planned shutdowns rather than responding to emergency failures.

In water and wastewater treatment facilities, large pump trains and blower units in continuous service benefit from proximity-based shaft monitoring, where the ruggedized housing ensures measurement continuity in humid, chemically aggressive environments. In metallurgical and steel plant applications, the housing withstands the high-temperature radiant heat and electromagnetic interference generated by arc furnaces and rolling mill drives, maintaining signal quality in environments that would degrade standard sensor assemblies.

Safety and Quality FAQ

Q1: What warranty coverage applies to the 21000-16-05-00-019-03-02?
This unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement or repair at no additional cost.

Q2: What pre-shipment testing is performed on this housing assembly?
Every unit undergoes a full dimensional inspection to verify thread pitch, probe seating depth, and locknut torque specification compliance. Functional compatibility with the 3300 XL 8-mm Proximitor system is verified prior to dispatch. Units are individually packaged to prevent transit damage.

Q3: Is this housing compatible with all Bently Nevada 3300 XL 8-mm proximity probe systems?
Yes. The 21000-16-05-00-019-03-02 is designed for the Bently Nevada 3300 XL 8-mm transducer family. It is compatible with standard 3300 XL Proximitor sensors and extension cables. For non-standard probe configurations or alternative thread specifications, please contact our technical team before ordering.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
Yes. We maintain standing inventory of the 21000-16-05-00-019-03-02 to support planned maintenance programs, insurance spare strategies, and emergency replacement requirements. Multi-unit orders for spare parts kitting are accommodated, and lead time commitments are provided at the time of order confirmation.
