Bently Nevada 21000-16-05-00-066-04-02 3300 XL Spare: Precision Replacement for Vibration Monitoring Systems

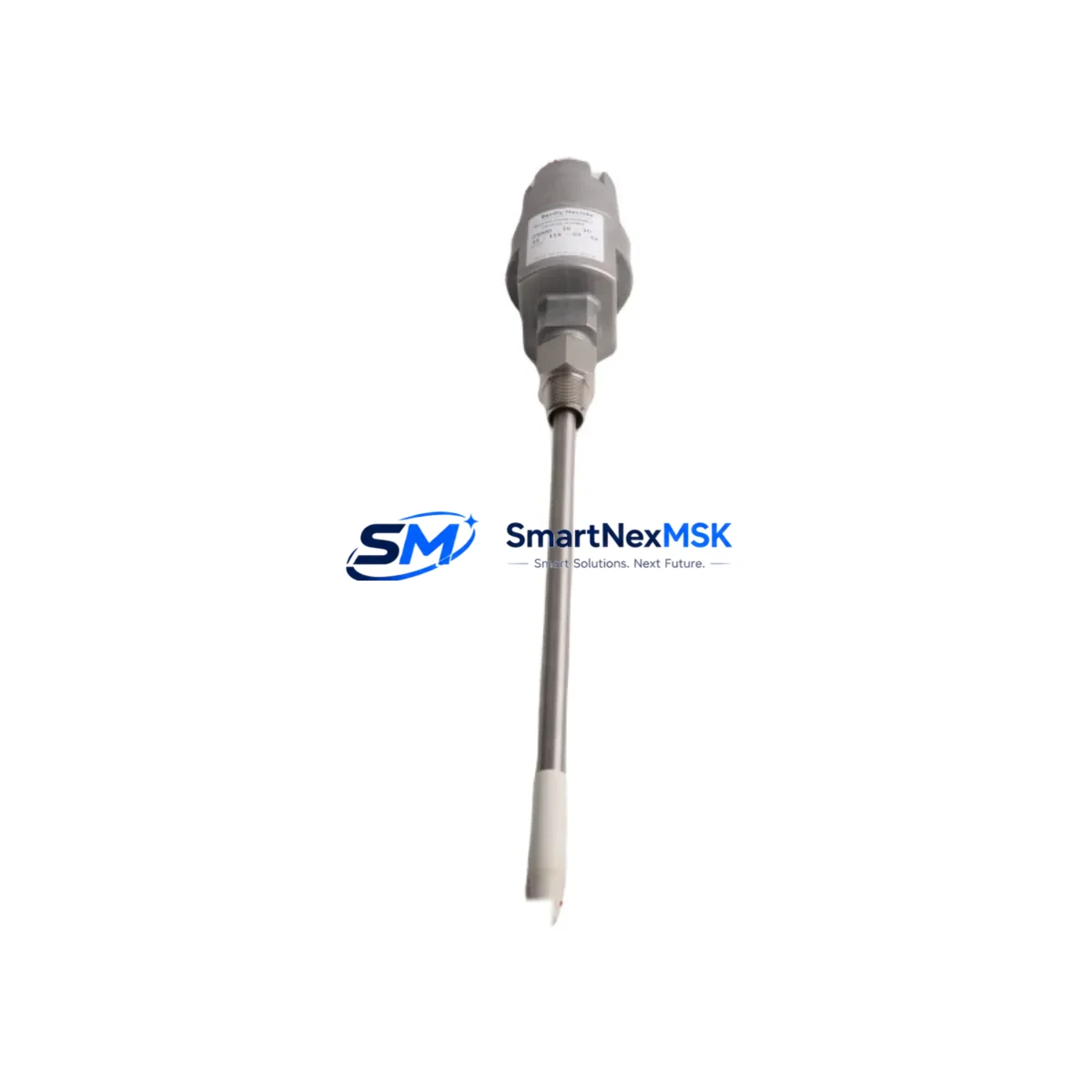

The Bently Nevada 21000-16-05-00-066-04-02 is an original proximity probe housing assembly engineered for the 3300 XL Series continuous vibration monitoring platform. Designed to meet the exacting demands of rotating machinery protection in oil & gas, power generation, petrochemical, and heavy industrial environments, this spare part enables maintenance teams to restore full system functionality with minimal downtime. Whether you are executing a planned turnaround, responding to an unplanned trip, or building a critical spare inventory, the 21000-16-05-00-066-04-02 delivers the dimensional accuracy, material integrity, and signal-path reliability that the 3300 XL system demands.

Sourced directly from authorized supply channels, each unit undergoes pre-shipment functional verification. All items are shipped with a 12-month warranty covering manufacturing defects and performance conformance. SMARTNEXMSK maintains ready stock to support emergency dispatch and scheduled maintenance windows alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a proximity probe housing assembly such as the 21000-16-05-00-066-04-02 is flagged for replacement — whether due to physical damage, signal drift, or scheduled life-cycle renewal — a disciplined maintenance engineer will treat the replacement as an opportunity to audit the entire vibration measurement loop. The 3300 XL system is a tightly integrated architecture, and a fault in one component often masks or accelerates degradation in adjacent parts.

Begin with the 3300 XL Proximitor/Driver module (e.g., 330180 or 330130 series). Verify output voltage at the proximitor terminal and confirm the gap voltage is within the linear range for the replacement probe. A worn or contaminated proximitor can produce erratic readings even with a new probe installed. Next, inspect the extension cable assembly — typically an armored coaxial cable matched to the probe’s system length — for jacket abrasion, connector corrosion, or impedance mismatch that would corrupt the eddy-current signal.

At the monitor rack level, check the 3300/16 or 3300/20 vibration monitor card for alarm setpoint integrity and channel configuration. Confirm that the OK relay output and the buffered output BNC are functioning correctly. If the plant uses a 3500 Series rack alongside legacy 3300 XL hardware, verify that any shared power distribution or common-ground paths have not introduced noise into the measurement circuit.

Inspect the terminal block and field wiring at the junction box. Loose terminations, moisture ingress, or incorrect shielding grounding are frequent root causes of intermittent vibration alarms that are incorrectly attributed to probe failure. While the cabinet is open, check the 24 VDC or 18–30 VDC power supply module feeding the proximitor — voltage ripple or sag under load can shift the gap voltage baseline and trigger nuisance trips.

For plants running condition monitoring software such as System 1 or a third-party DCS historian, confirm that the communication interface module (Modbus, FOUNDATION Fieldbus, or 4–20 mA output card) is correctly mapped to the replaced channel. A channel number shift or tag reassignment after probe replacement is a common commissioning oversight that delays return-to-service.

Finally, if the machinery is a critical asset with long mean-time-between-maintenance intervals, consider stocking a matched set: probe housing, extension cable, and proximitor as a single spare kit. Pairing the 21000-16-05-00-066-04-02 with its corresponding 330130-045-00-00 or 330180-X1-05 proximitor and a 330130 extension cable ensures that any field technician can execute a complete loop replacement without waiting for additional parts — a strategy that directly reduces mean-time-to-repair (MTTR) on critical rotating equipment.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the measurement channel at the 3300 XL monitor. Place the channel in bypass mode to prevent spurious trips during probe removal. Do not de-energize the proximitor unless required by site safety procedures, as a powered gap check during installation confirms correct probe positioning.

Step 2 — Gap Measurement and Removal: Record the existing gap voltage before removal. This baseline confirms whether the original probe had drifted from its calibrated gap. Remove the probe housing by unscrewing from the bracket, taking care not to damage the extension cable connector.

Step 3 — Installation of 21000-16-05-00-066-04-02: Thread the replacement housing into the bracket and adjust to achieve the target gap voltage specified on the system drawing (typically –10 VDC ±0.5 V for standard 3300 XL configurations). Torque to the bracket manufacturer’s specification. Reconnect the extension cable and verify connector seating.

Step 4 — Loop Verification: With the proximitor powered, confirm gap voltage, OK status, and buffered output signal at the monitor. Check that the vibration reading is within the expected baseline for the machine at rest or at operating speed. Remove the channel bypass and confirm alarm and trip setpoints are active.

Step 5 — Documentation: Record the replacement in the maintenance management system (CMMS), noting the new part number, installation date, gap voltage, and technician ID. Update the spare parts inventory to trigger reorder of the consumed 21000-16-05-00-066-04-02 unit, maintaining minimum stock levels for continuous protection.

Spare Parts Support FAQ

Q1: Is the 21000-16-05-00-066-04-02 compatible with both 3300/16 and 3300/20 monitor cards?
Yes. The 21000-16-05-00-066-04-02 proximity probe housing is designed for the 3300 XL transducer system, which is compatible with the full range of 3300 XL monitor cards including the 3300/16 and 3300/20 series. Always verify the system length (probe + extension cable) matches the proximitor configuration specified in your system drawing.

Q2: What is the recommended spare inventory strategy for critical rotating machinery?
For assets classified as critical (no installed spare, direct production impact), maintain a minimum of one complete measurement loop in stock: probe housing, matched extension cable, and proximitor. For semi-critical assets, a shared pool of probe housings by system length is typically sufficient. SMARTNEXMSK can support blanket order arrangements for multi-site maintenance programs.

Q3: How is each unit tested before shipment?
Every 21000-16-05-00-066-04-02 unit undergoes pre-shipment functional verification including dimensional inspection and, where applicable, electrical continuity and impedance checks consistent with Bently Nevada 3300 XL system specifications. A 12-month warranty covers manufacturing defects and performance conformance from the date of shipment.

Q4: Can this part replace older or discontinued Bently Nevada proximity probe housings?
The 21000-16-05-00-066-04-02 is the current Bently Nevada part number for this housing configuration. If you are replacing an older assembly with a different suffix or a legacy part number, contact SMARTNEXMSK with your existing part number and system drawing reference. Our technical team will confirm cross-compatibility before shipment to avoid installation issues.
