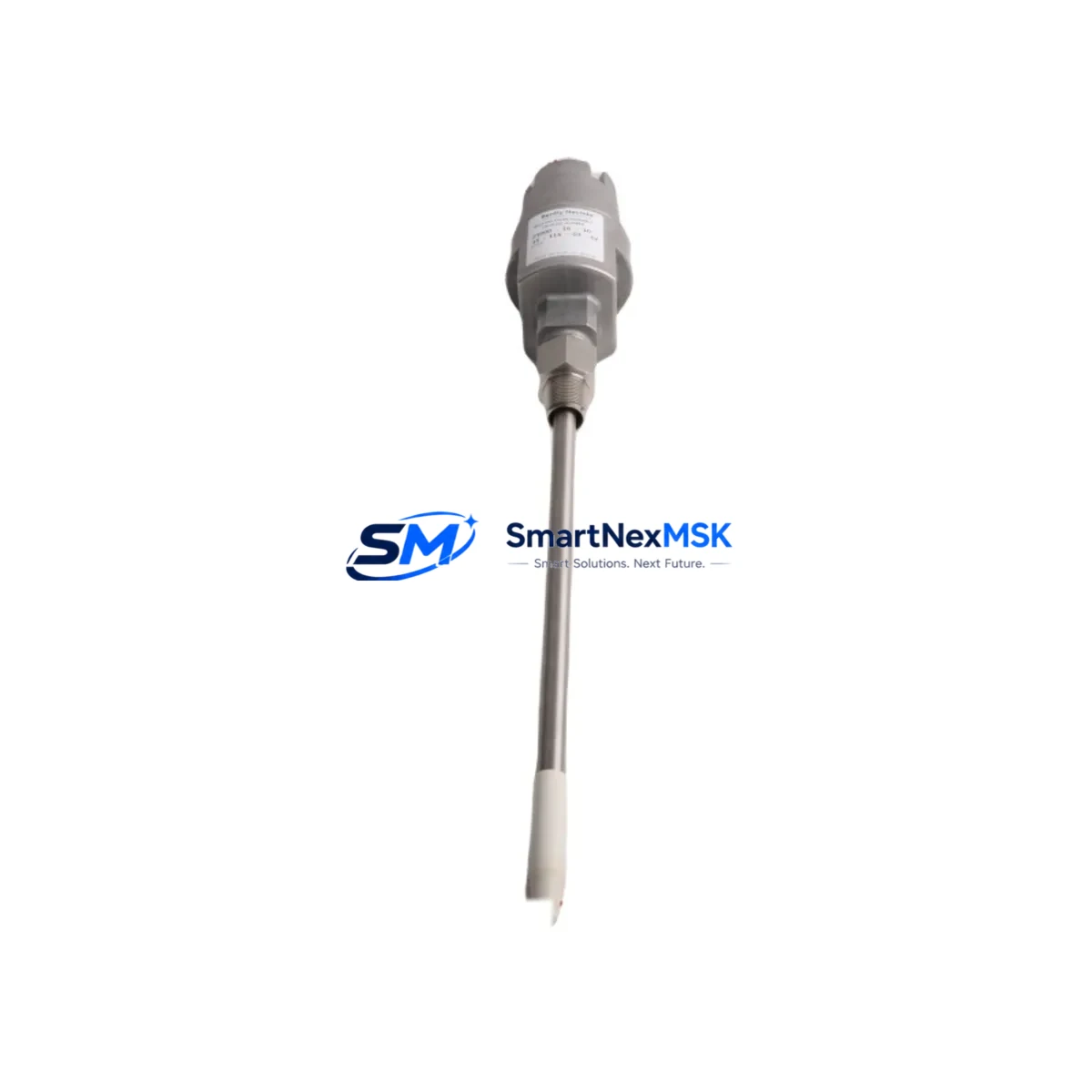

Bently Nevada 21000-16-05-00-105-03-02 Safety Proximity Probe

Bently Nevada 21000-16-05-00-105-03-02 Safety Proximity Probe: Ruggedized Control Reliability for Harsh Industrial Sites

The Bently Nevada 21000-16-05-00-105-03-02 is a ruggedized proximity probe housing assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Series condition monitoring platform, this probe housing delivers exceptional mechanical protection and signal integrity for rotating machinery protection systems — including turbines, compressors, pumps, and motors operating under high load, elevated temperature, and strong electromagnetic interference.

In critical industrial facilities — petrochemical plants, power generation stations, mining operations, and continuous process manufacturing — unplanned machinery downtime is not merely a productivity issue; it is a safety hazard. The 21000-16-05-00-105-03-02 housing is purpose-built to eliminate the mechanical vulnerabilities that cause proximity probe failures: vibration-induced connector loosening, cable fatigue at the probe tip, moisture ingress, and chemical corrosion. Its ruggedized construction ensures that the eddy-current sensing element remains precisely positioned relative to the shaft, maintaining measurement accuracy even under severe mechanical shock and continuous vibration loads.

Safety Reliability Table

Control Cabinet Protection Strategy

The 21000-16-05-00-105-03-02 probe housing does not operate in isolation — it is the field-sensing front end of a complete machinery protection architecture. In a properly engineered control cabinet or machinery protection panel, this probe works in conjunction with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-91-05 or 330180-51-00 series), which conditions the raw eddy-current signal into a calibrated -24 VDC output suitable for the monitor rack. The Bently Nevada 3300/16-24-01-01-00-00-00 Monitor or equivalent 3300 XL rack-mounted monitor then processes this signal for vibration amplitude, phase, and gap voltage — triggering alarm or trip outputs when machinery exceeds safe operating thresholds.

Signal integrity from the probe tip to the monitor is protected by the 3300 XL Series armored extension cables (330130 series), which provide continuous shielding against the high-frequency electromagnetic interference generated by variable frequency drives (VFDs), large motor starters, and high-current bus bars commonly found in heavy industrial switchgear rooms. For installations near high-voltage equipment, additional EMI suppression is achieved by routing cables through dedicated grounded cable trays and using Bently Nevada junction boxes with proper shield termination.

Power supply stability is equally critical to probe system reliability. The 3300 XL Proximitor requires a stable -24 VDC supply, typically sourced from a Bently Nevada 3300/20 Power Supply or an equivalent redundant DC power module. In safety-instrumented systems (SIS) and API 670-compliant machinery protection panels, redundant power feeds with automatic switchover are standard practice to prevent a single power supply failure from disabling the entire vibration monitoring loop. Surge protection devices installed at the panel entry point further protect the Proximitor and monitor cards from transient voltage spikes caused by nearby switching operations or lightning events.

For complete shaft dynamic measurement, the 21000-16-05-00-105-03-02 radial vibration probe is typically paired with a Bently Nevada thrust position probe (such as the 330500 series) and a keyphasor probe (330980 series) to provide the full complement of measurements required for API 670 compliance: radial vibration (X and Y), axial position, and phase reference. Together, these components form a closed-loop machinery protection system capable of detecting shaft imbalance, misalignment, oil whirl, rub, and bearing degradation before they escalate into catastrophic failures.

Critical Industrial Safety Applications

The Bently Nevada 21000-16-05-00-105-03-02 is deployed across the full spectrum of heavy industrial machinery protection applications where continuous, uninterrupted operation is a safety and production imperative.

In petrochemical and refinery operations, this probe housing is installed on centrifugal compressors, reactor feed pumps, and steam turbine-driven trains where a vibration trip failure could result in process upset, fire, or explosion. The ruggedized housing withstands the hydrocarbon-laden, high-humidity atmospheres of compressor houses and turbine decks, maintaining measurement accuracy across years of continuous service without requiring recalibration.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 21000-16-05-00-105-03-02 protects the main turbine-generator shaft train. Vibration monitoring at this level is not optional; it is mandated by plant safety systems and insurance requirements. The probe’s ability to maintain stable gap voltage output under the thermal cycling and mechanical vibration of a large turbine shaft is essential for reliable trip system performance.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate under extreme mechanical loads and shock. The ruggedized construction of this probe housing — with its armored cable and sealed connector — resists the dust, moisture, and mechanical abuse of these environments, ensuring that the vibration monitoring system remains operational even during the most demanding production cycles.

In water and wastewater treatment plants, large vertical turbine pumps and blower trains rely on proximity probe systems for bearing condition monitoring. The IP67-rated housing of the 21000-16-05-00-105-03-02 provides reliable protection against the wash-down and high-humidity conditions typical of pump stations and aeration basins.

In metallurgical and steel production facilities, rolling mill drives, blast furnace blowers, and continuous caster drives operate in environments with extreme heat, scale, and vibration. The 21000-16-05-00-105-03-02’s high-temperature rating and ruggedized construction make it suitable for these demanding applications, where probe replacement during production is often impossible and reliability is non-negotiable.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 21000-16-05-00-105-03-02?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or full refund options. Our warranty applies from the date of shipment and is supported by our pre-shipment functional test documentation.

Q2: How is each unit tested before shipment?
Every 21000-16-05-00-105-03-02 unit undergoes a comprehensive pre-shipment inspection that includes visual examination for physical damage, connector integrity verification, cable continuity and shield testing, and functional output verification against Bently Nevada 3300 XL system specifications. Test records are available upon request and accompany each shipment for traceability.

Q3: Is this probe housing compatible with existing 3300 XL system installations?
Yes. The 21000-16-05-00-105-03-02 is a direct replacement for existing 3300 XL Series 16mm proximity probe assemblies. It is fully compatible with 3300 XL Proximitor Sensors, 3300 XL extension cables (330130 series), and all 3300 XL rack-mounted monitors. No reconfiguration of the monitor or Proximitor is required for a like-for-like replacement.

Q4: Can long-term supply and spare parts support be arranged?
SMARTNEXMSK maintains standing inventory of the 21000-16-05-00-105-03-02 and related 3300 XL Series components to support planned maintenance programs, emergency replacements, and long-term spare parts agreements. We can provide volume pricing, reserved stock arrangements, and scheduled delivery programs for facilities requiring guaranteed availability of critical spare parts. Contact our technical sales team to discuss your specific supply requirements.
