Bently Nevada 21000-16-05-15-102-03-02 Spare 21000

Bently Nevada 21000-16-05-15-102-03-02 Spare 21000: Precision Spare for Industrial Vibration Monitoring

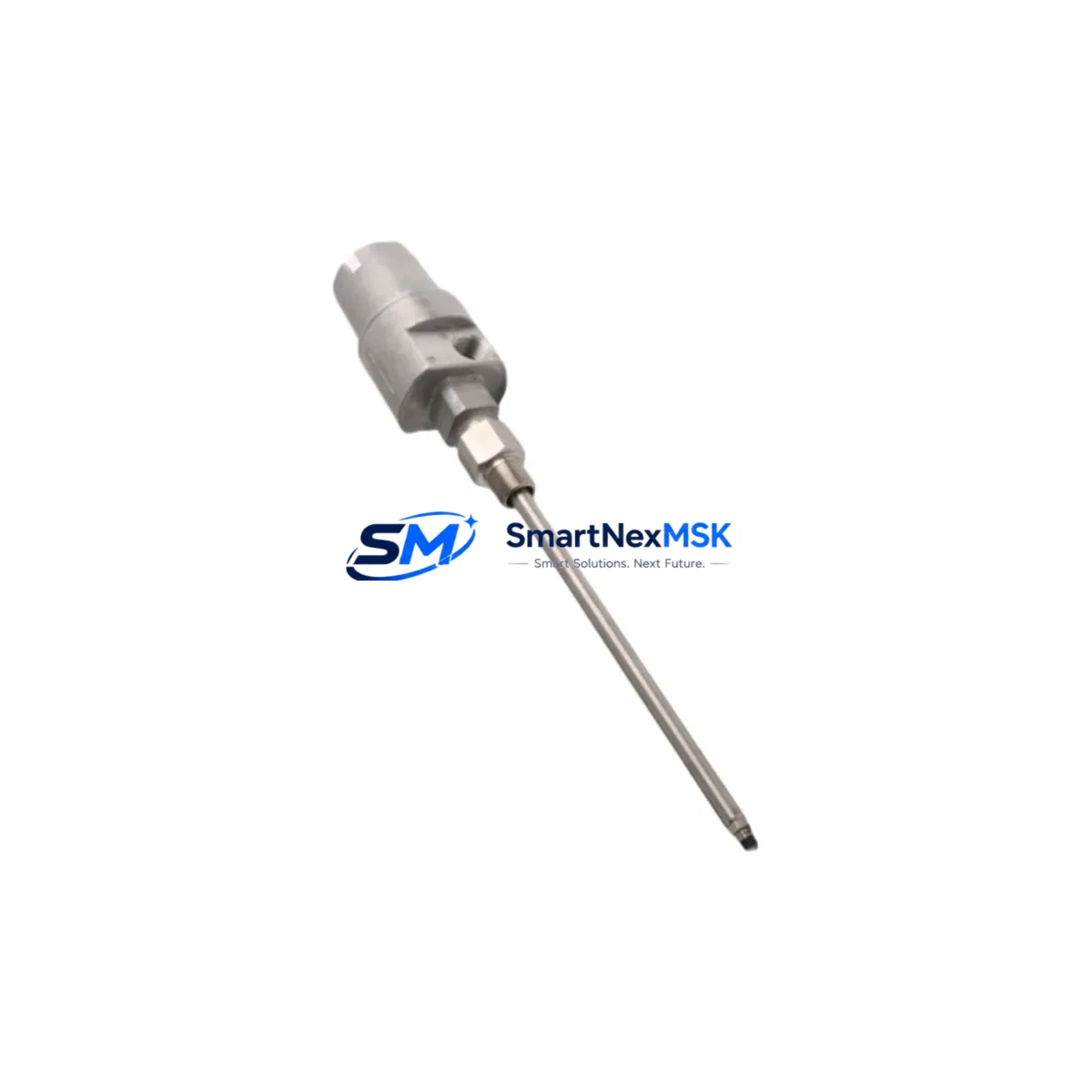

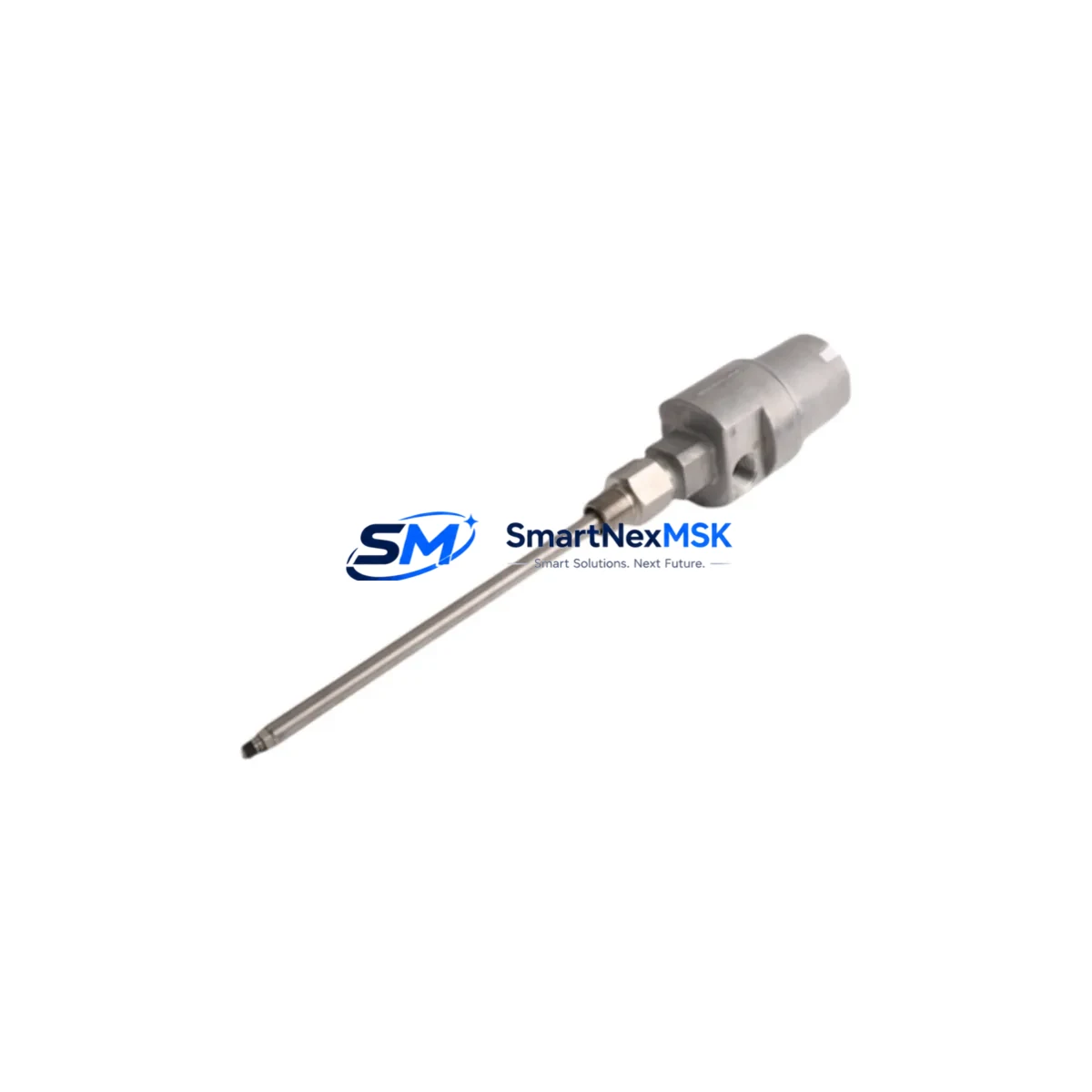

The Bently Nevada 21000-16-05-15-102-03-02 is an original eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-ready spare, this unit is sourced, inspected, and tested to ensure immediate drop-in compatibility with existing 21000 Series installations — minimizing unplanned downtime and supporting fast recovery in critical industrial environments.

Maintenance engineers and procurement teams managing turbines, compressors, pumps, and generators rely on the 21000 Series transducer system as a cornerstone of their condition monitoring infrastructure. When this component requires replacement, having a verified original spare on hand is the difference between a controlled shutdown and an extended outage. This unit ships with full functional testing documentation and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21000-16-05-15-102-03-02 proximity transducer, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the paired Bently Nevada 3300 XL Proximitor or 7200 Series proximitor driver, as transducer output calibration is tightly coupled to the driver’s gap voltage range. A worn or miscalibrated proximitor can cause false readings even with a new probe installed.

Next, inspect the 21000 Series extension cable — particularly the armored sheath and connector ends — for signs of abrasion, moisture ingress, or connector corrosion. Extension cable degradation is a common root cause of intermittent vibration signal faults. Alongside this, check the junction box terminal strips and cable gland seals for tightness and environmental sealing integrity.

At the rack level, inspect the Bently Nevada 3500 Series monitoring rack I/O modules, including the 3500/42M Proximitor / Seismic Monitor or 3500/40M Proximitor Monitor cards, for alarm setpoint configuration and channel health. Confirm that the 3500/20 Rack Interface Module (RIM) and 3500/15 Power Supply are delivering stable, regulated voltage to all monitoring channels.

For plants running legacy systems, also verify the condition of the Bently Nevada 3300 Series barrier isolators or Zener barriers used in hazardous area installations. These components degrade over time and can introduce signal attenuation that mimics transducer failure. Finally, review the DCS or PLC analog input card receiving the 4–20 mA or voltage signal from the monitoring rack to confirm correct scaling and alarm thresholds are maintained after the transducer swap.

Maintaining a minimum stock of one spare transducer, one extension cable, and one proximitor driver per critical machine train is a recognized best practice in rotating equipment maintenance programs.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring channel is bypassed or inhibited at the rack to prevent spurious alarms during replacement.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage using a calibrated voltmeter at the proximitor output. This baseline confirms the target gap distance (typically 1.0–2.0 mm for 21000 Series probes) and serves as a reference for reinstallation.

Step 3 — Probe Removal: Unscrew the probe from the bracket, disconnect the extension cable at the junction box, and inspect the probe tip and cable connector for contamination or mechanical damage. Document findings.

Step 4 — New Probe Installation: Install the 21000-16-05-15-102-03-02 replacement probe. Set the gap to the recorded baseline or per OEM specification. Reconnect the extension cable and verify connector seating.

Step 5 — System Verification: Re-energize the monitoring channel. Confirm gap voltage is within the linear range of the proximitor. Check for stable, noise-free signal at the DCS/PLC input. Clear any bypasses and confirm alarm setpoints are active.

Step 6 — Documentation: Record the replacement in the CMMS, including the new part serial number, gap voltage reading, and technician sign-off. Update the spare parts inventory accordingly.

This workflow supports a typical replacement time of under two hours for a trained technician, significantly reducing mean time to repair (MTTR) on critical rotating equipment.

Spare Parts Support FAQ

Q1: Is the 21000-16-05-15-102-03-02 a direct replacement for older 21000 Series probes?
Yes. The 21000-16-05-15-102-03-02 is designed as a direct mechanical and electrical replacement within the Bently Nevada 21000 Series ecosystem. It is compatible with standard 21000 Series extension cables and proximitor drivers. Always verify the gap voltage range and cable length suffix match your existing installation before installation.

Q2: What testing is performed before shipment?
Each unit undergoes functional output verification and visual inspection prior to dispatch. Test records are available upon request. Units are packaged in anti-static, shock-protected packaging to maintain integrity during transit.

Q3: How should this spare be stored in a maintenance inventory?
Store in a dry, temperature-controlled environment away from strong magnetic fields and mechanical vibration. Keep in original packaging until installation. Recommended shelf life under proper storage conditions is 3–5 years. Rotate stock on a first-in, first-out basis.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed with return authorization and inspection.
