Bently Nevada 21000-16-05-40-049-04-02 3300 XL Spare

Bently Nevada 21000-16-05-40-049-04-02 3300 XL Spare: Proximity Probe Replacement for Industrial Downtime Control

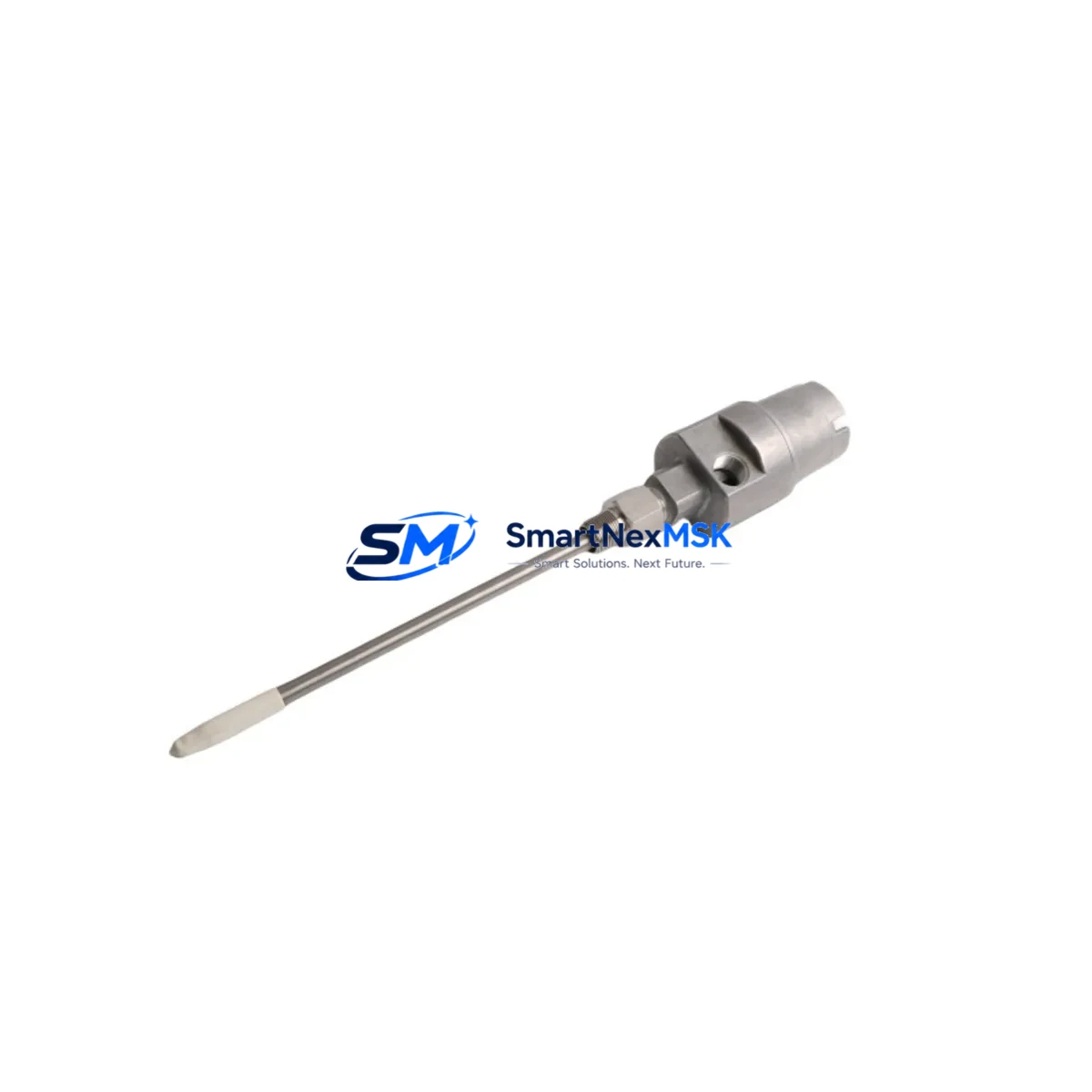

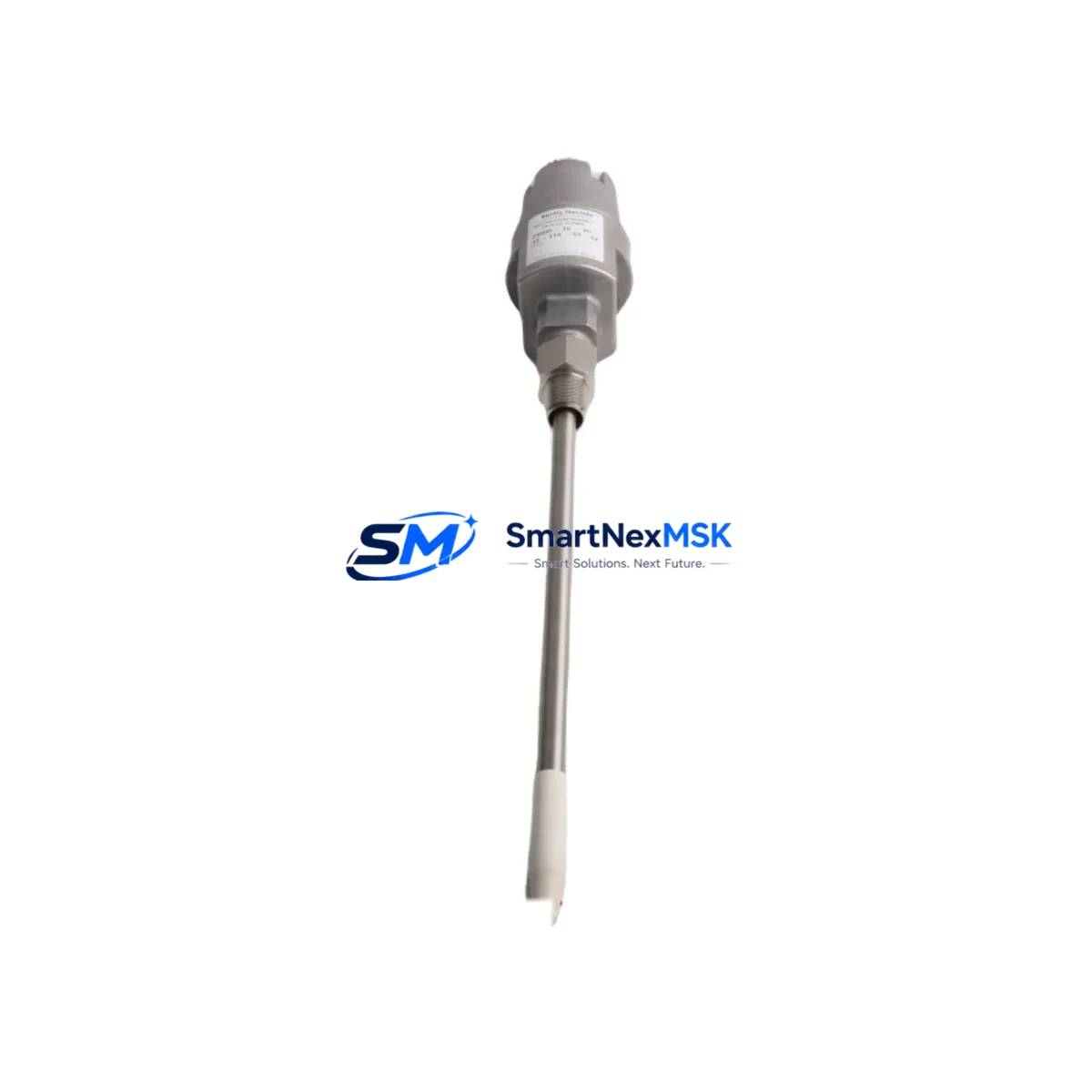

The Bently Nevada 21000-16-05-40-049-04-02 is an original proximity probe assembly engineered for the 3300 XL eddy current vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical spare inventory for your control room, this probe assembly is a direct, specification-matched replacement that restores system integrity without requiring recalibration of the full monitoring chain.

Maintenance engineers working on steam turbines, compressors, pumps, and gearboxes rely on the 3300 XL system to deliver continuous shaft displacement and vibration data to the control room. A failed or degraded proximity probe is one of the most common causes of false trips and nuisance alarms in these systems. Stocking the 21000-16-05-40-049-04-02 as a ready spare eliminates the lead-time risk that turns a two-hour probe swap into a multi-day production loss event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21000-16-05-40-049-04-02 probe assembly during a scheduled outage or emergency repair, a thorough inspection of the surrounding monitoring circuit is essential to prevent repeat failures and ensure the system returns to full protective function. Maintenance engineers should treat the probe replacement as an opportunity to audit the complete vibration monitoring loop.

Begin with the 3300 XL Proximitor Sensor (typically a 330180 or 330181 series driver module) mounted in the field junction box. Inspect the driver for moisture ingress, terminal corrosion, and output voltage drift — a degraded Proximitor will cause erratic gap readings even with a new probe installed. Check the extension cable assembly (commonly the 330130 series armored cable) for jacket damage, connector pin corrosion, and continuity; extension cable failures are frequently misdiagnosed as probe faults.

At the rack level, verify the 3300/16 monitor card or equivalent I/O module for alarm setpoint integrity and channel OK status. If the facility runs a 3500 series rack alongside legacy 3300 XL hardware, confirm that the channel configuration files have not been overwritten during any recent firmware update. Inspect the terminal block assemblies and field wiring for loose terminations — vibration from nearby rotating equipment can loosen screw terminals over time, introducing intermittent signal noise that mimics probe degradation.

For facilities using a DCS or safety system interface, validate the 4–20 mA or voltage output signal at the marshalling cabinet after probe installation. If the plant uses signal isolators or barriers between the Bently Nevada rack and the DCS I/O cards, test the isolator output under live conditions before returning the machine to service. Facilities with Modbus or FOUNDATION Fieldbus communication modules in the 3500 rack should also verify that the channel data is correctly mapped and that no communication fault codes have been latched.

During control cabinet inspection, check the 24 VDC power supply module feeding the Proximitor field circuit. Voltage sag or ripple on the supply rail is a known cause of sensitivity drift in eddy current systems. If the cabinet houses relay output modules for trip and alarm functions, test the relay coil resistance and contact continuity as part of the same maintenance window. Finally, review the HMI trend screens for the affected channel — historical gap and vibration trend data can reveal whether the probe failure was sudden (mechanical impact or cable cut) or gradual (thermal degradation or target surface wear), informing your root cause documentation.

Site Replacement Workflow

Replacing the 21000-16-05-40-049-04-02 in the field follows a straightforward procedure that experienced maintenance technicians can complete within a planned maintenance window, minimizing machine downtime:

1. Pre-replacement verification: Confirm the replacement probe part number matches the installed Proximitor driver and extension cable system. The 3300 XL system is calibrated as a matched set — probe, extension cable, and Proximitor must be from the same sensitivity family (typically 7.87 V/mm or 200 mV/mil). Mixing sensitivity families without recalibration will produce incorrect gap readings and may cause nuisance trips.

2. Isolation and lockout: Follow site LOTO procedures. Place the affected monitor channel in bypass mode at the 3300 or 3500 rack to prevent a spurious trip during probe removal. Document the pre-removal gap voltage reading for comparison after installation.

3. Probe removal and inspection: Remove the probe from the bracket, inspect the probe tip for impact damage or target material transfer, and inspect the probe threads for galling. Clean the probe boss in the bearing housing before installing the replacement.

4. Installation and gap setting: Install the 21000-16-05-40-049-04-02 and set the air gap to the system-specified value (typically 1.0–1.5 mm for standard 3300 XL configurations). Verify the Proximitor output voltage falls within the linear range specified on the system calibration record.

5. System restoration and verification: Remove the channel bypass, verify OK status on the monitor, and confirm alarm and danger setpoints are active. Log the replacement in the plant maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is compatible with legacy 3300 XL installations and with facilities that have partially migrated to the 3500 platform, ensuring backward compatibility and protecting the investment in existing monitoring infrastructure.

Spare Parts Support FAQ

Q1: Is the 21000-16-05-40-049-04-02 compatible with both the 3300 XL and 3500 series Bently Nevada systems?
The 21000-16-05-40-049-04-02 is a 3300 XL series probe assembly. It is compatible with 3300 XL Proximitor drivers and extension cables of matching sensitivity. It is not a direct plug-in replacement for 3500 series probes, which use a different connector and calibration standard. If your facility is migrating from 3300 XL to 3500, consult the system compatibility matrix before ordering.

Q2: What testing is performed before shipment?
Each unit undergoes electrical continuity testing, insulation resistance verification, and output voltage linearity check against a reference target before dispatch. A test report is available upon request. All units are shipped with protective end caps and anti-static packaging to prevent transit damage.

Q3: What is the warranty coverage and how are warranty claims handled?
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and premature electrical failure under normal operating conditions. Warranty claims are processed within 5 business days of receiving the returned unit. Replacement or credit is issued after inspection confirms the failure is not due to installation error, mechanical impact, or operation outside specified parameters.

Q4: Can you support long-term or blanket purchase orders for critical spare inventory programs?
Yes. We support scheduled release orders, consignment stock arrangements, and annual supply agreements for maintenance teams managing large rotating equipment fleets. Long-term supply commitments help ensure price stability and guaranteed availability for critical spare parts that are no longer in active OEM production. Contact our sales team to discuss your inventory program requirements.
