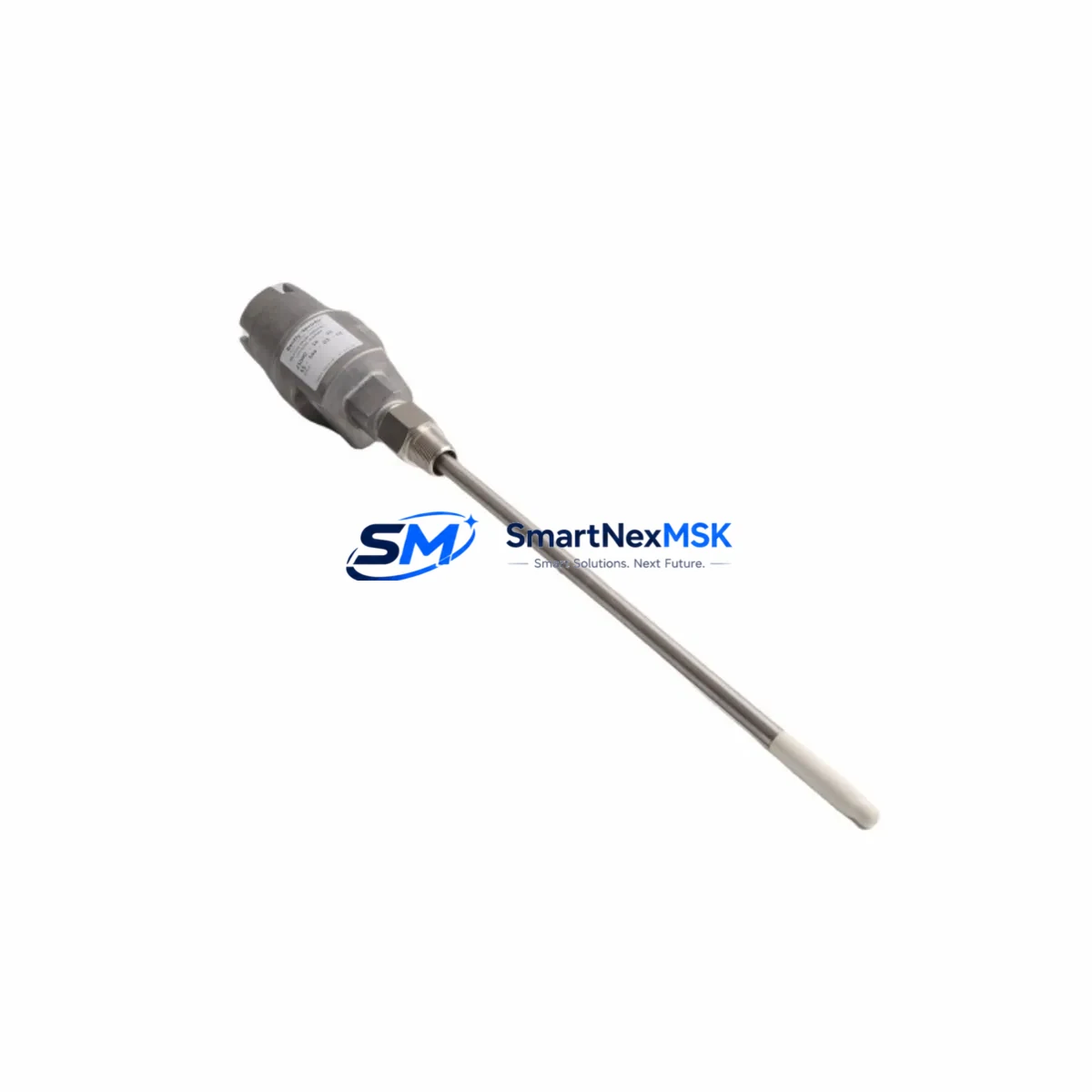

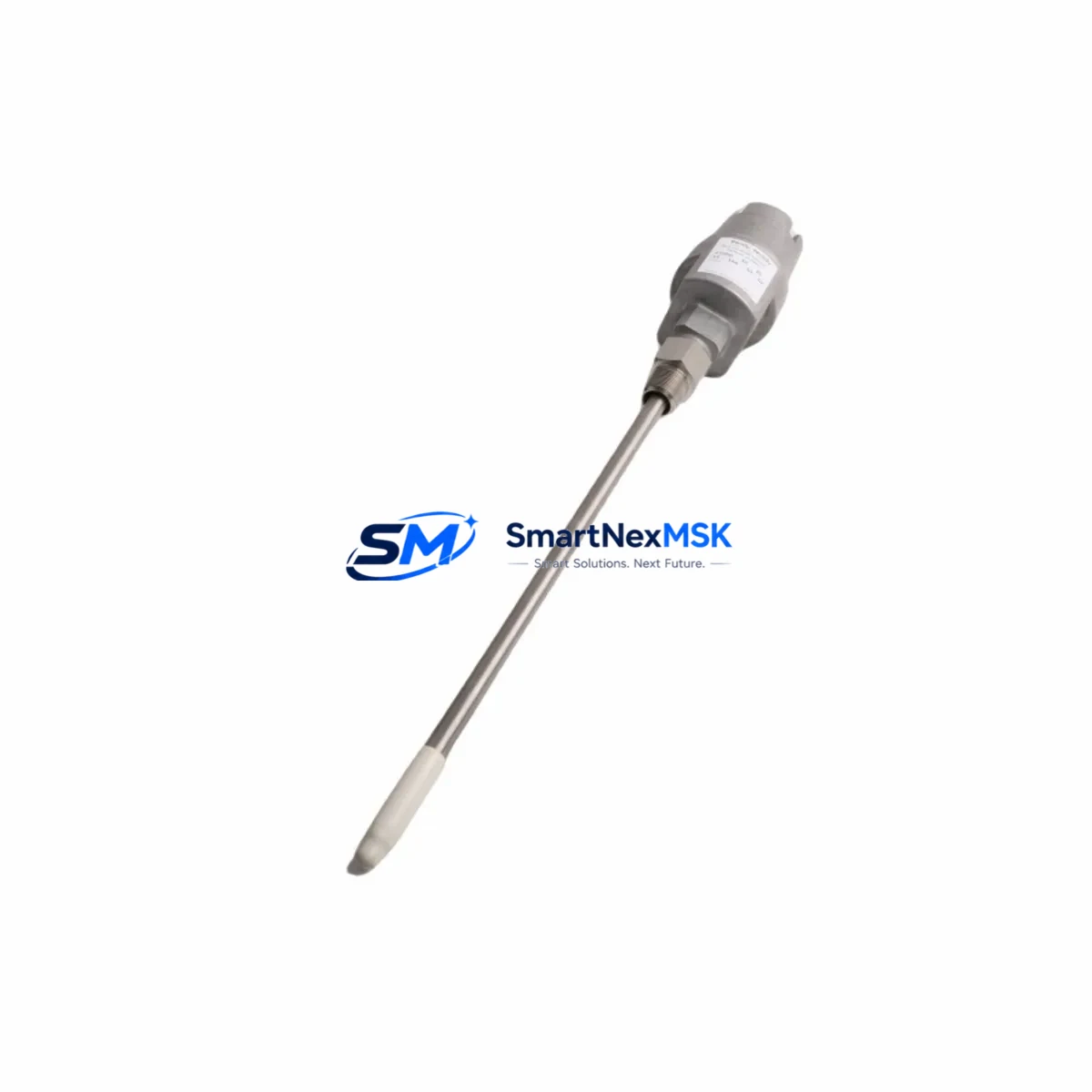

Bently Nevada 21000-16-10-00-053-03-02 Spare 21000 Series: Precision Spare Parts for Industrial Downtime Control

The Bently Nevada 21000-16-10-00-053-03-02 is a critical proximity probe housing component within the 21000 Series vibration monitoring system, widely deployed across rotating machinery protection applications in power generation, oil & gas, petrochemical, and heavy industrial facilities. When this component reaches end-of-life or sustains damage during a fault event, rapid replacement is essential to restore continuous machinery protection and avoid unplanned downtime. This listing provides a maintenance-ready original spare, fully tested prior to shipment, backed by a 12-month warranty, and available for long-term supply to support your site’s spare parts inventory strategy.

Maintenance engineers and procurement teams managing Bently Nevada 3500 Series rack-based monitoring systems or legacy 7200 Series installations will recognize the 21000 Series proximity probe as a foundational sensing element. The 21000-16-10-00-053-03-02 variant specifies a defined cable length, connector type, and housing configuration suited to tight-clearance installations on turbine bearing housings, compressor shafts, and pump pedestals. Stocking this spare ensures your facility can execute a same-shift replacement without waiting on lead times that can stretch weeks for OEM channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated task. When a 21000-16-10-00-053-03-02 probe is flagged during a routine vibration survey or fails during a fault event, a disciplined maintenance engineer will treat the replacement as an opportunity to inspect the entire measurement chain. The Bently Nevada 330130 extension cable connecting the probe to the driver should be checked for jacket damage, connector corrosion, and continuity — a degraded cable introduces gap voltage errors that mimic probe failure. Similarly, the Bently Nevada 330180 proximitor driver (or equivalent 3300 XL 8mm driver) should be verified for correct bias voltage output, typically –10 VDC to –18 VDC at the operating gap.

Within the 3500 Series rack, the 3500/42M Proximitor/Seismic Monitor module that processes the probe signal should be inspected for alarm setpoint integrity and channel configuration. If the rack has been in service for more than five years, it is prudent to also check the 3500/15 Power Supply module for output ripple and voltage stability, as power supply degradation is a common root cause of spurious vibration alarms. The 3500/20 Rack Interface Module (RIM) should be confirmed for correct communication with the plant DCS or safety system.

For facilities running parallel protection on critical machinery, the 3500/25 keyphasor module and its associated keyphasor probe — often another 21000 Series variant — should be inspected at the same time to ensure phase reference integrity. Wiring terminations at the 3500/92 or 3500/93 I/O module terminal blocks should be torqued to specification and inspected for fretting corrosion, particularly in high-vibration environments. If the installation uses a Bently Nevada TK-3 or TK-4 transducer qualification kit, a bench calibration of the replacement probe prior to installation is strongly recommended to confirm sensitivity and linear range before the machine is returned to service.

Procurement engineers building a spare parts list for a turbine or compressor train should consider stocking at minimum one spare probe per critical measurement point, one spare extension cable per probe, and one spare driver per rack channel. For facilities with aging 7200 Series installations, cross-referencing the 21000-16-10-00-053-03-02 against the 7200-14-XX series probes and confirming driver compatibility before ordering is essential to avoid installation delays.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Before removing the failed probe, record the existing gap voltage using a calibrated voltmeter at the driver output. Document the installed gap distance (typically measured with feeler gauges or a gap tool) and photograph the probe orientation and cable routing. This baseline is critical for setting the replacement probe to the correct operating gap.

Step 2 — Removal: De-energize the measurement channel at the 3500 rack I/O module. Disconnect the extension cable at the probe connector. Using the appropriate probe wrench, back the probe out of the mounting boss carefully to avoid thread damage. Inspect the mounting boss threads and clean with a thread chaser if necessary.

Step 3 — Installation of 21000-16-10-00-053-03-02: Apply a thin coat of anti-seize compound to the probe threads. Thread the replacement probe into the mounting boss by hand until snug, then adjust to achieve the target gap voltage. Re-energize the channel and verify bias voltage at the driver output. Fine-adjust the probe gap until the bias voltage falls within the linear range center (typically –12 VDC ± 1 VDC for 8 mm probes on standard steel targets).

Step 4 — Verification: Confirm alarm setpoints are active and correct in the 3500/42M monitor. Perform a slow-roll check if the machine can be barred over, observing the dynamic gap signal for runout. Log the final gap voltage and probe serial number in the maintenance management system (CMMS). Return the machine to service only after all channel OK indicators are confirmed.

This workflow minimizes downtime to a single shift for a prepared maintenance team with the spare in hand, compared to multi-day delays when waiting for emergency OEM procurement.

Spare Parts Support FAQ

Q1: Is the 21000-16-10-00-053-03-02 a direct drop-in replacement for older 21000 Series probe variants?
A: The 21000 Series uses a standardized mounting thread and connector interface, making most variants dimensionally interchangeable within the series. However, the SKU suffix encodes cable length and connector configuration, so it is important to match the full part number to the installed configuration. If you are replacing a probe with a slightly different suffix, verify cable length and connector type before installation to avoid measurement chain errors.

Q2: What pre-shipment testing is performed on this spare?
A: Each unit undergoes electrical continuity verification, coil resistance measurement, and gap voltage output testing against a calibrated steel target prior to shipment. Units that do not meet Bently Nevada specification tolerances are rejected. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure beyond rated limits, or operation outside the specified temperature and gap range. Warranty claims are processed with return authorization and inspection.

Q4: Can you support long-term or blanket purchase orders for this part?
A: Yes. For facilities managing multi-train protection systems or executing a planned obsolescence program for aging Bently Nevada installations, we support blanket orders, scheduled releases, and consignment stocking arrangements. Contact our team to discuss volume pricing and delivery scheduling aligned to your planned maintenance calendar.
