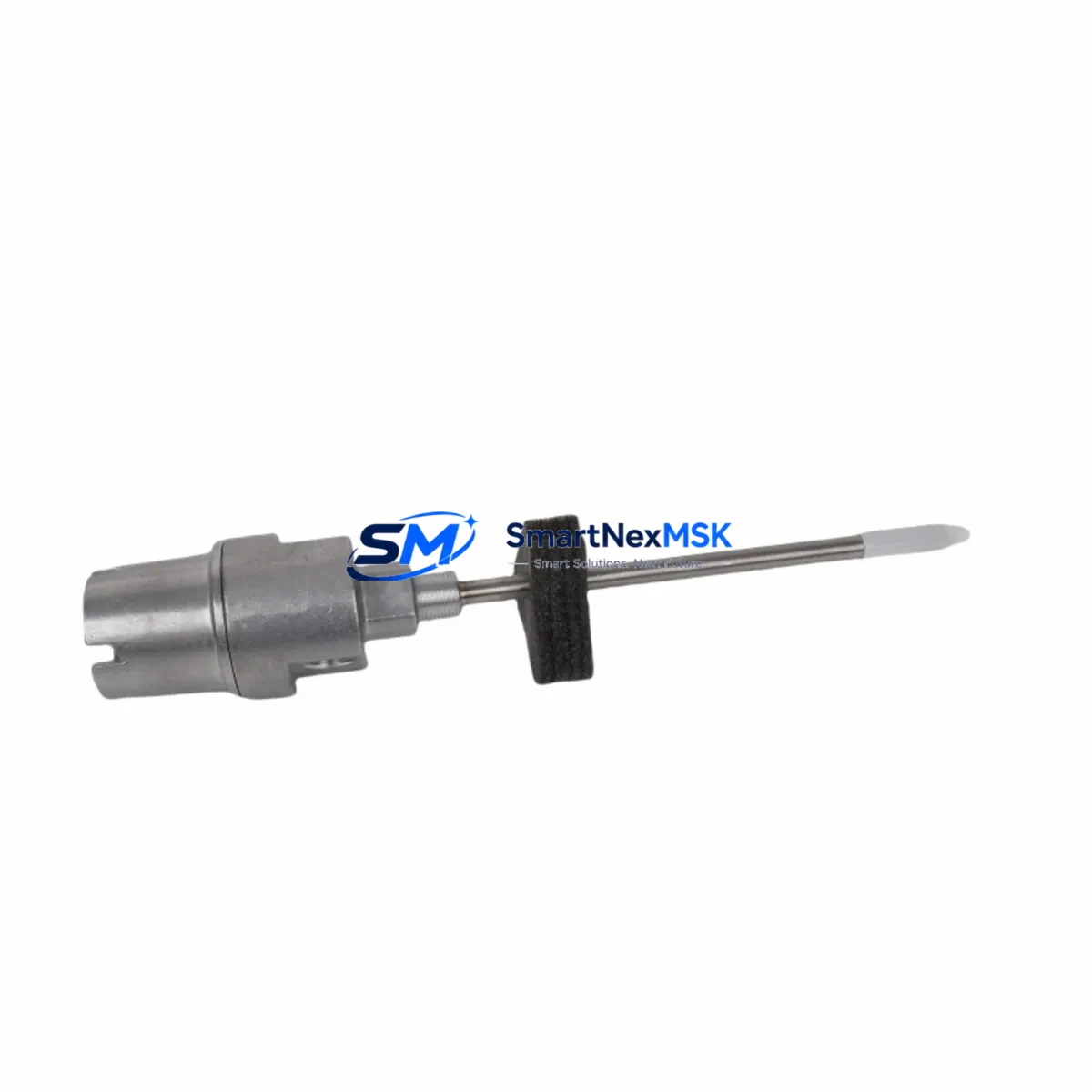

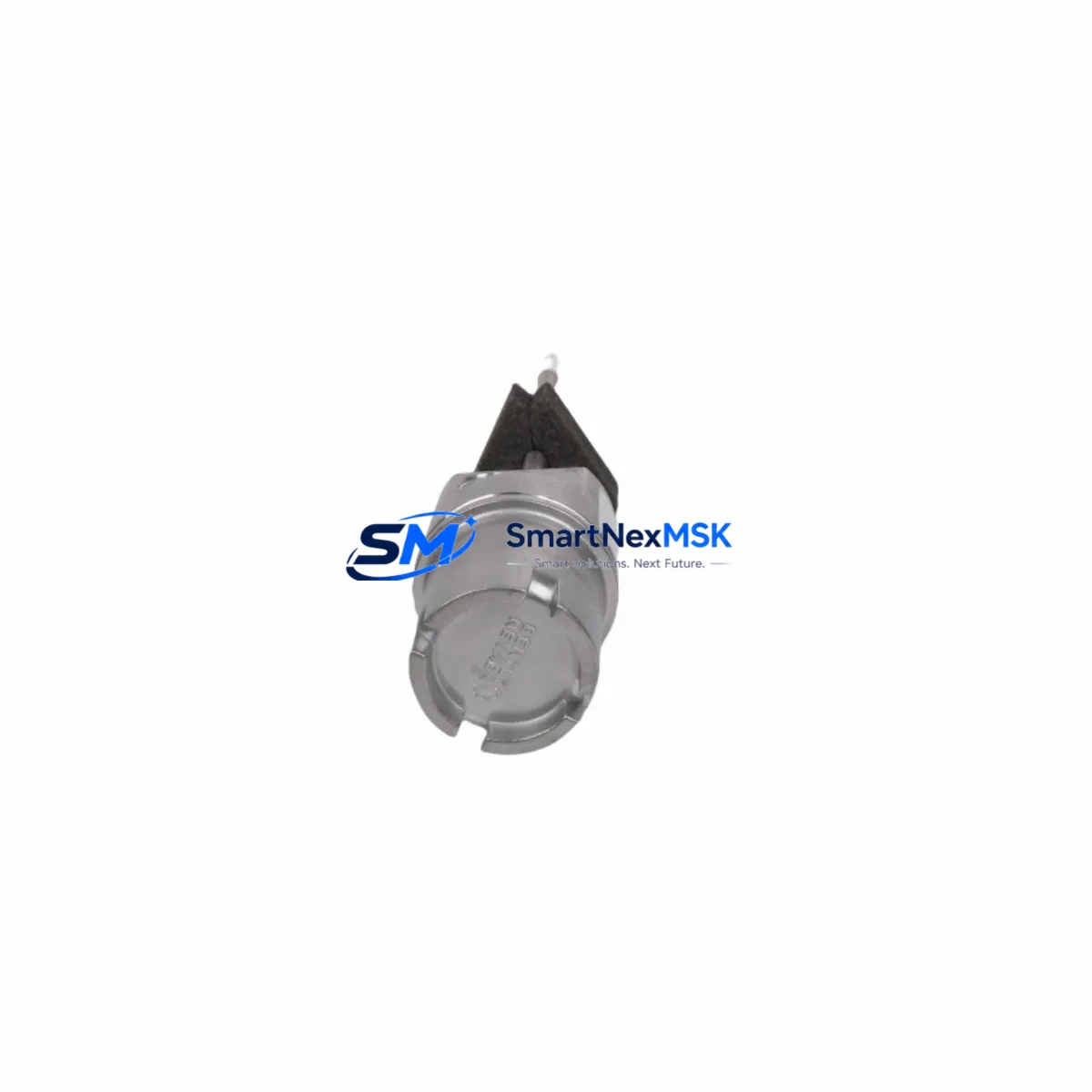

Bently Nevada 21000-16-10-00-101-03-02 Safety-Enhanced Proximity Probe

Bently Nevada 21000-16-10-00-101-03-02 Safety-Enhanced Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 21000-16-10-00-101-03-02 is a ruggedized proximity probe module engineered for the Bently Nevada 3300 XL continuous vibration monitoring system. Designed to operate reliably in high-load, high-interference, and safety-critical industrial environments, this probe delivers precise non-contact displacement measurement for rotating machinery protection — including turbines, compressors, pumps, and motors in continuous production facilities. Its robust construction and API 670-compliant signal chain make it a cornerstone component in critical interlock loops and machinery protection systems where control interruption is not an option.

In demanding industrial sites — petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical complexes, and port logistics hubs — the integrity of vibration monitoring directly determines whether a machine trip is timely or catastrophic. The 21000-16-10-00-101-03-02 probe is built to maintain signal fidelity even under severe electromagnetic interference, mechanical vibration, thermal cycling, and chemical exposure. Its shielded coaxial cable assembly and precision-machined probe tip minimize signal drift, ensuring that the Bently Nevada 3300 XL Monitor and associated 3300 XL Proximitor Sensor receive clean, stable eddy-current signals at all times.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the Bently Nevada 21000-16-10-00-101-03-02 probe requires careful integration with complementary components across the signal chain, power supply, and safety interlock layers. In a typical heavy-industrial control cabinet, this probe interfaces directly with the Bently Nevada 330180-51-05 Proximitor Sensor, which conditions the raw eddy-current signal into a clean DC voltage output before it reaches the 3300/16-02-01-01-00-00 Dual Voting Logic Monitor for trip decision processing.

To protect against power supply instability — a leading cause of spurious trips and module malfunctions in continuous production environments — the probe system should be powered through a dedicated Bently Nevada 3300/20-02-01-00-00 Power Supply Module, which provides regulated, isolated DC power with built-in surge suppression. In high-interference environments such as arc furnace control rooms or variable-frequency drive (VFD) enclosures, supplementing the installation with Bently Nevada 3300/55 Termination Module assemblies ensures proper cable termination and ground loop elimination, preventing signal noise from corrupting vibration readings.

For critical interlock loops in turbine protection panels, the probe output feeds into the Bently Nevada 3500/42M Proximitor/Seismic Monitor or the 3500/22M Transient Data Interface, enabling both continuous protection and event-capture for post-incident analysis. Pairing the 21000-16-10-00-101-03-02 with a Bently Nevada 330130-080-00-00 Extension Cable allows flexible probe placement in deep bearing housings or confined machinery spaces without compromising signal integrity. In safety instrumented systems (SIS) requiring IEC 61511 compliance, the probe assembly is typically validated alongside Bently Nevada 3500/33 16-Channel Relay Module outputs to ensure deterministic trip response times within the required safety integrity level (SIL) parameters.

Across all these configurations, the 21000-16-10-00-101-03-02 probe’s double-shielded coaxial cable construction actively suppresses electromagnetic interference from adjacent motor drives, high-current bus bars, and switching power supplies — reducing the risk of signal drift, false trips, and communication anomalies that can cascade into unplanned shutdowns.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, rotating machinery such as centrifugal compressors, boiler feed pumps, and steam turbines operate continuously under high shaft loads and elevated temperatures. The 21000-16-10-00-101-03-02 probe monitors radial shaft displacement in real time, providing the early-warning vibration data that prevents bearing failures from escalating into process shutdowns, fire hazards, or environmental releases. Its API 670 compliance ensures it meets the machinery protection requirements mandated by process safety management (PSM) regulations.

Power Generation Stations: Gas turbines and steam turbines in power plants demand sub-millisecond trip response when shaft vibration exceeds safe limits. This probe’s low-noise signal output, combined with the 3300 XL Proximitor’s fast response electronics, ensures that the protection system can issue a reliable trip signal before mechanical damage propagates — protecting both the asset and grid stability.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme mechanical shock, dust ingress, and wide temperature swings. The ruggedized construction and IP67-equivalent sealing of the 21000-16-10-00-101-03-02 make it suitable for these harsh conditions, maintaining accurate shaft position monitoring even in environments where standard probes would fail prematurely.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment plants run continuously, often unattended. Vibration monitoring with this probe enables predictive maintenance scheduling, reducing emergency repair costs and ensuring uninterrupted water supply to municipalities.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction furnace drives generate intense electromagnetic fields and mechanical vibration. The probe’s EMI-shielded design maintains signal integrity in these environments, supporting safe and reliable operation of critical drive machinery.

Port & Heavy Logistics: Large crane drives, ship-loader gearboxes, and conveyor drive motors in port facilities benefit from continuous vibration monitoring to prevent unexpected mechanical failures that could halt cargo operations and create safety hazards for personnel.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 21000-16-10-00-101-03-02?
All units are covered by a 12-month full replacement warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we provide a direct replacement at no additional cost. Warranty claims are processed within 5 business days.

Q2: How is each unit tested before shipment?
Every 21000-16-10-00-101-03-02 probe undergoes 100% pre-shipment functional and calibration verification, including sensitivity measurement, linear range confirmation, and cable continuity/insulation resistance testing. A test report is available upon request for quality documentation purposes.

Q3: Is this probe compatible with existing 3300 XL system installations?
Yes. The 21000-16-10-00-101-03-02 is a direct form-fit-function replacement for all standard 3300 XL proximity transducer system installations. It is compatible with all 3300 XL Proximitor Sensors and monitors without requiring system reconfiguration, making field replacement fast and safe.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
We maintain dedicated inventory of the 21000-16-10-00-101-03-02 to support planned maintenance, emergency replacement, and spare parts programs. Customers with ongoing maintenance contracts or multi-site operations can arrange blanket purchase orders and reserved stock allocations to ensure supply continuity without lead-time risk.
