Bently Nevada 21000-16-10-00-113-03-02 Safety Proximity Probe

Bently Nevada 21000-16-10-00-113-03-02 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

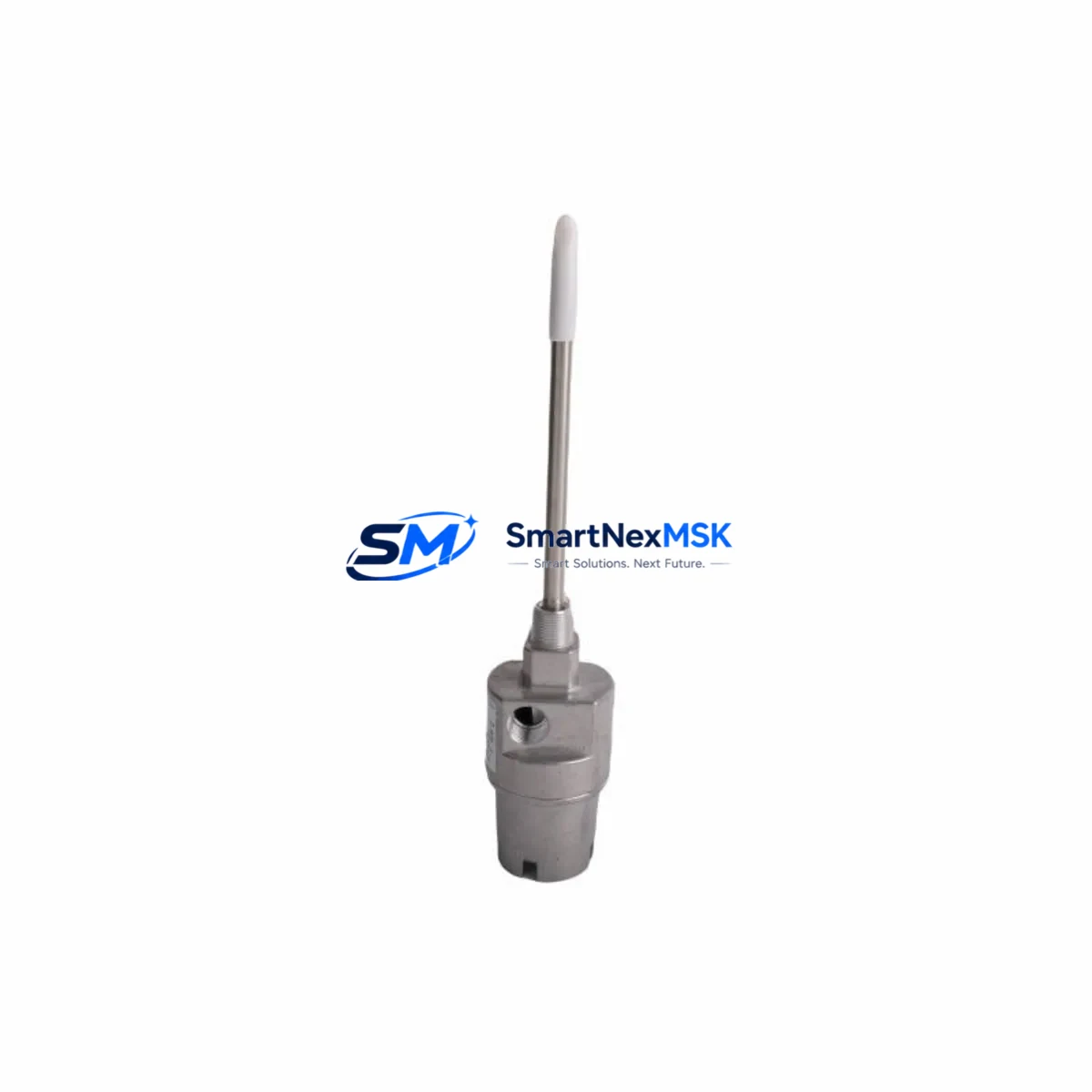

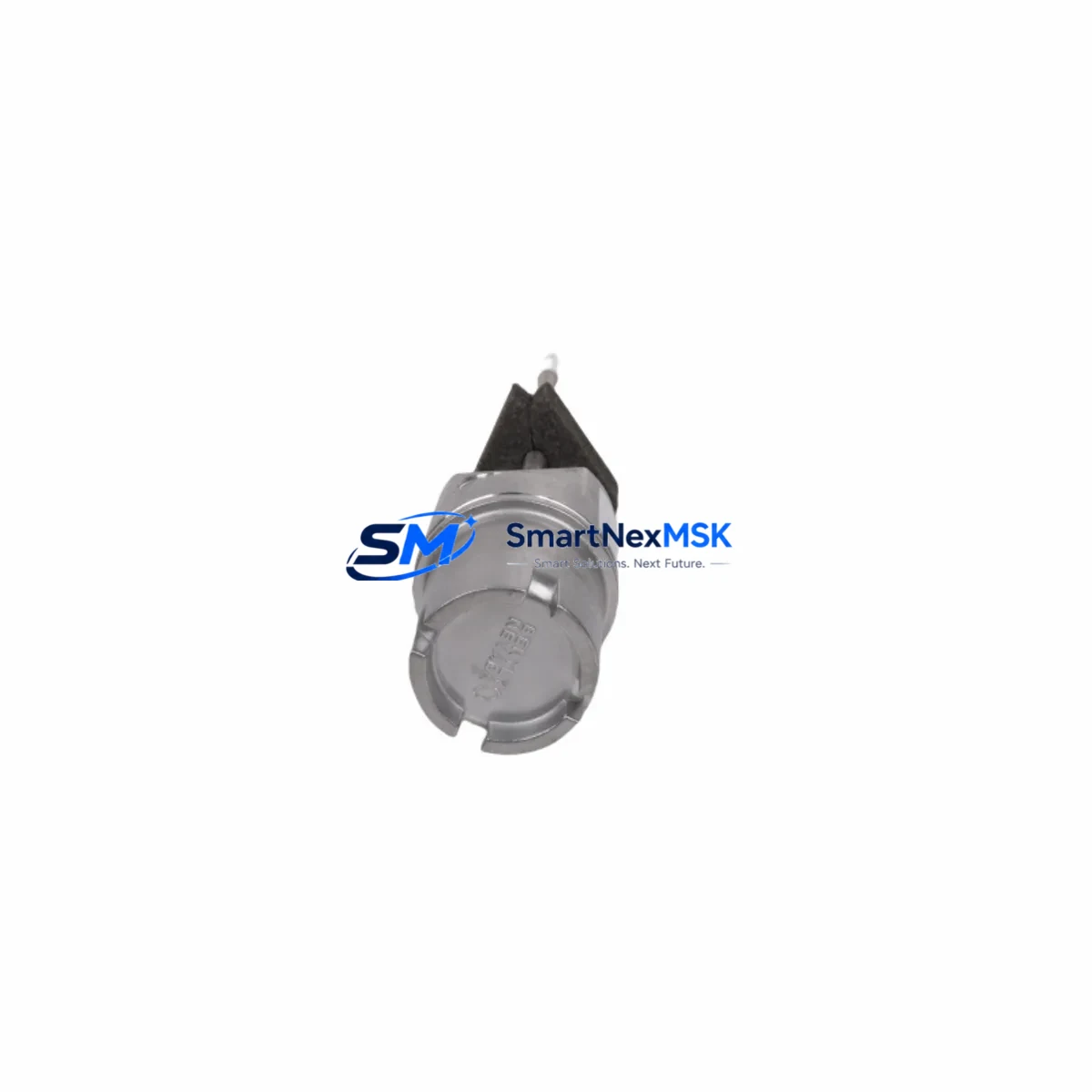

The Bently Nevada 21000-16-10-00-113-03-02 is a ruggedized 16mm eddy-current proximity probe housing engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as part of the renowned Bently Nevada 21000 Series, this probe housing delivers exceptional signal integrity, mechanical robustness, and long-term field reliability — making it a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In high-load, high-interference industrial control cabinets and critical interlock loops, signal drift and measurement instability are not merely operational inconveniences — they are safety hazards. The 21000-16-10-00-113-03-02 addresses these risks through its precision-machined stainless steel housing, EMI-shielded cable assembly, and thermally stable sensing tip geometry. Whether installed on a steam turbine, compressor train, or large induction motor, this probe maintains measurement accuracy within specification across wide temperature swings, high-vibration mechanical environments, and chemically aggressive atmospheres.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection architecture, the Bently Nevada 21000-16-10-00-113-03-02 probe housing operates as the primary sensing element feeding vibration data into the Bently Nevada 3500/42M Proximitor I/O module, which in turn communicates with the Bently Nevada 3500/01 rack power supply and system monitor. The probe signal is conditioned through the Bently Nevada 3300 XL 8mm Proximitor Sensor driver electronics, ensuring a clean, calibrated output even in the presence of strong electromagnetic interference from adjacent variable frequency drives (VFDs) or high-current bus bars.

For installations in hazardous classified areas — such as Zone 1 or Zone 2 gas atmospheres — the probe assembly is typically paired with Bently Nevada 3300 XL Proximitor barriers and intrinsically safe signal isolators to maintain ATEX or IECEx compliance. In the same control cabinet, Phoenix Contact TRABTECH surge protection modules or equivalent DIN-rail surge arresters are recommended on all field wiring terminals to guard against lightning-induced transients and switching surges that could corrupt vibration readings or damage the probe’s internal circuitry.

Power supply stability is equally critical. The 21000-16-10-00-113-03-02 system relies on a stable -24 VDC supply, typically sourced from a Bently Nevada 3500/15 power supply module or an equivalent redundant 24 VDC industrial SMPS with tight output regulation. Voltage fluctuations beyond ±5% can introduce measurement offset errors that may mask genuine shaft displacement events. Pairing the probe system with a Schneider Electric Zelio or WAGO 787 Series power conditioner further reduces ripple and noise on the DC bus.

For communication and data integration, the vibration data from this probe feeds into Bently Nevada System 1 condition monitoring software via the rack’s Ethernet or Modbus TCP gateway, enabling real-time trending, alarm management, and predictive maintenance scheduling. In plants running Emerson DeltaV DCS or Honeywell Experion PKS distributed control systems, the 3500 rack’s serial or fieldbus output can be mapped directly into the DCS historian for cross-system safety interlock coordination.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units, catalytic crackers, and compressor stations, undetected shaft vibration can lead to catastrophic seal failures, bearing collapses, and unplanned shutdowns. The 21000-16-10-00-113-03-02 provides the continuous, high-resolution proximity measurement needed to trigger protective trips before mechanical damage propagates. Its chemical-resistant housing withstands hydrocarbon vapors, H₂S exposure, and aggressive cleaning agents common in refinery environments.

Power Generation: Steam turbine and gas turbine protection systems demand sub-millisecond response to shaft excursions. This probe housing, when integrated into a Bently Nevada 3500 Series rack, supports the API 670 standard for machinery protection, providing the redundant measurement paths required for turbine overspeed and high-vibration trip functions. It is equally applicable to large boiler feed pump protection in thermal power stations.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loading and high ambient dust concentrations. The ruggedized stainless steel construction of the 21000-16-10-00-113-03-02 resists abrasion, impact, and ingress of fine particulates, maintaining reliable proximity measurement even in the harshest open-pit or underground mining environments.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent bearing failures that could interrupt critical public infrastructure. This probe’s corrosion-resistant housing performs reliably in high-humidity, chlorine-rich atmospheres typical of water treatment plant motor rooms.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction furnace drives generate intense electromagnetic interference. The EMI-shielded cable and precision sensing tip of the 21000-16-10-00-113-03-02 maintain signal fidelity in these high-noise environments, supporting reliable interlock and protection functions on critical drive trains.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 21000-16-10-00-113-03-02?
All units are covered by a 12-month warranty against defects in materials and workmanship from the date of shipment. Warranty claims are processed promptly with replacement or repair at no additional cost. Our warranty applies to both new and certified-refurbished units supplied by SMARTNEXMSK.

Q2: What pre-shipment testing is performed on each unit?
Every 21000-16-10-00-113-03-02 probe housing undergoes functional verification prior to dispatch, including dimensional inspection of the sensing tip, continuity and insulation resistance testing of the cable assembly, and visual inspection for housing integrity. Units are shipped with test records available upon request, ensuring full traceability for safety-critical installations.

Q3: Is this probe compatible with existing Bently Nevada 3500 and 3300 XL monitor systems?
Yes. The 21000-16-10-00-113-03-02 is fully compatible with the Bently Nevada 3500 Series machinery protection racks and 3300 XL Proximitor driver electronics. It follows the standard Bently Nevada proximity probe system architecture, making it a direct replacement for worn or damaged probes in existing installations without requiring recalibration of the monitor system.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated inventory of the 21000-16-10-00-113-03-02 and related 21000 Series components to support ongoing maintenance, planned turnarounds, and emergency replacement requirements. We offer flexible procurement options including blanket orders and consignment stock arrangements for facilities with high-volume or time-critical spare parts programs. Contact our team to discuss long-term supply agreements.
