Bently Nevada 21000-16-10-15-106-03-02 Safety Proximity Probe

Bently Nevada 21000-16-10-15-106-03-02 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

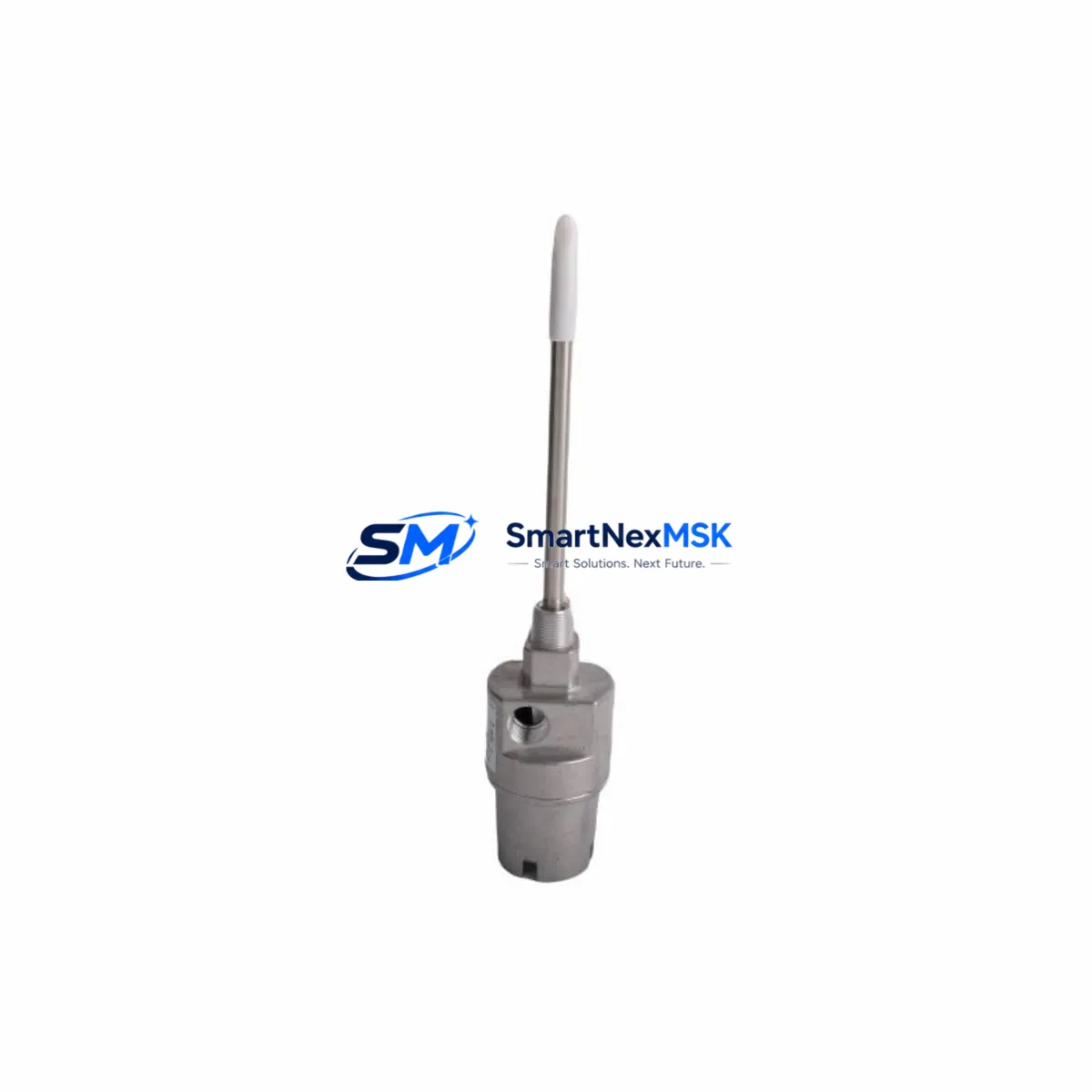

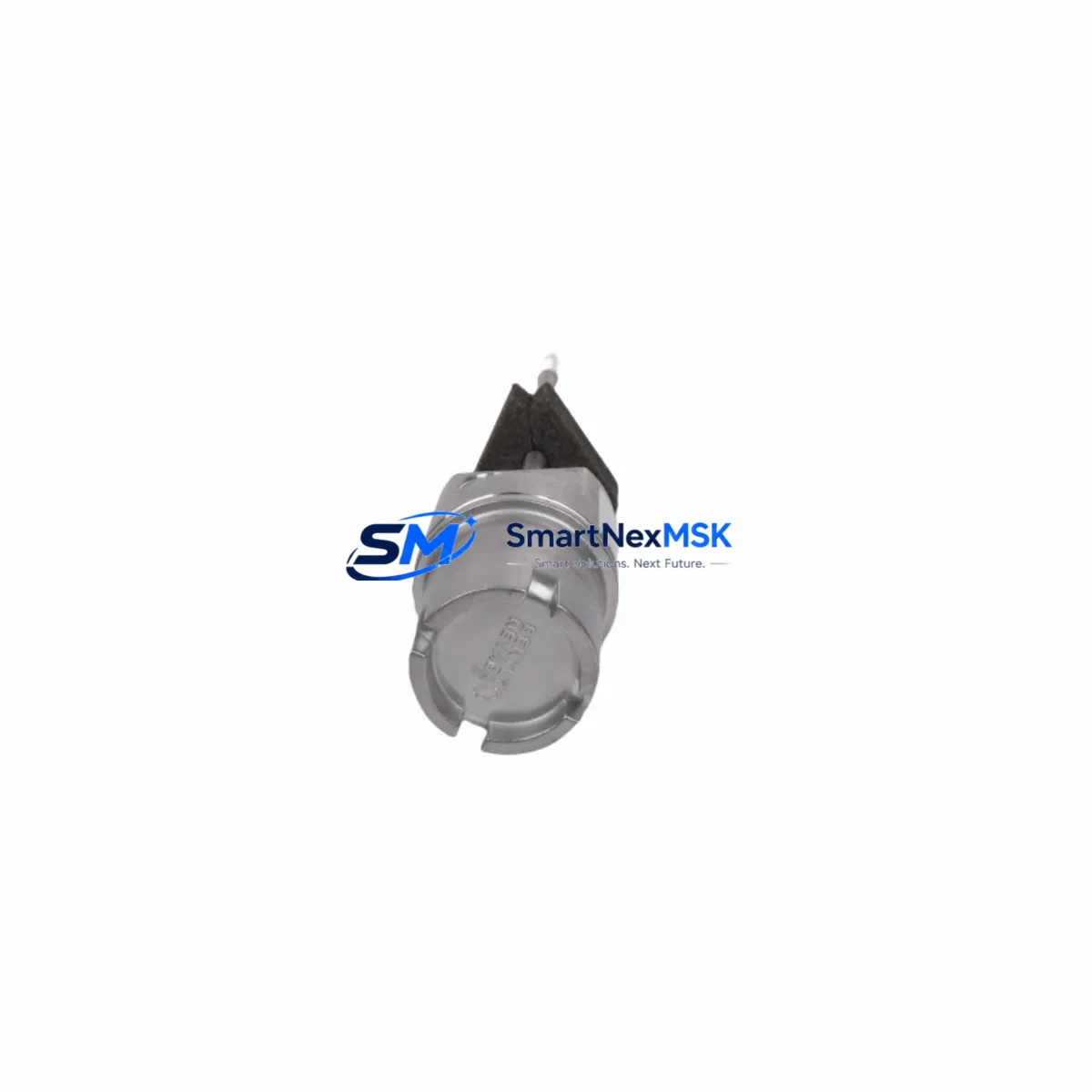

The Bently Nevada 21000-16-10-15-106-03-02 is a ruggedized proximity probe housing assembly engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, and port machinery — this probe housing delivers consistent, safety-grade performance where control interruption is simply not an option.

In critical rotating machinery protection applications, signal integrity is paramount. The 21000-16-10-15-106-03-02 housing is constructed to resist signal drift caused by electromagnetic interference, mechanical vibration, thermal cycling, and corrosive atmospheres. Its ruggedized design minimizes the risk of false trips, missed alarms, and unplanned shutdowns — directly supporting the safety and availability of turbines, compressors, pumps, fans, and other rotating assets that form the backbone of continuous production processes.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 21000-16-10-15-106-03-02 probe housing works in concert with a complete chain of safety-critical components. The probe connects to the Bently Nevada 330180 Proximitor Sensor, which conditions the eddy-current signal before it reaches the Bently Nevada 3500/40M Proximitor/Seismic Monitor rack module. Within the 3500 Series rack, the 3500/20 Rack Interface Module (RIM) manages communication between field devices and the control system, while the 3500/15 Power Supply Module provides stable, isolated DC power to all monitoring cards — protecting against power fluctuation and surge events that could otherwise cause module mis-operation.

For installations requiring redundant vibration monitoring, the Bently Nevada 3500/42M Proximitor/Seismic Monitor can be paired alongside the primary channel to ensure no single-point failure compromises the safety interlock loop. Extension cables such as the Bently Nevada 330130-045-00-00 armored extension cable are commonly used to bridge the distance between the probe housing and the Proximitor Sensor in large turbine enclosures, maintaining signal fidelity across long cable runs in high-EMI environments.

At the field junction level, Bently Nevada 3300 XL Proximitor Sensors mounted in stainless steel enclosures provide local signal conditioning, reducing susceptibility to ground loops and common-mode noise. For plants operating under IEC 61511 or API 670 safety standards, the entire measurement chain — from the 21000-16-10-15-106-03-02 probe tip through to the Bently Nevada 3500 Series Trip Multiplexer — must be validated as a functional safety loop. Surge protection devices and proper cable shielding termination at the Bently Nevada I/O Module level further reduce the risk of transient-induced false trips or missed alarm conditions during lightning events or large motor starts.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing environments, rotating machinery such as centrifugal compressors, steam turbines, and boiler feed pumps operate continuously under high load. The 21000-16-10-15-106-03-02 probe housing monitors shaft radial vibration and position in real time, providing early warning of rotor imbalance, bearing wear, and oil whirl instability — enabling operators to intervene before a catastrophic failure triggers an emergency shutdown or process safety event.

Power Generation: Gas turbines and steam turbines in power plants rely on API 670-compliant vibration monitoring to protect assets worth tens of millions of dollars. This probe housing, integrated into the 3300 XL or 3500 Series monitoring system, ensures that vibration exceedances trigger protective relay action before mechanical damage propagates to adjacent components.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme mechanical shock, dust ingress, and wide temperature swings. The ruggedized IP67-rated housing of the 21000-16-10-15-106-03-02 resists these conditions, maintaining reliable proximity measurement even in the harshest open-pit or underground environments.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities must operate without interruption to maintain public health infrastructure. Continuous vibration monitoring using this probe housing enables predictive maintenance scheduling, reducing unplanned downtime and emergency repair costs.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction motors in steel plants generate intense electromagnetic fields and mechanical vibration. The shielded construction of the 21000-16-10-15-106-03-02 probe housing ensures signal integrity in these high-interference environments, supporting reliable protection of critical drive trains.

Port & Marine Machinery: Crane drives, ship propulsion systems, and large diesel generators in port facilities require robust vibration monitoring to prevent costly breakdowns during peak cargo operations. This probe housing provides the measurement reliability needed to support condition-based maintenance programs in salt-air, high-humidity marine environments.

Safety and Quality FAQ

Q1: What warranty does the 21000-16-10-15-106-03-02 carry?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Replacement or repair is provided at no additional cost within the warranty period.

Q2: How is each unit tested before shipment?
Every 21000-16-10-15-106-03-02 probe housing undergoes functional verification prior to dispatch, including gap sensitivity checks and insulation resistance testing. Units sourced as surplus new are inspected for physical integrity and confirmed against original factory specifications before being released for sale.

Q3: Is this probe housing compatible with existing 3300 XL and 3500 Series installations?
Yes. The 21000-16-10-15-106-03-02 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and integrates directly into 3500 Series monitoring racks. It follows standard M10 x 1 probe thread dimensions and uses the same eddy-current signal interface as all 3300 XL series probes, ensuring drop-in replacement without system reconfiguration.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
We maintain dedicated inventory of Bently Nevada 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-unit procurement. Customers with ongoing maintenance contracts or turnaround schedules are encouraged to contact us for volume pricing and reserved stock arrangements to ensure uninterrupted supply.
