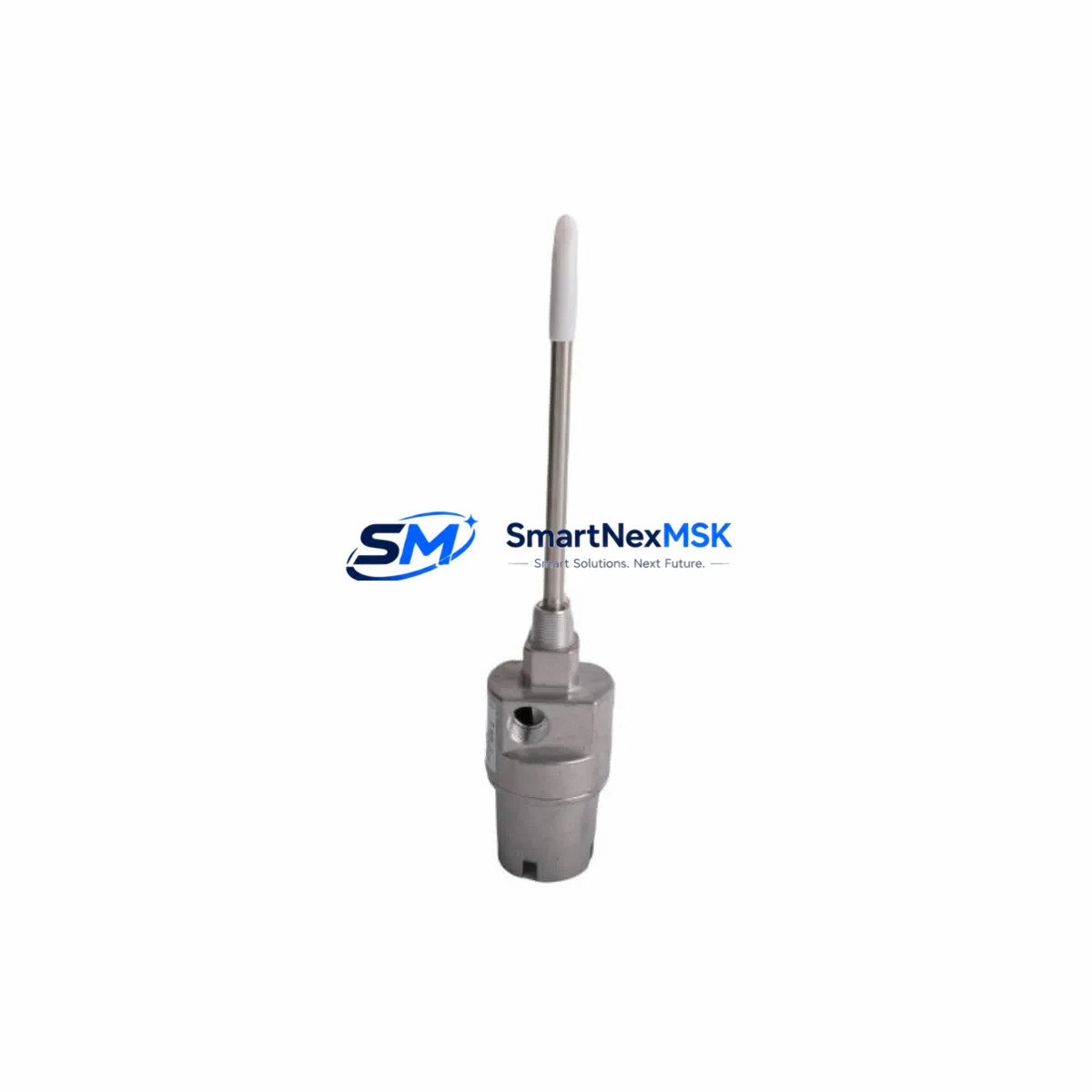

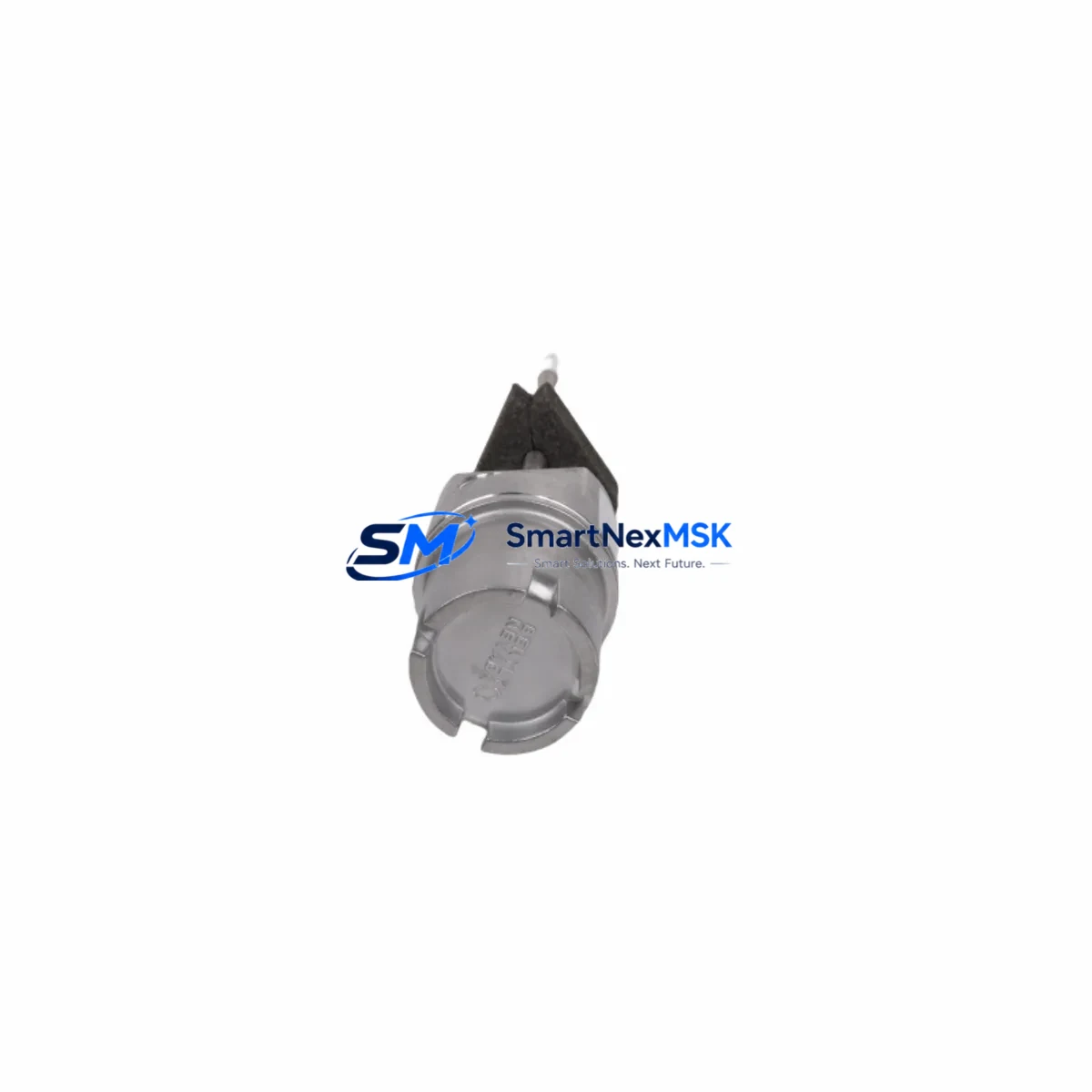

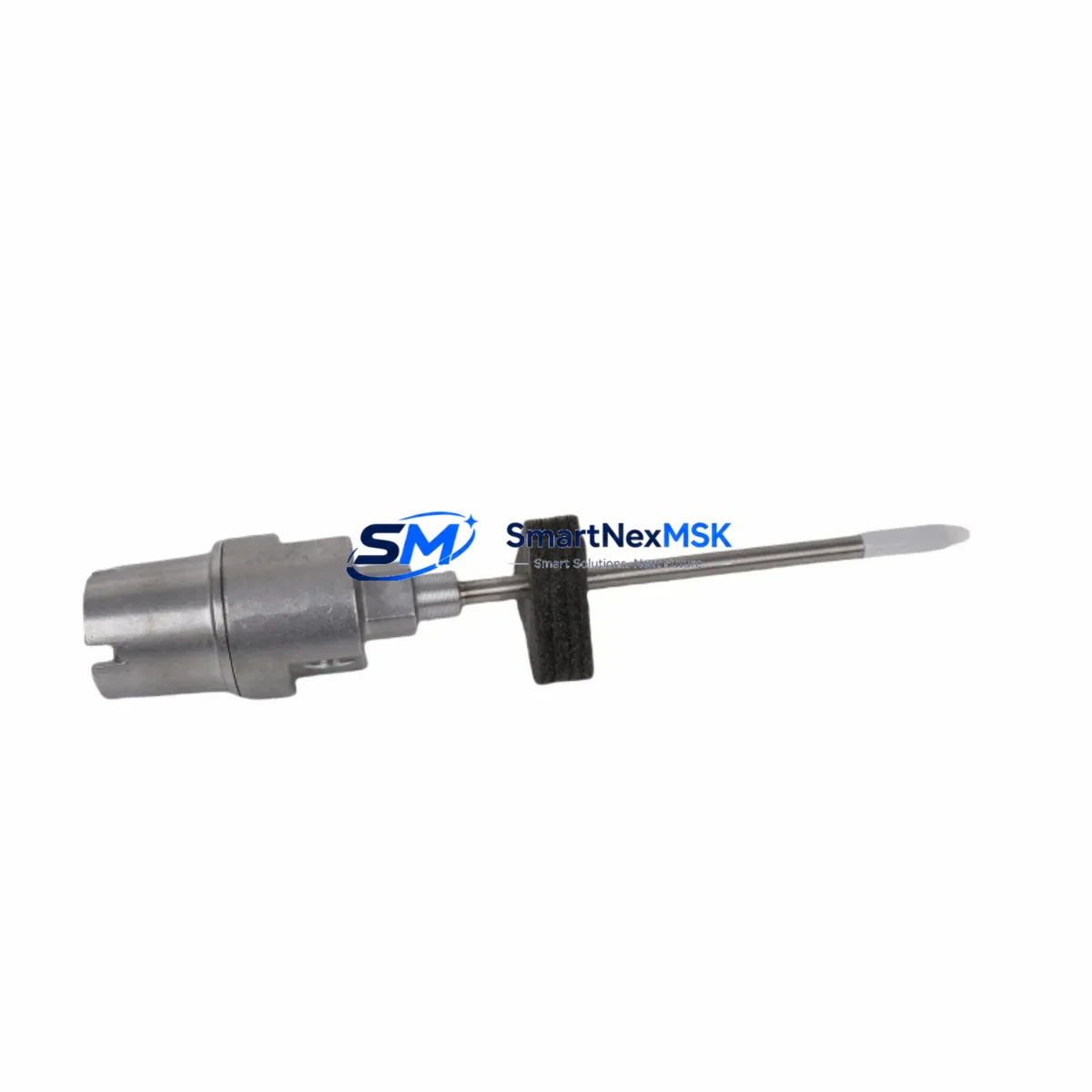

Bently Nevada 21000-16-10-20-060-03-02 Safety Proximity Probe

Bently Nevada 21000-16-10-20-060-03-02 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 21000-16-10-20-060-03-02 is a ruggedized proximity probe module engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Series machinery protection system, this probe delivers reliable, non-contact displacement measurement across rotating machinery in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and continuous process manufacturing lines. Where machine failure is not an option, this module provides the front-line sensing integrity that keeps critical rotating assets — turbines, compressors, pumps, fans, and gearboxes — operating safely within defined vibration limits.

In high-load, high-interference industrial environments, proximity probe performance directly determines whether a protection system can respond in time to prevent catastrophic machinery failure. The 21000-16-10-20-060-03-02 is built to maintain signal accuracy under conditions of electromagnetic interference, ground loop noise, shaft runout variation, and thermal cycling. Its ruggedized housing construction resists mechanical shock, vibration-induced fatigue, and chemical exposure — ensuring that the probe tip remains correctly positioned and the eddy-current sensing field remains stable even after years of continuous operation in harsh field conditions.

Signal integrity is the foundation of any safety interlock or machinery protection strategy. This probe, when paired with a compatible Bently Nevada 3300 XL 8mm Extension Cable and a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-91-00 or 330130-080-00-00), forms a complete, calibrated measurement chain. Any degradation in the probe — whether from tip wear, cable damage, or connector corrosion — can introduce signal drift that causes false alarms or, more critically, missed trips. The 21000-16-10-20-060-03-02 is supplied as a factory-tested, specification-verified replacement to eliminate this risk at the source.

In control cabinet environments where multiple protection channels share a common rack, the integrity of each individual probe directly affects the reliability of the entire Bently Nevada 3500 Series Machinery Protection System or 3300 XL rack. A failing probe can generate noise that propagates through shared signal conditioning modules, affecting adjacent channels monitoring thrust position, differential expansion, or eccentricity. Replacing a suspect probe with a verified 21000-16-10-20-060-03-02 unit eliminates this cross-channel contamination risk and restores full rack integrity without requiring a full system shutdown or recalibration of unaffected channels.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection strategy in a critical control cabinet extends well beyond a single probe. The 21000-16-10-20-060-03-02 operates as part of a layered protection architecture. In a typical turbine or compressor protection panel, this probe feeds displacement data to a Bently Nevada 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated voltage output. That output is then processed by a Bently Nevada 3500/40M Proximitor Seismic Monitor or equivalent rack-mounted monitor card, which applies alert and danger setpoints and triggers relay outputs to the plant DCS or safety PLC.

Power supply stability is equally critical. The Proximitor Sensor requires a stable -24 VDC supply; fluctuations caused by inadequate power conditioning or shared rail loading can shift the probe’s bias voltage and introduce apparent vibration readings that do not reflect actual shaft motion. Pairing the system with a dedicated Bently Nevada 3500/15 Power Supply Module ensures that the probe measurement chain receives clean, regulated power isolated from the noise of adjacent I/O modules, relay cards, or communication modules within the same rack.

For installations where the probe must traverse a significant distance between the machine bearing housing and the rack — common in large turbine halls or outdoor compressor stations — the use of a matched Bently Nevada 3300 XL Armored Extension Cable is essential. Armored cables protect the coaxial signal path from mechanical damage, rodent ingress, and chemical attack, preserving the calibrated system sensitivity that the 21000-16-10-20-060-03-02 probe is designed to deliver. Any impedance mismatch introduced by a non-matched or damaged extension cable will degrade measurement accuracy and may cause nuisance trips or, worse, missed danger conditions.

In safety instrumented systems (SIS) where the vibration channel forms part of a safety function — for example, a high-vibration trip that initiates an emergency shutdown sequence via a Triconex Safety PLC or Rockwell Automation GuardLogix controller — the probe’s reliability directly contributes to the SIL rating of the safety function. A verified, in-specification replacement probe such as the 21000-16-10-20-060-03-02 supports the proof-test and maintenance requirements of IEC 61511-compliant safety loops, ensuring that the safety function remains capable of performing its intended action on demand.

Communication integrity between the protection rack and the plant historian or DCS — typically via Bently Nevada System 1 Software over Ethernet or Modbus — depends on the quality of the underlying measurement data. A degraded probe introduces noise into the data stream that can mask real machinery trends, reducing the effectiveness of predictive maintenance programs and increasing the risk of unplanned shutdowns. Maintaining probe integrity with genuine, tested replacement parts is therefore a direct investment in operational continuity and plant safety.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In fluid catalytic cracking units, compressor trains, and boiler feed pump systems, continuous vibration monitoring is a regulatory and operational requirement. The 21000-16-10-20-060-03-02 provides the sensing reliability needed to maintain API 670-compliant machinery protection on critical rotating equipment, where an undetected bearing failure can result in fire, explosion, or toxic release.

Power Generation: Steam turbines, gas turbines, and hydro generators operate at high speeds under sustained load. Proximity probes monitoring shaft radial vibration and axial position must maintain calibration accuracy across wide temperature ranges and in the presence of strong electromagnetic fields from generator windings and bus bars. The ruggedized construction of this probe supports continuous, uninterrupted monitoring across planned maintenance intervals.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drives, and slurry pumps operate in environments with extreme dust loading, moisture, and mechanical shock. Proximity probes in these applications must resist contamination and maintain consistent gap measurement despite shaft surface irregularities and thermal expansion. The 21000-16-10-20-060-03-02’s robust housing and shielded cable construction address these challenges directly.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities run continuously, often unattended. Early detection of bearing wear or rotor imbalance through vibration monitoring prevents catastrophic pump failure and service interruption. This probe supports the always-on monitoring posture required in critical utility infrastructure.

Metallurgy and Steel Production: Rolling mills, continuous casters, and induction furnace drives generate intense vibration, heat, and electromagnetic interference. Proximity probes in these environments must maintain signal integrity under conditions that would degrade standard instrumentation. The 21000-16-10-20-060-03-02 is rated for these demanding thermal and electromagnetic environments.

Port and Heavy Lifting Equipment: Crane hoists, winch drives, and ship-loader gearboxes require reliable vibration monitoring to prevent mechanical failure during critical load-handling operations. Proximity probe systems on these assets provide early warning of gear mesh anomalies, bearing defects, and shaft misalignment before they progress to failure.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the 21000-16-10-20-060-03-02?
A: The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If the probe fails to meet its specified performance parameters under normal operating conditions within the warranty period, we will provide a replacement or full refund. The warranty applies to the probe assembly including the tip, cable, and connector.

Q: What pre-shipment testing is performed on each unit?
A: Every 21000-16-10-20-060-03-02 unit undergoes full functional verification prior to shipment, including bias voltage output check, sensitivity verification against a calibrated target, cable continuity and insulation resistance testing, and connector integrity inspection. Units that do not meet Bently Nevada factory specifications are rejected and not shipped.

Q: Is this probe compatible with existing 3300 XL Proximitor Sensors and extension cables?
A: Yes. The 21000-16-10-20-060-03-02 is a direct replacement for the standard 8mm 3300 XL probe family and is fully compatible with Bently Nevada 3300 XL Proximitor Sensors and matched extension cables. The system sensitivity of 200 mV/mil (7.87 V/mm) is maintained when used with the correct matched system components. Always verify that the extension cable length matches the probe cable length for correct calibration.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: We maintain dedicated stock of the 21000-16-10-20-060-03-02 to support planned maintenance schedules, proof-test programs, and emergency replacement requirements. For facilities with multiple machines using this probe model, we recommend establishing a standing spare parts agreement to ensure availability without lead-time risk. Contact our team to discuss volume pricing and reserved stock arrangements.
