Bently Nevada 21000-28-05-00-041-03-02 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 21000-28-05-00-041-03-02 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

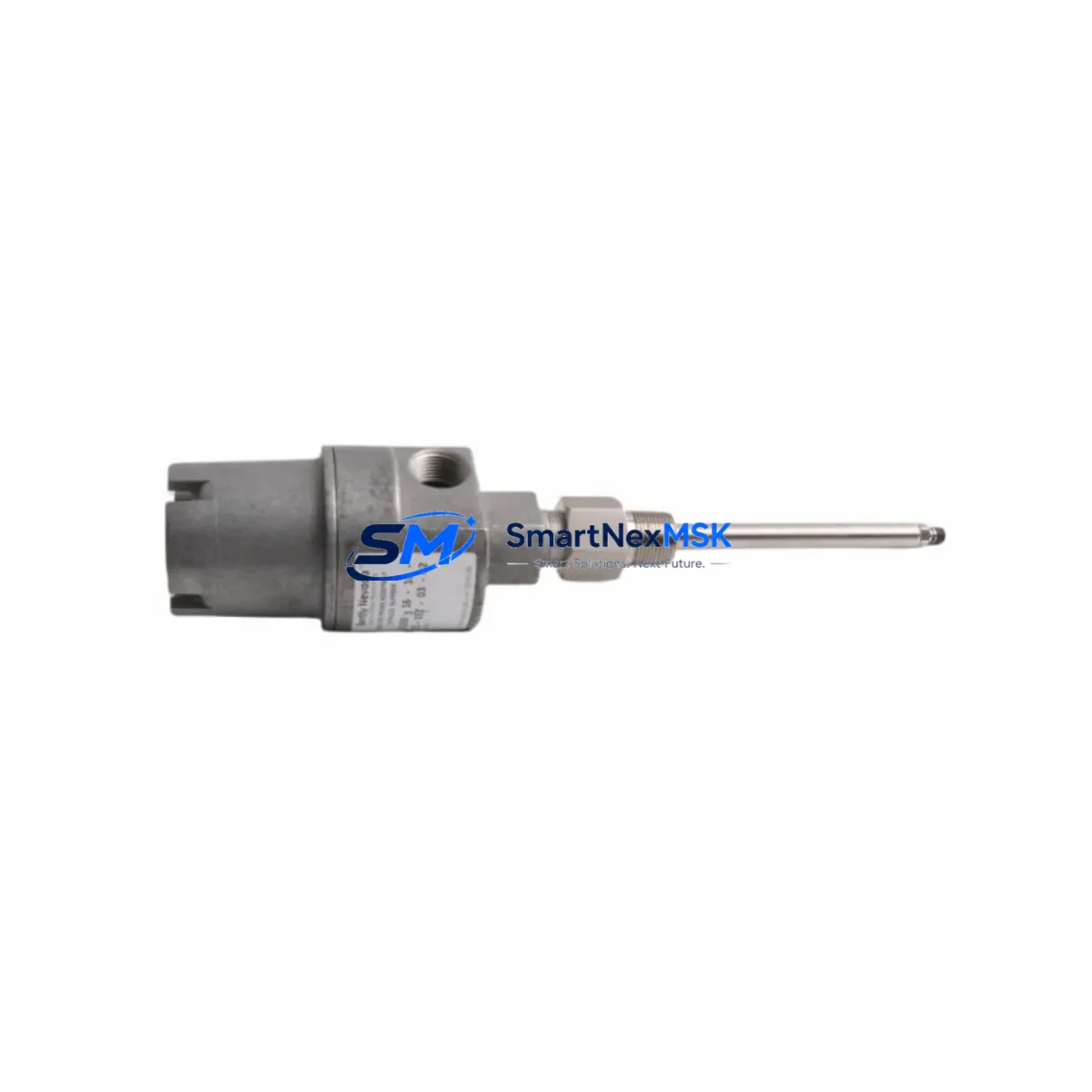

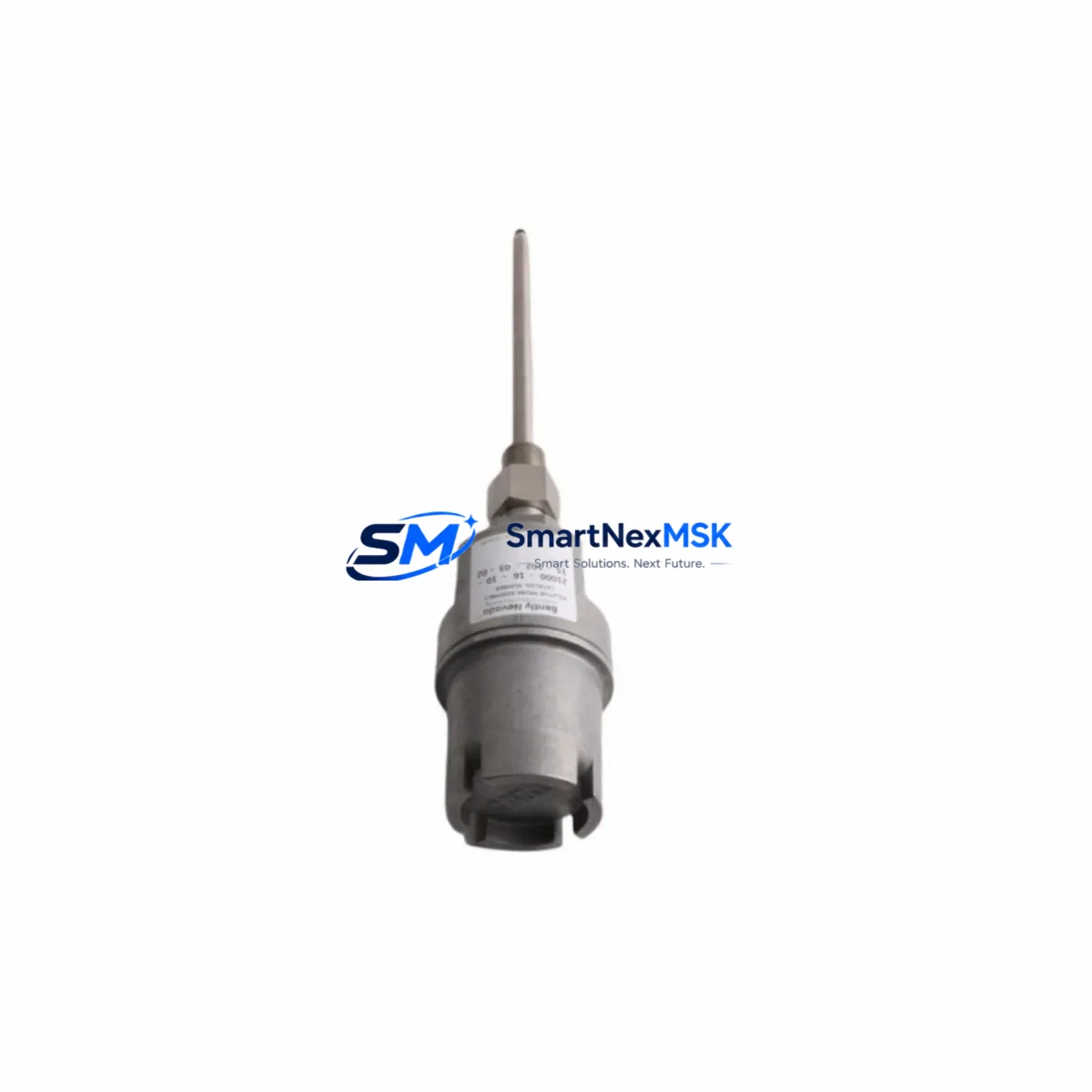

The Bently Nevada 21000-28-05-00-041-03-02 is an 8mm proximity probe housing assembly engineered for seamless integration into Bently Nevada 3300 XL Series vibration monitoring systems. As legacy rotating machinery protection platforms age and OEM support windows close, this unit serves as a verified drop-in replacement that preserves existing wiring, conduit routing, and signal chain integrity — eliminating the need for costly panel redesigns or full system overhauls.

Industrial facilities operating gas turbines, steam turbines, compressors, pumps, and gearboxes that rely on the 3300 XL platform for radial vibration, axial position, and speed monitoring can source this probe housing assembly as a direct substitute for worn, damaged, or discontinued units. The 21000-28-05-00-041-03-02 maintains the same 8mm sensing diameter, thread pitch, and connector interface as the original, ensuring compatibility with existing 3300 XL extension cables and proximitor/oscillator drivers without signal recalibration in most field installations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 21000-28-05-00-041-03-02 into an operating plant begins well before the maintenance window opens. Engineers should pull the existing loop drawing to confirm the extension cable part number — typically a Bently Nevada 330130 or 330180 series armored extension cable — and verify that cable length matches the probe-to-proximitor distance without introducing impedance mismatch. The proximitor driver, commonly a Bently Nevada 3300 XL 8mm Proximitor (e.g., 330180-51-05), must be confirmed compatible with the replacement probe’s sensitivity factor, usually –7.87 V/mm for standard 3300 XL configurations.

At the rack level, the 3300 XL monitor card — such as a 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor — should be inspected for firmware revision and channel configuration. If the plant is migrating from an older 3300/05 or 3300/10 series card to a current 3300 XL card as part of the same outage, the I/O terminal block wiring map must be cross-referenced, as pin assignments differ between generations. The 3300 XL rack backplane and power supply module (e.g., 3300/05 Power Supply or a dedicated 3300 XL Power Supply) should be load-tested before the new probe is energized to prevent nuisance trips during startup.

For facilities also upgrading their System 1 condition monitoring software or migrating historian data to a new SCADA platform, the probe replacement is an ideal time to audit the Keyphasor module wiring and confirm that the 3300 XL Keyphasor input card is receiving a clean once-per-revolution pulse. Any degradation in the Keyphasor signal will affect phase-referenced vibration data across all channels in the rack. Similarly, if the plant uses a Bently Nevada 3500 Series rack in parallel for critical machinery, ensure that the 3500/42M Proximitor I/O Module channel assignments are not inadvertently affected during the 3300 XL maintenance window.

Where the retrofit scope includes replacing multiple probes across a turbine train, it is advisable to stage the work by machine section — HP, IP, and LP turbine bearings separately — and to pre-test each 21000-28-05-00-041-03-02 unit on a bench fixture using a Bently Nevada 330105 Proximitor and a calibrated target disk before installation. This pre-shipment bench test, combined with the 12-month warranty coverage, significantly reduces the risk of infant-failure callbacks after the outage window closes.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL probe replacement requires a structured pre-outage checklist and a clear rollback plan. Before de-energizing the monitor rack, export the current System 1 configuration file and save a backup of all channel setpoint values — Alert, Danger, and time-delay parameters — so that the 3300 XL monitor card can be restored to its pre-outage state within minutes if commissioning reveals an unexpected issue.

During the physical swap, maintain continuity of the control loop by using a Bently Nevada 330910 or equivalent field calibrator to simulate the probe signal at the proximitor input terminals while the probe housing is being replaced in the bearing housing. This technique keeps the 3300 XL monitor card in a known-good state and prevents spurious Danger trips from propagating to the turbine control system or DCS interlock logic. Once the 21000-28-05-00-041-03-02 is installed and the gap voltage is confirmed within the –10 to –18 VDC linear range, the simulated signal can be removed and the live probe signal reconnected without a monitor card reset.

Post-installation, perform a slow-roll vibration check at minimum governor speed to confirm that the 1X and 2X vibration vectors are consistent with the pre-outage baseline stored in the historian. Any phase shift greater than 15 degrees or amplitude deviation greater than 10% should be investigated before returning the machine to full load. Document the as-found and as-left gap voltage readings in the maintenance management system to support future predictive maintenance trending.

Retrofit Support FAQ

Q1: Is the 21000-28-05-00-041-03-02 a direct replacement for the original Bently Nevada part, or are modifications required?
A: This unit is a verified drop-in replacement for the original 21000-28-05-00-041-03-02 probe housing assembly. No modifications to the existing extension cable, proximitor, or monitor card are required in standard 3300 XL installations. Gap voltage should be verified at installation per Bently Nevada commissioning guidelines.

Q2: What wiring checks are required before installing the replacement probe?
A: Confirm that the existing extension cable shield is intact and that the coaxial connector is free of corrosion. Measure the cable impedance if the cable is more than five years old. Verify that the proximitor power supply voltage is within specification (typically –24 VDC) before connecting the new probe.

Q3: Has this unit been tested before shipment, and what does the 12-month warranty cover?
A: Yes. Each 21000-28-05-00-041-03-02 unit undergoes pre-shipment functional testing to verify sensitivity factor and connector integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact.

Q4: Can this probe be used with Bently Nevada 3500 Series monitors as well as 3300 XL?
A: The 21000-28-05-00-041-03-02 is optimized for 3300 XL Series applications. While the physical probe housing may be mechanically compatible with some 3500 Series proximitor inputs, channel configuration and sensitivity calibration must be verified against the 3500 Series monitor card specifications before use in a 3500 rack. Consult your system integrator for cross-series compatibility confirmation.
