Bently Nevada 21000-28-05-00-050-03-02 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 21000-28-05-00-050-03-02 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

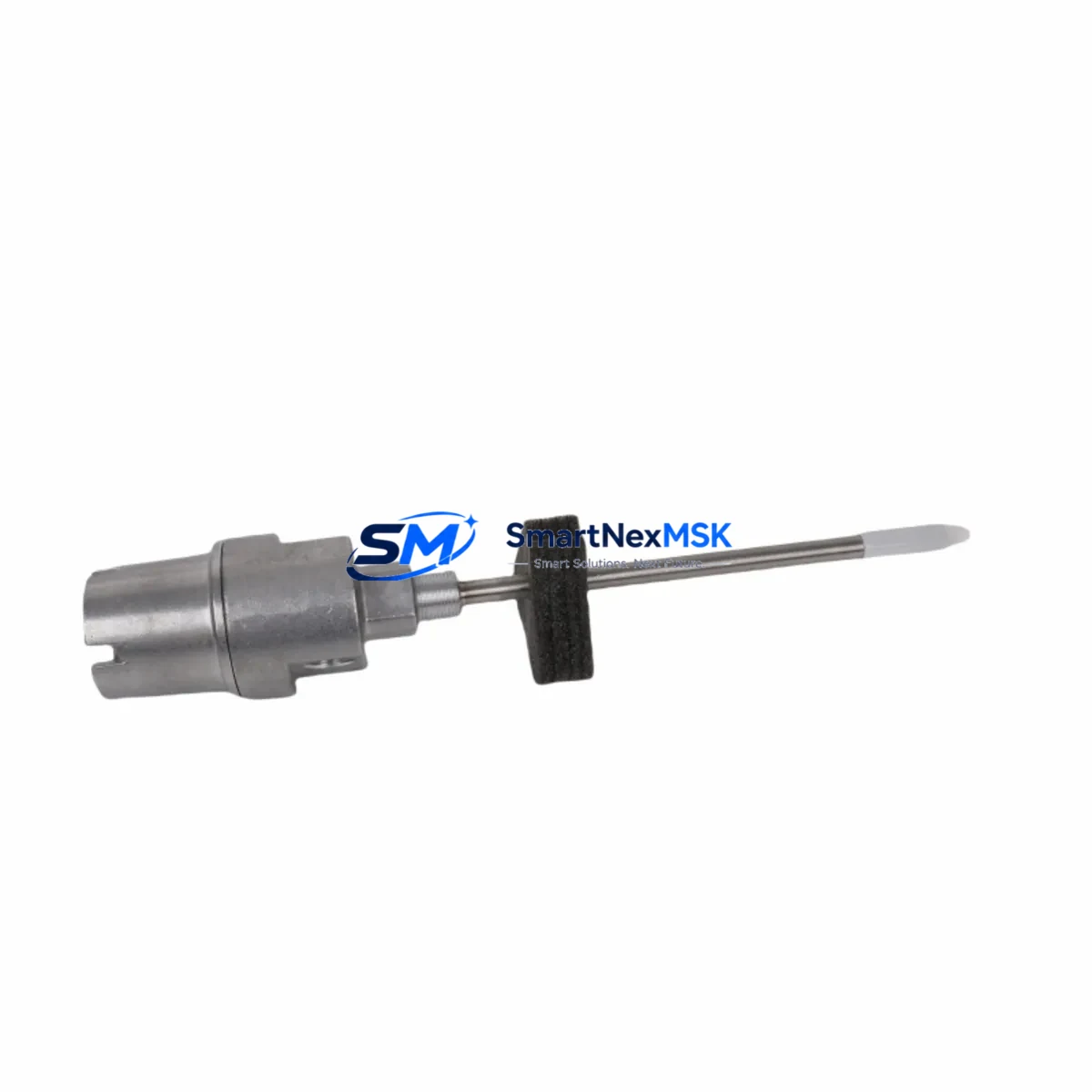

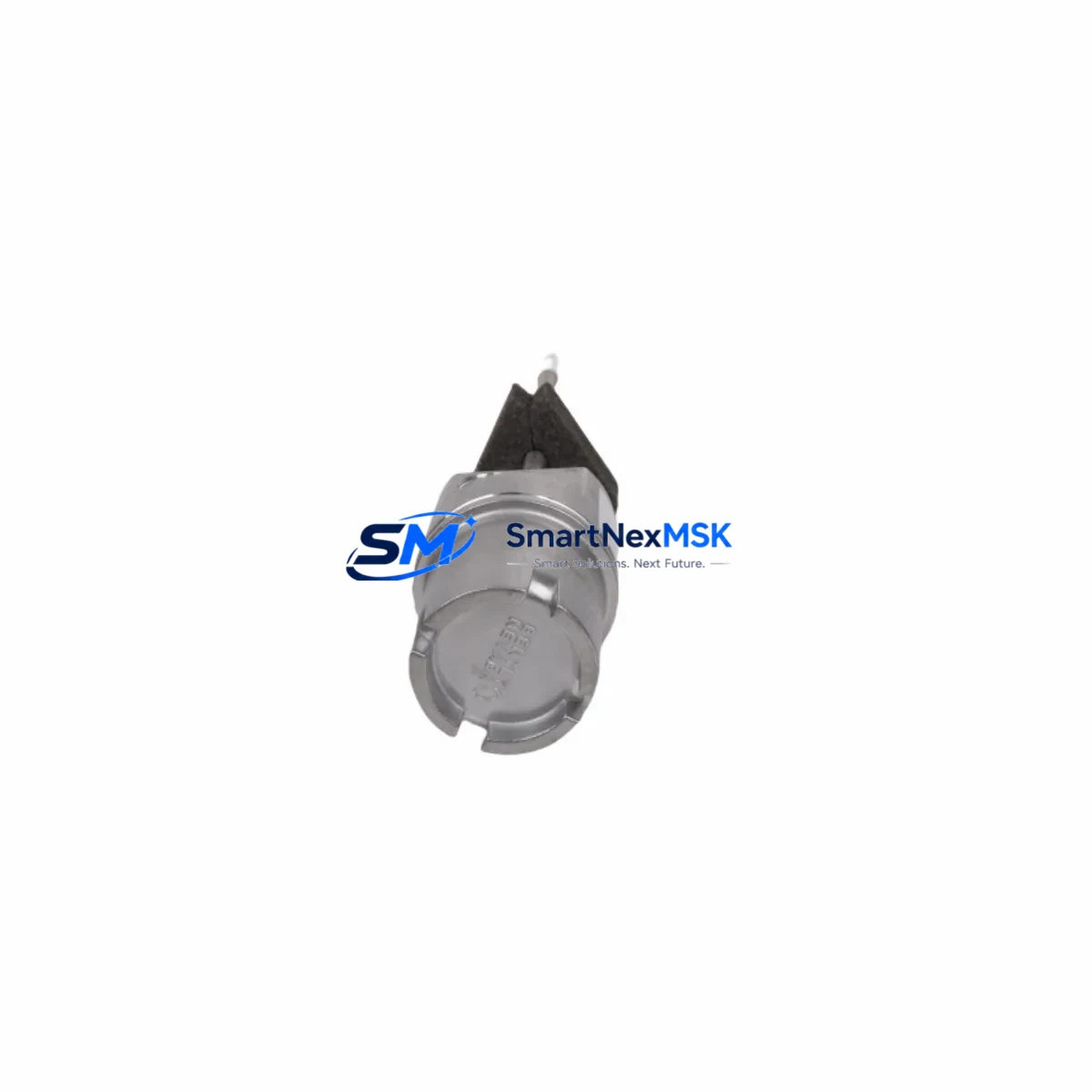

The Bently Nevada 21000-28-05-00-050-03-02 is an eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As part of the 3300 XL Series, this probe is designed for seamless integration with Bently Nevada’s 3300 XL 8mm Extension Cable systems and compatible proximitor/oscillator signal conditioners. With a growing number of legacy installations reaching end-of-life, this unit serves as a verified retrofit-ready replacement for facilities managing turbine control panels, compressor trains, and critical rotating equipment where the original probe has been discontinued or is no longer available through OEM channels.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When replacing the 21000-28-05-00-050-03-02 in an existing control architecture, engineers must account for the full signal chain from probe tip to the control room. The probe interfaces directly with a 3300 XL Proximitor/Oscillator — typically a 3300/16 or 3300/20 series signal conditioner — which converts the raw eddy-current signal into a calibrated voltage or 4–20 mA output readable by the plant DCS or safety PLC. Before pulling the old probe, confirm that the proximitor module is still within calibration and that the 3300 XL Extension Cable (commonly a 3300/05 or 3300/10 series armored cable) shows no continuity faults.

In turbine and compressor applications, the 21000-28-05-00-050-03-02 is frequently installed alongside complementary components such as the Bently Nevada 330180-91-05 velocity transducer for axial position monitoring, and the 3300/55 Dual Voting Logic module for redundant trip logic. Facilities running older Bently Nevada 3500 Series rack systems may also need to verify that the proximitor output scaling matches the 3500/42M Proximitor I/O module’s input range before completing the swap.

For plants integrating vibration data into a Rockwell Automation ControlLogix or Siemens S7-400 PLC platform, the analog signal from the 3300 XL proximitor must be wired into a compatible analog input module — such as a 1756-IF16 or SM 331 — with the correct input range configured in the I/O module parameters. If the facility uses a Honeywell Experion PKS or Emerson DeltaV DCS, verify that the historian tag for this probe channel is updated to reflect the new probe serial number and calibration constants. HMI faceplate graphics tied to the old probe tag should be reviewed and updated in the SCADA or DCS engineering workstation to avoid alarm nuisance trips during the first hours of operation.

Wiring adaptation is straightforward for most 3300 XL installations: the probe’s integral cable terminates at the proximitor junction box using standard shielded twisted-pair termination. Confirm shield grounding at one end only to prevent ground loops. If the original installation used a Bently Nevada 3300/05 armored extension cable that is being retained, inspect the cable connector for corrosion or mechanical damage before reuse. Terminal block labeling in the control cabinet should be verified against the original loop drawing before energizing the new probe.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap or planned-outage approach. For non-redundant single-probe installations, coordinate the replacement during a scheduled maintenance window and pre-stage the 21000-28-05-00-050-03-02 with a bench-verified gap voltage reading before entering the field. Use a portable Bently Nevada field calibrator or a precision DC voltmeter to confirm the probe’s static sensitivity (typically 7.87 V/mm) against the proximitor’s output before reconnecting to the control system.

Where the plant operates a redundant 2-of-3 voting architecture using dual or triple proximity probes on the same shaft journal, it is possible to replace one probe while the machine remains online by temporarily bypassing the affected channel in the 3500 Series rack or equivalent safety system — following the site’s Management of Change (MOC) procedure. After installation, restore the bypass, verify the gap voltage is within the -10 VDC ±1 VDC target range, and confirm that the DCS alarm is cleared before closing the work order. Original PLC ladder logic or function block programs do not require modification for a like-for-like probe replacement; however, if the replacement involves a change in cable length or probe body geometry, re-linearization of the proximitor may be required.

Retrofit Support FAQ

Q1: Is the 21000-28-05-00-050-03-02 a direct drop-in replacement for the original Bently Nevada OEM part?
Yes. This unit is manufactured to the same dimensional and electrical specifications as the original 3300 XL series probe. It is compatible with all standard 3300 XL proximitor/oscillator modules and extension cables without bracket or wiring modification. Gap calibration should be verified at commissioning.

Q2: What commissioning checks are required after installation?
After mechanical installation, measure the static gap voltage at the proximitor output with the shaft stationary. The target gap is typically -10 VDC ±1 VDC for an 8 mm probe at the standard 1.0 mm gap. Confirm the reading against the proximitor’s calibration curve, then verify that the DCS or PLC analog input reads within the expected engineering unit range before returning the machine to service.

Q3: Can this probe be used with Bently Nevada 3500 Series rack systems?
Yes, provided the 3500/42M or 3500/40M Proximitor I/O module is configured for 3300 XL-compatible probes. Verify the module’s probe type selection in the Rack Configuration Software (RCS) and confirm that the input scaling matches the 21000-series sensitivity specification of 7.87 V/mm.

Q4: What warranty and testing does this unit include?
Every 21000-28-05-00-050-03-02 unit is function-tested prior to shipment, including static sensitivity verification and insulation resistance check. A 12-month warranty from the date of shipment covers manufacturing defects. Units are shipped with a test report and are available for expedited dispatch to minimize plant downtime.
