Bently Nevada 21000-28-05-00-060-03-02 Spare 21000 Automation: Precision Spare Parts for Vibration Monitoring Continuity

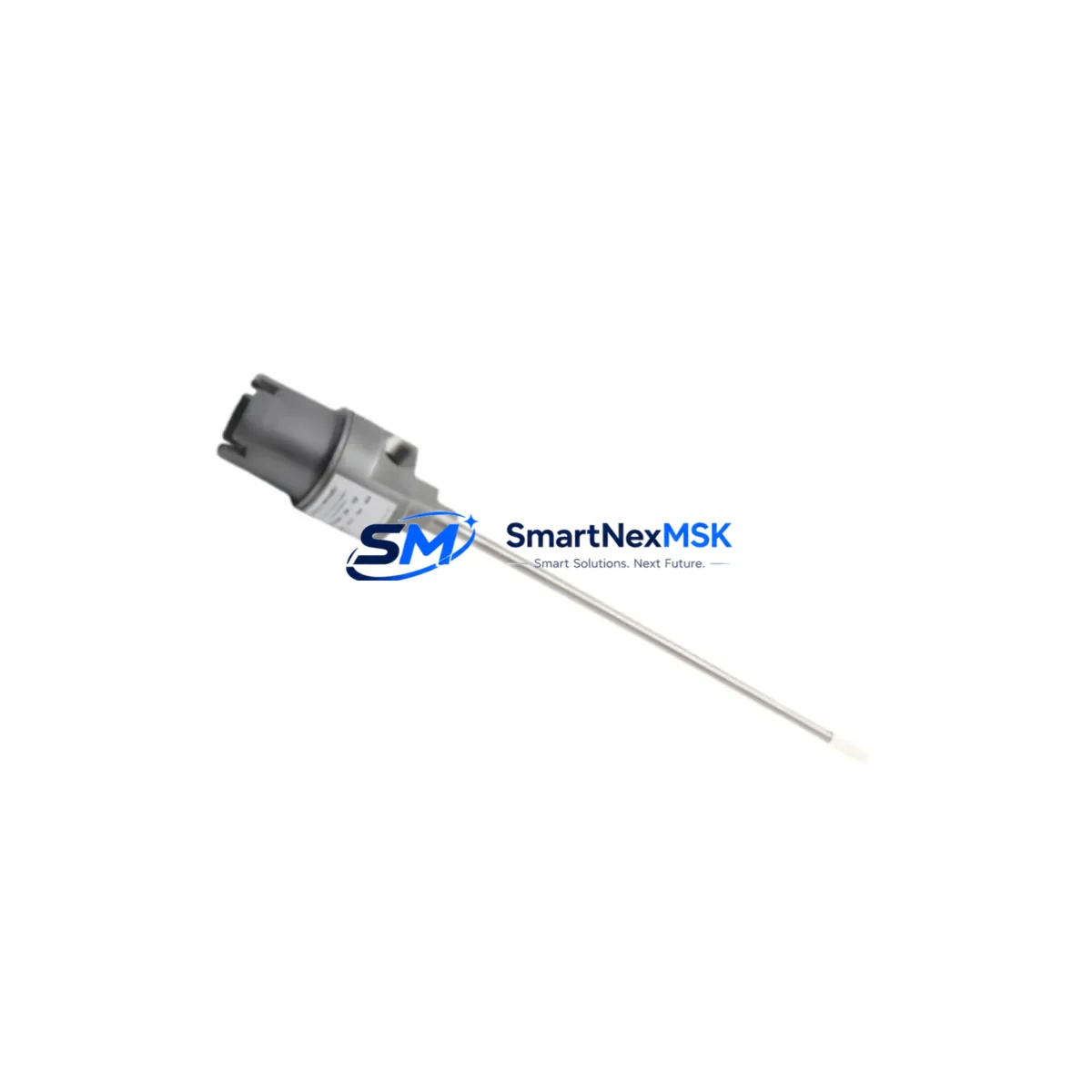

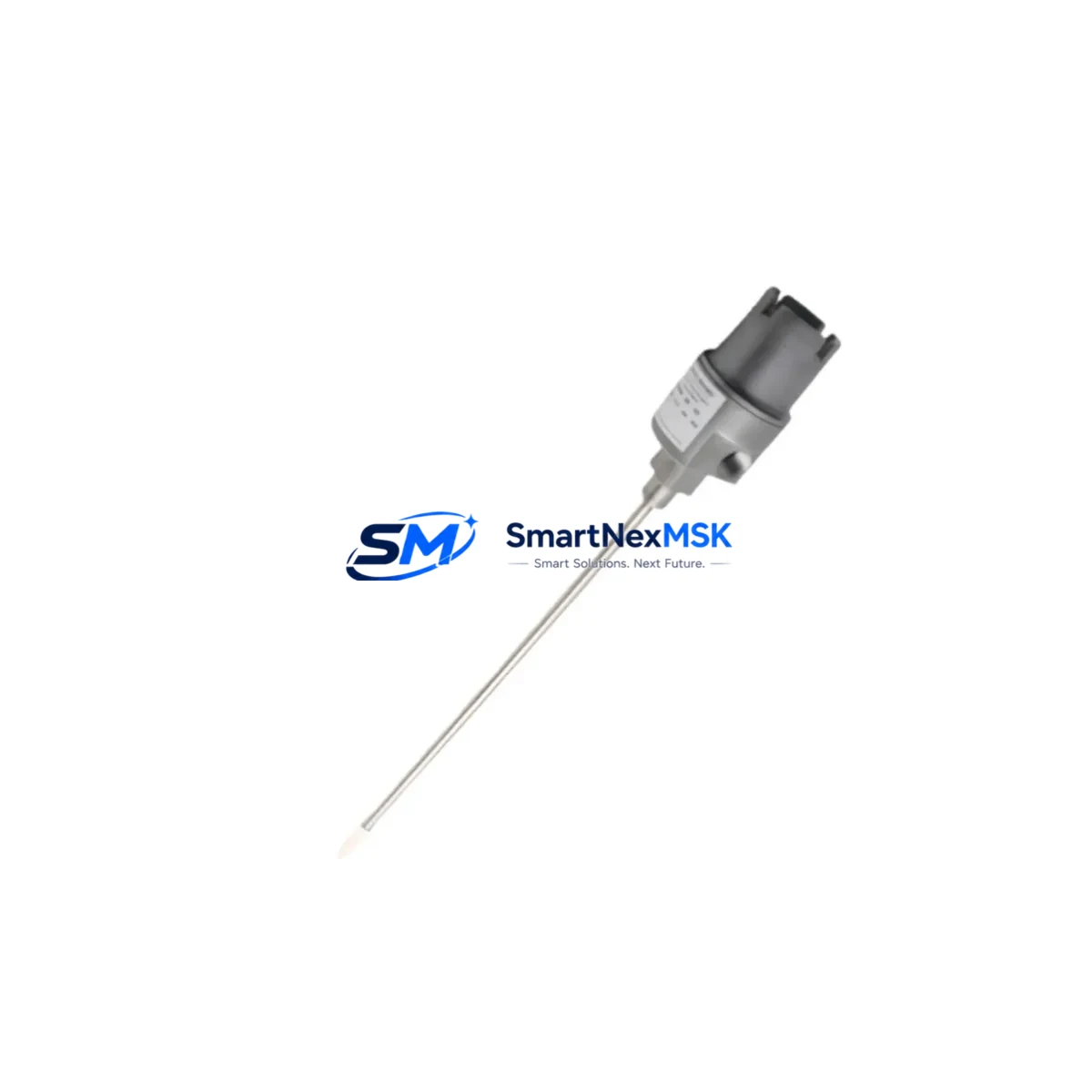

The Bently Nevada 21000-28-05-00-060-03-02 is an original proximity probe assembly from the industry-standard 21000 Series, engineered for continuous vibration and position monitoring in rotating machinery applications. This component is a critical element in turbine protection systems, compressor trains, pump monitoring panels, and generator bearing surveillance circuits. When this probe fails or degrades, the entire vibration monitoring loop is compromised — triggering nuisance trips, masking real faults, or causing unplanned shutdowns that cost thousands per hour in lost production.

For maintenance engineers managing aging DCS or PLC-integrated machinery protection systems, sourcing a verified original replacement — not a counterfeit or unqualified substitute — is the difference between a two-hour planned swap and a multi-day outage investigation. This unit ships tested, documented, and ready for immediate field installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated task. When the 21000-28-05-00-060-03-02 is pulled from service, a disciplined maintenance engineer will use the opportunity to inspect and validate the entire vibration monitoring loop. The 3300 XL proximitor/oscillator (driver module) should be bench-tested for output linearity — a degraded driver will cause the replacement probe to read incorrectly even if the probe itself is perfect. The extension cable assembly connecting the probe to the proximitor is a frequent failure point due to connector corrosion, jacket cracking from heat cycling, or mechanical damage from vibration; always inspect or replace it as a matched set.

Inside the monitor rack, verify the Bently Nevada 3500/42M or 3500/40M vibration monitor card is reading within calibrated range after probe swap. If the rack uses a 3500/20 rack interface module, confirm the communication link to the DCS or safety system is intact. For plants running older 3300 Series monitor racks, this replacement is also an appropriate time to evaluate whether the rack’s power supply module (typically a 3300/20 or equivalent) is delivering stable ±24 VDC — voltage sag will shift probe gap voltage and produce false high-vibration alarms.

On the field wiring side, inspect the terminal blocks and cable glands at the junction box for moisture ingress, especially in outdoor or wash-down environments. Corroded terminals introduce resistance that distorts the probe’s DC gap signal. If the machine is part of an API 670-compliant protection system, also verify the overspeed detection module and thrust position probe (such as the 21000 Series axial position variant) are within calibration — these are often co-located in the same bearing housing and share the same maintenance window. For plants with signal isolators or barriers between the monitor rack and the DCS I/O cards, confirm the isolator’s output is within spec after the probe swap, as some isolators are sensitive to changes in source impedance.

Procurement engineers should note that the 21000-28-05-00-060-03-02 is a long-lead item at many distributors. Maintaining a minimum stock of one spare probe assembly per critical machine train — alongside matched extension cables and a spare proximitor — is the industry-standard approach for plants targeting less than 24-hour MTTR on vibration monitoring faults.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Coordinate with the control room to inhibit the vibration alarm and trip for the affected channel before removal. Record the existing gap voltage (typically –10 to –12 VDC at the nominal air gap) as a baseline for the new probe setup.

Step 2 — Probe Removal: Loosen the locknut and back the probe out carefully. Inspect the probe tip and target area for scoring, contamination, or shaft surface damage. A damaged target surface will cause the new probe to read incorrectly regardless of calibration.

Step 3 — Cable & Connector Inspection: Before installing the new 21000-28-05-00-060-03-02, inspect the extension cable and proximitor connector for corrosion or damage. Replace the cable if any anomaly is found — installing a new probe on a degraded cable negates the repair.

Step 4 — Installation & Gap Setting: Thread the new probe in and set the air gap per the system datasheet (typically 1.0–1.5 mm for 28 mm probes). Verify gap voltage at the proximitor output matches the baseline. Tighten the locknut to the specified torque.

Step 5 — System Verification: With the probe installed, confirm the monitor card is reading correctly and that the DCS is receiving a valid signal. Remove the alarm/trip inhibit and return the channel to service. Log the replacement in the maintenance management system with the new probe serial number and gap voltage.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for compliance and future maintenance planning.

Spare Parts Support FAQ

Q1: Is the 21000-28-05-00-060-03-02 compatible with both 3300 and 3500 Series Bently Nevada monitor racks?
The 21000 Series probe system is designed for use with the Bently Nevada 3300 XL proximitor/oscillator. Compatibility with 3500 Series racks depends on the specific monitor card and system configuration. Always verify the driver/oscillator part number matches the probe specification before installation. We can assist with compatibility confirmation prior to shipment.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each unit is tested before dispatch and ships with a test record. Warranty claims require the original invoice and a description of the failure mode. Field damage due to incorrect installation, overvoltage, or mechanical impact is not covered.

Q3: Can this probe replace an older or discontinued Bently Nevada proximity probe model?
The 21000-28-05-00-060-03-02 is a direct replacement for units with the same SKU. Cross-compatibility with other 21000 Series variants (different cable lengths or probe diameters) requires verification of the gap voltage, sensitivity, and connector type. Contact our technical team with your existing probe datasheet for a compatibility assessment before ordering.

Q4: What is the recommended spare parts inventory strategy for critical rotating machinery?
For API 670-compliant machinery protection systems, the recommended minimum is one spare probe assembly, one matched extension cable, and one spare proximitor per critical machine train. For plants with multiple identical machines, a shared pool of two to three sets is typical. Long-lead items like the 21000-28-05-00-060-03-02 should be stocked on-site rather than ordered on demand to support a sub-24-hour MTTR target.
