Bently Nevada 21000-28-05-00-061-03-02 Spare 21000 Series

Bently Nevada 21000-28-05-00-061-03-02 Spare 21000 Series: Spare Replacement & Industrial Downtime Risk Control

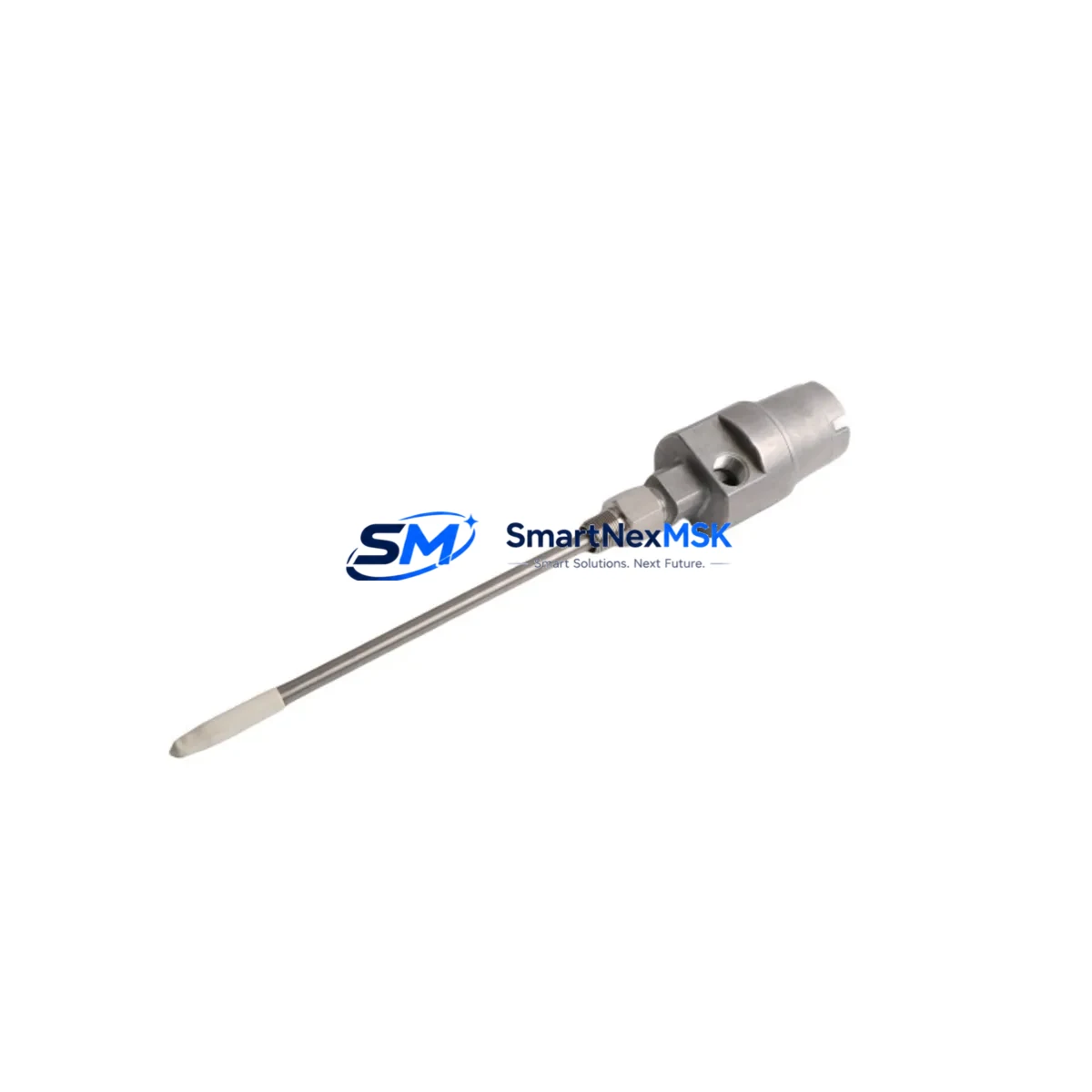

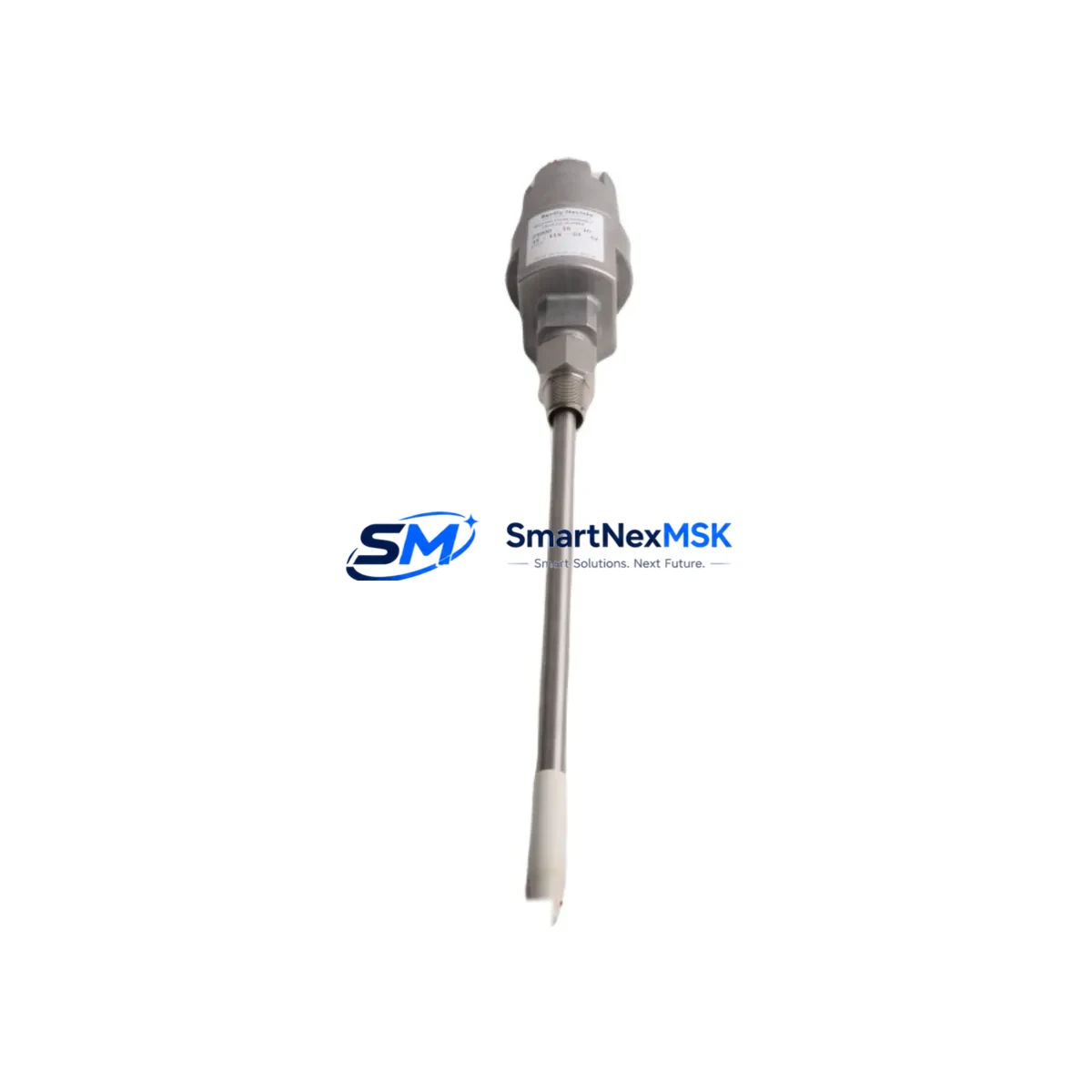

The Bently Nevada 21000-28-05-00-061-03-02 is a 28mm proximity probe assembly from the 21000 Series, widely deployed in rotating machinery protection systems across power generation, oil & gas, petrochemical, and heavy manufacturing facilities. As a critical sensing element in vibration and position monitoring loops, this probe interfaces directly with the 3500 Series rack-based monitoring system, delivering continuous shaft displacement and eccentricity data to protection modules. When this component degrades or fails, the entire machinery protection chain is compromised — making a verified, ready-to-ship spare an essential part of any maintenance strategy.

At SMARTNEXMSK, every 21000-28-05-00-061-03-02 unit is sourced as an original Bently Nevada spare, inspected prior to dispatch, and backed by a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, planned overhaul, and long-term spare parts stocking programs for maintenance and procurement engineers managing critical rotating assets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21000-28-05-00-061-03-02 proximity probe, a thorough site inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity to audit the complete vibration monitoring loop.

Begin with the extension cable — the 21000 Series probe is always used in conjunction with a matched Bently Nevada extension cable (typically 5m or 9m), and any cable with damaged shielding, corroded connectors, or mechanical kinking must be replaced simultaneously. The proximitor / driver module (such as the 3300 XL 8mm or 3300 XL 11mm series) conditions the probe signal and is a common failure point in aging systems; verify its output voltage and gap voltage calibration before returning the loop to service.

Inside the 3500 rack, inspect the 3500/40M Proximitor Monitor or equivalent I/O module that receives the probe signal. Check terminal block connections for oxidation and confirm that the channel is correctly configured for the probe gap range. If the rack has been in service for more than five years, it is prudent to have a spare 3500/20 Power Supply module on hand, as power supply degradation can cause intermittent probe signal faults that are difficult to diagnose without substitution.

For facilities running steam turbines or gas compressors, the Keyphasor probe and module (e.g., 3500/25 Keyphasor Module) should also be verified, as phase reference accuracy directly affects the quality of vibration vector data. Additionally, review the signal conditioning barriers or Zener barriers in hazardous-area installations — these components age and can introduce signal attenuation that mimics probe degradation.

Procurement engineers building a comprehensive spare parts kit for a 3500-based protection system should also consider stocking: a spare 3500/22M Transient Data Interface for data capture continuity, terminal strip assemblies for the I/O modules, and a backup 3500/92 Communication Gateway if Modbus or OPC integration is in use. For older installations, maintaining a spare 3300 Series proximitor alongside the 21000 probe ensures backward compatibility during phased system upgrades.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 21000-28-05-00-061-03-02 part number matches the installed probe exactly, including cable length suffix and connector type. Mismatched cable lengths alter the system’s total inductance and will cause calibration errors in the proximitor.

Step 2 — Safe isolation: Follow site LOTO procedures. The 3500 rack can remain powered during probe swap in non-hazardous areas if the channel is placed in bypass mode via the rack keyswitch or software — confirm with your site safety plan before proceeding.

Step 3 — Gap setting: After mechanical installation, set the probe gap to the manufacturer-specified voltage (typically -10.0 VDC ± 0.5 VDC at the nominal gap distance). Use a calibrated gap-setting tool or feeler gauge. Record the as-found and as-left gap voltages in the maintenance log.

Step 4 — Signal verification: With the machine at rest, verify the static gap voltage at the proximitor output. Then, during startup, confirm that the dynamic vibration signal is within expected baseline limits before releasing the protection system from bypass.

Step 5 — Documentation: Update the equipment history record with the replaced part number, installation date, gap voltage, and technician sign-off. This supports future predictive maintenance scheduling and warranty claim processing.

This workflow minimizes downtime, maintains system compatibility, and ensures the replacement probe performs to the original Bently Nevada specification from day one.

Spare Parts Support FAQ

Q1: Is the 21000-28-05-00-061-03-02 compatible with all 3500 Series racks?
Yes. The 21000 Series 28mm proximity probe is designed for use with Bently Nevada 3500 Series rack-based monitoring systems when paired with the correct extension cable and proximitor driver. Compatibility depends on matching the full probe-cable-driver system; always verify the proximitor model and cable length against your system documentation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 21000-28-05-00-061-03-02 dispatched by SMARTNEXMSK undergoes electrical continuity verification, insulation resistance check, and output voltage confirmation using a calibrated test bench. Units that do not meet Bently Nevada original specification are quarantined and not shipped. A test record is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the specified environmental range. Warranty claims are processed via [email protected] with supporting installation documentation.

Q4: Can SMARTNEXMSK support long-term spare parts stocking programs?
Yes. We support scheduled procurement programs for maintenance teams managing multiple rotating assets. Bulk orders of the 21000-28-05-00-061-03-02 and associated 21000 Series components can be arranged with agreed lead times, inspection certificates, and consolidated shipping. Contact our team to discuss a tailored spare parts supply agreement.
