Bently Nevada 21000-28-05-00-085-03-02 Retrofit Probe

Bently Nevada 21000-28-05-00-085-03-02 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

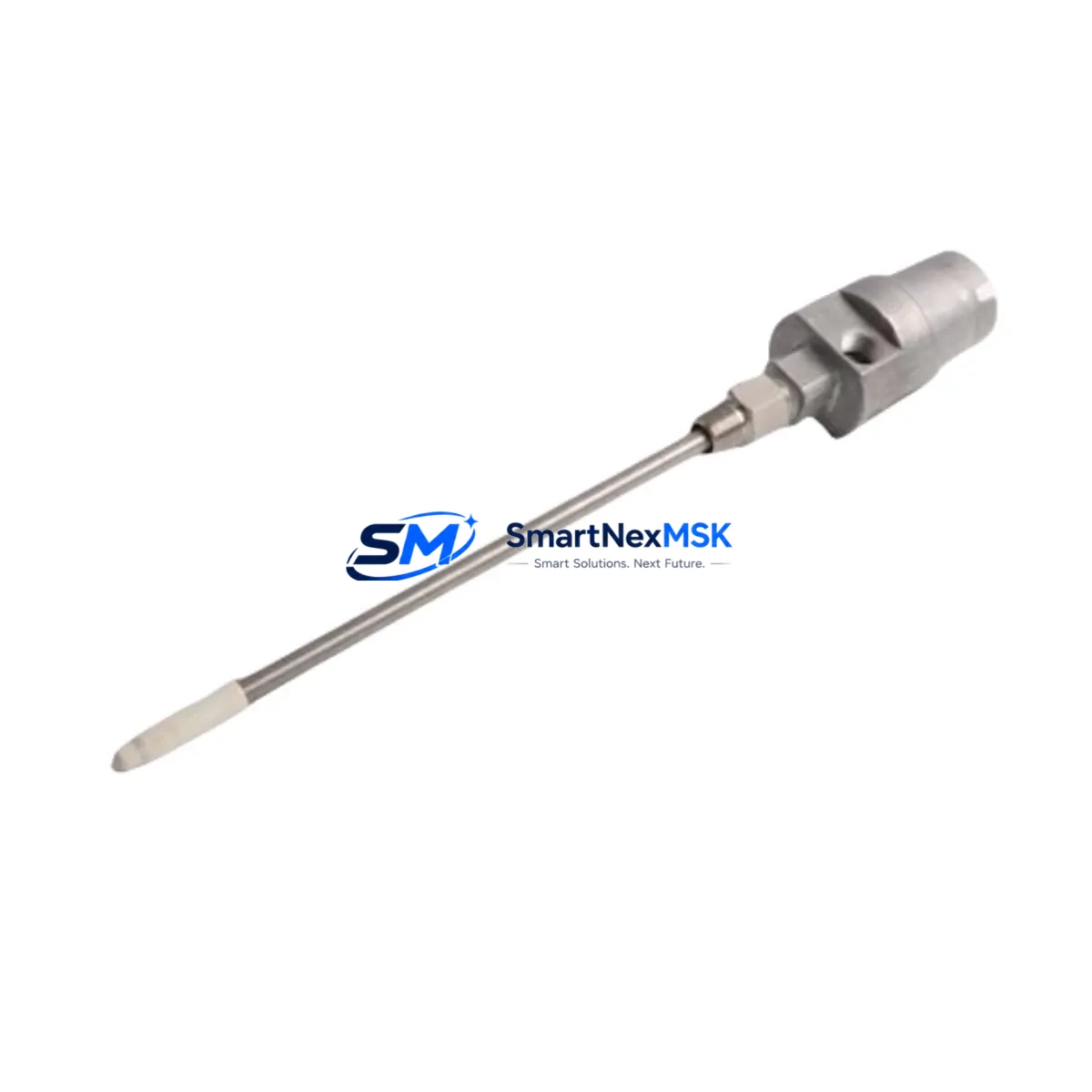

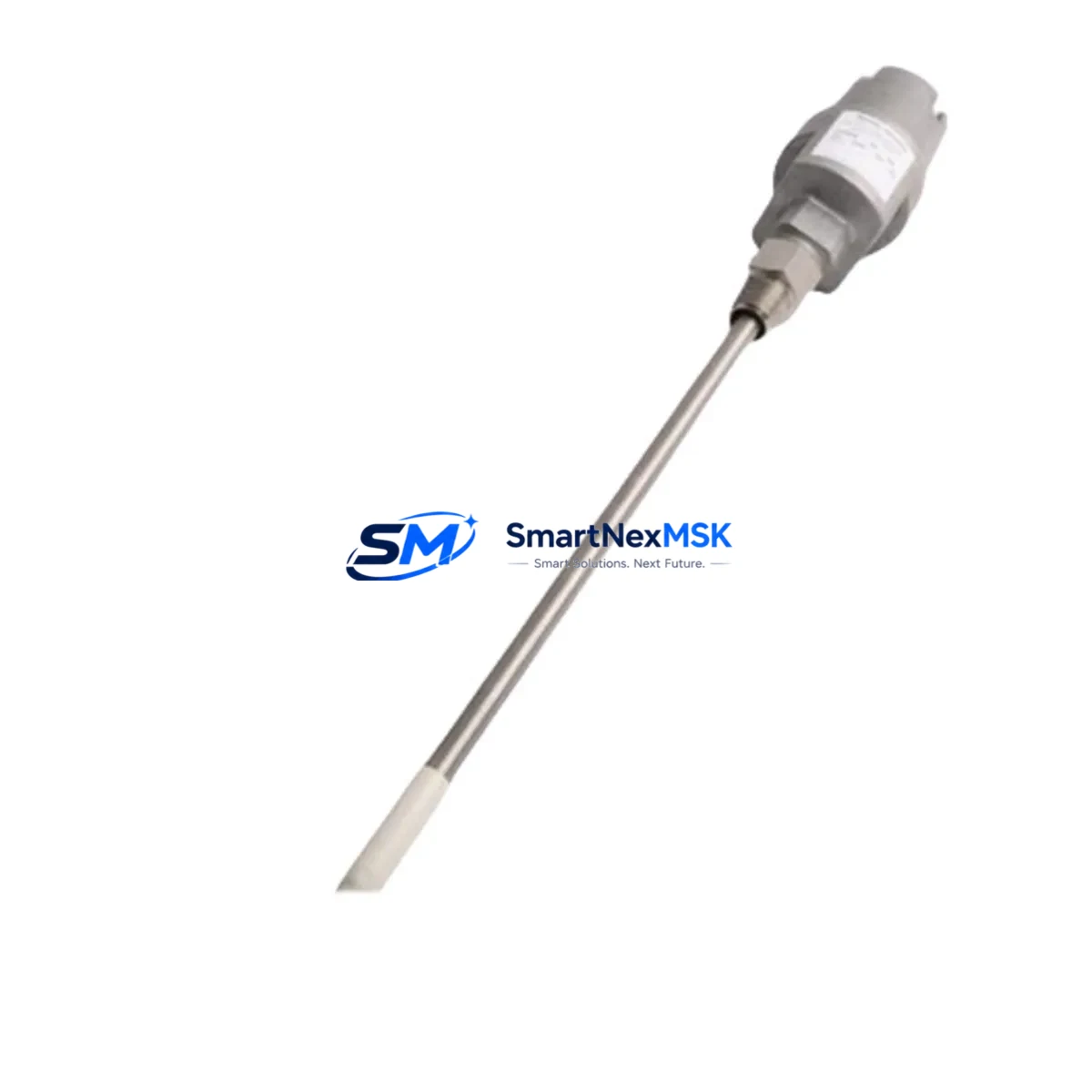

The Bently Nevada 21000-28-05-00-085-03-02 is a retrofit-ready proximity probe housing assembly engineered for seamless integration into legacy 3300 XL Series vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of existing machinery protection infrastructure, this component provides a verified drop-in replacement path that eliminates the need for full system overhauls. Whether you are managing a turbine protection panel, a compressor train monitoring rack, or a rotating equipment control cabinet, this probe assembly delivers the dimensional accuracy, signal conditioning compatibility, and field-proven reliability that maintenance engineers demand during planned and unplanned outages.

Sourced from authorized distribution channels and subject to pre-shipment functional verification, each unit ships with a 12-month warranty covering manufacturing defects and signal output integrity. Worldwide logistics support ensures delivery to refineries, power generation facilities, petrochemical plants, and OEM service centers across Asia, Europe, the Middle East, and the Americas.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 21000-28-05-00-085-03-02 into an operating plant begins well before the maintenance window opens. A structured retrofit plan must account for every component in the signal chain — from the probe tip at the shaft surface to the monitor card output relay that feeds the DCS or safety system.

Start by auditing the existing 3300 XL rack configuration. Identify the proximitor driver model currently installed — typically a 3300 XL 8 mm or 3300 XL 11 mm proximitor — and confirm that the replacement probe’s tip diameter and sensitivity curve match the driver’s calibration range. If the existing proximitor driver (e.g., 330180 or 330181 series) shows signs of drift or has exceeded its recommended service interval, plan to replace it alongside the probe to avoid introducing a new variable into an aging signal chain.

Next, inspect the extension cable assembly. The 3300 XL system uses matched probe-and-extension sets; substituting a non-matched cable will shift the system’s resonance frequency and introduce gap voltage error. Confirm the cable length (5 m or 9 m) and connector type before ordering. If the conduit run has been modified since original installation, a field-measured custom length may be required.

At the monitor card level, verify that the 3300 XL monitor (such as a 3300/16 or 3300/20 series card) is configured for the correct transducer type and that the OK setpoint thresholds are documented before removal. Many facilities store this configuration in a paper-based loop folder rather than a digital asset management system, so a pre-outage walkdown to photograph existing DIP switch settings and terminal wiring is strongly recommended.

For facilities migrating from a standalone 3300 XL rack to a 3500 Series machinery protection system, the 21000-28-05-00-085-03-02 probe remains compatible with 3500/42 and 3500/44 monitor modules, provided the proximitor driver is updated accordingly. This migration path also requires updating the System 1 or Orbit software configuration to reflect the new monitor card addresses and channel assignments. Coordinate with the control room team to update any HMI faceplates that display vibration trend data, as tag names and scaling factors may differ between the legacy and upgraded monitor cards.

Power supply integrity is a critical but frequently overlooked element of probe system retrofits. The 3300 XL proximitor requires a stable -24 VDC supply; verify that the existing power supply module (such as a 3300/05 or equivalent rack power unit) can sustain the load after adding replacement components. If the rack is being partially upgraded — for example, replacing only the probe and proximitor while retaining legacy monitor cards — confirm that the backplane bus voltage remains within specification under the new load profile.

Terminal wiring at the junction box and at the monitor card terminal block should be documented with as-found photographs before any disconnection. Use the original loop drawing as a reference, but do not assume it reflects field modifications made during previous maintenance cycles. Label all conductors before removal and verify continuity with a calibrated loop tester before energizing the replacement assembly.

Where the plant uses a Keyphasor® module (such as the 3300/25 or 3500/17) for phase reference, confirm that the Keyphasor probe gap and trigger level are unaffected by the replacement work. Changes to the shaft probe position can alter the phase reference angle and invalidate existing vibration phase trend baselines stored in the historian.

Finally, coordinate with the I&C team to schedule a post-installation loop check and functional test before returning the machine to service. Document the as-left gap voltage, OK relay status, and vibration baseline reading in the plant’s maintenance management system to establish a new reference point for future condition monitoring.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or partial system migration requires a combination of pre-staged materials, documented procedures, and a clear handoff protocol between the mechanical, electrical, and control systems teams.

Pre-stage the replacement 21000-28-05-00-085-03-02 probe assembly, the matched extension cable, and the proximitor driver at the work site before the maintenance window begins. Confirm that all components have been bench-tested and that gap voltage output falls within the specified linear range at the target gap distance. A pre-verified spare eliminates the most common cause of extended outages: discovering a defective replacement part after the original has been removed.

Preserve the original control program logic by exporting a backup of the 3300 XL or 3500 Series configuration before any hardware changes. If the facility uses a System 1 condition monitoring platform, export the current machine train configuration and store it on a secure network drive. This backup protects against accidental parameter loss during monitor card resets or firmware updates that may be triggered by the replacement process.

Maintain field control continuity by coordinating with the DCS operator to place the affected measurement point in bypass or maintenance mode before disconnecting the probe. This prevents spurious trip signals from propagating to the safety system or initiating an unplanned machine shutdown. Confirm the bypass status with the control room before proceeding and document the bypass start and end times in the shift log.

After installation, perform a staged recommissioning sequence: energize the proximitor, verify the gap voltage at the monitor card, confirm the OK relay status, and check the vibration reading against the pre-outage baseline before releasing the bypass. If the reading deviates significantly from the historical baseline, investigate the probe gap setting and cable continuity before returning the machine to automatic protection.

Retrofit Support FAQ

Q1: Is the 21000-28-05-00-085-03-02 a direct drop-in replacement for earlier 3300 Series proximity probes?
In most cases, yes — provided the replacement probe matches the original system’s tip diameter (8 mm or 11 mm), cable length, and proximitor driver model. Always verify the gap voltage specification and sensitivity curve against the existing monitor card configuration before installation. If the original probe was part of a matched set with a specific extension cable and proximitor, replace all three components together to maintain signal chain integrity.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, set the probe gap to the manufacturer’s recommended distance for the target shaft material (typically 1.0–1.5 mm for steel). Measure the gap voltage at the proximitor output and confirm it falls within the linear range specified on the monitor card datasheet. Verify the OK relay output, check the vibration reading against the pre-outage baseline, and document the as-left values in the plant maintenance record before releasing the machine to service.

Q3: Can this probe be used with a Bently Nevada 3500 Series rack during a system upgrade?
Yes. The 21000-28-05-00-085-03-02 probe is compatible with 3500 Series monitor modules (such as the 3500/42 and 3500/44) when paired with the appropriate proximitor driver. During migration from a 3300 XL rack to a 3500 rack, update the System 1 software configuration to reflect the new monitor addresses and verify that HMI tag mappings and historian channel assignments are updated accordingly.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and signal output performance from the date of shipment. Units that fail to meet gap voltage or sensitivity specifications under normal operating conditions are eligible for replacement or credit. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. Pre-shipment functional verification records are retained for all units and can be provided upon request.
