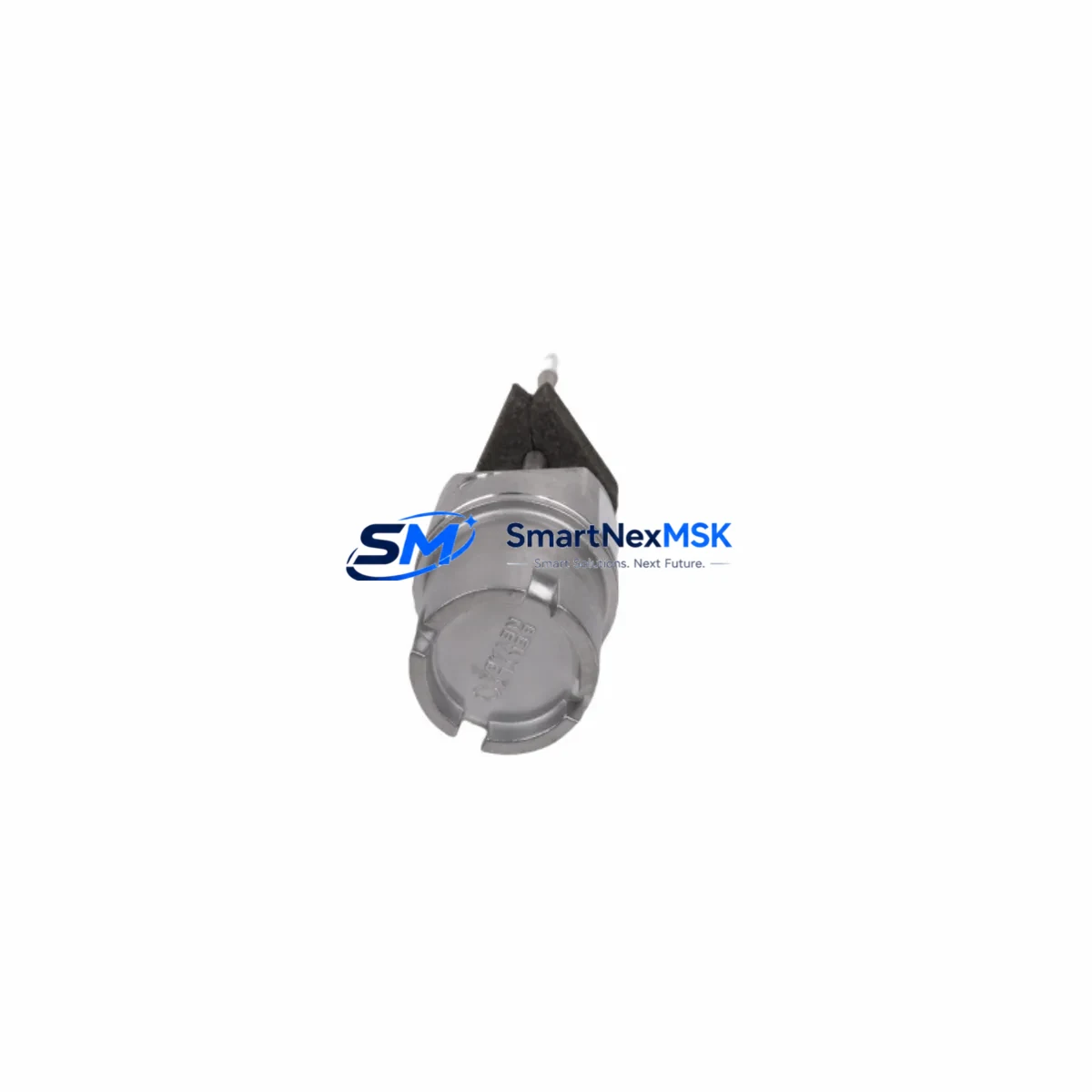

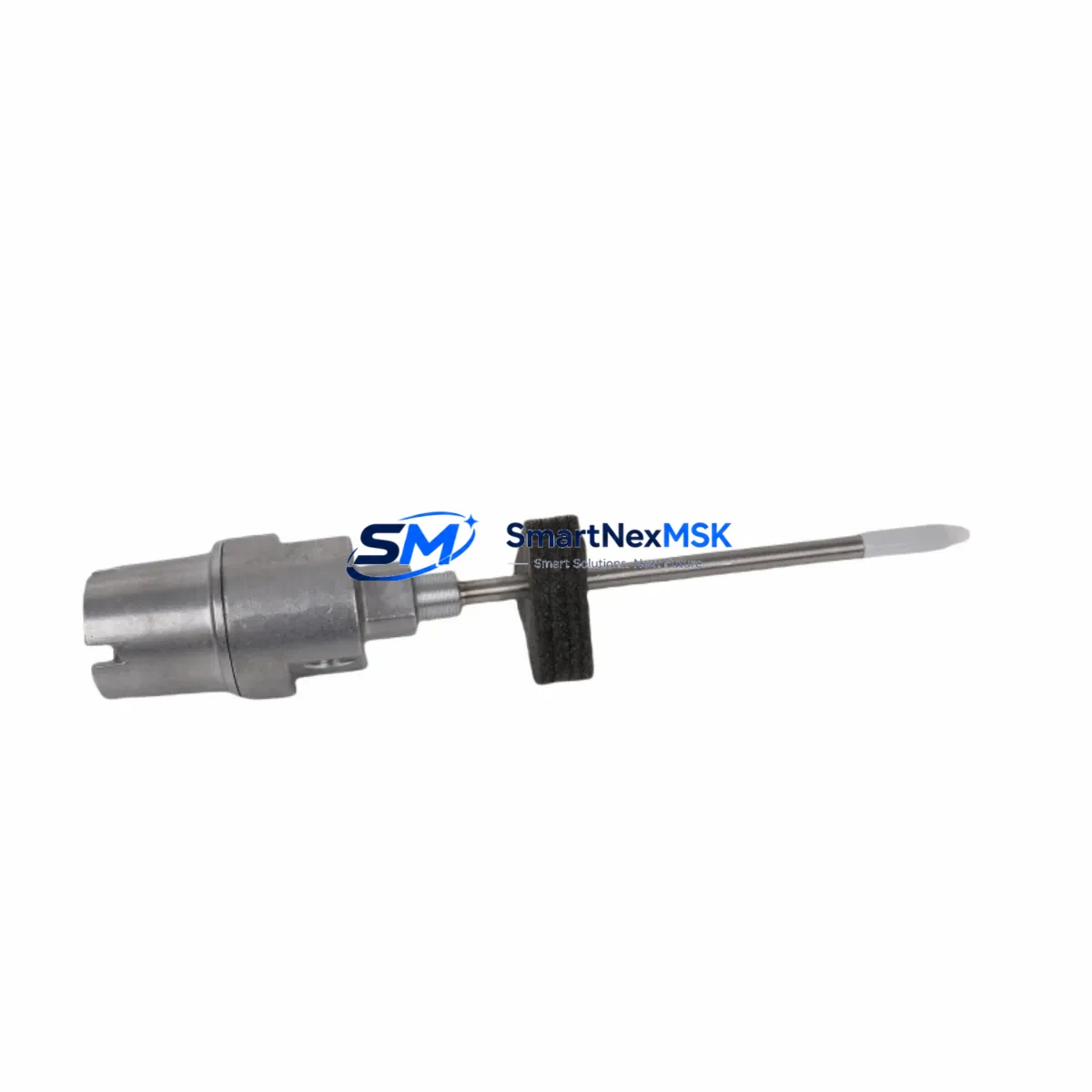

Bently Nevada 21000-28-10-00-056-03-02 Retrofit Proximity Probe

Bently Nevada 21000-28-10-00-056-03-02 Retrofit-Ready Proximity Probe for 21000 Series Control Systems

The Bently Nevada 21000-28-10-00-056-03-02 is a 28mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery protection systems. As legacy 21000 Series installations reach end-of-life or require spare-part replenishment, this retrofit-ready replacement delivers a verified drop-in solution that preserves existing wiring, conduit routing, and 3300 XL proximitor signal chain compatibility — eliminating the need for costly panel redesign or software reconfiguration.

Sourced from authorized distribution channels and subject to full functional verification prior to shipment, each unit carries a 12-month warranty covering manufacturing defects and signal output deviation. In-stock inventory supports urgent maintenance windows, planned turnarounds, and long-lead procurement programs alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 21000-28-10-00-056-03-02 into an existing machinery protection architecture, the retrofit scope typically extends beyond the probe itself. Engineers should audit the full signal chain from probe tip to the monitoring rack. The Bently Nevada 3300 XL Proximitor — the active signal conditioning element paired with this probe — must be confirmed serviceable; if the proximitor shows drift or output clipping, replacement with a 3300 XL 8mm or 3300 XL 25mm unit (matched to probe diameter) should be planned concurrently.

The 3500 Rack system, which houses the 3500/42M Proximitor I/O Module, serves as the primary data acquisition and alarm management platform. Before swapping the probe, verify that the rack’s channel configuration in System 1 software reflects the correct probe type, gap voltage setpoint, and alert/danger thresholds. Incorrect channel configuration is the leading cause of nuisance trips during probe replacement.

Extension cables — typically the 330130 Series armored extension cable — must be inspected for jacket integrity, connector corrosion, and continuity. A damaged extension cable will introduce impedance mismatch that degrades the probe’s linear range and can cause the 3500/42M to report a Not OK status even with a new probe installed. Replace the extension cable as a matched set whenever the probe is changed on high-vibration machinery.

For installations where the 21000 Series probe feeds into a legacy System 1 Evolution or older Keyphasor-based tachometer loop, confirm that the Keyphasor 3500/25 module is correctly configured for the shaft’s once-per-revolution notch or projection. Keyphasor signal integrity is essential for phase-referenced vibration analysis and balancing operations post-retrofit.

In control cabinets where the 3500 Rack coexists with a DCS or safety instrumented system, verify that the 4–20 mA output cards or relay output modules within the rack are not affected by the probe channel reconfiguration. Cabinets integrating Bently Nevada hardware alongside Emerson DeltaV I/O modules or Honeywell Safety Manager logic solvers require a formal management-of-change review before any probe swap on a running unit.

Finally, if the retrofit is part of a broader migration from the 21000 Series to the 3500 Series platform, plan for the 3500/22M Transient Data Interface module to capture startup and coastdown data during the first post-retrofit run. This data provides baseline vibration signatures that support future predictive maintenance decisions and validates the replacement probe’s calibration against the original installation records.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, download and archive the existing 3500 Rack configuration using System 1 software — this preserves all channel setpoints, alarm thresholds, and transducer calibration data. If the unit cannot be taken offline, coordinate with operations to place the affected channel in Bypass mode within the 3500 Rack, ensuring the safety logic remains active on redundant channels while the probe is changed.

On-site, use a calibrated gap tool to set the probe-to-shaft gap to the nominal 50 mil (1.27 mm) before tightening the locknut. Verify the proximitor output voltage falls within the linear range (typically −10 VDC ± 0.5 V at nominal gap) using a calibrated multimeter before reconnecting the rack channel. This single verification step eliminates the most common cause of extended downtime — discovering a gap error only after the unit is restarted.

Once the probe is installed and the gap verified, restore the channel from Bypass, confirm the OK status LED on the 3500/42M module, and monitor the vibration trend for the first 15–30 minutes of operation. Compare the live reading against the archived baseline to confirm the replacement probe is tracking correctly. Document the as-left gap voltage, vibration amplitude, and phase angle in the plant’s maintenance management system to establish the new baseline for future comparisons.

For critical machinery where even a brief bypass is unacceptable, a hot-swap approach using a pre-gapped spare probe and pre-tested extension cable can reduce the actual channel-offline duration to under five minutes. Pre-stage all components — probe, extension cable, locknut, and gap tool — at the work site before the outage begins to eliminate retrieval delays.

Retrofit Support FAQ

Q1: Is the 21000-28-10-00-056-03-02 a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional and electrical specification as the original 21000-28-10-00-056-03-02. It is compatible with the 3300 XL Proximitor and 3500 Rack system without modification. Re-gapping to 50 mil nominal is required after installation, as with any probe replacement.

Q2: What pre-shipment testing is performed on each unit?
Each probe undergoes output voltage verification across the full linear range, connector continuity check, and cable jacket inspection before shipment. A test report is available upon request. The 12-month warranty covers signal output deviation beyond published specification limits and manufacturing defects identified during installation or operation.

Q3: Can this probe be used with a 7200 Series Proximitor instead of the 3300 XL?
The 21000 Series probe is primarily designed for the 3300 XL Proximitor. Use with a 7200 Series Proximitor requires verification of the driver/extension cable system impedance and gap voltage range. Contact our technical team with your proximitor model number before ordering if you are integrating into a 7200 Series signal chain.

Q4: What is the lead time if the item is out of stock?
Current inventory is available for immediate shipment. For volume orders or long-term supply agreements, lead times are confirmed at order placement. We maintain buffer stock for critical spare programs — contact [email protected] to discuss consignment or blanket order arrangements.
