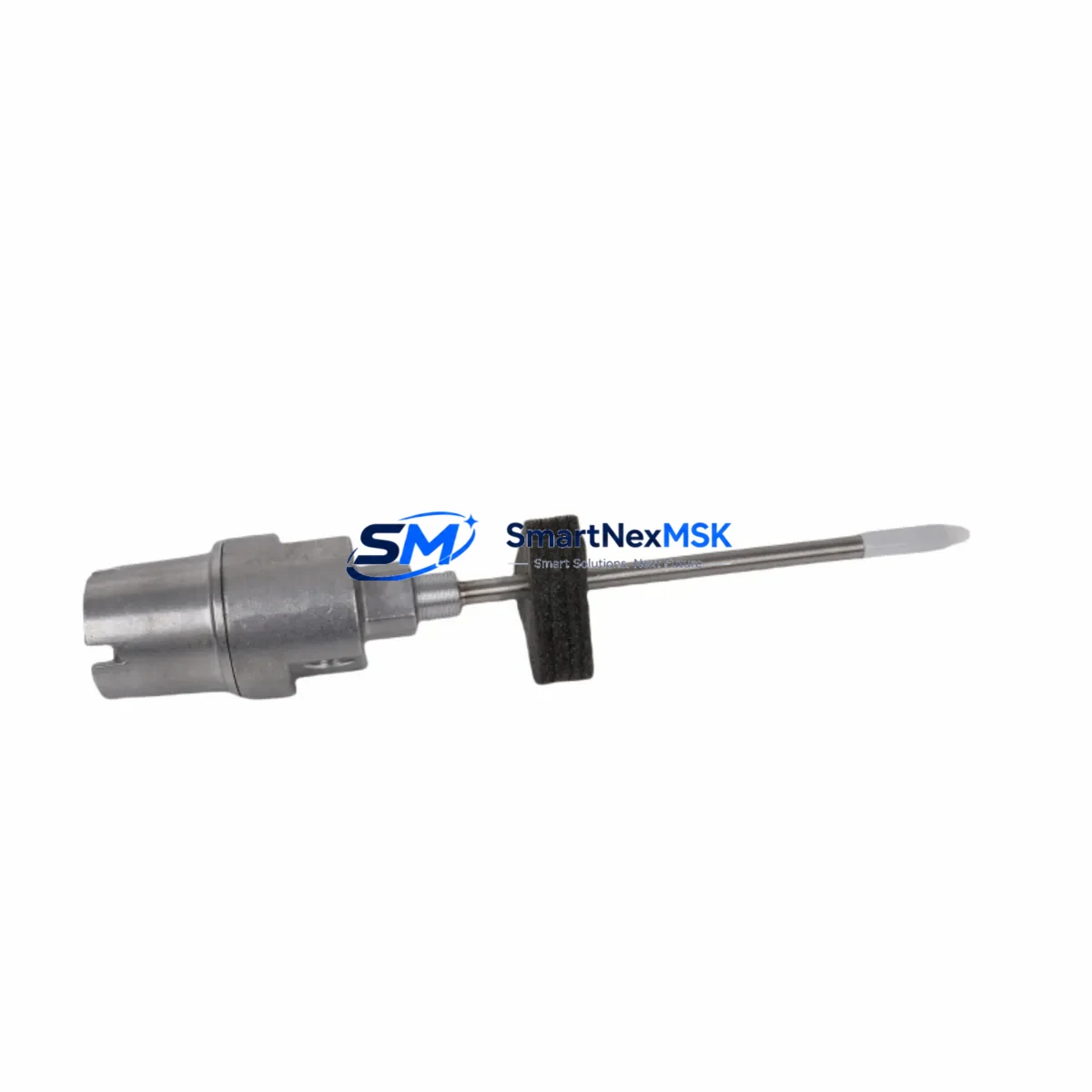

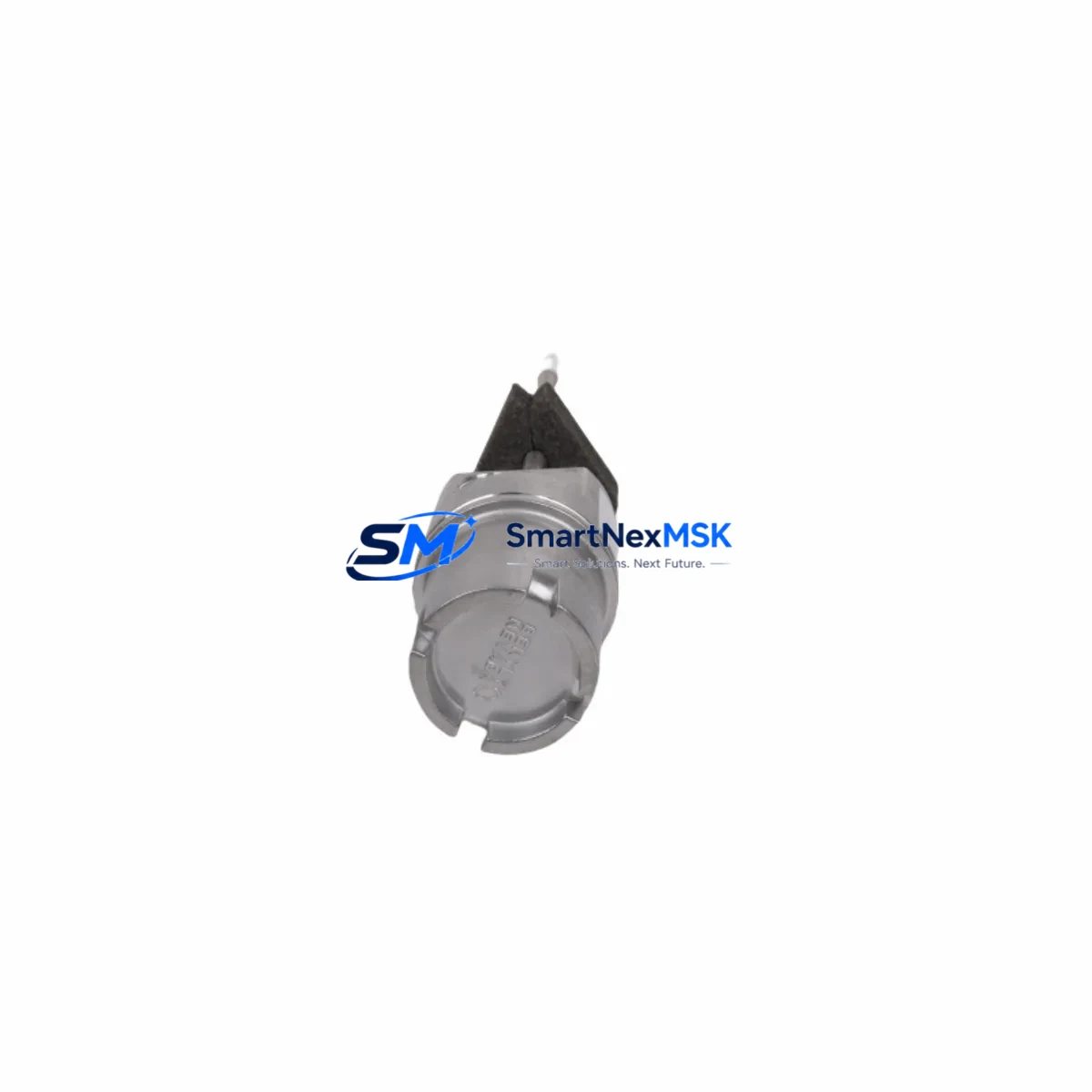

Bently Nevada 21000-28-10-00-094-04-02 Safety Probe Housing

Bently Nevada 21000-28-10-00-094-04-02 Safety Probe Housing: Reliable Control in Harsh Industrial Sites

The Bently Nevada 21000-28-10-00-094-04-02 is a ruggedized proximity probe housing assembly engineered for the 3300 XL Series continuous vibration monitoring platform. Designed to operate reliably in high-load, high-interference, and safety-critical industrial environments, this housing assembly protects the eddy-current sensing element against mechanical shock, chemical exposure, and electromagnetic interference — ensuring uninterrupted signal integrity in the most demanding control loops.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port machinery — even a momentary loss of vibration signal can trigger unplanned shutdowns, cascade safety trips, or undetected rotor damage. The 21000-28-10-00-094-04-02 housing is purpose-built to eliminate these risks by providing a mechanically stable, thermally resistant, and chemically sealed enclosure for the proximity probe tip, maintaining consistent gap measurement accuracy across the full operating range.

This component integrates directly with the Bently Nevada 3300 XL 8mm Proximity Transducer System, which includes the probe, extension cable, and Proximitor® sensor. When paired with the Bently Nevada 330130 Proximitor® Sensor and 330180 extension cable, the complete transducer chain delivers ±0.5% full-scale linearity, ensuring that shaft displacement readings fed into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor remain accurate even under severe mechanical vibration or electrical noise conditions.

In control cabinet installations, the 21000-28-10-00-094-04-02 housing is typically deployed alongside the Bently Nevada 3500/20 Rack Interface Module and 3500/15 Power Supply, which together provide the stable DC excitation voltage required for eddy-current probe operation. Voltage fluctuations or power supply ripple are among the leading causes of proximity probe signal drift; the 3500/15’s regulated output, combined with the mechanical protection offered by this housing, forms a two-layer defense against false vibration alarms and spurious safety trips.

For installations in hazardous classified areas — including Zone 1 and Zone 2 gas atmospheres common in refineries and offshore platforms — the ruggedized housing construction supports intrinsically safe circuit configurations when used with approved Bently Nevada IS barriers and 3500 Series I/O modules. The housing’s sealed design prevents ingress of flammable vapors or conductive particulates that could compromise the probe’s electrical isolation, a critical requirement in SIL-rated safety instrumented systems (SIS).

Surge and transient protection is another key consideration in heavy industrial sites. Proximity probe circuits routed through long cable runs in environments with large motor drives, arc furnaces, or high-voltage switchgear are susceptible to induced transients. The 21000-28-10-00-094-04-02 housing’s shielded construction, combined with proper grounding practices and the use of Bently Nevada 330130-080-00-00 or equivalent shielded extension cables, significantly reduces the risk of surge-induced measurement errors or permanent probe damage.

Replacement and spare parts management is straightforward: the 21000-28-10-00-094-04-02 is a direct drop-in replacement for worn or damaged housings in existing 3300 XL probe installations, requiring no recalibration of the Proximitor® sensor or adjustment of the 3500 rack configuration. This minimizes maintenance downtime and supports rapid field replacement during scheduled turnarounds or emergency corrective maintenance events.

Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional inspection, dimensional verification, and packaging integrity checks. Stock is maintained to support both planned maintenance schedules and urgent unplanned replacement requirements, with fast dispatch capability for critical plant operations.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust vibration monitoring installation built around the 21000-28-10-00-094-04-02 housing requires a carefully coordinated set of components across the transducer chain, signal conditioning, power distribution, and communication layers. At the field level, the probe housing protects the sensing element while the Bently Nevada 330130 Proximitor® Sensor converts the eddy-current signal into a calibrated DC voltage proportional to shaft gap. The Bently Nevada 330180-51-05 extension cable carries this signal through the control cabinet penetration, where proper cable segregation from power conductors is essential to prevent induced noise.

Inside the 3500 rack, the Bently Nevada 3500/15 Power Supply Module provides the regulated ±24 VDC required by the Proximitor® sensors, while the 3500/20 Rack Interface Module manages communication between the rack and the plant DCS or safety PLC via Modbus or Ethernet/IP. For critical machinery protection applications — such as compressor trains, steam turbines, or large pump sets — the Bently Nevada 3500/42M Proximitor®/Seismic Monitor processes the radial vibration and position signals, applying configurable alert and danger setpoints that trigger relay outputs to the machine’s safety interlock system.

Where redundant monitoring is required for SIL 2 or SIL 3 safety loops, dual-probe configurations using matched 21000-series housings and Bently Nevada 3500/22M Transient Data Interface modules allow voted 2oo3 or 1oo2 logic to be implemented, preventing both spurious trips and dangerous undetected failures. Surge protection at the cabinet entry point — using DIN-rail mounted transient voltage suppressors compatible with the 3500 I/O terminal blocks — further hardens the installation against lightning-induced or switching transients from adjacent variable frequency drives (VFDs) or motor control centers (MCCs).

Critical Industrial Safety Applications

The Bently Nevada 21000-28-10-00-094-04-02 proximity probe housing is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery environments, it protects probe assemblies monitoring centrifugal compressors and reactor agitators in classified hazardous areas, where signal loss could mask rotor instability preceding a catastrophic seal failure. In power generation plants — both thermal and combined-cycle — it is used on steam turbine shaft monitoring systems where continuous radial position data feeds the turbine protection relay, enabling automatic trip before bearing damage propagates to the rotor.

In mining and mineral processing operations, the ruggedized housing withstands the high-dust, high-vibration conditions of crusher drives and conveyor head pulleys, where standard probe housings are prone to mechanical damage from belt slap and structural resonance. Water and wastewater treatment facilities rely on this housing for pump shaft monitoring in wet, chemically aggressive environments where corrosion resistance is as important as signal accuracy. In metallurgical and steel mill applications, the housing’s thermal tolerance supports probe installations near rolling mill drives and continuous casting equipment operating at elevated ambient temperatures. Port and bulk material handling machinery — including ship unloaders and stacker-reclaimers — benefits from the housing’s sealed construction in high-humidity, salt-laden coastal atmospheres.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide on the Bently Nevada 21000-28-10-00-094-04-02?
All units are covered by a 12-month warranty from the date of shipment. If a unit fails under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement or full refund. Warranty claims are processed promptly to minimize plant downtime.

Q2: How is each unit tested before shipment?
Every 21000-28-10-00-094-04-02 housing assembly undergoes pre-shipment functional inspection and dimensional verification. Units are individually packaged to prevent transit damage. Batch traceability records are maintained to support quality audits and plant maintenance documentation requirements.

Q3: Is this housing compatible with existing 3300 XL probe installations without recalibration?
Yes. The 21000-28-10-00-094-04-02 is a direct mechanical replacement for worn or damaged housings in 3300 XL 8mm probe assemblies. Replacing the housing does not alter the Proximitor® sensor’s calibration or the 3500 rack’s configured gap voltage range, allowing maintenance teams to complete the replacement and return the machine to service without a full transducer recalibration cycle.

Q4: Can SMARTNEXMSK support long-term and repeat supply for planned maintenance programs?
Yes. SMARTNEXMSK maintains stock of the 21000-28-10-00-094-04-02 and related 3300 XL and 3500 Series components to support both scheduled turnaround spare parts kits and emergency unplanned replacement requirements. Customers with annual maintenance programs are encouraged to contact our team to discuss volume pricing and reserved stock arrangements.
