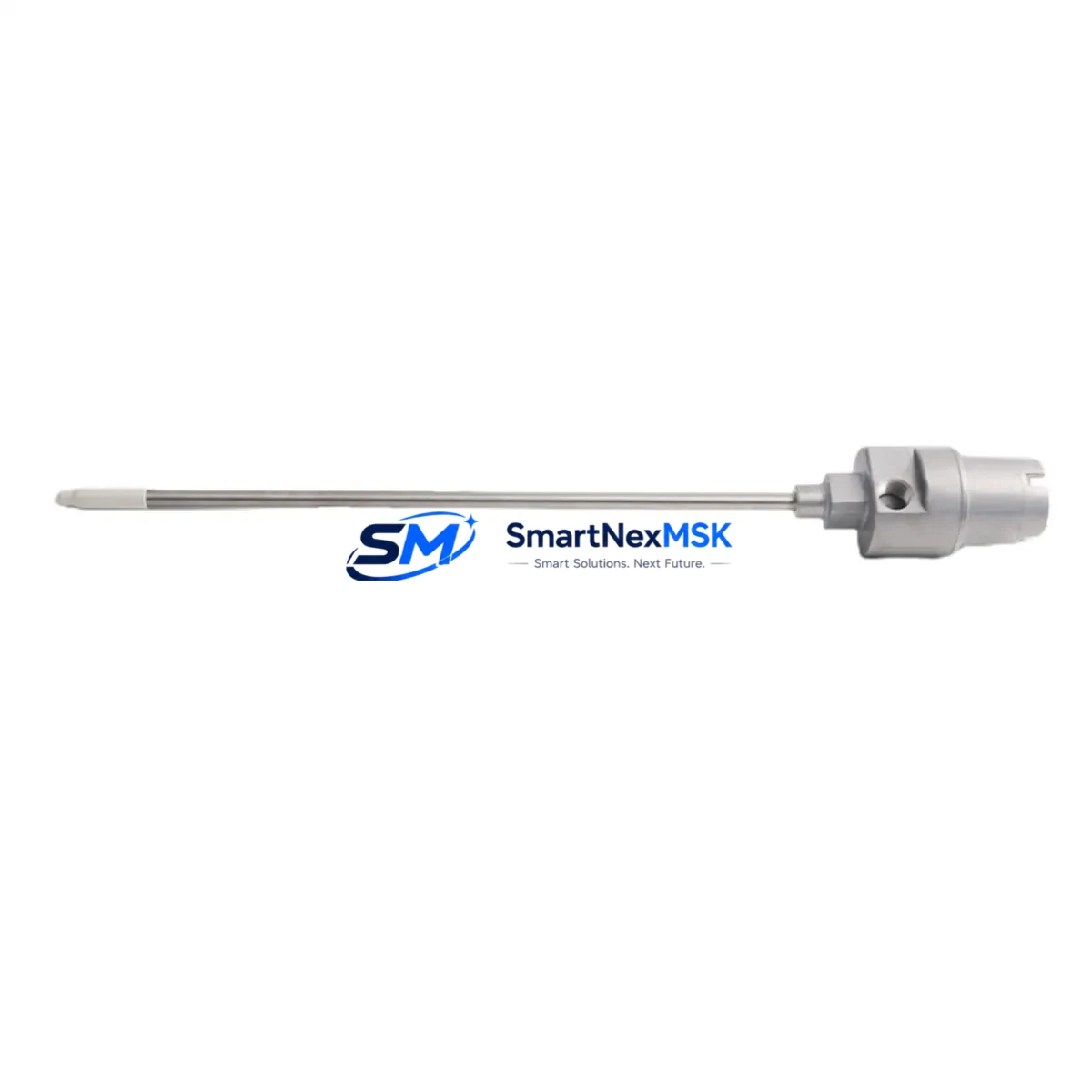

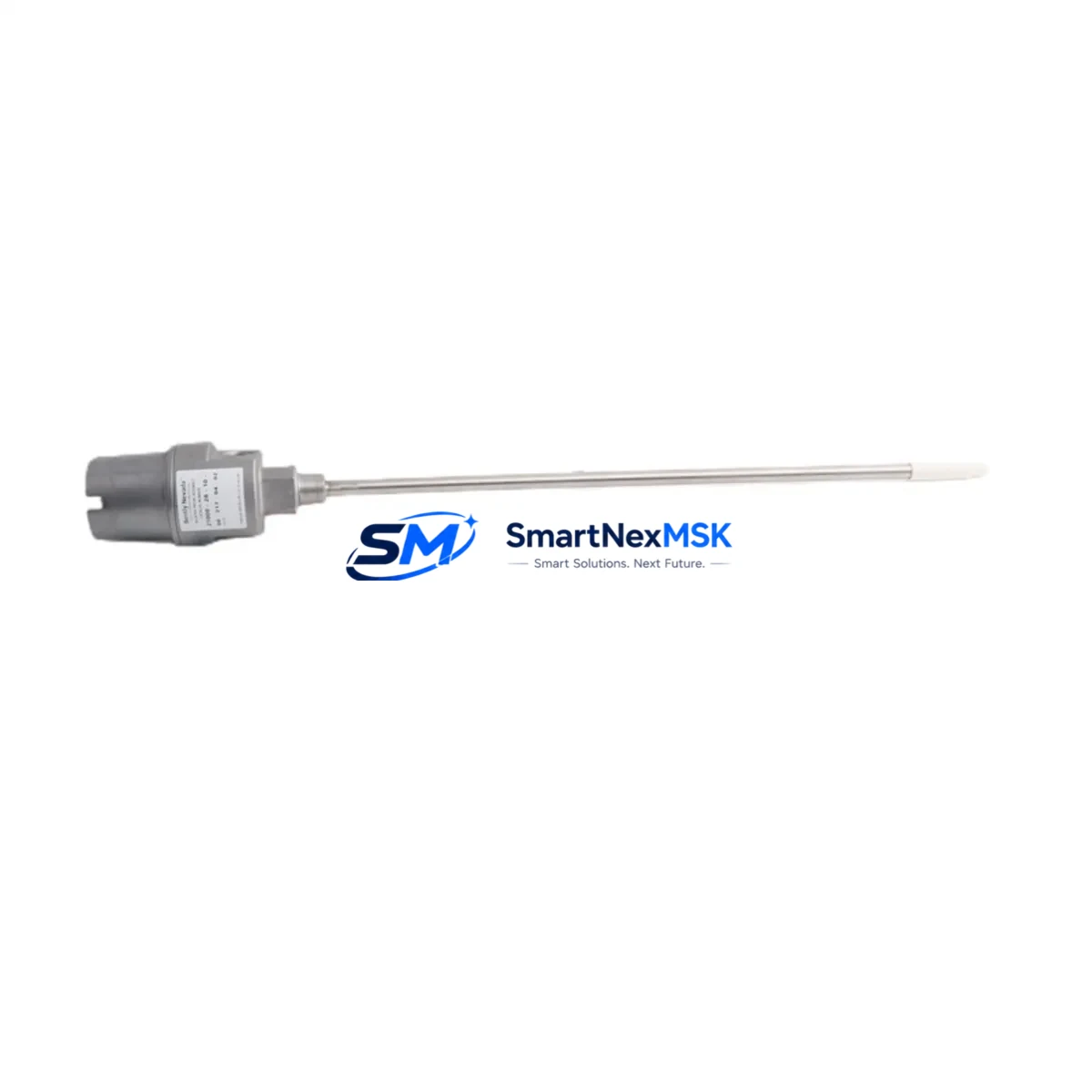

Bently Nevada 21000-28-10-00-217-04-02 Safety Proximity Probe

Bently Nevada 21000-28-10-00-217-04-02 Safety Proximity Probe: Reliable Control for Harsh Industrial Sites

The Bently Nevada 21000-28-10-00-217-04-02 is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 XL Series, this probe is designed to deliver stable, drift-free output signals even under severe electromagnetic interference, mechanical shock, high-temperature cycling, and corrosive atmospheres — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, and heavy metallurgical processes.

In high-stakes control architectures, signal integrity is not optional — it is the foundation of plant safety. The 21000-28-10-00-217-04-02 provides a linear, low-noise output that feeds directly into machinery protection systems, enabling operators and safety logic controllers to detect shaft displacement, rotor imbalance, and bearing wear before they escalate into catastrophic failures. Its robust stainless-steel housing and hermetically sealed tip resist oil mist, process gases, and aggressive cleaning agents, ensuring measurement accuracy is maintained across extended production campaigns without recalibration drift.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 21000-28-10-00-217-04-02 within a well-engineered control cabinet ecosystem is essential to achieving the full safety benefit of the 3300 XL measurement chain. In practice, this probe is paired with the Bently Nevada 330180-91-05 Proximitor® Sensor, which conditions the raw probe signal into a calibrated DC voltage suitable for direct input to a machinery protection monitor. The Proximitor is typically mounted inside a DIN-rail enclosure alongside the Bently Nevada 3500/42M Proximitor®/Seismic Monitor, which provides relay-based trip outputs and integrates with plant DCS or safety instrumented systems (SIS).

To protect the signal path from power-line transients and surge events — a persistent risk in heavy industrial switchgear rooms — installers commonly incorporate Phoenix Contact TRABTECH surge protection devices on the 24 VDC supply rail feeding the Proximitor. Stable, clean DC power is equally critical: a Bently Nevada 3500/15 Power Supply or equivalent redundant 24 VDC SMPS with active power factor correction ensures the measurement chain remains unaffected by voltage sags during motor starts or load switching events.

In safety interlock architectures, the vibration trip signal from the 3500 monitor is wired into a Pilz PNOZ safety relay or a Rockwell Automation GuardLogix safety PLC, where it participates in the machine shutdown logic alongside other protective inputs such as high-temperature trips from Bently Nevada 3300 XL temperature monitors and overspeed signals from Bently Nevada 3500/53 Overspeed Detection Modules. The entire wiring harness within the cabinet is typically routed through Weidmüller KLIPPON terminal blocks with integrated test points, allowing maintenance technicians to verify signal levels without breaking the circuit — a key requirement for functional safety testing under IEC 61511.

For installations in classified hazardous areas (Zone 1 or Zone 2), the probe cable is routed through Pepperl+Fuchs Zener barrier isolators or galvanic isolators to maintain intrinsic safety compliance, ensuring that the measurement circuit cannot become an ignition source in the presence of flammable gases or vapors.

Critical Industrial Safety Applications

The Bently Nevada 21000-28-10-00-217-04-02 is deployed across a broad spectrum of safety-critical rotating machinery applications:

Petrochemical and Refinery Plants: Installed on centrifugal compressors, reactor charge pumps, and steam turbine-driven blowers, this probe monitors radial shaft vibration and provides the primary trip signal to the emergency shutdown system (ESD). In hydrocarbon processing, an undetected bearing failure can lead to seal loss, fire, or explosion — making the reliability of the proximity measurement chain a direct plant safety asset.

Power Generation: On gas turbines, steam turbines, and large synchronous generators, the 3300 XL probe system provides continuous shaft eccentricity and differential expansion monitoring. The 21000-28-10-00-217-04-02 is particularly suited to high-temperature turbine bearing pedestals where conventional contact sensors would degrade rapidly.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loading and vibration. The ruggedized stainless-steel construction of this probe withstands the shock, dust, and moisture inherent to mineral processing environments, providing reliable shaft position data to the mill protection system.

Water and Wastewater Treatment: Large vertical turbine pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could disrupt municipal water supply. The probe’s IP67-equivalent sealing makes it suitable for humid, chemically aggressive pump sumps.

Metallurgy and Steel Production: Rolling mill drives, continuous caster pinch rolls, and converter vessel tilt drives all benefit from non-contact proximity measurement, where contact-based sensors would be destroyed by heat radiation and scale impact. The 21000-28-10-00-217-04-02 provides stable output in ambient temperatures up to 177°C at the probe body.

Port and Marine Terminals: Crane hoist motors, ship-loader drives, and bulk conveyor head pulleys are monitored using 3300 XL probes to detect bearing degradation before it causes a load-drop incident or conveyor fire.

Safety and Quality FAQ

Q1: What warranty does the 21000-28-10-00-217-04-02 carry, and what does it cover?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund — no lengthy RMA disputes. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each probe tested before shipment?
Every 21000-28-10-00-217-04-02 undergoes a 100% functional outgoing inspection using calibrated test equipment. We verify sensitivity (mV/mil output), linearity across the full measurement range, cable continuity and insulation resistance, and connector integrity. A test report is available upon request for quality-critical procurement.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor® Sensors already installed in my plant?
Yes. The 21000-28-10-00-217-04-02 is a direct OEM-equivalent replacement for the standard 8 mm, 1.0 m cable variant in the 3300 XL system. It is fully compatible with all 330180 and 330130 series Proximitor® Sensors and requires no recalibration of the monitor when replacing a like-for-like probe. Always verify the gap voltage after installation per the Bently Nevada commissioning procedure.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance programs?
Yes. We maintain dedicated safety-critical spare inventory for the Bently Nevada 3300 XL product family, including the 21000-28-10-00-217-04-02, to support planned maintenance shutdowns and emergency breakdowns. Blanket purchase orders and scheduled delivery programs are available for customers with multi-site maintenance contracts. Contact our team to discuss your annual spare parts requirements.
