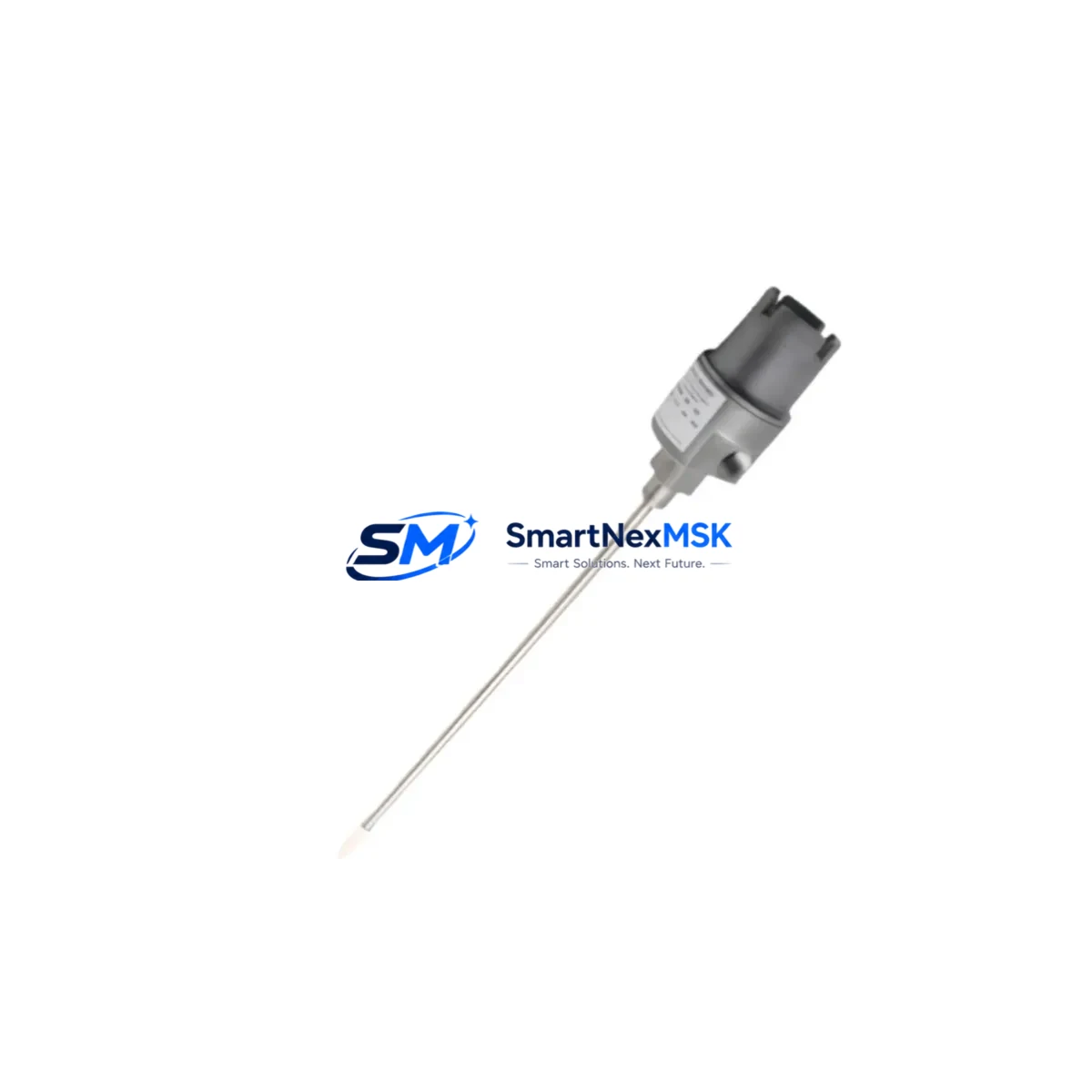

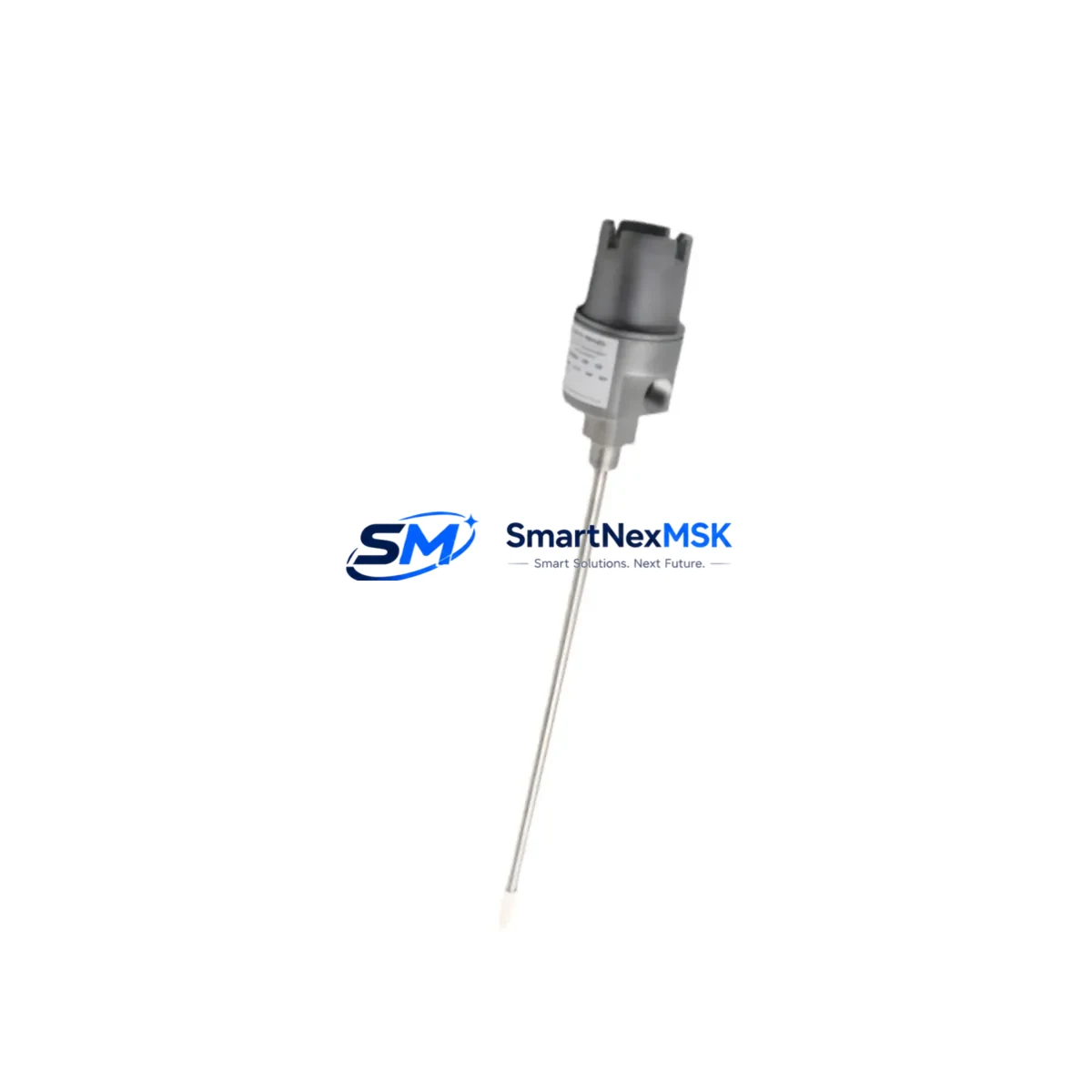

Bently Nevada 21000-33-10-00-087-04-02 Retrofit-Ready Proximity Probe Housing for 3300 Series Control Systems
The Bently Nevada 21000-33-10-00-087-04-02 is a precision-engineered proximity probe housing designed as a retrofit-ready, drop-in replacement for legacy 3300 Series vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of existing machinery protection infrastructure, this component provides a verified upgrade path that preserves original wiring configurations, signal conditioning compatibility, and system-level calibration integrity. Whether you are replacing a failed unit, restocking critical spares, or executing a planned control system modernization, the 21000-33-10-00-087-04-02 delivers the dimensional accuracy and electrical performance required for seamless integration into your existing 3300 XL or standard 3300 Series monitor racks.
Sourced from verified supply channels and subject to pre-shipment functional testing, each unit ships with a 12-month warranty covering manufacturing defects and electrical performance. Inventory is maintained in-stock to support urgent replacement scenarios, minimizing unplanned downtime on rotating machinery protection systems.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Monitor Series | Bently Nevada 3300 Series, 3300 XL |
| Probe Type | Eddy-current proximity probe housing |
| Installation Interface | Standard 3300 Series probe mount; no bracket modification required |
| Signal Compatibility | Compatible with 3300/05 and 3300/16 proximitor/seismic monitors |
| Communication Protocol | Analog 4–20 mA / voltage output; compatible with existing DCS and PLC signal loops |
| Replacement Recommendation | Direct replacement for discontinued 21000-33-10-00-087-04-02 variants |
| Commissioning Notes | Gap voltage re-verification recommended post-installation; recalibrate per OEM spec |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the 21000-33-10-00-087-04-02 into a legacy 3300 Series installation requires a structured approach to component verification and system-level compatibility review. Before commencing replacement, engineers should confirm that the existing Bently Nevada 3300/05 Proximitor or 3300/16 Proximitor/Seismic Monitor is operational and that the signal loop to the plant DCS or safety PLC remains intact. In many retrofit scenarios, the probe housing replacement is performed in conjunction with a broader machinery protection upgrade that may also involve replacing the 3300/55 Dual Voting Logic module or the 3300/95 System Monitor to bring the rack to current firmware standards.
Terminal wiring should be documented prior to removal of the existing probe assembly. The 21000-33-10-00-087-04-02 uses the same terminal block pinout as its predecessor, allowing technicians to reconnect field cables without rewiring. However, it is advisable to inspect the condition of the existing Bently Nevada 330130 or 330180 extension cable and replace if insulation degradation is observed. Cable continuity and shield integrity directly affect gap voltage stability and vibration signal accuracy.
For facilities running integrated control architectures, the proximity probe signal is typically routed through a Bently Nevada 3500 Series rack or fed directly into a Yokogawa CENTUM VP or Emerson DeltaV DCS via analog input cards. Confirming the input range configuration on the receiving I/O module — whether 0–10 V or 4–20 mA — is essential before energizing the replacement probe. In systems where the 3300 rack interfaces with a Rockwell Automation ControlLogix PLC via a 1756-IF16 analog input module, the scaling parameters in the PLC program should be verified against the new probe’s output curve to prevent false trip conditions.
Where the retrofit scope extends to the HMI layer, operators should verify that Wonderware InTouch or FactoryTalk View SE trend displays referencing the proximity channel are updated to reflect any tag renaming or I/O address changes introduced during the upgrade. Failure to synchronize HMI tag databases with the updated I/O map is a common source of post-commissioning alarms that can delay return-to-service.
Backplane and rack integrity should also be assessed during the replacement window. If the 3300 Series rack chassis shows signs of corrosion on the backplane connector or module guide rails, this is an appropriate time to evaluate replacement of the rack assembly itself, as intermittent backplane contact is a known failure mode in high-vibration environments. Spare rack assemblies and individual slot terminators are available to support full rack refurbishment alongside the probe housing replacement.
Downtime Control During System Migration
Minimizing production downtime during proximity probe replacement requires pre-staging all replacement components, tools, and documentation before the maintenance window opens. The 21000-33-10-00-087-04-02 should be bench-tested for gap voltage output using a Bently Nevada 3300 XL Proximitor and a calibrated target disk prior to installation. This pre-verification step eliminates the risk of installing a non-conforming unit and having to repeat the process under time pressure.
Where the machinery protection system supports hot-swap or bypass functionality — such as in 2-out-of-3 voting configurations using the 3300/55 Dual Voting Logic module — the affected channel can be placed in bypass mode to allow probe replacement without triggering a machinery trip. This approach preserves control continuity on the remaining channels while the replacement is completed and the new probe is calibrated to the correct gap voltage, typically in the range of −10 to −18 VDC depending on probe-to-target gap and target material.
Following installation, a structured commissioning sequence should be followed: confirm gap voltage at the Proximitor output terminals, verify signal transmission to the monitor module, check alarm and trip setpoints in the 3300 Series monitor, and confirm that the DCS or safety system is receiving a valid process value before releasing the bypass. All commissioning steps should be documented in the plant maintenance management system to support future audit and reliability analysis.
Retrofit Support FAQ
Q: Is the 21000-33-10-00-087-04-02 a direct replacement for the original Bently Nevada part?
A: Yes. This unit is dimensionally and electrically equivalent to the original 21000-33-10-00-087-04-02 proximity probe housing and is designed for direct installation into existing 3300 Series probe mounts without mechanical modification.
Q: What commissioning steps are required after installation?
A: After mechanical installation, technicians should verify gap voltage at the Proximitor output terminals using a calibrated voltmeter, confirm signal integrity at the monitor module, and check that alarm and trip setpoints are within specification. Recalibration per the Bently Nevada 3300 Series installation manual is recommended.
Q: How do I confirm wiring compatibility before installation?
A: Document the existing terminal connections on the probe housing and extension cable before removal. The 21000-33-10-00-087-04-02 uses the same terminal pinout as the original part. Inspect the 330130 or 330180 extension cable for insulation condition and replace if necessary to ensure signal integrity.
Q: What warranty coverage is provided?
A: Each unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance. Pre-shipment functional testing is performed on all units prior to dispatch.
