Bently Nevada 21000-34-10-20-058-04-02 Spare 21000: Proximity Probe Replacement for Industrial Downtime Control

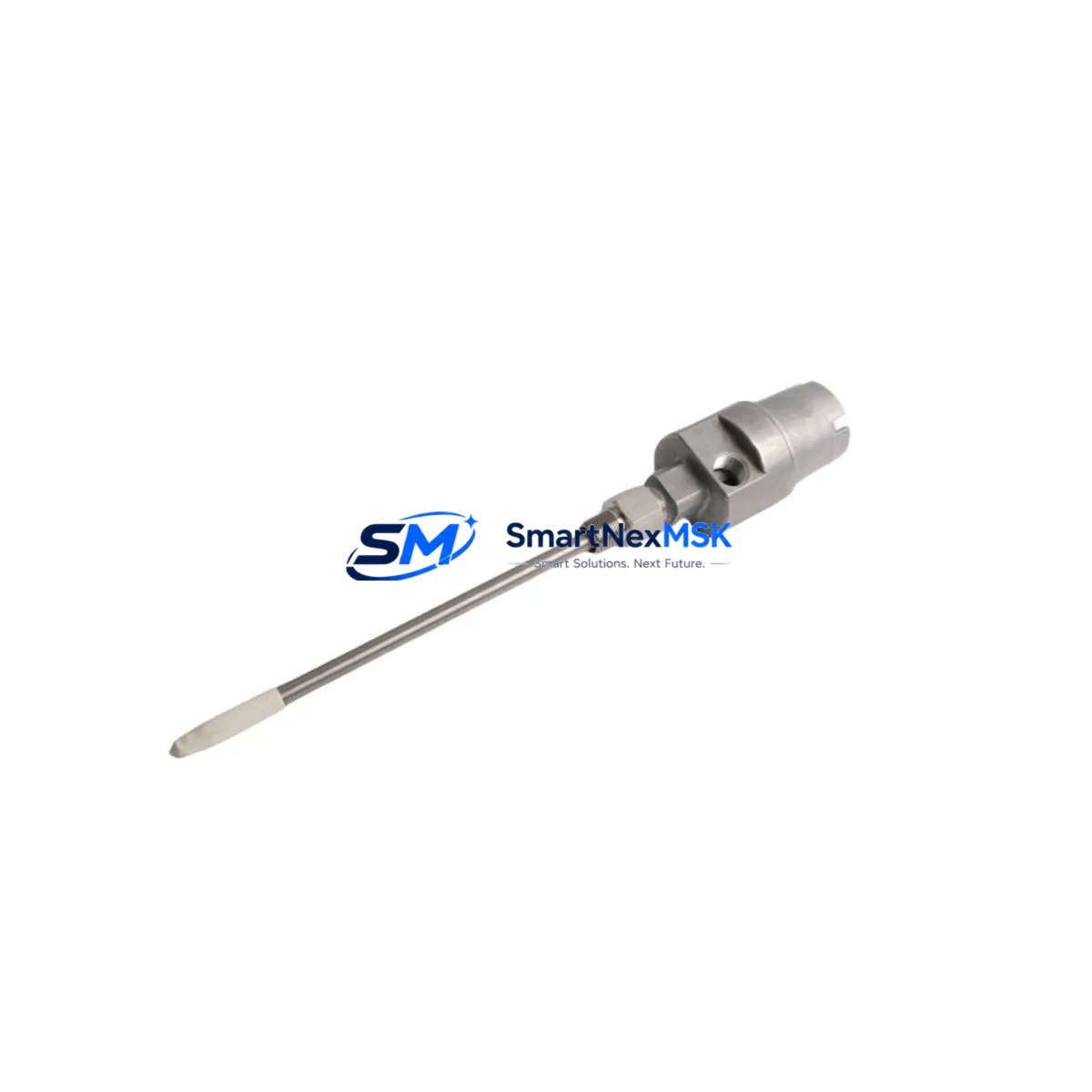

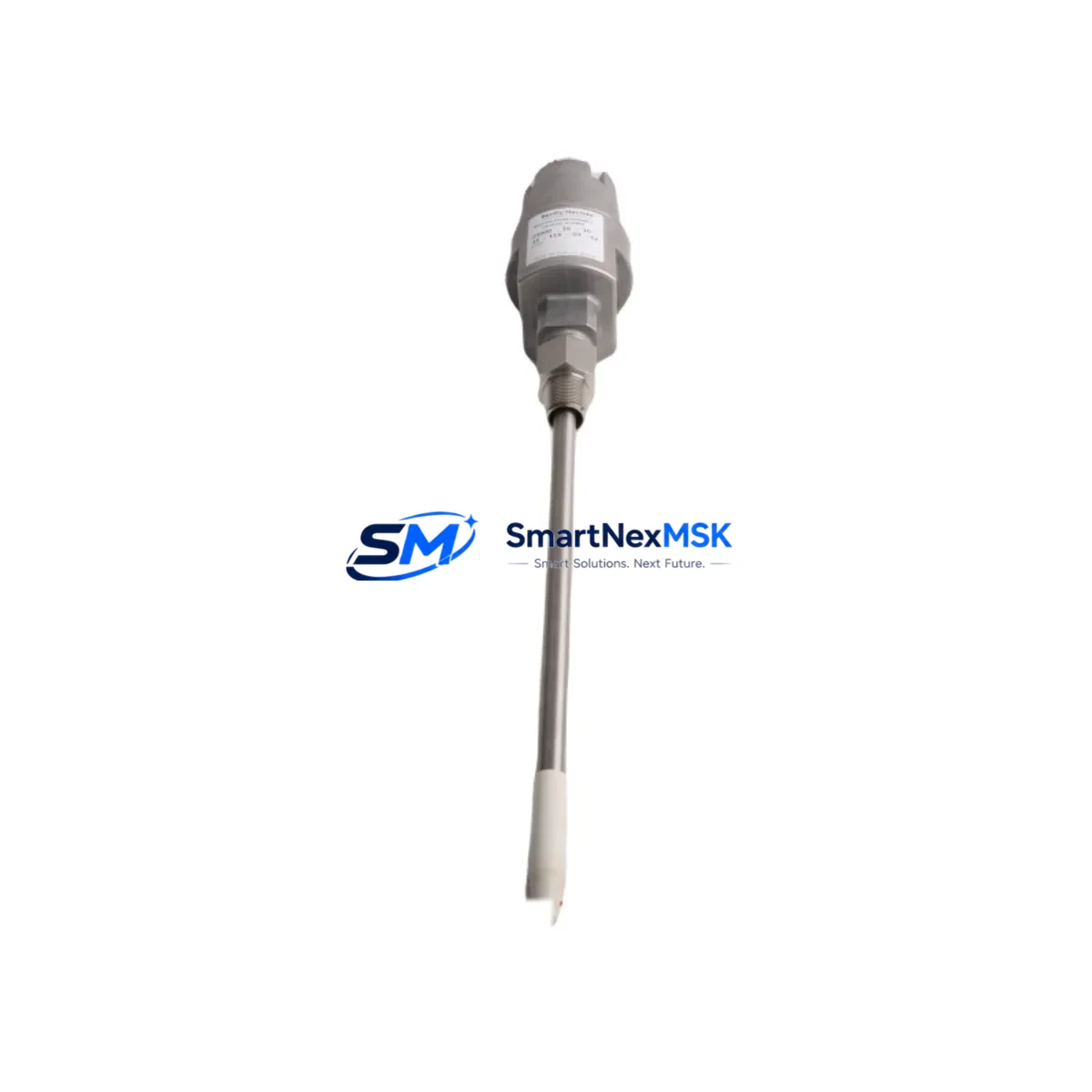

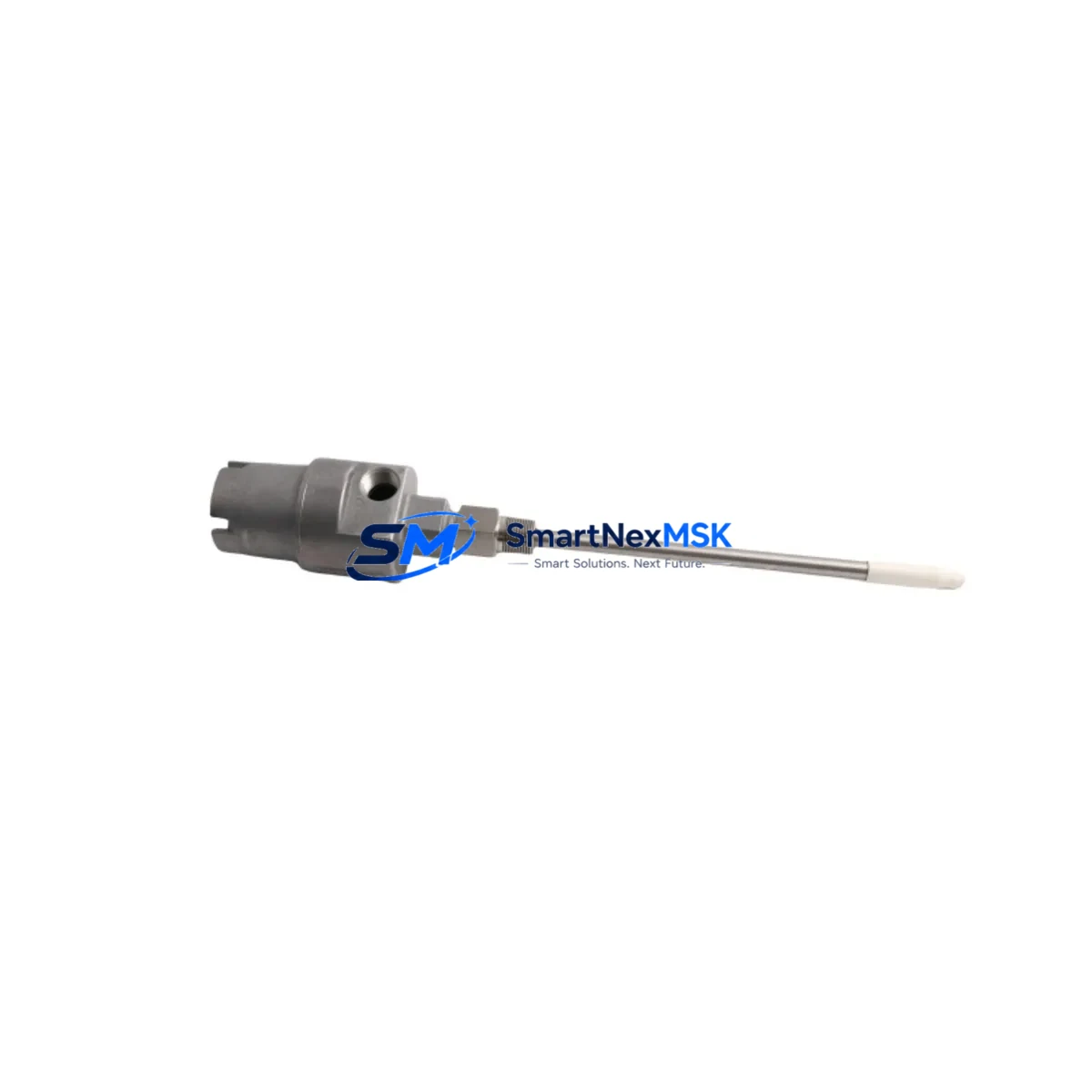

The Bently Nevada 21000-34-10-20-058-04-02 is a precision proximity probe housing component within the 21000 Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. When this component fails or degrades, the consequences extend beyond a single sensor: the entire vibration channel feeding your 3300 Series or System 1 monitoring rack loses integrity, potentially masking critical shaft displacement data on turbines, compressors, pumps, and gearboxes.

For maintenance engineers managing planned outages or responding to unplanned trips, having a verified, tested replacement of the 21000-34-10-20-058-04-02 on the shelf is not optional — it is a core element of any credible spare parts strategy. This unit ships fully tested, with dimensional and electrical verification completed prior to dispatch, and is backed by a 12-month warranty covering manufacturing defects and functional performance.

Whether you are executing a scheduled turnaround, responding to a proximity system alarm, or building out your critical spares inventory for a long-term service agreement, this original spare is sourced, inspected, and ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When the 21000-34-10-20-058-04-02 is flagged during a routine control cabinet inspection or triggered by a channel fault alarm, experienced maintenance engineers know to audit the entire measurement chain before returning the machine to service.

Start with the 3300 XL 8mm Proximitor sensor — the signal conditioning module that pairs directly with this probe. A degraded Proximitor can produce erratic gap voltage readings even after a new probe is installed, leading to repeat alarms and unnecessary downtime. Inspect the extension cable assembly (suffix -058 indicates a 5.8 m cable) for jacket damage, connector corrosion, or continuity loss; a compromised cable is a common root cause of intermittent channel faults that are misdiagnosed as probe failure.

At the 3300 Series rack level, verify the 3300/20 Rack Interface Module and associated 3300/15 Power Supply are delivering stable -24 VDC to the Proximitor circuit. Power supply ripple or voltage sag under load can corrupt proximity readings across multiple channels simultaneously. If your facility runs a System 1 Evolution or TDI Monitoring platform, confirm that the channel configuration in the software matches the new probe’s sensitivity coefficient (7.87 V/mm) to avoid calibration offset errors.

For installations near high-EMI environments — variable frequency drives, large motor starters, or bus bars — inspect the signal isolator or Galvanic Isolator module in the signal path. Induced noise can saturate the proximity channel and trigger false machinery protection trips. Additionally, review the terminal block wiring at the field junction box: loose terminations on the coaxial shield drain wire are a frequent source of ground loop interference that degrades signal quality over time.

If the machine has been in service for more than five years, consider scheduling a parallel inspection of the keyphasor probe (typically a companion 21000 Series unit) and the thrust position probe pair. These components share the same environmental exposure and often reach end-of-life within the same maintenance window. Proactive replacement during a planned outage is significantly less costly than an emergency replacement during an unplanned trip.

For facilities managing aging Bently Nevada systems, maintaining a minimum stock of one spare 21000-34-10-20-058-04-02, one spare Proximitor, and one spare extension cable per critical machine train is a widely accepted best practice in rotating equipment reliability programs.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow your site LOTO procedure. De-energize the Proximitor supply at the rack power distribution point. Do not rely solely on software inhibit — physically disconnect the -24 VDC feed to the affected channel.

Step 2 — Probe Removal: Using the correct spanner, back out the 21000-34-10-20-058-04-02 from the probe holder. Note the gap setting (typically 1.0–1.5 mm from the shaft surface) using a feeler gauge or the original gap voltage record from your maintenance log.

Step 3 — Cable Inspection: Before installing the new probe, inspect the extension cable connector for pin damage, moisture ingress, or corrosion. Clean with contact cleaner if necessary. A contaminated connector will degrade the new probe’s performance immediately.

Step 4 — Installation and Gap Setting: Thread the replacement probe into the holder. Set the gap to achieve the target gap voltage (-10 VDC ± 0.5 VDC at mid-range for most 21000 Series installations). Use a calibrated millivoltmeter at the Proximitor output terminals to verify.

Step 5 — System Verification: Re-energize the channel. Confirm gap voltage is within specification in the System 1 or rack display. Clear any latched alarms. Perform a slow-roll check if the machine can be brought to turning gear speed to verify dynamic signal quality before returning to full load.

Step 6 — Documentation: Record the replacement in your CMMS (SAP PM, Maximo, or equivalent). Log the new probe serial number, gap voltage as-found and as-left, and the date of replacement. This data is essential for trending probe degradation rates across your machine fleet.

This workflow applies equally to radial vibration, axial position, and differential expansion measurement points using 21000 Series probes, making the 21000-34-10-20-058-04-02 a versatile and critical spare across multiple measurement functions in a single facility.

Spare Parts Support FAQ

Q1: Is the 21000-34-10-20-058-04-02 compatible with both 3300 Series racks and older 7200 Series systems?
The 21000 Series probes are natively designed for the 3300 Series Proximitor ecosystem. Compatibility with 7200 Series drivers depends on the specific Proximitor module in use — the 7200 Series uses a different sensitivity standard (200 mV/mil is common to both, but gap range and connector type may differ). Always verify the driver module part number before cross-application. Contact our technical team with your full rack configuration for confirmation.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes dimensional verification (thread, tip geometry), coil continuity and resistance check, and functional gap voltage output test using a calibrated Proximitor reference unit. Test records are available upon request. Units that do not meet Bently Nevada original specification are not dispatched.

Q3: How should I store this spare if it is not immediately installed?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH). Avoid storing near strong magnetic fields or high-vibration areas. Inspect the connector and cable jacket annually if held in long-term storage. The 12-month warranty period begins from the date of shipment.

Q4: Can you supply multiple units for a fleet-wide spare parts program?
Yes. We support bulk procurement for facilities managing multiple machine trains or executing a site-wide spare parts standardization program. Volume pricing, consolidated shipping, and staggered delivery schedules are available. Contact sales@smartnexmsk.com with your quantity requirements and delivery timeline.
