Bently Nevada 21504-000-16-05-02 Retrofit-Ready Proximity Probe

Bently Nevada 21504-000-16-05-02 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

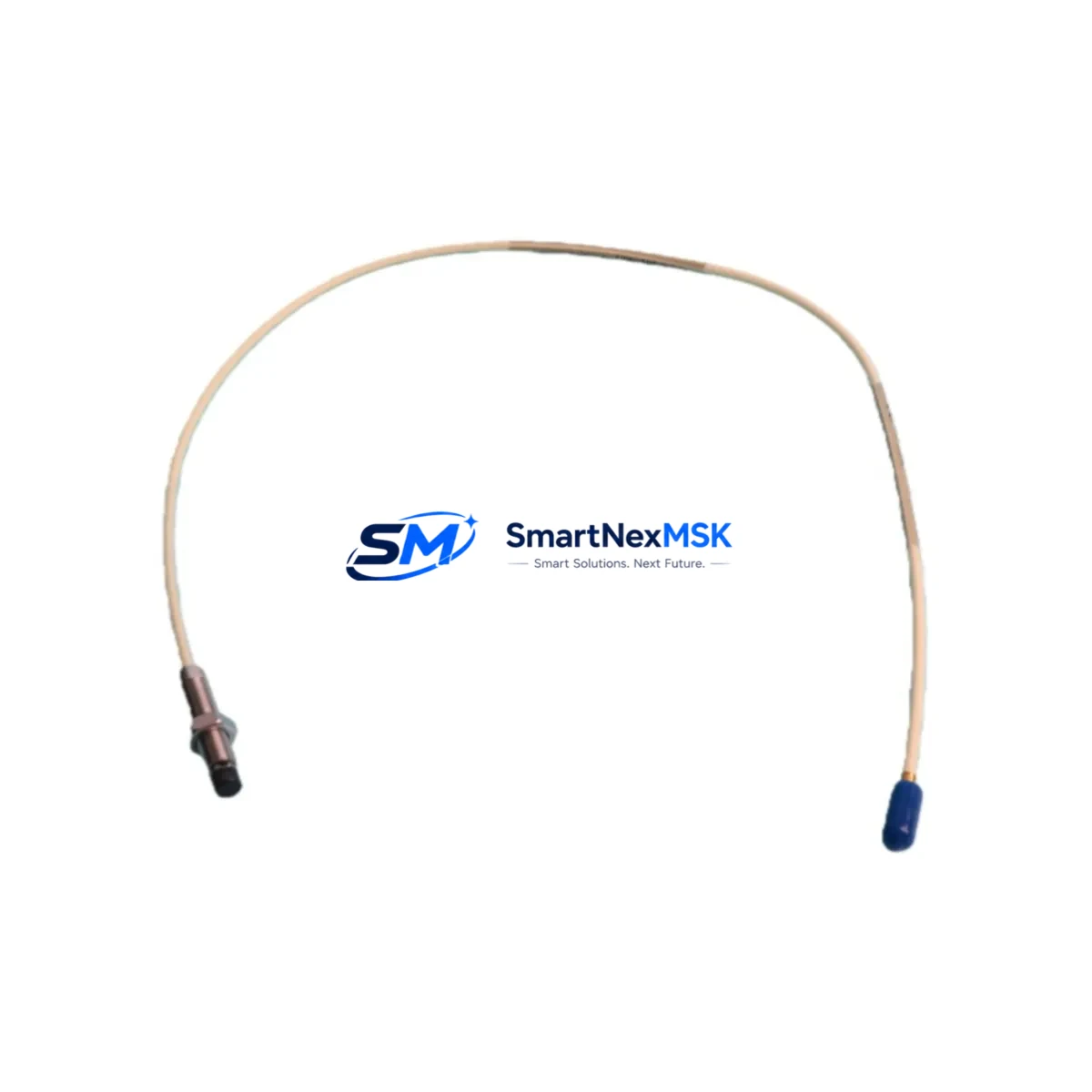

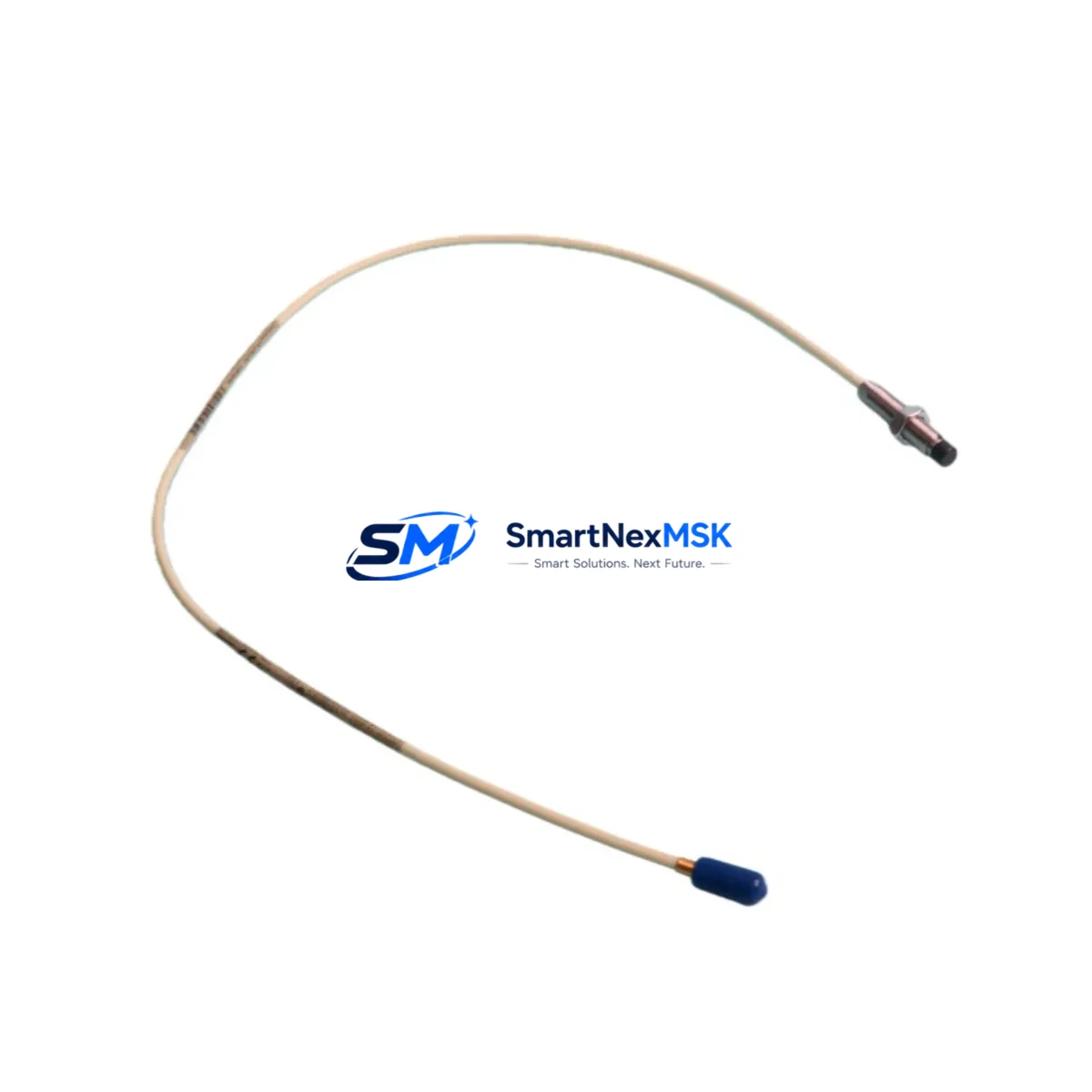

The Bently Nevada 21504-000-16-05-02 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series machinery protection platform. As legacy installations age and OEM support windows close, this probe serves as a verified drop-in replacement for discontinued or end-of-life units across rotating machinery applications including turbines, compressors, pumps, and gearboxes. Whether you are executing a planned control system upgrade or responding to an unplanned field failure, this module is stocked, tested, and ready for immediate dispatch with a 12-month warranty.

The 21504-000-16-05-02 operates within the standard 3300 XL signal chain, interfacing directly with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor to deliver continuous radial vibration and position data to the monitoring rack. Its 5-metre armored cable and integral connector are dimensionally compatible with existing conduit runs and junction box layouts, minimizing mechanical rework during retrofit. Engineers replacing worn or damaged probes on legacy turbine trains will find that the mounting thread, tip geometry, and gap voltage characteristics match the original specification without requiring recalibration of the 3300 XL monitor cards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the probe reaches the field. During the planning phase, engineers should pull the existing loop drawing to confirm the extension cable part number — typically a 330130-series cable — and verify that the total system length (probe cable plus extension cable) does not exceed the Proximitor Sensor’s rated input range. The 3300 XL Proximitor Sensor, often mounted in a 3300 XL Rack or a dedicated field enclosure, must be powered from a stable −24 VDC supply; confirm that the existing power supply module in the control cabinet can sustain the additional load if multiple probes are being replaced simultaneously.

Terminal wiring at the Proximitor Sensor follows the standard coaxial shield-drain convention. Before disconnecting the old probe, photograph or document the existing terminal assignments on the 3300 XL I/O Terminal Block to avoid transposition errors during reconnection. If the installation includes a 3300 XL Dual Voting Monitor or a 3300 XL Keyphasor Module, note the channel-to-probe mapping in the monitor configuration so that alarm setpoints and danger thresholds are correctly reassigned after the swap.

For sites running a System 1 Evolution or System 1 Optimization condition monitoring platform, the probe replacement does not require a database re-import provided the Proximitor Sensor serial number and channel address remain unchanged. However, if the Proximitor Sensor itself is also being replaced — for example, upgrading from a 330180-series to a 330185-series unit — a full channel re-learn and gap re-verification will be necessary before returning the machine to service. Sites using a 3500 Series rack as the primary protection system alongside a 3300 XL monitoring loop should coordinate the bypass sequence across both platforms to avoid spurious trips during the changeover window.

Where the retrofit scope extends to communication infrastructure, verify that the Modbus RTU or Ethernet/IP gateway connecting the 3300 XL rack to the DCS or SCADA layer remains online during probe replacement. If the site uses a 3300 XL Communication Gateway, confirm that the gateway’s polling cycle does not generate a false-loss-of-signal alarm while the probe loop is open. Having a spare 3300 XL Termination Resistor on hand is advisable for sites where the coaxial line runs exceed 30 metres, as impedance mismatch can introduce noise into the vibration signal after reconnection.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured bypass and restore sequence. Before breaking the probe connection, place the affected 3300 XL monitor channel into bypass mode using the front-panel keyswitch or the System 1 software interface, depending on site configuration. This prevents the open-circuit condition from triggering a machine trip or activating the danger relay while the probe is disconnected.

With the channel bypassed, remove the old probe, install the 21504-000-16-05-02, and set the air gap to the nominal −10 VDC output using a calibrated DC voltmeter at the Proximitor Sensor output terminals. Once the gap voltage is confirmed within tolerance, restore the channel from bypass and observe the OK relay for a minimum of 60 seconds before releasing the machine to normal operation. Document the as-found and as-left gap voltages in the site maintenance record to support future trend analysis and regulatory compliance.

For multi-probe replacements on a single machine train — for example, replacing both X-axis and Y-axis probes on a compressor bearing — stagger the bypass sequence so that at least one channel remains active at all times. This preserves the machine’s protection envelope and satisfies most site safety management of change (MOC) requirements without requiring a full machine shutdown. Where a full shutdown is unavoidable, use the outage window to inspect the 3300 XL Rack backplane connectors and tighten any loose I/O module seating, as vibration over time can cause intermittent contact faults that mimic probe failures.

Retrofit Support FAQ

Q1: Is the 21504-000-16-05-02 a direct replacement for my existing 3300 XL 8mm probe?
Yes. The 21504-000-16-05-02 is dimensionally and electrically equivalent to the original Bently Nevada specification. It uses the same M10 × 1.0 mounting thread, the same coaxial connector, and produces the same gap voltage curve as the factory unit. No modifications to the Proximitor Sensor or monitor card are required for a like-for-like swap.

Q2: What commissioning checks are required after installation?
After mechanical installation, set the probe-to-target air gap to achieve a Proximitor Sensor output of −10 VDC ± 0.5 V using a calibrated voltmeter. Confirm the OK relay on the 3300 XL monitor card is energized, verify that vibration and position readings are within expected baseline values, and release the channel from bypass. A short functional run at low load is recommended before returning the machine to full-speed operation.

Q3: Can this probe be used with a 3500 Series rack or only with the 3300 XL?
The 21504-000-16-05-02 is rated and tested for the 3300 XL 8mm system. While the eddy-current principle is common across Bently Nevada platforms, the 3500 Series uses a different Proximitor Sensor family and gap calibration curve. Use of this probe with a 3500 rack is not recommended without explicit compatibility verification by a qualified instrumentation engineer.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and out-of-specification gap voltage output at time of receipt. Units damaged by incorrect installation, over-range mechanical impact, or chemical exposure are excluded. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or credit issued upon inspection confirmation.
