Bently Nevada 21504-04-36-05-02 Safety-Enhanced Proximity Probe

Bently Nevada 21504-04-36-05-02 Safety-Enhanced Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

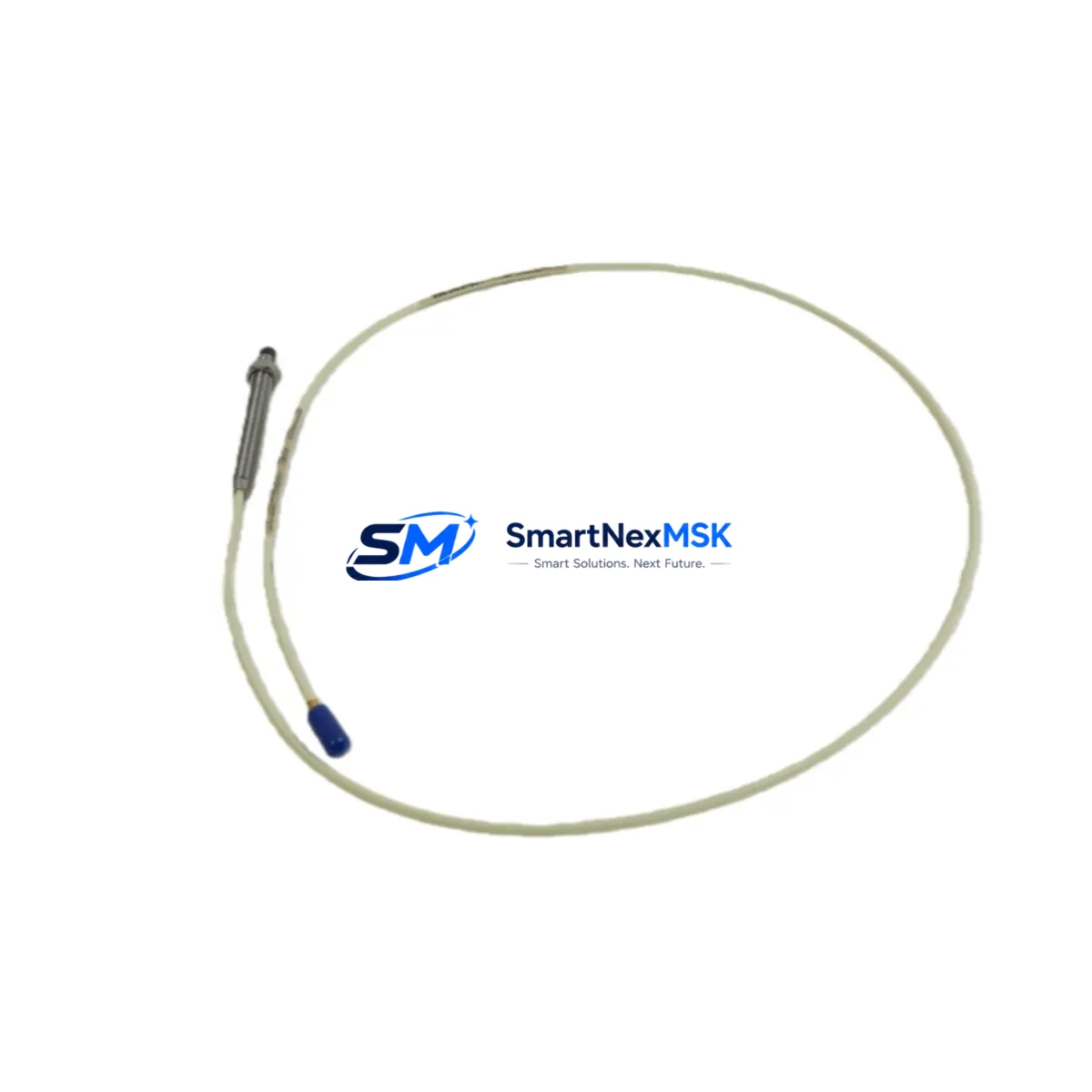

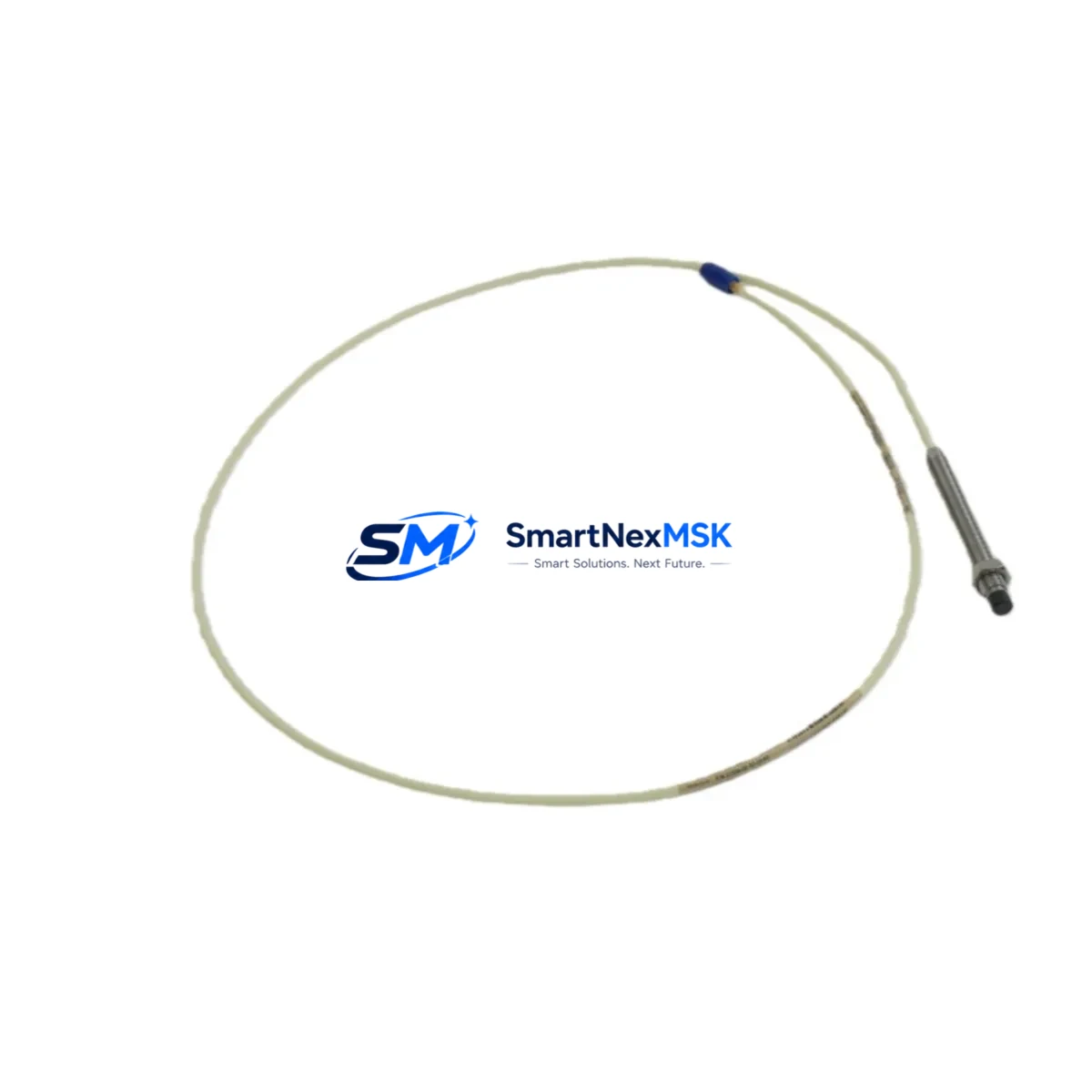

The Bently Nevada 21504-04-36-05-02 is a ruggedized eddy current proximity probe engineered for continuous, safety-critical vibration and displacement monitoring in the most demanding industrial environments. As part of the proven Bently Nevada 3300 XL Series, this probe delivers exceptional signal integrity and mechanical durability where control interruptions, signal drift, and sensor failure carry serious operational and safety consequences. Whether deployed in petrochemical compressor trains, power generation turbines, mining hoists, or metallurgical rolling mills, the 21504-04-36-05-02 is designed to remain stable and accurate under high electromagnetic interference, extreme temperature cycling, aggressive chemical exposure, and continuous mechanical vibration.

Industrial rotating machinery protection depends entirely on the quality and consistency of the proximity probe signal feeding the monitoring system. A degraded or intermittent probe signal can cause the Bently Nevada 3300/16 Proximitor® Monitor to generate false alarms, miss genuine shaft excursions, or fail to trigger protective shutdowns at the correct threshold. The 21504-04-36-05-02 eliminates these risks through its precision-wound coil assembly, hermetically sealed tip construction, and armored cable jacket rated for continuous flexing in high-vibration installations. Its 5-metre (approximately 16.4 ft) integral cable length suits the majority of standard bearing housing-to-rack distances without field splicing, preserving signal quality across the full measurement chain.

In a complete 3300 XL proximity measurement loop, the probe works in conjunction with the Bently Nevada 3300 XL Extension Cable and the 3300 XL 8mm Proximitor® Sensor to deliver a calibrated, temperature-compensated output to the monitoring rack. The system’s linear range and sensitivity specifications are factory-matched across probe, extension cable, and Proximitor® as a verified set, ensuring that the 21504-04-36-05-02 integrates without recalibration when used with compatible 3300 XL system components. This matched-set approach is critical in safety instrumented systems (SIS) and API 670-compliant machinery protection installations where measurement traceability is a regulatory requirement.

Within the control cabinet and field junction environment, the 21504-04-36-05-02 is routinely installed alongside complementary protection components. The Bently Nevada 3500/42M Proximitor®/Seismic Monitor provides the rack-mounted signal processing and relay output for trip and alarm functions, while the Bently Nevada 3500/22M Transient Data Interface captures high-resolution waveform data for machinery diagnostics. Power supply stability for the monitoring rack is typically maintained by a Bently Nevada 3500/15 Power Supply Module, which provides redundant 24 VDC rails to prevent monitoring blackouts during utility disturbances. For installations requiring intrinsic safety barriers in Zone 1 or Zone 2 hazardous areas, the probe circuit is protected by compatible Pepperl+Fuchs or MTL Zener barrier modules rated for the 3300 XL signal parameters, ensuring that the proximity loop remains safe and functional even in the presence of flammable atmospheres.

Surge and transient protection is equally important in heavy industrial sites where large motor starts, arc furnace operations, or lightning events can inject damaging voltage spikes into instrumentation wiring. The 21504-04-36-05-02’s shielded cable construction and the Proximitor® sensor’s internal protection circuitry work together to reject common-mode interference and limit the risk of sensor damage from conducted surges. In installations with particularly aggressive EMI environments — such as variable frequency drive (VFD) motor rooms or high-current bus bar areas — additional signal conditioner modules and proper cable segregation practices further protect the measurement integrity of the proximity loop.

Communication of machinery health data from the 3300 XL monitoring system to the plant DCS or safety PLC is typically handled via 4–20 mA analog outputs or Modbus RTU/TCP communication modules integrated into the 3500 Series rack. This allows the vibration and position data captured by the 21504-04-36-05-02 to be trended, alarmed, and acted upon within the plant’s broader safety and control architecture, including integration with Emerson Ovation DCS, Honeywell Experion PKS, or Siemens SIMATIC PCS 7 platforms commonly found in power and process industries.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection strategy built around the Bently Nevada 21504-04-36-05-02 extends well beyond the probe itself. In a typical API 670-compliant control cabinet, the probe feeds its signal through a matched 3300 XL Extension Cable to the 3300 XL 8mm Proximitor® Sensor, which conditions the raw oscillator signal into a DC voltage proportional to shaft gap. This conditioned signal enters the Bently Nevada 3500/42M Proximitor®/Seismic Monitor card, where it is compared against programmed alarm and trip setpoints. The monitor card communicates relay outputs to the plant’s emergency shutdown system (ESD) or safety PLC, ensuring that a confirmed high-vibration or shaft contact event triggers a controlled machine trip before mechanical damage occurs.

Rack power integrity is maintained by the Bently Nevada 3500/15 Power Supply Module, which supports dual-redundant input feeds to eliminate single-point power failure as a cause of monitoring loss. In hazardous area installations, Zener safety barriers or galvanic isolators — such as those from the MTL 7000 Series or Pepperl+Fuchs KFD2 range — are inserted in the probe circuit to limit energy in the field wiring to intrinsically safe levels. For plants requiring continuous waveform capture and machinery diagnostics beyond simple alarm/trip functions, the Bently Nevada 3500/22M Transient Data Interface records raw proximity signals for analysis in System 1 Evolution software, enabling predictive maintenance decisions based on actual shaft orbit and spectrum data rather than threshold alarms alone.

In installations where the 3300 XL system must coexist with high-power VFD drives or large transformer banks, proper cable routing, grounding, and the use of signal isolator modules prevent ground loops and common-mode noise from corrupting the proximity measurement. The combination of a correctly installed 21504-04-36-05-02 probe, a matched Proximitor® sensor, a well-grounded extension cable, and a properly configured 3500 Series monitor card creates a measurement chain with the signal integrity and redundancy required for safety-critical rotating machinery protection.

Critical Industrial Safety Applications

The Bently Nevada 21504-04-36-05-02 proximity probe is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refining plants, the probe monitors radial shaft vibration and axial position on centrifugal compressors, steam turbines, and boiler feed pumps operating in continuous service. An undetected shaft excursion in these machines can result in seal failure, bearing wipe, or catastrophic rotor-stator contact — events with serious safety and environmental consequences. The 21504-04-36-05-02’s stable output under high-temperature, high-pressure, and chemically aggressive conditions makes it the preferred sensor for these critical applications.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the probe is used on main turbine-generator sets, boiler feed pump turbines, and induced draft fans. These machines operate at high speeds and carry enormous kinetic energy; the proximity monitoring system provides the first line of defense against vibration-induced failures that could force unplanned outages or damage expensive rotating components.

In mining and mineral processing operations, the probe monitors large grinding mills, hoists, and ventilation fans in environments characterized by heavy dust loading, shock vibration, and wide ambient temperature swings. The ruggedized construction of the 21504-04-36-05-02 ensures reliable operation in these conditions without frequent recalibration or replacement.

In metallurgical and steel mill environments, the probe is applied to rolling mill drive trains, continuous caster drives, and large induction motor-driven pumps and fans. The high electromagnetic interference generated by arc furnaces and large motor drives in these facilities demands the EMI rejection capability built into the 3300 XL probe and Proximitor® system.

In water and wastewater treatment plants, the probe monitors large centrifugal pumps and blowers in continuous duty service, where unplanned downtime disrupts treatment processes and regulatory compliance. The 12-month warranty and verified pre-shipment testing of each 21504-04-36-05-02 unit provide plant operators with confidence in the reliability of replacement sensors installed during scheduled maintenance windows.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Bently Nevada 21504-04-36-05-02?
Each unit is supplied with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. The warranty period begins from the date of shipment. In the event of a warranty claim, SMARTNEXMSK provides replacement or repair support with minimal lead time to minimize impact on your maintenance schedule.

Q2: What pre-shipment testing is performed on each unit?
Every 21504-04-36-05-02 undergoes a pre-shipment functional inspection that verifies probe tip integrity, cable continuity, coil resistance, and oscillator compatibility with the 3300 XL Proximitor® sensor. Units that do not meet Bently Nevada’s published specification are quarantined and not dispatched. Test records are available upon request for quality-critical installations.

Q3: Is the 21504-04-36-05-02 compatible with existing 3300 XL system installations?
Yes. The 21504-04-36-05-02 is a direct replacement for the standard Bently Nevada 3300 XL 8mm proximity probe with a 5-metre integral cable. It is compatible with all 3300 XL 8mm Proximitor® sensors and extension cables. When used as a matched set with the correct Proximitor® and extension cable, no recalibration of the monitoring system is required, provided the target material is AISI 4140 steel or an equivalent calibration standard.

Q4: Can long-term supply of this part be assured for ongoing maintenance programs?
SMARTNEXMSK maintains stock of the 21504-04-36-05-02 and other 3300 XL series components to support planned maintenance, emergency replacement, and capital project requirements. For customers with multi-unit installations or annual maintenance contracts, we recommend discussing a blanket order or reserved stock arrangement to guarantee availability and price stability. Contact our technical sales team at sales@smartnexmsk.com or +86 18259474341 to discuss your long-term supply requirements.
