Bently Nevada 21504-04-36-10-02 Spare 3300 XL Automation: Maintenance-Ready Proximity Probe for Industrial Downtime Control

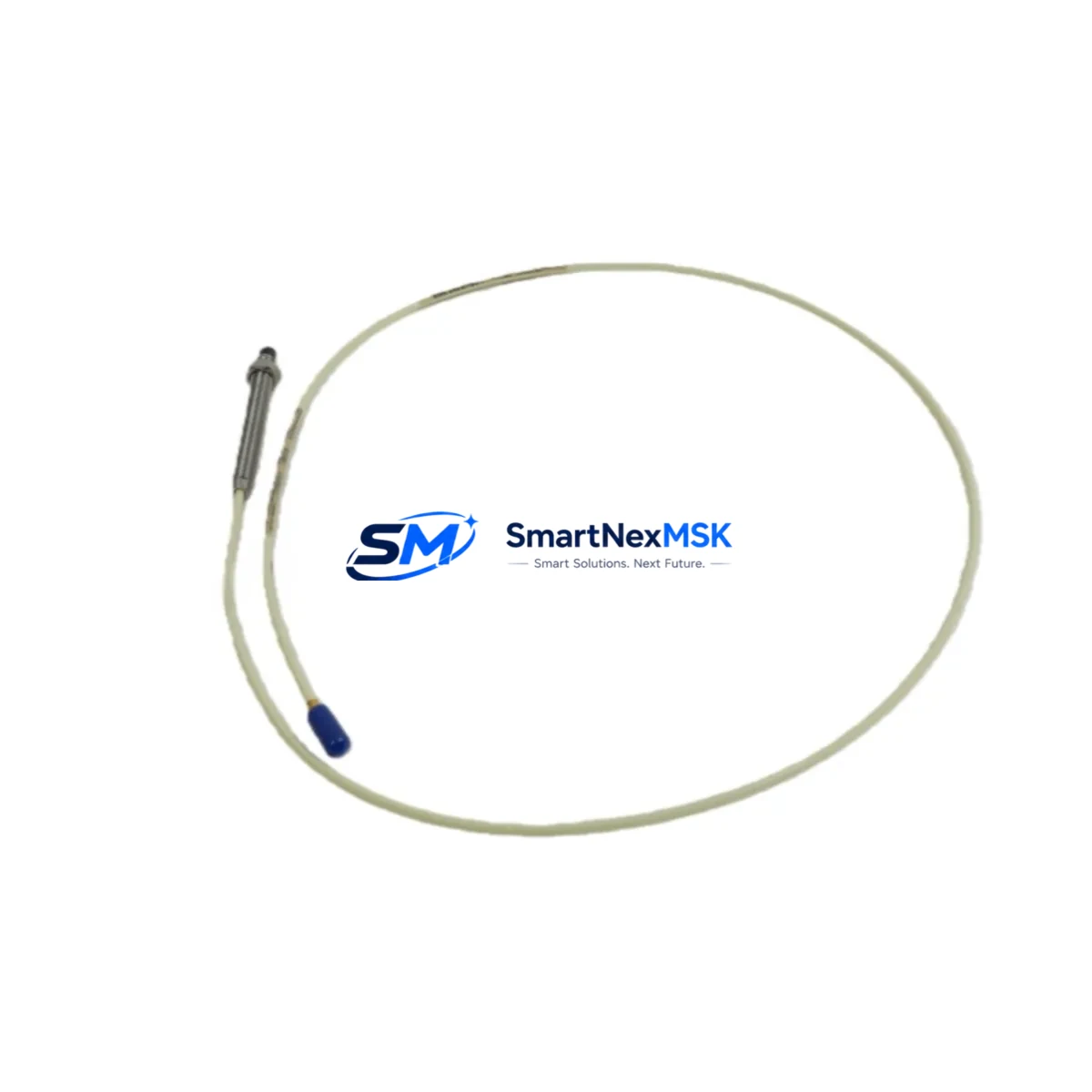

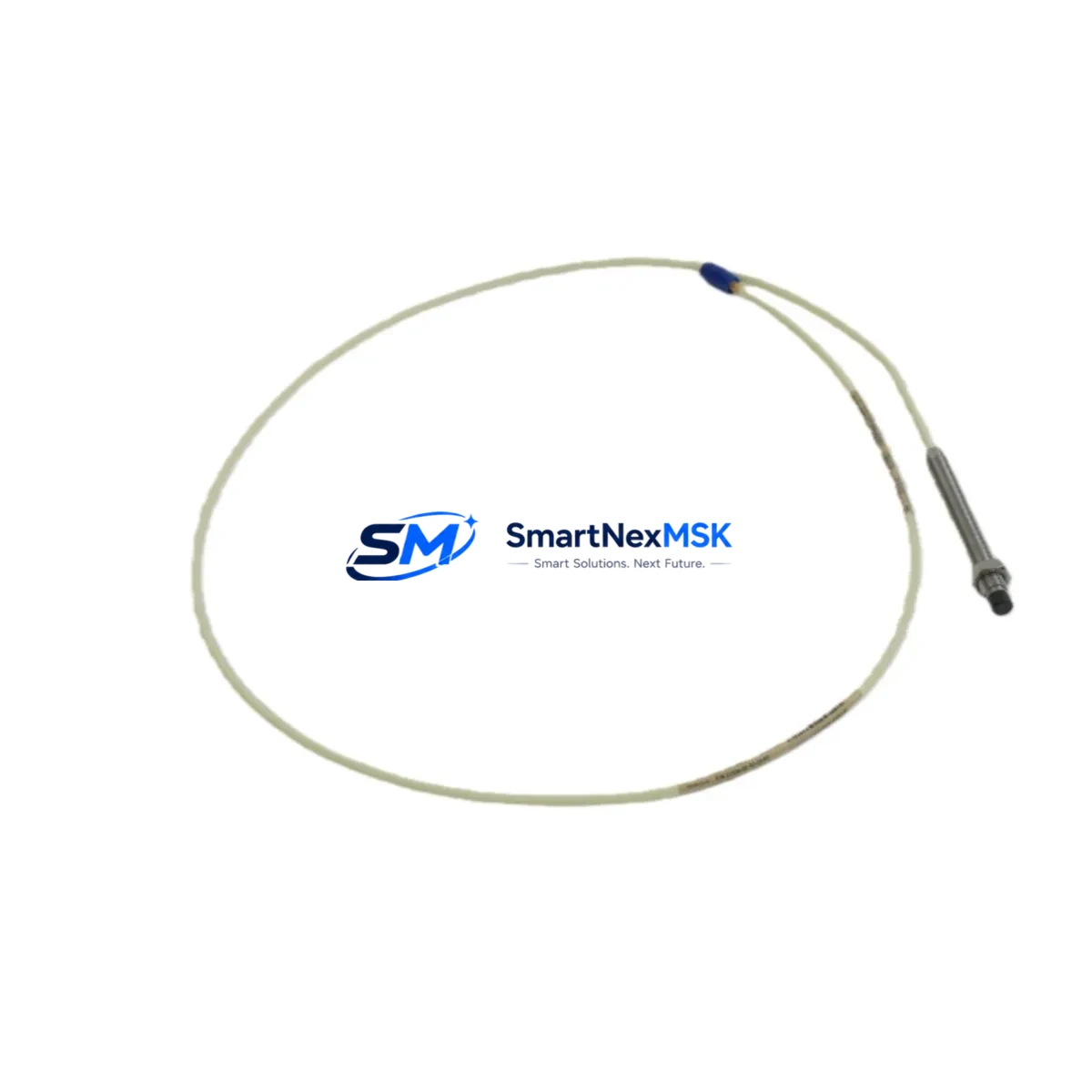

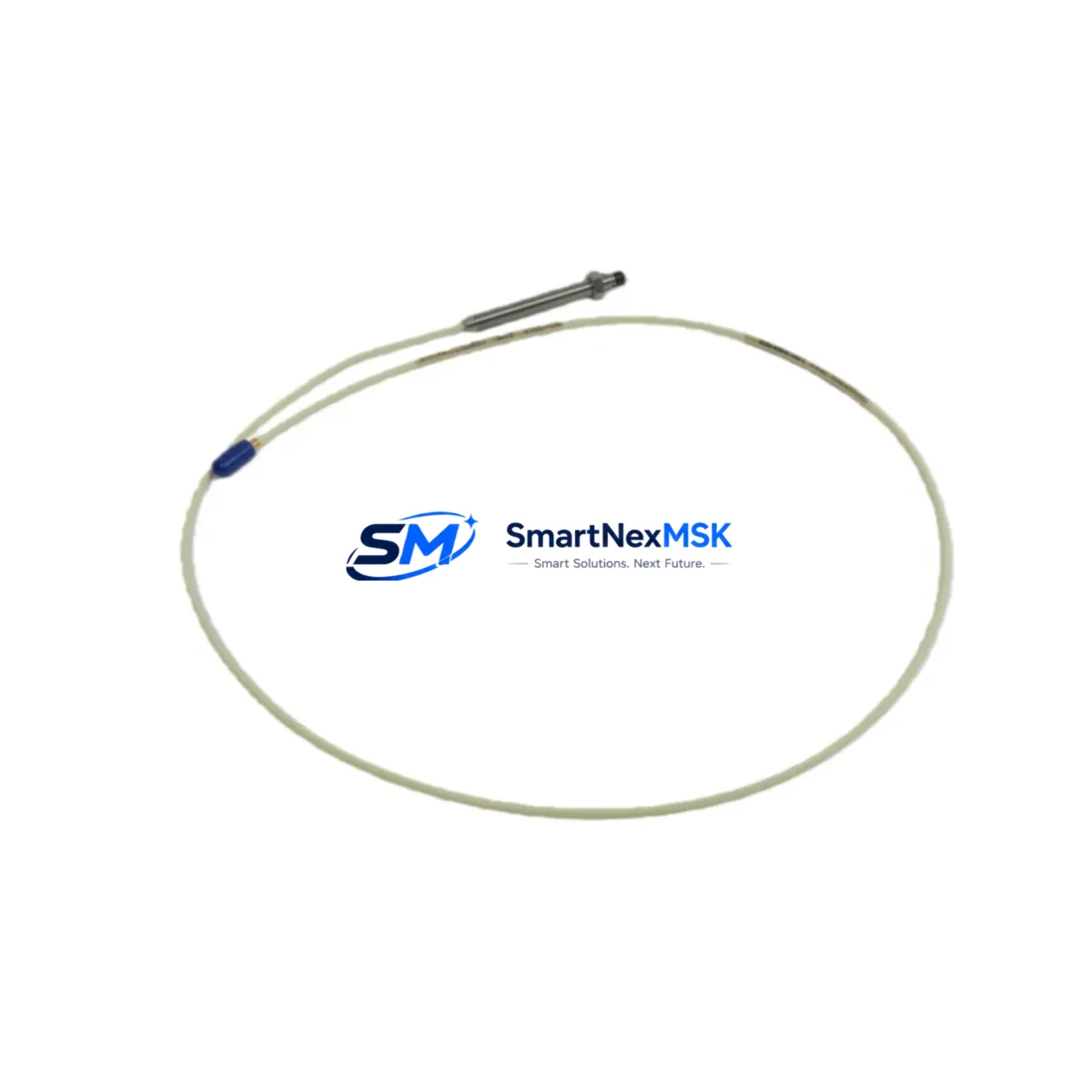

The Bently Nevada 21504-04-36-10-02 is an original eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring and machinery protection system. Designed for continuous-duty industrial environments, this probe is a critical spare component for rotating machinery protection on steam turbines, gas turbines, compressors, pumps, and large motors where shaft vibration, axial position, and differential expansion must be monitored without interruption.

For maintenance engineers managing turbomachinery protection panels, the 21504-04-36-10-02 represents a direct OEM replacement that eliminates the need for recalibration of the entire monitoring loop. Its 5-metre integral cable, 8 mm tip diameter, and -24 VDC bias voltage output are factory-matched to the 3300 XL proximitor/extension cable system, ensuring plug-and-play compatibility with existing field wiring and rack-mounted monitors.

Sourced from verified OEM supply channels, each unit is inspected and function-tested prior to shipment. A 12-month warranty covers manufacturing defects and performance conformance to Bently Nevada factory specifications. Fast dispatch from bonded stock supports emergency maintenance windows and planned turnaround outages alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21504-04-36-10-02 proximity probe during a planned outage or emergency shutdown, a disciplined maintenance engineer will treat the probe replacement as the trigger for a broader loop integrity check. The eddy-current measurement chain is only as reliable as its weakest component, and field experience consistently shows that probe failures are often preceded or accompanied by degradation in adjacent components.

Begin with the 3300 XL Proximitor module (e.g., 330180-91-00): inspect the proximitor housing for moisture ingress, verify the output voltage at the OK relay terminal, and confirm the gap voltage is within the linear range before re-energizing. Next, inspect the 3300 XL extension cable (e.g., 330130-045-00-CN) for jacket abrasion, connector corrosion, and continuity — a degraded extension cable is a common source of intermittent OK relay trips that are misdiagnosed as probe failures.

At the rack level, verify the 3300/16 or 3300/20 series vibration monitor card for alarm setpoint integrity and relay output function. If the machine has been in service for more than five years, consider scheduling a bench calibration of the monitor card during the same outage window. Check the 3300/05 Power Supply module supplying the monitoring rack — a sagging DC rail will shift the proximitor bias voltage and introduce measurement error that appears as a false high-vibration alarm.

For machines with axial position monitoring, simultaneously inspect the 3300 XL thrust position probe and its associated proximitor, as axial and radial probes often share the same cable tray routing and are exposed to identical environmental stresses. If the control cabinet houses a 3500 Series rack for overspeed or temperature monitoring, use the same outage to verify the 3500/42M Proximitor I/O module and its field wiring terminations.

On the power distribution side, check the 24 VDC field power fuses and terminal blocks feeding the proximitor loop — corroded terminal connections are a leading cause of intermittent signal loss in long-service installations. If a signal isolator or barrier is installed between the proximitor output and the DCS analog input card, verify the isolator’s output accuracy with a calibrated millivolt source. Finally, review the DCS analog input channel receiving the vibration signal for correct engineering unit scaling and alarm deadband configuration before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the proximitor supply at the rack power distribution panel. Confirm OK relay de-energizes and the monitor channel enters the bypass/inhibit state before approaching the probe mounting location.

Step 2 — Probe Removal: Loosen the probe lock nut and back the probe out of the bracket. Record the final gap setting (in mils or mm) from the maintenance log for reference during reinstallation. Inspect the probe tip for impact damage or target surface contamination.

Step 3 — New Probe Installation: Thread the 21504-04-36-10-02 replacement probe into the bracket. Set the gap to the specified linear midpoint (typically 1.0–1.5 mm / 40–60 mil for 8 mm probes) using a non-ferrous feeler gauge or a calibrated gap-setting tool. Tighten the lock nut to the torque value specified in the Bently Nevada installation drawing.

Step 4 — Loop Verification: Re-energize the proximitor supply. Measure the DC bias voltage at the proximitor output terminal (target: -10.0 VDC ±0.5 VDC at correct gap). Confirm the OK relay energizes and the monitor channel exits bypass. Verify the vibration reading is within the expected baseline range for the machine at rest.

Step 5 — Return to Service: Remove inhibit/bypass, restore alarm setpoints, and document the replacement in the maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of the consumed 21504-04-36-10-02 unit.

This workflow is compatible with direct replacement of legacy Bently Nevada 21504-series probes and supports system continuity without requiring re-parameterization of the 3300 XL monitor cards, minimizing total downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 21504-04-36-10-02 a direct drop-in replacement for other 21504-series probes?
Yes, within the 3300 XL 8 mm probe family, the 21504-04-36-10-02 is dimensionally and electrically compatible with other 21504-series variants sharing the same cable length and connector configuration. Always verify the cable length suffix and connector type against your installation drawing before ordering. If your existing probe has a different cable length (e.g., 3 m or 9 m), select the corresponding 21504-series part number with the matching suffix.

Q2: What pre-shipment testing is performed on each unit?
Each 21504-04-36-10-02 unit undergoes electrical continuity verification, insulation resistance testing, and functional gap-voltage output testing against a calibrated steel target before dispatch. A test report is available upon request. The 12-month warranty covers return-to-base repair or replacement for any unit that fails to meet Bently Nevada factory performance specifications under normal operating conditions.

Q3: How should I manage 3300 XL proximity probe inventory for a critical machine fleet?
API 670 and most site reliability programs recommend holding a minimum of one spare probe per critical machine train, with an additional buffer for high-density installations (four or more probes per machine). For plants with more than ten 3300 XL-equipped machines, a pooled spare strategy — holding three to five 21504-04-36-10-02 units alongside matching extension cables and proximitor modules — provides adequate coverage for both planned outages and unplanned failures without excessive capital tied up in slow-moving inventory.

Q4: Can this probe be used with the Bently Nevada 3500 Series monitoring system?
The 21504-04-36-10-02 probe is designed and calibrated for the 3300 XL proximitor system. While the physical probe tip and cable are mechanically compatible with 3500 Series installations, the system calibration and OK relay thresholds are optimized for the 3300 XL proximitor. If your site is migrating from 3300 XL to 3500 Series, consult the Bently Nevada system integration guide and verify the proximitor part number (e.g., 330180-X1-CN for 3500-compatible variants) before deploying this probe in a 3500 rack.
