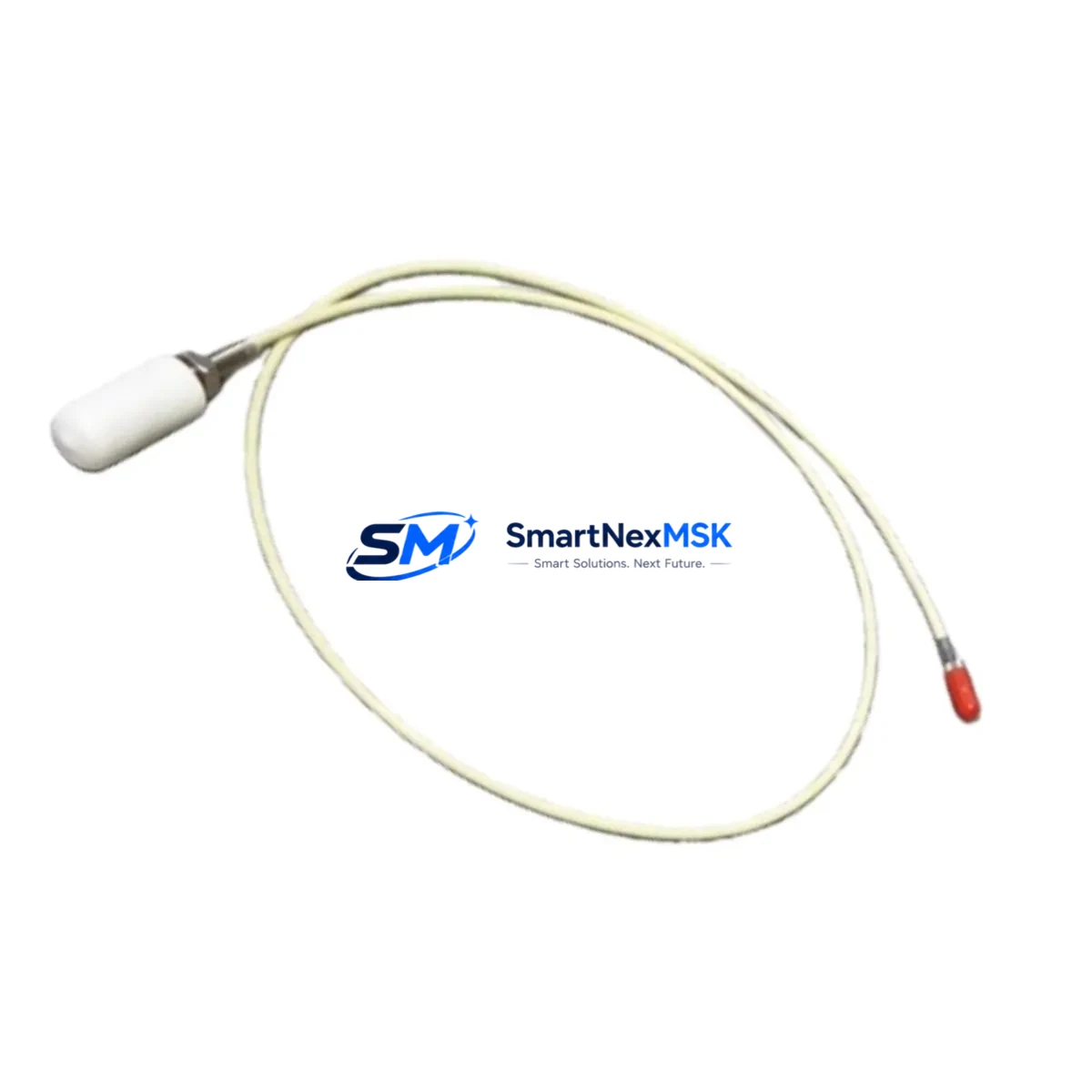

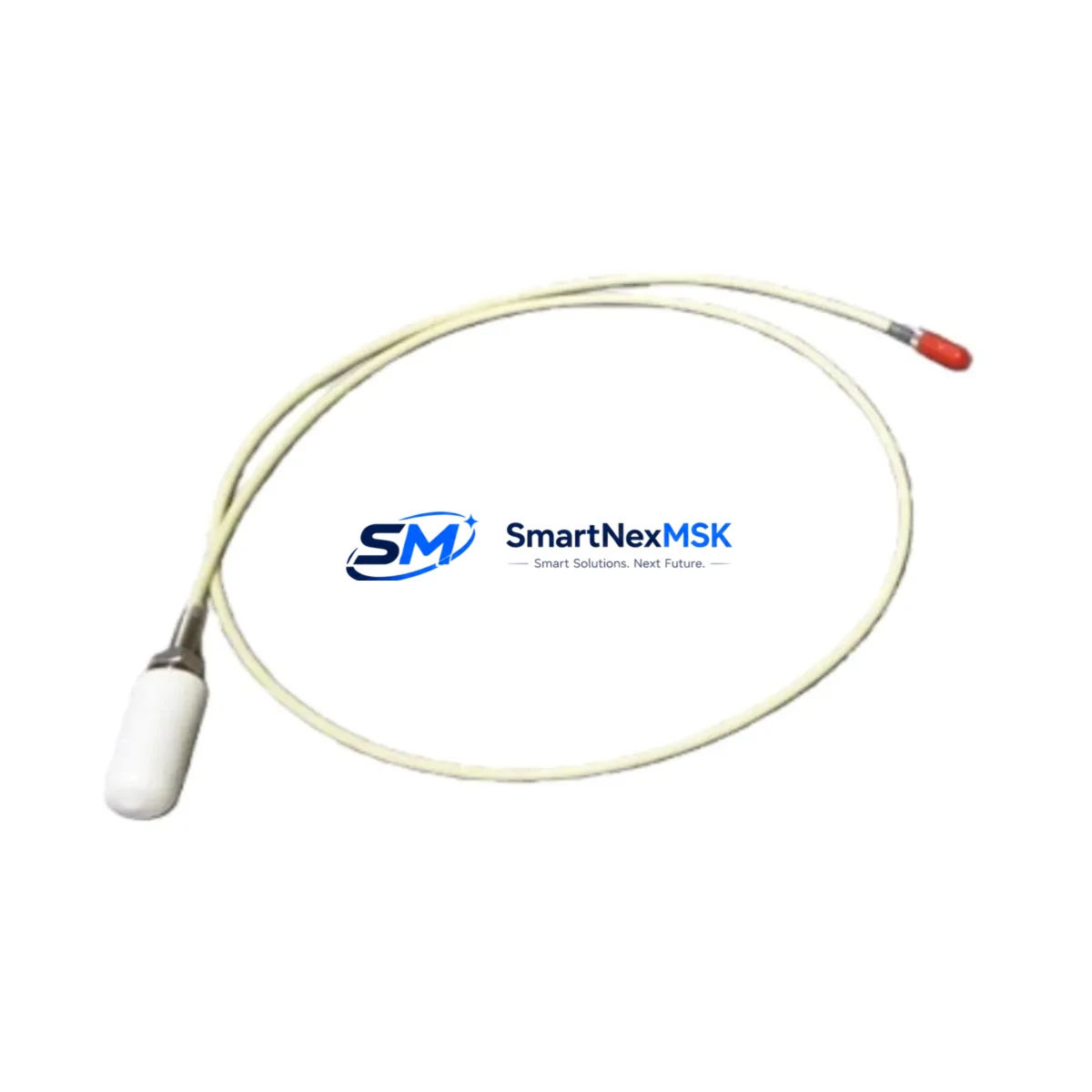

Bently Nevada 21504-16-32-10-02 Safety Proximity Probe

Bently Nevada 21504-16-32-10-02 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 21504-16-32-10-02 is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Proximity System, this probe delivers stable, high-resolution shaft displacement measurements in rotating machinery applications where control interruption, signal drift, or sensor failure can trigger catastrophic downtime or safety incidents.

Built to withstand high-temperature, high-vibration, and chemically aggressive field conditions, the 21504-16-32-10-02 maintains measurement integrity across continuous production cycles in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port crane drives. Its eddy-current sensing principle ensures non-contact, wear-free operation — eliminating mechanical degradation as a failure mode in critical rotating equipment protection loops.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered rotating machinery protection cabinet, the 21504-16-32-10-02 proximity probe operates as the primary sensing element feeding shaft displacement data into the Bently Nevada 3300/55 Dual Voting Trip Module or the 3500/42M Proximitor / Seismic Monitor. These monitor modules evaluate radial vibration, axial position, and differential expansion in real time, triggering protective relay outputs when thresholds are exceeded.

To ensure signal integrity from probe tip to control system, the probe is paired with a matched Bently Nevada 3300 XL 5-meter Extension Cable and a dedicated 3300 XL 8mm Proximitor Driver, which conditions the raw eddy-current signal into a calibrated DC voltage output. This three-component probe system — probe, extension cable, and driver — must be matched as a calibrated set to maintain API 670 measurement accuracy.

Within the control cabinet, the driver output connects to the Bently Nevada 3500 Rack I/O Module, which interfaces with the plant DCS or safety PLC via Modbus RTU or 4–20 mA hardwired signals. For installations requiring functional safety compliance, the monitor output is routed through a Phoenix Contact PSR-SCP Safety Relay or equivalent SIL-rated interlock device before reaching the emergency shutdown (ESD) logic solver.

Power supply stability is critical in proximity monitoring circuits. The 3300 XL driver requires a clean, regulated -24 VDC rail, typically sourced from a Siemens SITOP PSU100S 24V/10A Power Supply or equivalent DIN-rail unit with active output buffering. A Phoenix Contact QUINT UPS module is recommended upstream to bridge power interruptions and prevent false trip signals during momentary supply dips.

For installations in classified hazardous areas (Zone 1 / Division 1), the probe signal is routed through a Pepperl+Fuchs KFD2-STC4-Ex1 Zener Barrier or galvanic isolator to maintain intrinsic safety compliance. This prevents ignition-capable energy from reaching the hazardous zone while preserving signal fidelity across the full measurement range.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 21504-16-32-10-02 is widely deployed on centrifugal compressors, reactor feed pumps, and turbine expanders in refinery service. In these applications, shaft displacement monitoring is a mandatory API 670 requirement. The probe’s chemical-resistant cable jacket and high-temperature rating make it suitable for installation near hot process lines and in areas with hydrocarbon vapor exposure. A trip signal from this probe can initiate an automated ESD sequence, isolating the machine before bearing failure or seal damage occurs.

Power Generation: Steam turbine and gas turbine protection systems rely on proximity probes to monitor rotor eccentricity, thrust position, and differential expansion. The 21504-16-32-10-02, integrated with the Bently Nevada 3500 rack system, provides the continuous shaft position data required by turbine control systems to maintain safe operating clearances. In combined-cycle plants, this data feeds directly into the turbine control PLC, enabling coordinated load shedding during abnormal vibration events.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the 21504-16-32-10-02 — with its armored integral cable and hardened connector — provides reliable service life in these conditions. Continuous shaft monitoring on mill pinion drives enables predictive maintenance scheduling, reducing unplanned stops in continuous ore processing circuits.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower units in water treatment facilities require reliable vibration monitoring to prevent bearing failures that could interrupt treatment processes. The non-contact eddy-current measurement principle of this probe eliminates sensor wear in wet, humid environments, ensuring long-term measurement stability without recalibration.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and converter fan systems in steel plants operate under severe electromagnetic interference from large motor drives and induction furnaces. The shielded coaxial cable of the 21504-16-32-10-02, combined with the differential input architecture of the 3300 XL driver, provides strong common-mode noise rejection, maintaining clean vibration signals even in high-EMI environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 21504-16-32-10-02?
The 12-month warranty covers manufacturing defects, calibration failures, and functional non-performance under normal operating conditions from the date of shipment. If the unit fails to meet Bently Nevada 3300 XL system specifications during this period, we will provide a replacement or full refund. Warranty claims are processed within 5 business days upon receipt of the returned unit.

Q2: What pre-shipment testing is performed on this proximity probe?
Every 21504-16-32-10-02 unit undergoes a pre-shipment functional verification that includes continuity testing of the coaxial cable, tip impedance measurement, and visual inspection of the connector and cable jacket for damage. Units sourced as surplus new are additionally inspected for storage condition and packaging integrity before dispatch.

Q3: Is the 21504-16-32-10-02 directly interchangeable with other Bently Nevada 3300 XL 8mm probes?
Yes, within the 3300 XL 8mm probe family, the 21504 series probes share the same calibration curve and connector standard, making them directly interchangeable with other 21504-series variants when paired with the correct matching extension cable and driver. Always verify the complete three-component system (probe + extension + driver) is calibrated as a matched set per Bently Nevada installation guidelines.

Q4: Can you guarantee long-term supply and replacement support for this part?
We maintain standing inventory of the 21504-16-32-10-02 and related 3300 XL system components to support ongoing maintenance and emergency replacement requirements. For critical plant spares programs, we can provide scheduled supply agreements and reserved stock allocation. Contact our team to discuss long-term supply arrangements for your facility’s maintenance inventory.
