Bently Nevada 2201/03-01 Safety Proximitor for Harsh Sites

Bently Nevada 2201/03-01 Safety Proximitor for Harsh Industrial Sites

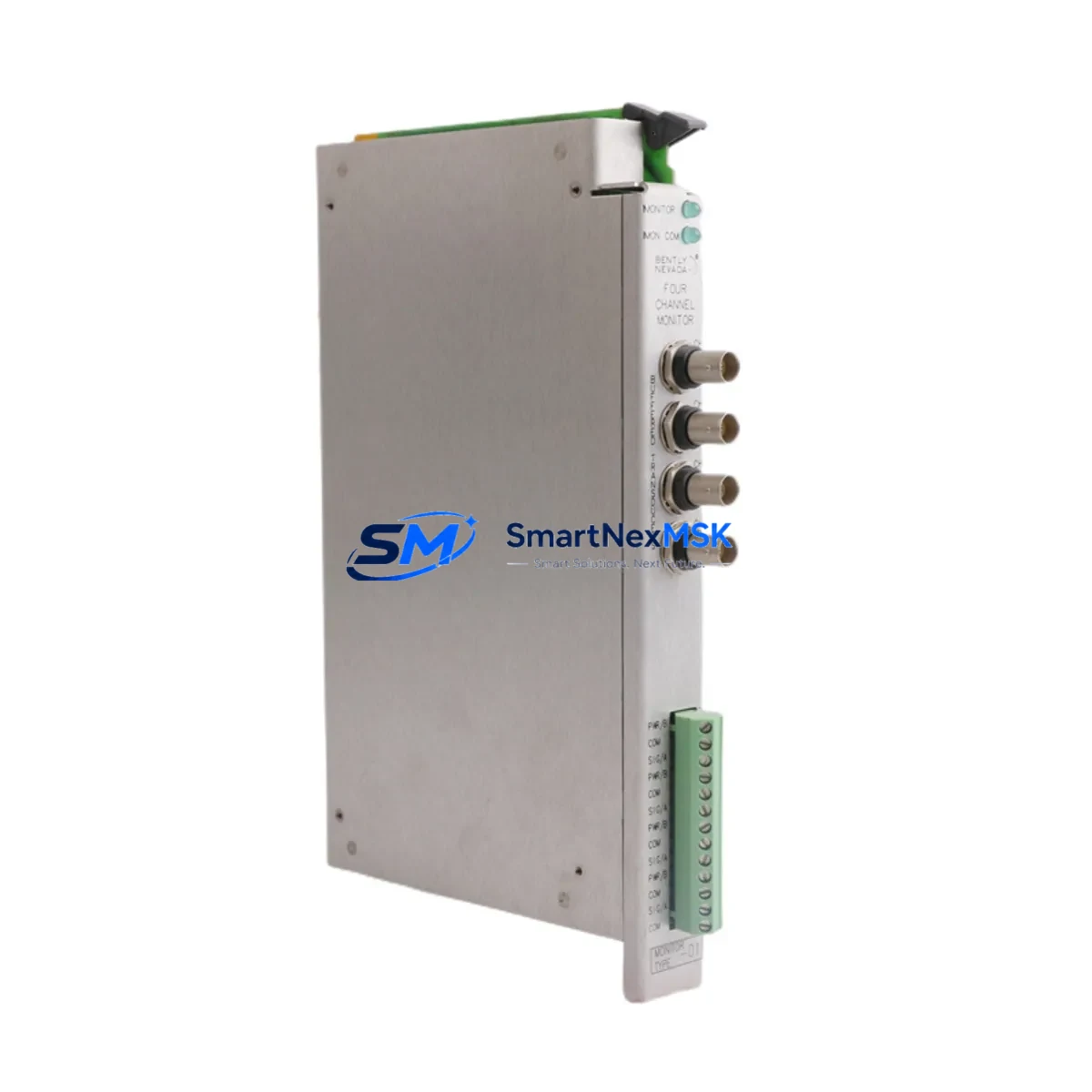

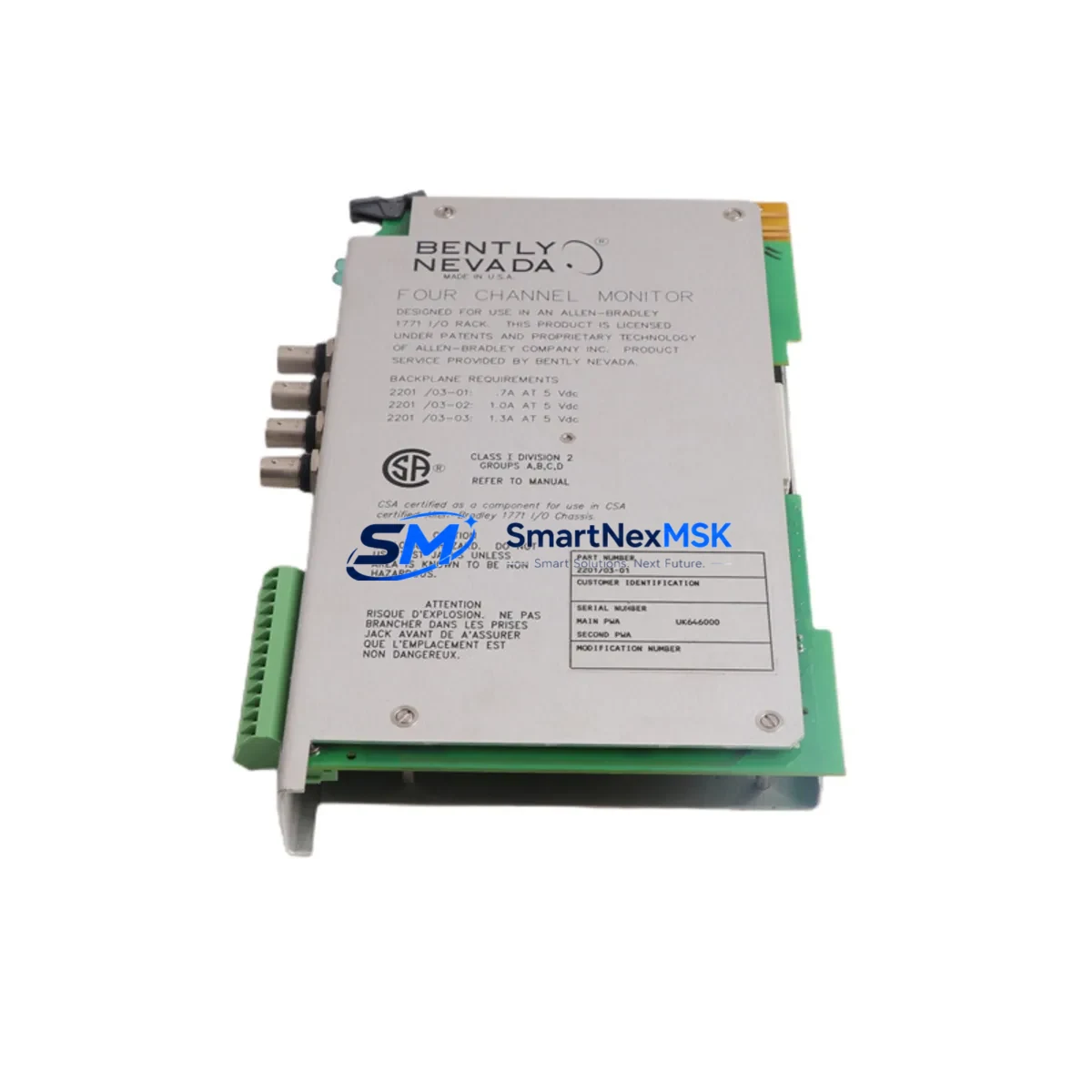

The Bently Nevada 2201/03-01 is a 4-channel Proximitor® signal conditioner module from the proven 2200 Series machinery protection platform. Engineered for continuous, safety-critical operation in the most demanding industrial environments, this module converts raw eddy-current probe signals into clean, calibrated voltage outputs that feed directly into vibration monitoring systems, safety interlock loops, and emergency shutdown (ESD) circuits. Where control interruption is not an option — in rotating machinery protection, turbine supervisory systems, compressor trains, and critical pump monitoring — the 2201/03-01 delivers the signal integrity and environmental resilience that plant safety depends on.

Designed to operate reliably across wide temperature ranges and in the presence of electromagnetic interference, ground loops, and power supply fluctuations, this module maintains measurement accuracy even when installed inside densely populated control cabinets alongside high-current drives, relay panels, and power conditioning equipment. Its robust signal conditioning architecture suppresses common-mode noise and rejects interference from adjacent VFDs, contactors, and bus bars — ensuring that vibration trip signals remain stable and actionable rather than susceptible to nuisance trips or, worse, masked faults.

In high-stakes applications such as petrochemical compressor protection, power generation turbine supervisory control, and mining crusher monitoring, the 2201/03-01 is frequently deployed as part of a layered protection strategy. It works in concert with Bently Nevada 3500/42M Proximitor/Seismic Monitor modules, 3500/22M Transient Data Interface cards, and 3500/15 Power Supply modules within the 3500 Series rack — providing a complete, API 670-compliant machinery protection architecture. For legacy 2200 Series installations, it integrates seamlessly with 2300/16-00-01 monitors and 2300/25-00-01 keyphasors to maintain full system coherence without requiring a full platform migration.

Signal stability under harsh conditions is further supported by pairing the 2201/03-01 with appropriate field wiring practices: shielded twisted-pair cables, proper grounding at a single point, and surge protection devices such as the Bently Nevada 330130 series extension cables and 330180 proximitor extension cables. When installed in hazardous area control cabinets — particularly in Zone 1 or Zone 2 classified environments — the module’s compatibility with intrinsically safe barriers and Zener diode isolators ensures that the overall protection loop meets IEC 60079 requirements without compromising signal fidelity.

Power supply integrity is equally critical to safe operation. The 2201/03-01 operates on a regulated -24 VDC supply, and its performance is directly tied to the quality of that supply rail. Redundant power architectures using Bently Nevada 3500/15 dual-input power supplies, supplemented by external UPS systems and transient voltage suppressors, protect the module from voltage sags, surges, and momentary outages that are common in heavy industrial facilities. In environments where power quality is compromised — such as near large motor starters, welding equipment, or arc furnaces — proper power conditioning upstream of the 2201/03-01 is essential to prevent false trips and measurement drift.

For facilities managing long-term spare parts strategies, the 2201/03-01 represents a high-priority stocking item. Its role in safety interlock and machinery protection loops means that an unplanned failure without an available replacement can result in forced shutdown of critical production assets. SMARTNEXMSK maintains verified inventory of the 2201/03-01 alongside complementary modules including Bently Nevada 330103-00-08-10-02-00 proximity probes and 330500-02-05 extension cables, enabling rapid like-for-like replacement without recalibration delays. All units are pre-shipment tested against OEM specifications and supplied with full documentation.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for rotating machinery begins with the signal conditioner at its core. The 2201/03-01 Proximitor module anchors the measurement chain, but its reliability in service depends on the integrity of every component in the protection loop. In a typical turbomachinery protection cabinet, the module shares rack space with Bently Nevada 3500/20 rack interface modules and 3500/32 4-channel relay modules that execute the trip logic. The relay outputs connect downstream to solenoid valves, ESD panels, and DCS safety function blocks — forming a complete, testable safety instrumented function (SIF).

To guard against power-related disruptions, the cabinet power rail supplying the 2201/03-01 should be protected by a dedicated Bently Nevada 3500/15 power supply with dual-input redundancy. Upstream, a DIN-rail mounted surge protective device rated for the -24 VDC rail prevents transient energy from welding operations, lightning-induced surges, or capacitor bank switching from reaching the module’s internal circuitry. Ground fault monitoring relays and isolation transformers further reduce the risk of common-mode interference corrupting the eddy-current measurement signal.

Communication integrity between the 2200 Series modules and the plant DCS or historian is maintained through hardwired 4–20 mA outputs or, in newer hybrid architectures, through Bently Nevada TDIXconnX transient data interface adapters that bridge legacy 2200 Series racks to modern Ethernet-based condition monitoring networks. This allows the 2201/03-01 to continue serving its safety function while simultaneously feeding vibration trend data to predictive maintenance platforms — extending asset life without compromising protection integrity.

Critical Industrial Safety Applications

The 2201/03-01 is deployed across the full spectrum of heavy industrial and process-critical facilities where rotating machinery protection is non-negotiable. In petrochemical and refinery environments, it monitors centrifugal compressors and steam turbines in continuous service, providing the shaft vibration and axial position data that feeds API 670-compliant trip systems. A single undetected bearing failure or rotor rub in these applications can result in catastrophic equipment loss, fire risk, and extended production outage — making the reliability of the Proximitor signal conditioner a direct safety-of-life concern.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 2201/03-01 is integrated into turbine supervisory systems alongside differential expansion probes, eccentricity sensors, and speed pickups. The module’s ability to maintain calibrated output across the full operating temperature range ensures that protection setpoints remain accurate from cold startup through full-load operation. Mining and mineral processing operations rely on the module to protect large grinding mills, SAG mills, and crusher drives where vibration-induced failures cause disproportionate production losses due to the difficulty of accessing and replacing large rotating assemblies.

In water and wastewater treatment plants, the 2201/03-01 protects high-speed centrifugal pumps and blowers in continuous duty service. Metallurgical and steel facilities use it in rolling mill drive protection and blast furnace blower monitoring, where the combination of high ambient temperature, heavy electromagnetic interference from large drives, and continuous production schedules creates one of the most challenging operating environments for any instrumentation. Port and marine applications include protection of large cargo handling cranes and ship-to-shore conveyor drives, where saltwater corrosion and vibration from vessel movement add additional environmental stress to the protection system.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 2201/03-01?
The 12-month warranty covers all functional failures under normal operating conditions, including signal output drift, channel failure, and power supply interface faults. Units that fail within the warranty period are replaced or repaired at no charge. The warranty period begins from the date of shipment and applies to both new and refurbished units supplied by SMARTNEXMSK.

Q2: What pre-shipment testing is performed on each unit?
Every 2201/03-01 unit undergoes functional verification prior to shipment, including power-up testing, channel output verification against known gap distances, and supply current measurement. Refurbished units additionally undergo cleaning, connector inspection, and board-level visual inspection. A test report is available upon request for quality-critical applications.

Q3: Is the 2201/03-01 compatible with existing 2200 Series installations and 3500 Series racks?
The 2201/03-01 is a native 2200 Series module and is fully compatible with all standard 2200 Series rack configurations and field wiring. It is not directly interchangeable with 3500 Series rack-mount modules, which use a different form factor and backplane interface. For hybrid installations, signal output from the 2201/03-01 can be wired into 3500 Series monitors via hardwired connections. Always verify rack configuration and backplane compatibility before installation.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains ongoing inventory of the 2201/03-01 and related 2200 Series components to support both planned spare parts programs and emergency replacement requirements. For facilities with critical machinery protection dependencies, we recommend establishing a standing spare parts agreement to ensure availability without lead-time risk. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, and expedited shipping options for emergency situations.
