Bently Nevada 24701-28-05-05-064-03-02 3300 Series Spare

Bently Nevada 24701-28-05-05-064-03-02 3300 Series Maintenance-Ready Spare

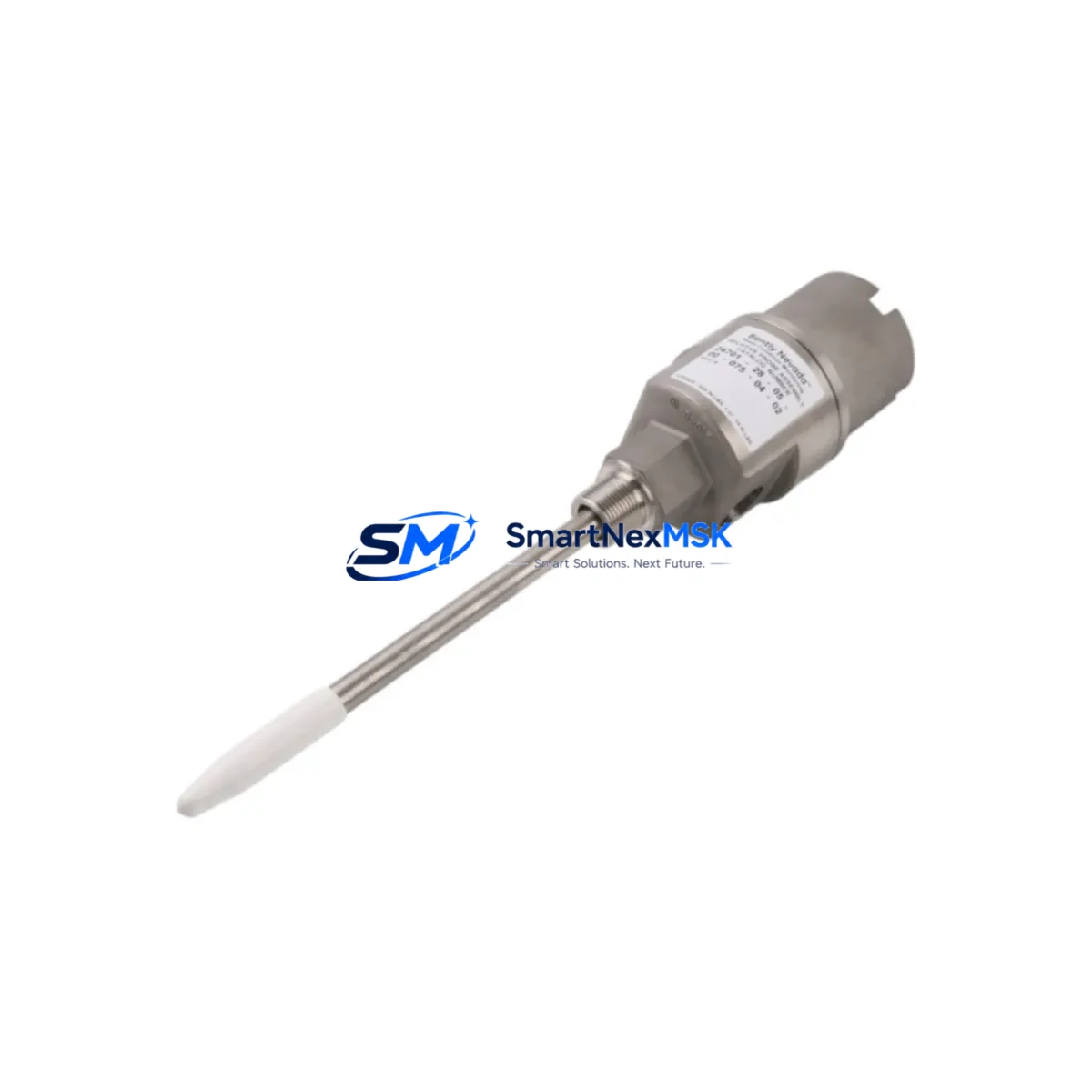

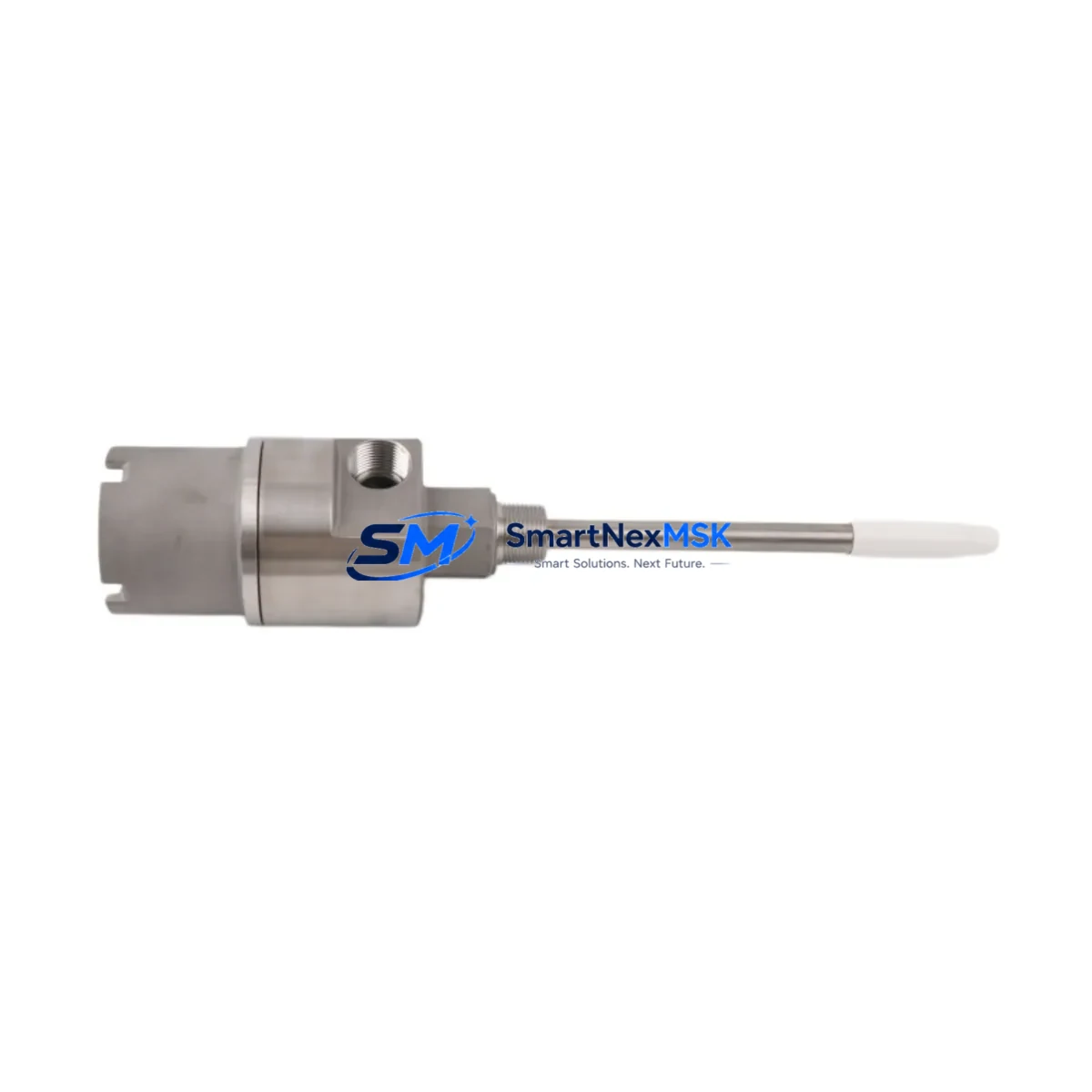

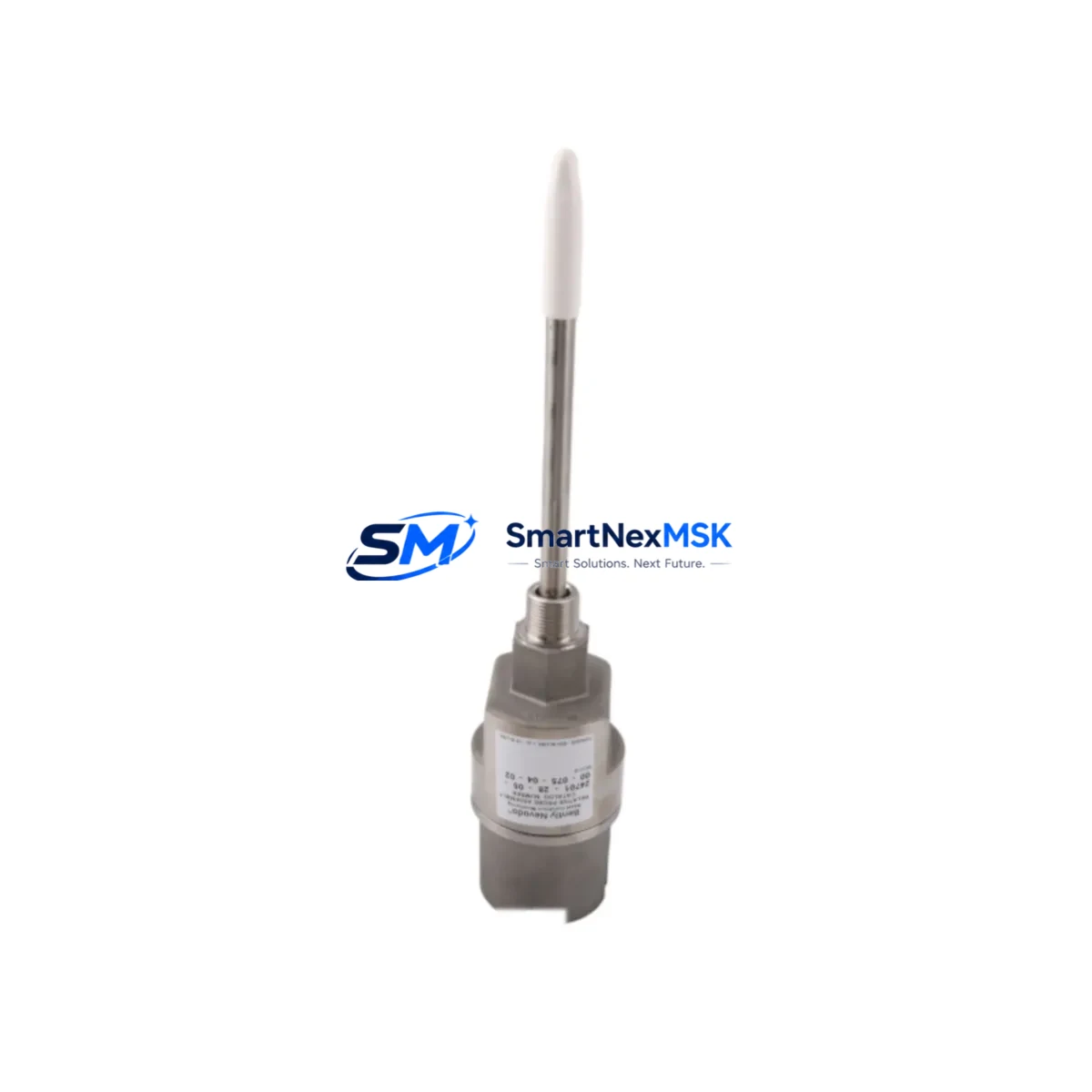

The Bently Nevada 24701-28-05-05-064-03-02 is a precision proximity probe housing assembly engineered for the 3300 Series vibration monitoring system — one of the most widely deployed continuous machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical compressor train or turbine skid, this component delivers the dimensional accuracy, material integrity, and signal-path reliability that Bently Nevada 3300 Series installations demand.

For maintenance engineers and reliability teams, the 24701-28-05-05-064-03-02 represents a direct-fit replacement for the original housing assembly. Its thread form, body length, and connector interface are manufactured to OEM specification, ensuring that probe gap calibration, sensitivity, and signal output remain within the tight tolerances required by API 670-compliant machinery protection systems. Procurement engineers can source this part with confidence: it ships with full dimensional inspection documentation and is backed by a 12-month warranty covering material and workmanship defects.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3300 Series proximity probe housing assembly reaches end-of-life or sustains physical damage during a machinery event, the replacement scope rarely ends at the housing alone. A disciplined maintenance engineer will use the opportunity to audit the full measurement channel. Begin with the 3300/16 proximitor / Seismic Monitor or the applicable 3300/20 Proximitor Module — these signal conditioning units share the measurement loop with the probe and housing, and any degradation in their internal circuitry will corrupt gap voltage readings even after a perfect housing swap.

Next, inspect the extension cable assembly (typically an 18-metre or 9-metre armored cable matched to the probe body length) for jacket abrasion, connector corrosion, and shield continuity. A compromised cable is a common root cause of intermittent high-vibration trips that are misdiagnosed as probe failures. While the control cabinet is open, verify the condition of the 3300/05 Power Supply Module that feeds the proximitor rack — low rail voltage is a silent contributor to sensitivity drift across all channels simultaneously.

For facilities running older 3300 XL or 3300/55 monitor cards, this is also the right moment to check the I/O terminal board connections and confirm that the Keyphasor module — if installed on the same rack — is reading a clean once-per-revolution pulse. A noisy Keyphasor signal will affect phase angle measurements on every channel in the rack. If the installation includes a 3500 Series rack in an adjacent cabinet for a newer machine train, cross-reference the wiring practices to ensure grounding schemes are consistent and that no ground loops have developed between the two systems.

Procurement teams building a minimum viable spare parts kit for a 3300 Series installation should consider stocking at minimum: one spare proximitor module, one matched extension cable set, one power supply module, and two probe housing assemblies per critical machine. For facilities with long lead-time constraints or remote site logistics, a 90-day forward stock position on the 24701-28-05-05-064-03-02 and its associated 330130 Series probe body is a defensible reliability investment that directly reduces mean time to repair (MTTR) on high-consequence rotating equipment.

Site Replacement Workflow

Step 1 — Isolation and permit: Coordinate with operations to place the affected machine in a safe state. Issue a work permit and confirm the 3300 Series monitor channel is bypassed or the trip function is inhibited per your site MOC procedure before breaking any probe connections.

Step 2 — Record baseline gap voltage: Before removal, document the existing gap voltage (typically –10 VDC ± 1 V for a correctly gapped eddy-current probe) from the monitor front panel or DCS historian. This value is your calibration reference for the replacement assembly.

Step 3 — Remove the existing housing: Using the correct spanner, back out the 24701-28-05-05-064-03-02 housing from the machinery bracket. Inspect the bracket threads and sealing face for damage. Clean the mounting surface before installing the replacement.

Step 4 — Install and gap the replacement: Thread the new housing assembly into the bracket and adjust probe tip-to-target gap to achieve the nominal gap voltage specified on the machine datasheet (commonly –10.0 VDC ±0.5 V at the proximitor output). Use a calibrated gap tool or feeler gauge appropriate for the target material and probe range.

Step 5 — Verify signal integrity: With the channel live, confirm gap voltage, check for noise on the signal (use an oscilloscope if available), and verify that the monitor card accepts the channel without a fault indication. Compare readings against the pre-removal baseline.

Step 6 — Return to service and document: Remove the bypass/inhibit, confirm the machine starts cleanly, and log the replacement in your CMMS with the new part serial number, gap voltage as-left value, and technician sign-off. Update your spare parts inventory to trigger a replenishment order for the consumed 24701-28-05-05-064-03-02 unit.

Spare Parts Support FAQ

Q1: Is the 24701-28-05-05-064-03-02 a direct replacement for all 3300 Series probe housing variants?
The 24701-28-05-05-064-03-02 is designed for specific body length and thread configurations within the 3300 Series family. Always cross-reference the full part number — including the suffix digits — against your machine datasheet or the original Bently Nevada installation drawing before ordering. If you are replacing a housing with a different suffix, contact our technical team to confirm dimensional compatibility before installation.

Q2: What pre-shipment checks are performed on this spare?
Each unit undergoes a dimensional inspection covering thread form, body length, and connector interface geometry. Housings are visually inspected for surface defects, and connector pins are checked for seating and corrosion. A certificate of conformance is available upon request. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should this spare be stored if not immediately installed?
Store the 24701-28-05-05-064-03-02 in its original packaging in a dry, temperature-controlled environment (5°C to 40°C, <85% RH non-condensing). Keep the connector cap installed to protect the pin interface. Avoid storage near strong magnetic fields or corrosive atmospheres. Inspect the unit before installation if it has been in storage for more than 24 months.

Q4: Can this part be used to extend the life of an older 3300 XL system that is no longer in active production support?
Yes. One of the primary use cases for stocking the 24701-28-05-05-064-03-02 is legacy system life extension. Because Bently Nevada 3300 Series monitors remain installed on a large base of operating machinery globally, maintaining a supply of original-specification probe housings allows facilities to defer costly system upgrades while keeping machinery protection fully functional. Our long-term supply commitment means you can plan multi-year stocking agreements for this and related 3300 Series components.
