Bently Nevada 24701-28-05-30-057-04-02 Safety Proximity Probe

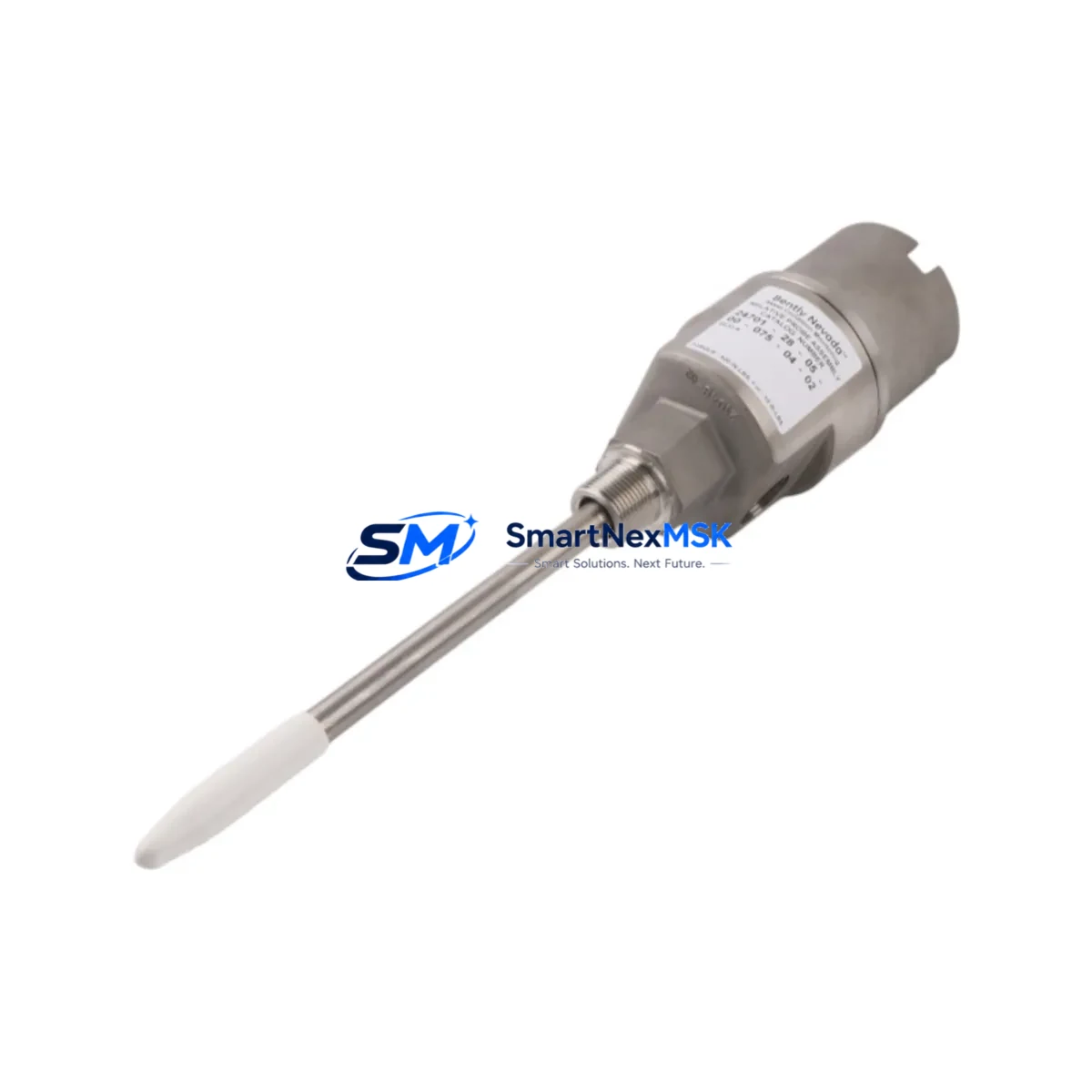

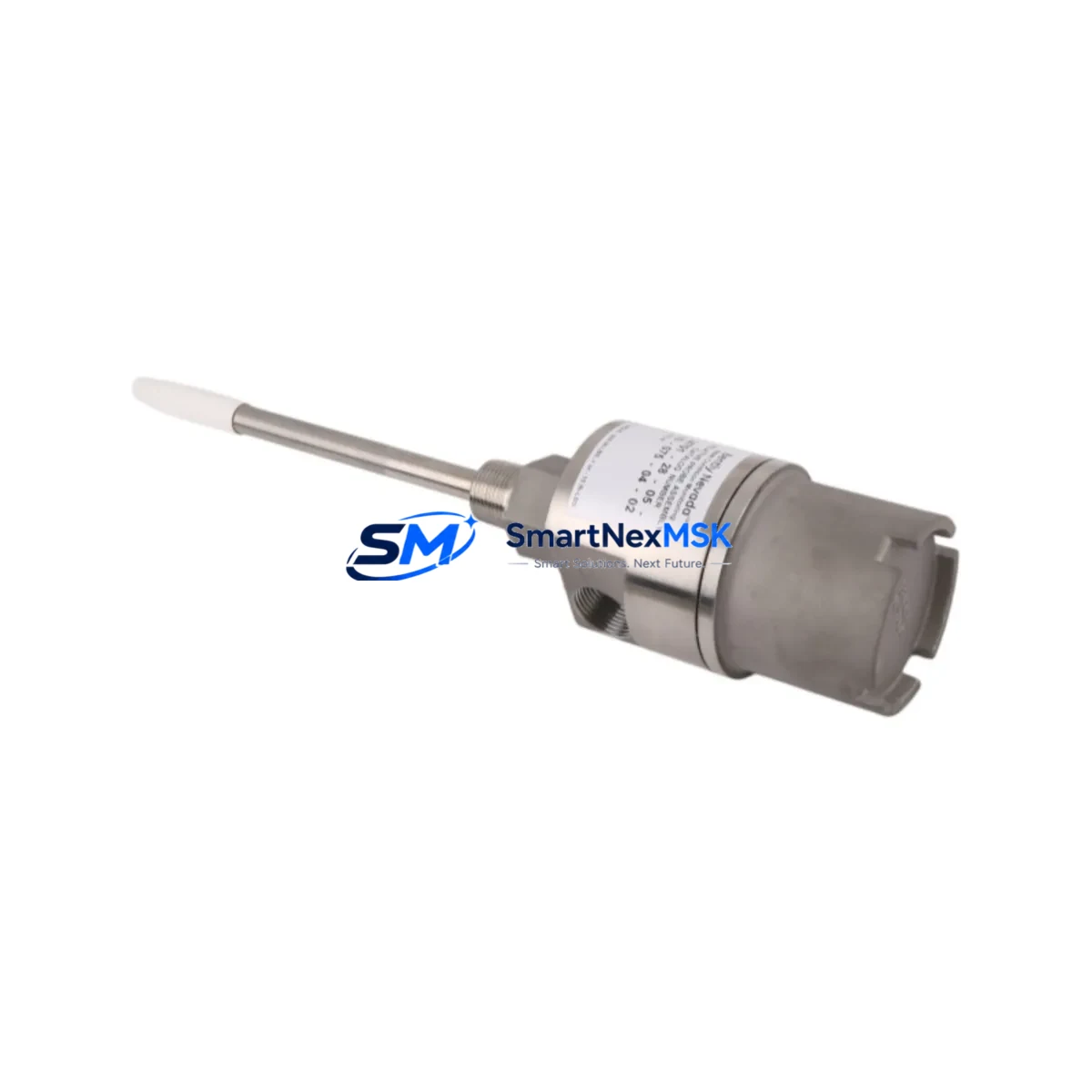

Bently Nevada 24701-28-05-30-057-04-02 Safety-Enhanced Proximity Probe Housing for Harsh Industrial Sites

The Bently Nevada 24701-28-05-30-057-04-02 is a ruggedized proximity probe housing engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in continuous-process and heavy industrial environments. Designed to operate reliably under extreme mechanical stress, electromagnetic interference, and aggressive chemical exposure, this probe housing plays a critical role in safeguarding rotating machinery across petrochemical plants, power generation facilities, mining operations, metallurgical mills, water treatment stations, and port logistics systems.

In high-stakes industrial control environments, the integrity of vibration sensing directly determines whether a machinery protection system can detect shaft displacement, orbital deviation, or bearing degradation before a catastrophic failure occurs. The 24701-28-05-30-057-04-02 housing provides the structural and electromagnetic shielding necessary to maintain signal fidelity in control cabinets and field installations where power fluctuations, ground loops, and radiated interference from variable frequency drives or high-current switchgear are constant threats. Its ruggedized construction resists signal drift caused by thermal cycling, vibration-induced connector fatigue, and moisture ingress — all of which are common failure modes in continuous production environments.

When integrated into a complete 3300 XL monitoring loop, this probe housing works in conjunction with the Bently Nevada 330130 extension cable, the 330180 proximitor sensor, and the 3300 XL 16-channel monitor rack to form a closed-loop vibration protection circuit. The probe tip gap voltage — typically maintained between -10 VDC and -18 VDC — must remain stable under all operating conditions. Any mechanical deformation or shielding failure in the probe housing can introduce noise into the proximitor output, triggering nuisance trips or, more dangerously, masking genuine shaft excursions. The 24701-28-05-30-057-04-02 is specifically dimensioned and shielded to prevent these failure modes.

For installations in safety instrumented systems (SIS) or machinery protection loops that interface with a Triconex or Rockwell safety PLC, maintaining probe housing integrity is a prerequisite for SIL-rated loop performance. Facilities running DCS platforms such as the Emerson DeltaV or Honeywell Experion PKS rely on clean vibration signals from the 3300 XL system to execute automated shutdown sequences. A degraded or mismatched probe housing introduces latency and signal uncertainty that can compromise the response time of the entire safety loop.

In mining and metallurgical applications — where ball mills, SAG mills, and large compressors operate under extreme radial and axial loads — the mechanical robustness of the probe housing is non-negotiable. The 24701-28-05-30-057-04-02 is rated for continuous operation in environments with high ambient vibration, elevated temperatures, and exposure to lubricating oils, hydraulic fluids, and process gases. Its thread form and body dimensions are compatible with standard Bently Nevada mounting brackets and armored conduit fittings, simplifying field replacement without requiring re-calibration of the proximitor or monitor rack.

Power supply stability is equally critical. In control cabinets where the 3300 XL rack shares a 24 VDC bus with relay output modules, solenoid drivers, or communication gateways, transient surges can propagate into the proximitor supply rail. Pairing the monitoring system with a dedicated Phoenix Contact or Weidmuller DIN-rail power supply with surge suppression — along with proper cable segregation between the 330130 extension cable and high-current conductors — significantly reduces the risk of false trips or monitor lockouts caused by conducted interference.

SMARTNEXMSK maintains verified stock of the Bently Nevada 24701-28-05-30-057-04-02 and associated 3300 XL system components. Every unit undergoes pre-shipment dimensional inspection and electrical continuity verification. Stock is sourced from authorized distribution channels and stored under controlled conditions to prevent electrostatic discharge damage or connector oxidation. Expedited shipping is available for emergency maintenance and unplanned outage scenarios.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection architecture built around the Bently Nevada 3300 XL system requires careful attention to every component in the signal chain. The 24701-28-05-30-057-04-02 probe housing anchors the field-side of the measurement loop, but its performance depends on the integrity of the surrounding system. The 330130 extension cable must be routed away from high-voltage conductors and secured with anti-vibration cable clamps to prevent intermittent contact resistance. The 330180 proximitor sensor, mounted inside the control cabinet or in a field junction box, must receive a clean, regulated -24 VDC supply — typically sourced from a dedicated Bently Nevada power conditioner or an equivalent DIN-rail supply with <1% ripple.

Within the control cabinet, the 3300 XL monitor rack should be installed in a segregated zone, separated from relay output modules, motor starters, and variable frequency drives by grounded steel barriers. Surge protection devices — such as Phoenix Contact TRABTECH or Weidmuller VSSC series — should be installed on all field cable entries to protect the monitor inputs from lightning-induced transients and switching surges. The rack’s communication output, whether via Modbus RTU, FOUNDATION Fieldbus, or hardwired relay contacts, should be routed to the plant DCS or safety PLC through screened twisted-pair cables with shield grounded at one end only.

For installations in hazardous areas classified as Zone 1 or Zone 2 (ATEX/IECEx), the probe housing and extension cable assembly must be installed with appropriate Ex d or Ex e conduit fittings, and the proximitor must be located in a safe area or within a certified Ex d enclosure. Zener barrier or galvanic isolator modules — such as the MTL 728 series or P+F KFD2 series — should be used to maintain intrinsic safety in the signal loop when the proximitor is located in a safe area and the probe is in a hazardous zone.

Periodic calibration checks using a Bently Nevada calibration simulator or a precision gap-setting tool ensure that the probe gap voltage remains within the linear range of the proximitor. Facilities that maintain a documented spare parts inventory — including at least one 24701-28-05-30-057-04-02 probe assembly, one 330130 extension cable, and one 330180 proximitor — can execute emergency replacements within a single shift, minimizing unplanned downtime on critical rotating equipment.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, catalytic crackers, and compressor trains, the 24701-28-05-30-057-04-02 monitors shaft radial vibration on centrifugal compressors and turbines. Accurate vibration data feeds directly into the emergency shutdown system (ESD), enabling automatic trip before bearing failure or seal damage occurs. The ruggedized housing withstands hydrocarbon vapor exposure and elevated ambient temperatures common in process areas.

Power Generation: Steam turbine-generator sets in thermal and combined-cycle power plants rely on 3300 XL proximity probes to monitor shaft position and vibration continuously. The 24701-28-05-30-057-04-02 provides the mechanical stability required for long-term, unattended operation between scheduled outages. Its compatibility with the Bently Nevada System 1 condition monitoring software enables trend analysis and predictive maintenance scheduling.

Mining & Minerals Processing: Large SAG mills, ball mills, and slurry pumps in copper, gold, and iron ore processing plants operate under extreme mechanical loads. Proximity probes installed on mill trunnion bearings and pinion shafts provide early warning of misalignment, unbalance, and bearing wear. The 24701-28-05-30-057-04-02’s robust construction resists the high ambient vibration and dust exposure typical of mineral processing environments.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could disrupt water supply. The 3300 XL system with 24701-28-05-30-057-04-02 probes provides reliable monitoring in wet, corrosive environments with minimal maintenance intervention.

Metallurgy & Steel: Rolling mills, continuous casters, and large induction furnace drives in steel plants generate intense electromagnetic interference. The double-shielded cable and ruggedized housing of the 24701-28-05-30-057-04-02 maintain signal integrity in these high-EMI environments, ensuring that vibration alarms and trips are based on actual machine condition rather than electrical noise.

Safety and Quality FAQ

Q: What does the 12-month warranty cover?
A: The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. This includes probe housing structural integrity, cable shielding continuity, and connector performance. Units that fail within the warranty period are replaced or refunded at no additional cost.

Q: What pre-shipment testing is performed on each unit?
A: Every 24701-28-05-30-057-04-02 unit undergoes dimensional inspection to verify thread form, body length, and cable termination integrity, followed by electrical continuity testing of the cable shield and center conductor. Units that do not pass inspection are quarantined and not shipped.

Q: Is this probe housing compatible with all 3300 XL series proximitors and monitors?
A: Yes. The 24701-28-05-30-057-04-02 is dimensionally and electrically compatible with the full Bently Nevada 3300 XL transducer system, including the 330180 and 330100 series proximitors and the 3300 XL 16-channel monitor rack. It is also backward-compatible with earlier 3300 series installations where the probe mounting bracket and cable conduit accept the standard 8 mm probe body.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: SMARTNEXMSK maintains a dedicated inventory of 3300 XL series components, including the 24701-28-05-30-057-04-02, to support planned maintenance shutdowns and emergency replacements. Customers with recurring demand can arrange scheduled supply agreements to ensure availability without lead-time risk. Contact our team to discuss stocking arrangements for your facility’s maintenance program.
