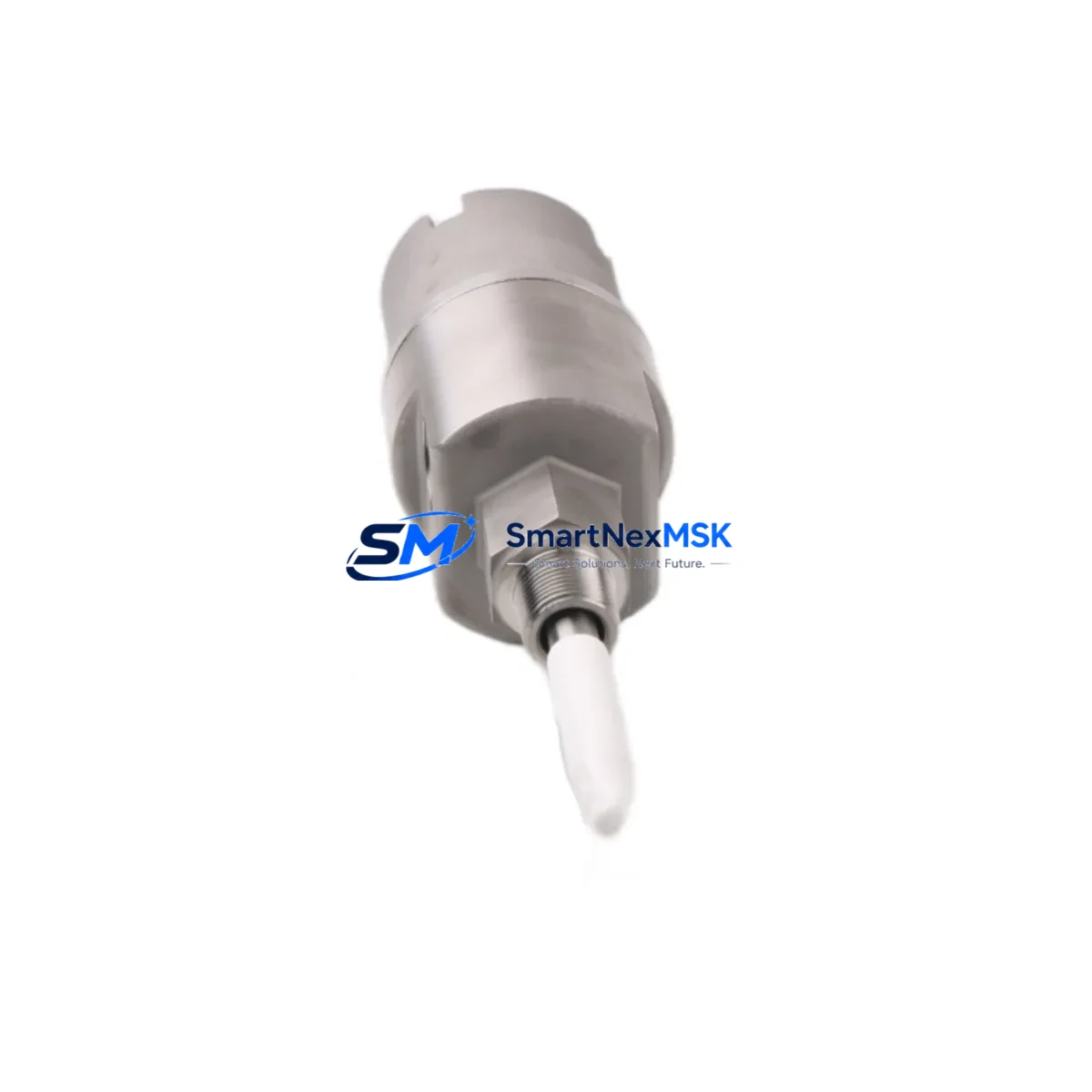

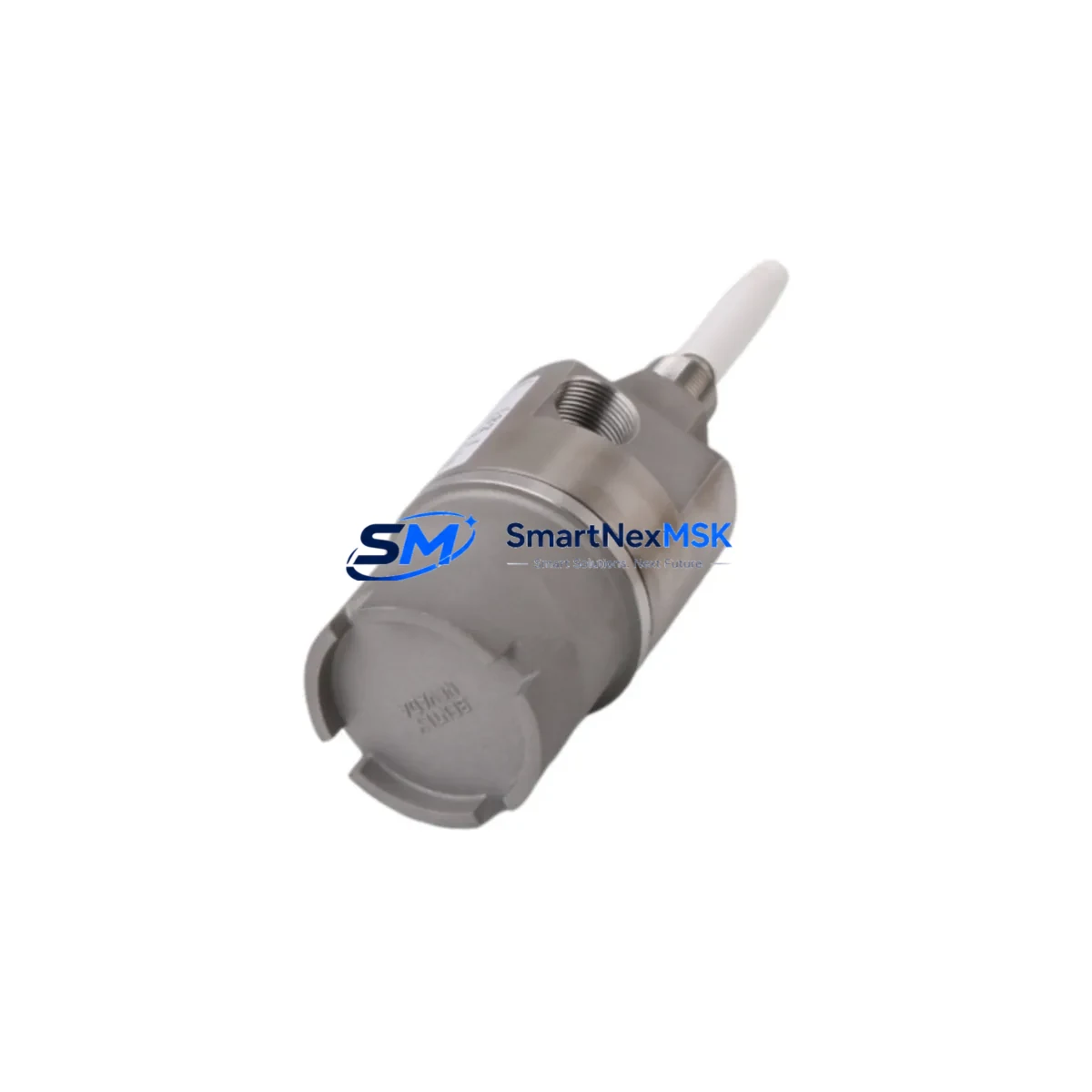

Bently Nevada 24701-33-05-00-025-04-02 Safety Probe Housing

Bently Nevada 24701-33-05-00-025-04-02 Safety-Enhanced Proximity Probe Housing for Harsh Industrial Sites

The Bently Nevada 24701-33-05-00-025-04-02 is a ruggedized proximity probe housing engineered for the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series continuous vibration monitoring system, this probe housing delivers the mechanical and electromagnetic protection required to maintain uninterrupted shaft displacement measurement in high-load, high-interference, and safety-critical rotating machinery applications. Whether deployed in petrochemical compressor trains, power generation turbines, or heavy metallurgical drive systems, this housing ensures that the sensing element remains shielded from physical impact, chemical exposure, and electromagnetic noise — all of which are primary causes of false trips, missed alarms, and unplanned shutdowns.

In continuous production facilities where control interruption carries significant safety and financial consequences, the mechanical integrity of the probe housing is not a secondary concern — it is a frontline safety measure. The 24701-33-05-00-025-04-02 housing is designed to maintain precise probe positioning under thermal cycling, vibration fatigue, and corrosive atmospheres, preventing the signal drift and positional error that can compromise the accuracy of the Bently Nevada 3300 XL proximitor/driver module and the overall machinery protection loop.

Safety Reliability Table

Control Cabinet Protection Strategy

The 24701-33-05-00-025-04-02 probe housing operates as the field-side anchor of a complete machinery protection architecture. In a properly configured control cabinet or machinery protection rack, this housing works in concert with the Bently Nevada 3300 XL 8 mm Proximitor Sensor to deliver a calibrated eddy-current signal to the 3300/16-channel monitor or 3500/42M Proximitor/Seismic Monitor module. Signal integrity from the field to the rack depends entirely on the housing maintaining probe gap stability — any mechanical loosening or thermal deformation introduces DC gap error that the monitor interprets as shaft displacement, potentially triggering spurious trips in the safety interlock system.

Within the same protection loop, the Bently Nevada 3300 XL Extension Cable (typically 5 m or 9 m armored versions) connects the probe housing to the proximitor driver. Surge events on the cable — common in environments with large motor starts or arc flash incidents — can propagate into the monitor rack. Pairing the housing with a Bently Nevada TK-3 Transient Suppressor or equivalent field-side surge barrier is recommended practice in high-risk electrical environments. The 3500 Rack Power Supply (3500/15) provides the stable -24 VDC required by the proximitor chain; any power fluctuation at this stage directly affects the gap voltage output and measurement accuracy.

For installations in hazardous classified areas (Zone 1 or Division 1), the probe housing is typically paired with a Bently Nevada 3300 XL Intrinsically Safe Barrier or a certified Zener barrier from the plant’s IS panel, ensuring that fault energy cannot propagate from the control cabinet to the field device in the presence of flammable atmospheres. In multi-machine monitoring architectures, the Bently Nevada System 1 Condition Monitoring Software aggregates data from multiple 3500-series racks, providing plant-wide vibration trend analysis that supports predictive maintenance decisions and reduces unplanned downtime across compressor, turbine, and pump trains simultaneously.

Communication between the 3500 rack and the plant DCS or safety PLC is typically handled via Modbus TCP/IP or FOUNDATION Fieldbus interface modules housed in the same rack, ensuring that trip signals and vibration data reach the control room without latency. Maintaining the physical integrity of the 24701-33-05-00-025-04-02 housing is therefore not an isolated maintenance task — it is a prerequisite for the reliability of the entire data and safety communication chain.

Critical Industrial Safety Applications

Petrochemical & Refinery Compressor Trains: In ethylene crackers, LNG compressors, and hydrocracker recycle gas machines, continuous shaft radial displacement monitoring is a mandatory API 670 requirement. The 24701-33-05-00-025-04-02 housing protects the proximity probe from hydrocarbon condensate, H₂S exposure, and high-pressure wash-down cycles, ensuring that the machinery protection system maintains its voted-trip capability without nuisance alarms caused by probe contamination or positional drift.

Power Generation — Steam & Gas Turbines: High-speed turbine shafts operating at 3,000–3,600 RPM generate intense vibration and thermal gradients in the bearing housing area. The ruggedized construction of this probe housing prevents resonance-induced loosening of the probe tip, which would otherwise introduce measurement noise into the turbine supervisory system and compromise the overspeed protection interlock.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pump drives operate in environments with extreme dust loading, water ingress, and mechanical shock. The IP67-rated housing ensures that the proximity probe remains functional during high-pressure cleaning and in areas where fine mineral particulate would otherwise infiltrate and abrade the probe tip, causing premature failure and unscheduled maintenance outages.

Metallurgy & Steel Production: Rolling mill main drives and continuous casting machine pinch rolls require reliable shaft monitoring under high electromagnetic interference from large thyristor drives and induction furnaces. The shielded housing and armored cable construction of the 24701-33-05-00-025-04-02 system attenuate induced EMI, preserving signal quality in environments where unshielded sensors would produce erratic readings and false trips.

Water & Wastewater Treatment: Large centrifugal pumps and blower units in municipal water infrastructure require continuous condition monitoring to prevent catastrophic bearing failure and service interruption. The chemical-resistant housing material withstands chlorine-rich atmospheres and high-humidity enclosures, supporting long-term deployment without corrosion-related probe replacement cycles.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 24701-33-05-00-025-04-02?
The 12-month warranty covers all manufacturing defects, dimensional non-conformance, and functional failures under normal operating conditions as specified in the Bently Nevada 3300 XL product documentation. Warranty claims are supported with replacement dispatch and technical documentation. The warranty period begins from the date of confirmed shipment.

Q2: What pre-shipment testing is performed on this probe housing?
Each unit undergoes a full dimensional inspection to verify thread integrity, probe tip concentricity, and cable termination quality. Functional verification confirms that the housing assembly is free from mechanical defects that would affect probe gap setting or signal transmission. A test report is available upon request for quality-critical installations.

Q3: Is the 24701-33-05-00-025-04-02 compatible with existing 3300 XL system installations?
Yes. This housing is a direct form-fit-function replacement for the standard 3300 XL 8 mm probe housing family. It is compatible with Bently Nevada 3300 XL proximitor drivers, standard extension cables, and existing probe bracket hardware without modification. Confirm the cable length and connector type against your existing installation before ordering.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the 24701-33-05-00-025-04-02 and related 3300 XL series components to support planned maintenance schedules and emergency replacement requirements. For facilities with critical spare parts programs, we recommend confirming minimum stock quantities with our sales team to ensure continuity of supply for your machinery protection systems.
