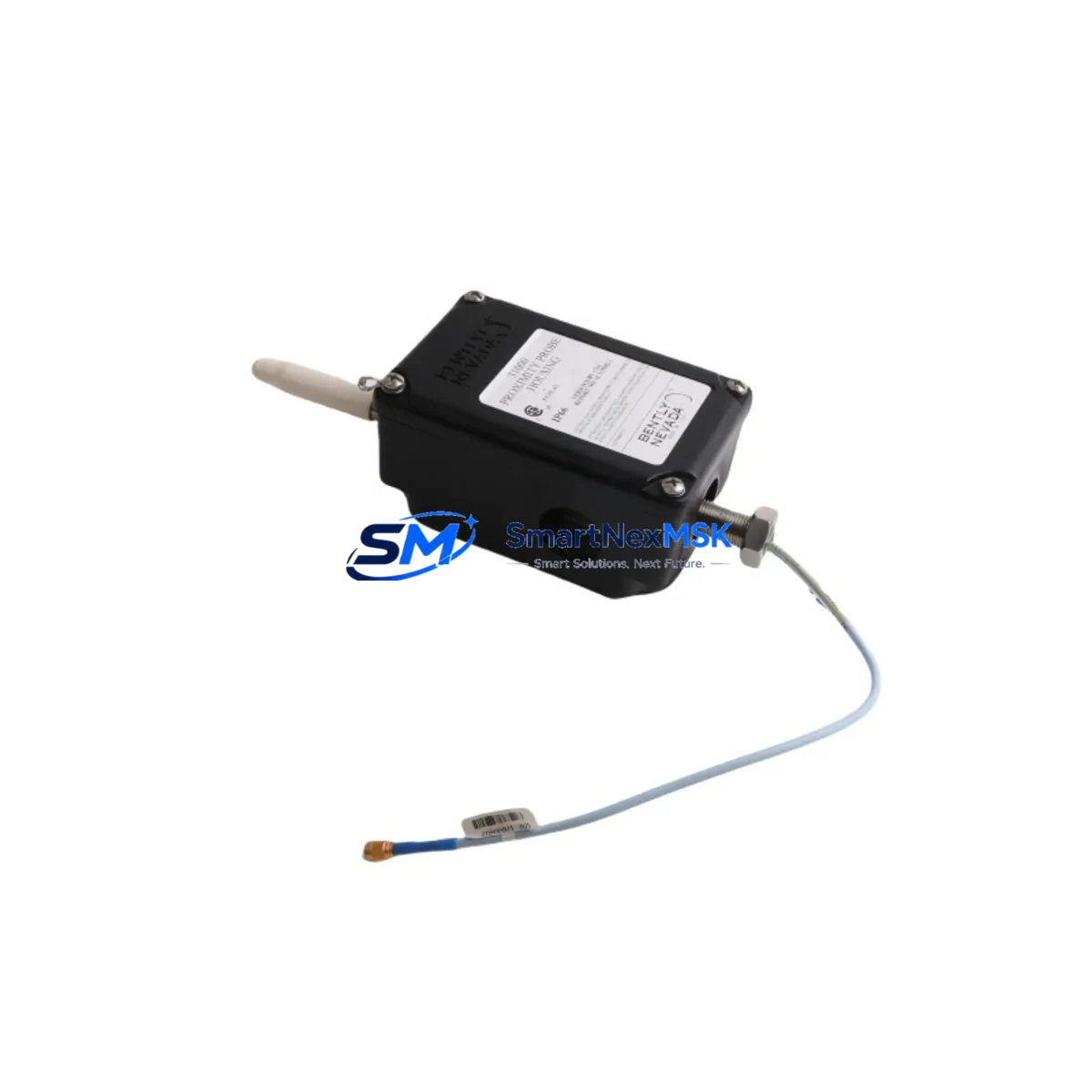

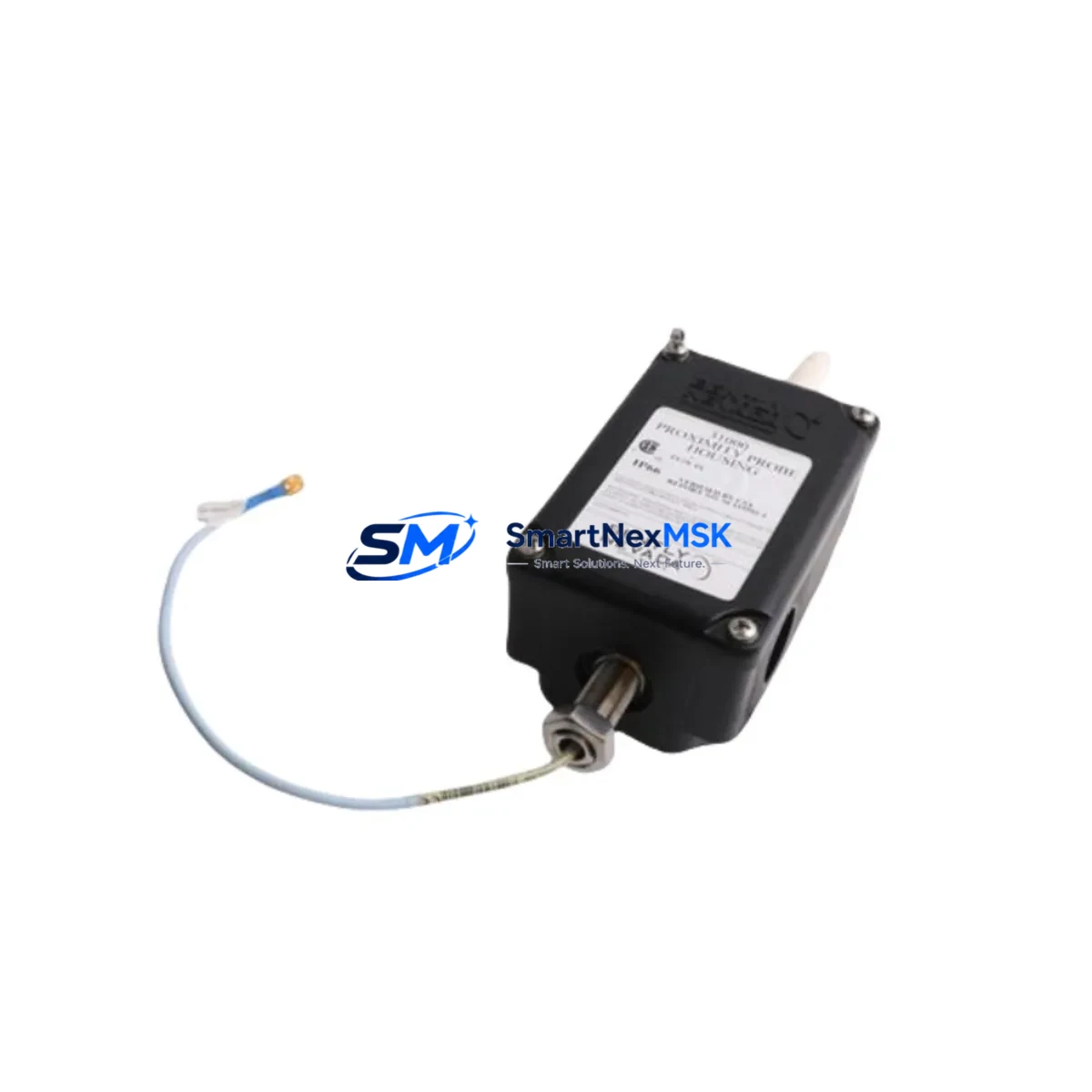

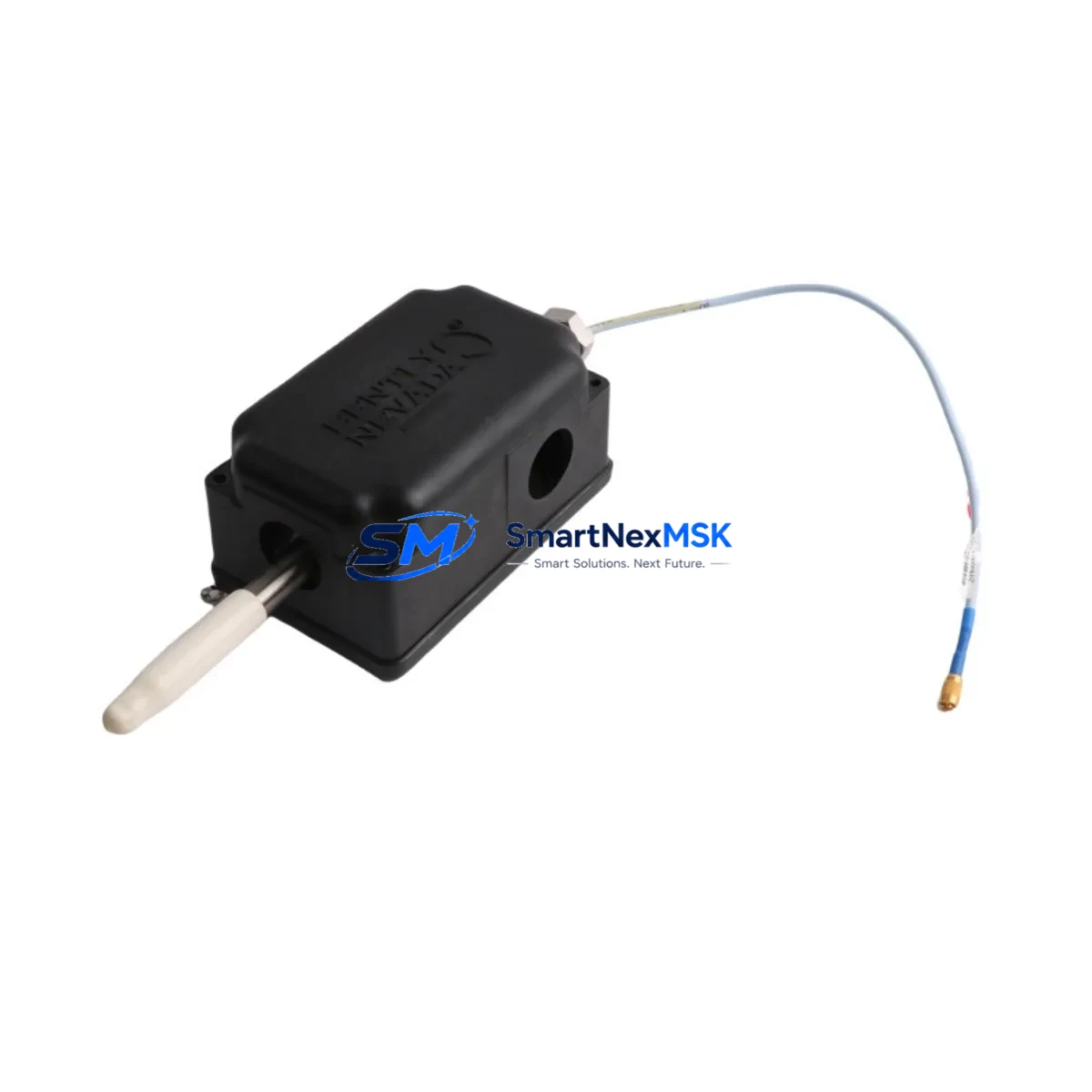

Bently Nevada 31000-00-00-00-000-00-00 Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites
The Bently Nevada 31000-00-00-00-000-00-00 is a precision eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy industrial environments, this probe delivers stable, drift-free displacement and vibration signals that are critical to machinery protection and process safety. Whether deployed in rotating equipment protection loops, critical interlock circuits, or continuous condition monitoring architectures, the 31000-00-00-00-000-00-00 provides the signal integrity that safety-critical operations demand.
Safety Reliability Table
| Parameter | Specification / Capability |
|---|---|
| SKU / Part Number | 31000-00-00-00-000-00-00 |
| Brand | Bently Nevada |
| Series | 3300 XL Proximity Transducer System |
| Probe Type | Eddy-Current Non-Contact Proximity Probe |
| Measurement | Shaft Radial Vibration, Axial Position, Differential Expansion |
| Output Signal | Linear DC voltage proportional to gap distance |
| Operating Temperature | -35°C to +177°C (probe tip) |
| Cable / Extension | Compatible with 3300 XL Extension Cables and Proximitor® Sensors |
| Target Material Compatibility | Steel, Stainless Steel, Inconel (standard calibration) |
| EMI / RFI Resistance | High — shielded coaxial construction, low susceptibility to field interference |
| Ingress Protection | Suitable for oil mist, steam, and high-humidity environments |
| Vibration Resistance | Rated for continuous high-vibration machinery environments |
| Safety Application | Machinery protection, critical interlock, SIS-compatible monitoring loops |
| Compatibility | 3300 XL Proximitor® Sensor, 3500 Series Monitoring Rack, TDXnet® systems |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Condition | New / Surplus New — pre-shipment functional tested |
| Origin | USA |
Control Cabinet Protection Strategy
In a well-engineered machinery protection cabinet, the Bently Nevada 31000-00-00-00-000-00-00 probe operates as the primary sensing element within a complete 3300 XL transducer chain. The probe connects via a matched Bently Nevada 3300 XL Extension Cable to a dedicated 3300 XL Proximitor® Sensor, which conditions the raw eddy-current signal into a clean, calibrated DC output. This signal is then fed into a Bently Nevada 3500/42M Proximitor® / Seismic Monitor module housed in the 3500 Series rack — a modular, safety-rated monitoring platform widely used in turbine, compressor, and pump protection systems.
To ensure power supply stability within the control cabinet, the monitoring rack is typically supported by a Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to all rack-mounted modules. Surge and transient protection is further reinforced by dedicated DIN-rail surge protection devices installed at the cabinet’s field terminal blocks, guarding against voltage spikes induced by nearby motor starts, arc flash events, or lightning coupling on long cable runs.
For facilities operating under IEC 61511 or ISA-84 safety instrumented system requirements, the vibration signal from the 31000-00-00-00-000-00-00 probe is often routed in parallel to a Bently Nevada 3500/32M 4-Channel Relay Module, enabling direct trip output to the machine’s emergency shutdown system. Communication with the plant DCS or safety PLC — such as a Rockwell Automation ControlLogix Safety Controller or Emerson DeltaV SIS — is achieved via the Bently Nevada 3500/92 Communication Gateway Module, supporting Modbus TCP, FOUNDATION Fieldbus, or OPC-DA protocols depending on site architecture.
In high-interference environments such as steel mills, arc furnace bays, or large motor drive rooms, additional signal isolation is achieved by installing galvanic isolators between the Proximitor output and the DCS analog input card. This prevents ground loop currents from corrupting the vibration signal and triggering nuisance trips — a common cause of unplanned downtime in heavy industrial facilities. The complete protection chain, from the 31000-00-00-00-000-00-00 probe tip to the safety relay output, is designed for continuous, uninterrupted operation across the full machinery lifecycle.
Critical Industrial Safety Applications
The Bently Nevada 31000-00-00-00-000-00-00 proximity probe is deployed across a broad range of safety-critical industrial sectors where rotating machinery failure carries severe operational, financial, and safety consequences.
In petrochemical and refinery plants, this probe monitors the radial vibration of centrifugal compressors and process pumps handling flammable or toxic media. Continuous vibration trending enables early detection of bearing wear, rotor imbalance, and seal degradation — allowing planned maintenance shutdowns rather than catastrophic failures that could trigger fire, explosion, or toxic release events.
In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 31000-00-00-00-000-00-00 is used to monitor steam turbine shaft vibration and axial position. Accurate axial displacement measurement is essential for detecting rotor thrust bearing failure, which, if undetected, can result in catastrophic blade-to-casing contact and total unit loss.
In mining and mineral processing operations, where large ball mills, SAG mills, and slurry pumps operate under extreme mechanical loads, this probe provides the real-time vibration data needed to prevent unplanned stoppages that can halt entire production circuits. The probe’s robust construction withstands the high ambient vibration, dust, and moisture levels typical of underground and open-pit mining environments.
In water and wastewater treatment plants, the probe monitors the condition of large vertical turbine pumps and blower units that must operate continuously to maintain regulatory compliance. Early vibration anomaly detection prevents pump failures that could result in treatment process upsets and environmental violations.
In metallurgical and steel production facilities, the 31000-00-00-00-000-00-00 is installed on rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower trains — all of which operate in extreme thermal and electromagnetic environments where signal stability and probe durability are non-negotiable.
In port and bulk material handling terminals, the probe monitors conveyor drive motors, ship unloader slewing drives, and stacker-reclaimer travel drives, where unexpected mechanical failure can halt port operations and cause significant commercial losses.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 31000-00-00-00-000-00-00?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, calibration failures, and functional non-conformance under normal operating conditions. Warranty claims are processed promptly with replacement or repair at no additional cost to the customer.
Q2: How is each unit tested before shipment?
Every Bently Nevada 31000-00-00-00-000-00-00 probe undergoes pre-shipment functional testing to verify output linearity, sensitivity (V/mm or mV/mil), and cable integrity. Units are inspected for physical damage, connector condition, and tip concentricity before packaging. Test records are available upon request for quality-critical procurement processes.
Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 31000-00-00-00-000-00-00 is a standard 3300 XL Series probe and is fully compatible with all Bently Nevada 3300 XL Proximitor® Sensors, 3500 Series monitoring racks, and associated extension cables. It can be used as a direct replacement in existing installations without recalibration of the Proximitor sensor, provided the target material and gap setting remain unchanged.
Q4: Can long-term supply and spare parts support be guaranteed?
Yes. We maintain dedicated inventory of the Bently Nevada 31000-00-00-00-000-00-00 and related 3300 XL Series components to support both planned maintenance programs and emergency breakdown requirements. Our supply chain is structured to support customers with multi-year spare parts agreements, ensuring continuity of machinery protection system operation without dependence on OEM lead times.
