Bently Nevada 31000-00-00-15-000-01-02 Safety Probe Housing

Bently Nevada 31000-00-00-15-000-01-02 Safety-Enhanced Proximity Probe Housing for Harsh Industrial Sites

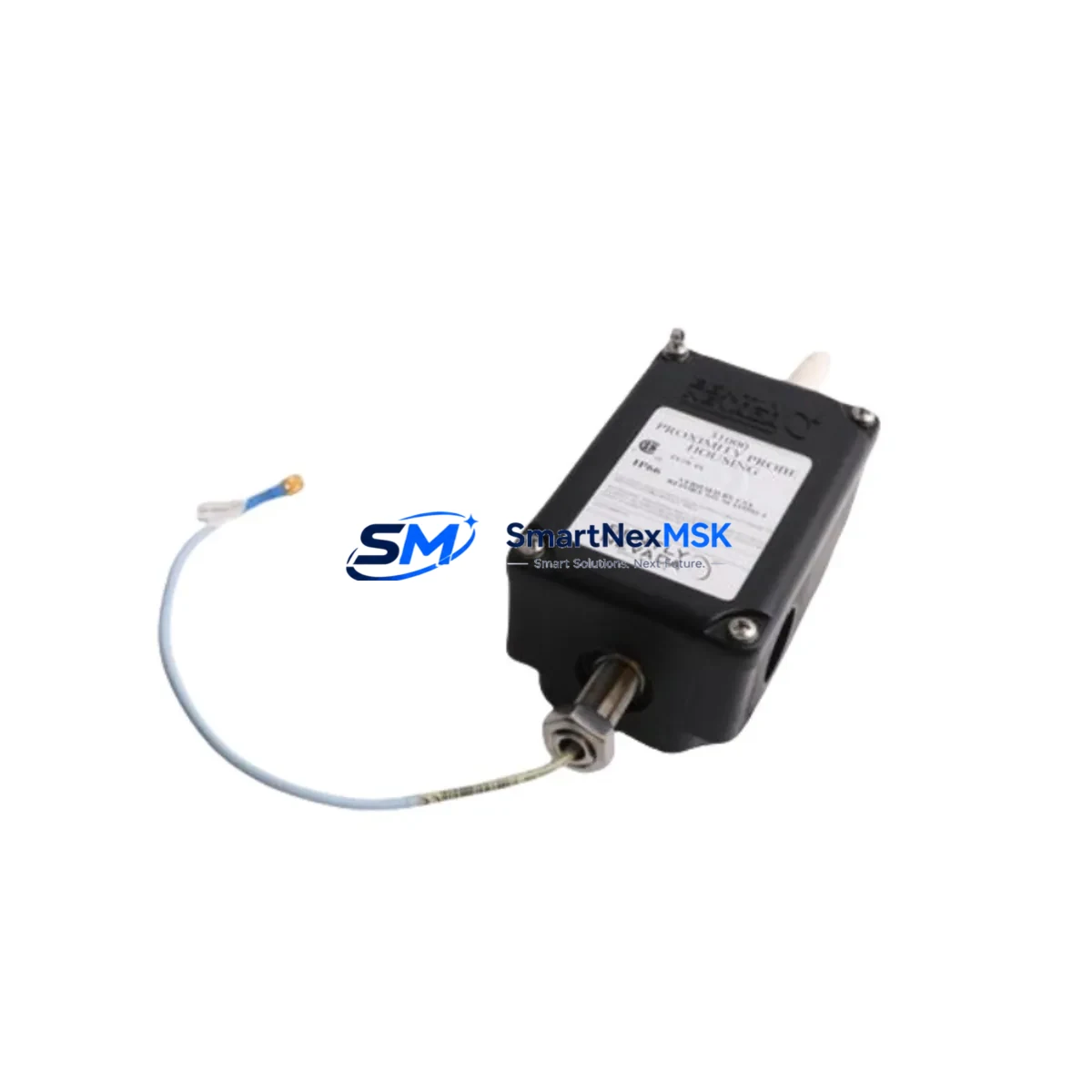

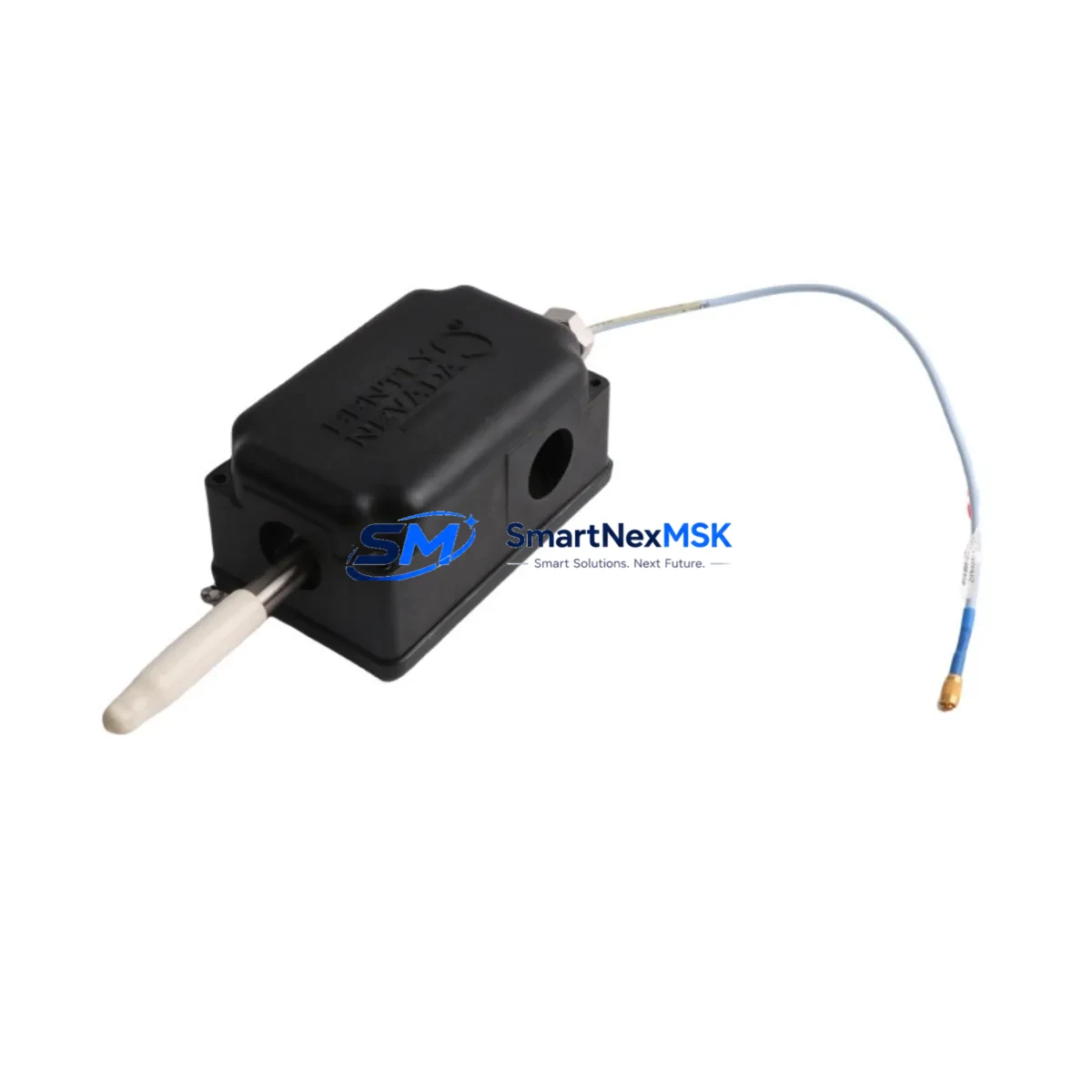

The Bently Nevada 31000-00-00-15-000-01-02 is a precision-engineered Proximity Probe Housing Assembly from the industry-trusted 3300 XL Series, designed to deliver uncompromising mechanical protection and signal integrity in the most demanding rotating machinery monitoring environments. Whether deployed in petrochemical compressor trains, power generation turbines, mining mill drives, or continuous steel rolling lines, this probe housing module serves as the first line of defense for your vibration and position measurement system — safeguarding the eddy-current sensing element against mechanical impact, process fluid ingress, thermal cycling, and electromagnetic interference that routinely degrade measurement accuracy and trigger unplanned shutdowns.

In high-stakes industrial facilities where machinery protection systems must operate without interruption, the structural integrity of the probe housing is not a secondary concern — it is a critical safety parameter. A compromised housing allows moisture, process gases, or abrasive particulates to attack the probe tip and cable assembly, causing signal drift that can mask developing faults or generate false alarms in the Bently Nevada 3300 XL Proximitor Sensor system. The 31000-00-00-15-000-01-02 eliminates this risk through its ruggedized stainless-steel construction, precision-machined thread form, and sealed interface geometry that maintains probe positioning accuracy within specification across the full operating temperature range.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection architecture, the 31000-00-00-15-000-01-02 probe housing does not operate in isolation — it is one element of a layered safety and signal chain that must be specified and maintained as a system. When integrating this housing into a rotating machinery monitoring loop, engineers typically pair it with the Bently Nevada 3300 XL 8mm Proximitor Sensor (such as the 330180-91-00 or 330130-080-01-00 series) to ensure the eddy-current driver circuit receives a clean, mechanically stable probe signal. The Proximitor output feeds directly into Bently Nevada 3500/42M Proximitor/Seismic Monitor cards housed in the 3500 rack system, where vibration, eccentricity, and thrust position alarms are processed against API 670 trip setpoints.

To protect the signal path from electrical noise generated by variable frequency drives, large motor starts, and bus switching events common in heavy industrial switchgear rooms, the probe cable assembly — typically the Bently Nevada 330130 Extension Cable — must be routed away from power conductors and terminated with proper shielding discipline at the 3500/20 Rack Interface Module. Surge protection devices installed at the field junction box, such as transient voltage suppressors rated for the Proximitor’s –24 VDC supply rail, prevent surge energy from propagating back through the Bently Nevada 3500/15 Power Supply Module and corrupting adjacent monitoring channels.

For facilities running Bently Nevada System 1 condition monitoring software, the integrity of the probe housing directly affects the quality of trend data used for predictive maintenance decisions. A mechanically loose or corroded housing introduces low-frequency noise into the gap voltage signal that System 1’s spectrum analysis algorithms can misinterpret as sub-synchronous vibration — a false indicator that can trigger unnecessary maintenance interventions or, worse, mask a genuine rotor instability event. Specifying the correct 31000-00-00-15-000-01-02 housing and verifying its installation torque during commissioning is therefore a prerequisite for reliable Keyphasor signal acquisition and accurate 1X/2X vector trending across the full machine train.

Critical Industrial Safety Applications

The Bently Nevada 31000-00-00-15-000-01-02 Proximity Probe Housing Assembly is deployed across the most safety-critical rotating machinery monitoring applications in global heavy industry. In petrochemical and LNG facilities, it protects probe assemblies mounted on high-speed centrifugal compressors and expander-compressor trains where API 670 compliance is mandatory and any measurement gap can delay a safety instrumented system (SIS) response to a developing shaft rub or bearing failure. In power generation plants — both thermal and combined-cycle — this housing maintains probe alignment on steam turbine journal bearings and generator shaft extensions where differential expansion monitoring is essential for safe startup and load cycling.

In mining and mineral processing operations, the housing’s corrosion-resistant construction withstands the aggressive slurry environments, high-humidity underground conditions, and vibration levels generated by SAG mills, ball mills, and large gyratory crushers. Water and wastewater treatment facilities rely on this housing to protect probes monitoring large vertical pump shafts and blower trains that must run continuously to meet environmental discharge compliance. In metallurgical and steel production environments, the housing endures radiant heat, scale contamination, and the electromagnetic interference generated by high-current arc furnace operations — conditions that would rapidly degrade an unprotected probe assembly and compromise the vibration monitoring system protecting rolling mill drive trains and continuous caster pinch rolls.

Port and bulk material handling terminals use this housing on stacker-reclaimer slewing drives and ship-loader conveyor head pulleys, where saltwater corrosion and shock loading from material impact demand the highest level of mechanical protection for condition monitoring instrumentation. Across all these applications, the 31000-00-00-15-000-01-02 delivers the mechanical stability, environmental sealing, and dimensional precision that Bently Nevada’s 3300 XL measurement system requires to maintain API 670-compliant machinery protection without interruption.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 31000-00-00-15-000-01-02?
The 12-month warranty covers all manufacturing defects, dimensional non-conformances, and functional failures under normal operating conditions. If the housing fails to maintain probe positioning accuracy or exhibits corrosion, thread damage, or seal failure within the warranty period under specified installation conditions, we will replace or refund the unit. Warranty claims are processed with priority to minimize machinery downtime.

Q2: What pre-shipment testing is performed on this probe housing?
Every 31000-00-00-15-000-01-02 unit undergoes dimensional verification against Bently Nevada OEM specifications, thread gauge inspection, visual examination for surface defects, and a functional fit-check to confirm compatibility with standard 3300 XL probe and extension cable assemblies. Units that do not pass all inspection criteria are quarantined and not shipped. A test record is available upon request for critical applications requiring full traceability.

Q3: Is this housing compatible with all Bently Nevada 3300 XL probes and Proximitor sensors?
Yes. The 31000-00-00-15-000-01-02 is designed to the 3300 XL Series mechanical interface standard and is compatible with the full range of Bently Nevada 3300 XL 8mm proximity probes and their associated Proximitor sensors. It is also compatible with the standard 330130 extension cable assemblies used in 3300 XL measurement loops. For non-standard installations or retrofit applications involving legacy Bently Nevada 7200 Series probes, please contact our technical team to confirm dimensional compatibility before ordering.

Q4: Can you guarantee long-term supply and replacement support for this part?
Yes. We maintain dedicated inventory of the 31000-00-00-15-000-01-02 and related 3300 XL Series components to support both planned maintenance schedules and emergency replacement requirements. Our sourcing network covers genuine OEM stock and certified equivalent assemblies, ensuring supply continuity even for parts that have been discontinued or have extended lead times through standard distribution channels. For facilities requiring blanket orders or consignment stock arrangements, contact our sales team to discuss a supply agreement tailored to your maintenance cycle.
