Bently Nevada 31000-16-05-00-100-03-02 Spare 3300 Series

Bently Nevada 31000-16-05-00-100-03-02 Maintenance-Ready Spare for 3300 Series Automation

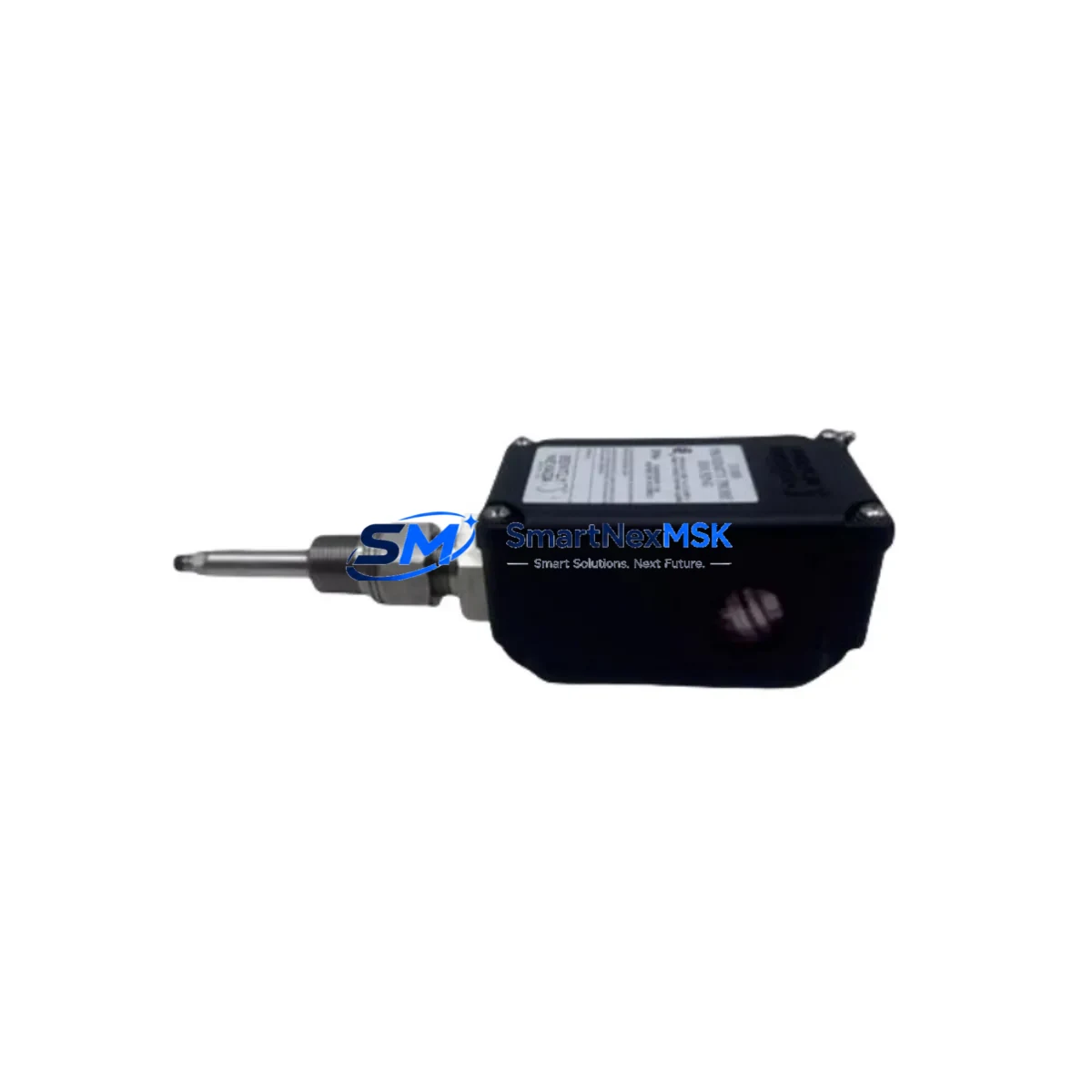

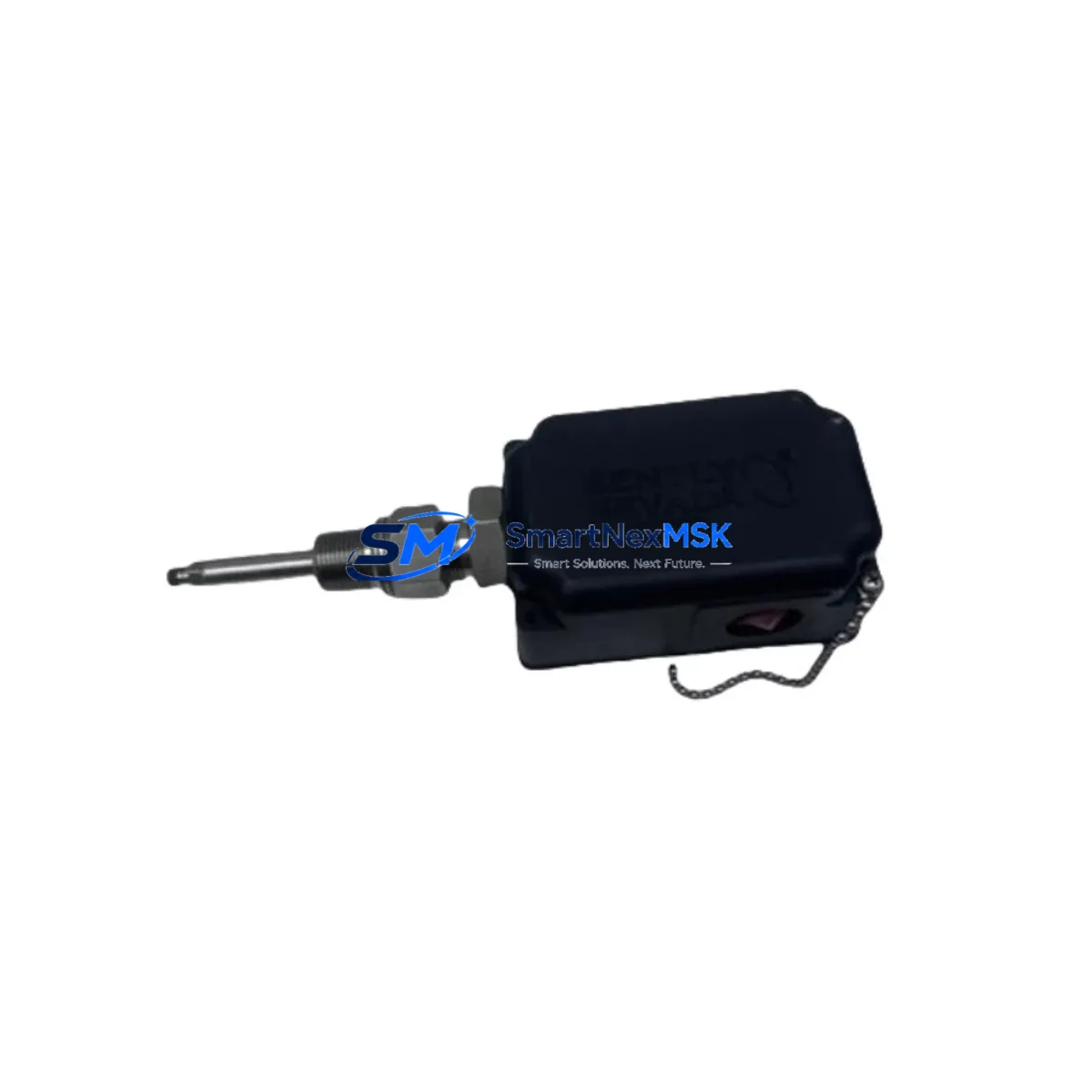

The Bently Nevada 31000-16-05-00-100-03-02 is an original proximity probe housing assembly designed for continuous vibration monitoring in rotating machinery protection systems. As a critical component within the Bently Nevada 3300 Series platform, this probe interfaces directly with the 3300 XL 8mm transducer system to deliver real-time shaft displacement and radial vibration data to the machinery protection rack. For maintenance engineers managing turbines, compressors, pumps, and motors in process-critical environments, holding a verified spare of this SKU is a fundamental element of any downtime-reduction strategy.

Unplanned vibration probe failures are among the most common causes of unscheduled shutdowns in rotating equipment facilities. When a probe fails mid-cycle, the machinery protection system may trigger a trip, halting production until a replacement is installed, calibrated, and verified. Having the 31000-16-05-00-100-03-02 pre-stocked in your spare parts cabinet eliminates procurement lead time and allows maintenance crews to restore normal operation within a single shift window rather than waiting days or weeks for sourcing.

This unit ships fully tested against original Bently Nevada factory specifications, with dimensional and electrical verification completed prior to dispatch. Each unit is covered by a 12-month warranty against manufacturing defects, giving procurement engineers confidence in long-term supply reliability for aging 3300 Series installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-16-05-00-100-03-02 proximity probe, a thorough maintenance engineer will not stop at the probe itself. The 3300 Series transducer system is a matched chain — probe, extension cable, and driver/oscillator must be verified together to ensure accurate gap voltage and sensitivity. Begin by inspecting the paired 3300 XL extension cable (typically 5-metre or 9-metre configurations) for jacket cracking, connector corrosion, or continuity loss. A degraded extension cable will introduce signal noise even with a new probe installed.

Next, verify the 3300 XL proximitor/oscillator driver output. If the driver has been in service for more than five years or shows gap voltage outside the -18 VDC ±1 VDC nominal range, schedule it for replacement alongside the probe. Keeping a spare driver module in the cabinet prevents a second unplanned outage shortly after the probe swap.

At the rack level, inspect the Bently Nevada 3500/42M or 3500/40M proximity I/O module that receives the transducer signal. Check for alarm setpoint drift, channel LED status, and any logged OK relay trips. If the rack has been in service for an extended period, the 3500/15 power supply module should also be checked for output voltage stability — an unstable rack power supply can mimic probe failure symptoms and lead to misdiagnosis.

For facilities running parallel protection channels, inspect the 3500/20 rack interface module and verify communication integrity to the DCS or SCADA historian. Signal interruptions at the communication layer can mask genuine vibration events. If the control cabinet includes signal isolators or barriers between the Bently Nevada rack and the DCS analog input cards, verify isolation resistance and output linearity — these components degrade silently over time.

Terminal blocks and field wiring within the junction box should be inspected for loose connections, moisture ingress, and corrosion, particularly in outdoor or high-humidity installations. A torque check on all Phoenix Contact or equivalent terminal strips takes less than 30 minutes and eliminates a common source of intermittent signal faults. Finally, if the installation includes a Keyphasor probe (such as the 3300 XL Keyphasor transducer), verify its gap voltage and signal quality simultaneously — Keyphasor faults can affect speed and phase reference data across the entire protection rack.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and isolate the machinery per site LOTO procedures. Do not attempt probe replacement on running equipment.

Step 2 — Record baseline gap voltage: Before disconnecting the old probe, record the existing gap voltage reading from the 3500 rack display or DCS historian. This value confirms the probe-to-shaft gap and serves as the calibration reference for the new unit.

Step 3 — Remove old probe: Disconnect the extension cable at the junction box. Unthread the probe housing from the mounting bracket. Inspect the bracket for thread damage or misalignment.

Step 4 — Install 31000-16-05-00-100-03-02: Thread the new probe into the bracket. Set the gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 8mm probes, confirmed against the original commissioning sheet). Reconnect the extension cable.

Step 5 — Verify gap voltage: Power the system and confirm gap voltage returns to the baseline value (nominally -10 VDC to -18 VDC depending on gap). Confirm the OK relay is energised and no alarms are active on the 3500 rack.

Step 6 — Functional test: Where possible, perform a slow-roll check or bump test to confirm the channel responds correctly to shaft movement before returning the machine to service.

Step 7 — Documentation: Record the replacement in the maintenance management system (CMMS), including the new probe serial number, gap voltage, and technician sign-off. Update the spare parts inventory to trigger reorder of the consumed 31000-16-05-00-100-03-02 unit.

Spare Parts Support FAQ

Q: Is the 31000-16-05-00-100-03-02 compatible with both the 3300 and 3500 Bently Nevada systems?
A: The 31000-16-05-00-100-03-02 is a 3300 XL 8mm proximity probe designed for use with 3300 series drivers and extension cables. It can interface with 3500 rack I/O modules when used with the correct matched extension cable and proximitor. Always verify the full transducer chain (probe + extension + driver) is matched before installation.

Q: What is the recommended spare parts stocking strategy for this probe?
A: For facilities with 4 or more monitored bearing positions using this probe model, we recommend holding a minimum of 2 units on-site. For critical machinery (turbines, main compressors), a 1:1 spare ratio per installed probe is best practice. Probes stored in original packaging in a dry, temperature-controlled environment maintain specification for 5+ years.

Q: How is each unit tested before shipment?
A: Every 31000-16-05-00-100-03-02 unit undergoes electrical continuity verification, dimensional inspection of the probe tip and housing threads, and output sensitivity confirmation prior to dispatch. A test report is available upon request. Units are shipped in anti-static, moisture-barrier packaging.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and dimensional non-conformance. It does not cover damage resulting from incorrect installation, gap setting errors, or operation outside the specified temperature and voltage range. Warranty claims are processed via [email protected] with a return merchandise authorisation (RMA) number.

—
