Bently Nevada 31000-16-05-15-040-02-02 3300 XL Retrofit Probe

Bently Nevada 31000-16-05-15-040-02-02 3300 XL Retrofit Probe: Compatible Upgrade for Legacy Vibration Monitoring Systems

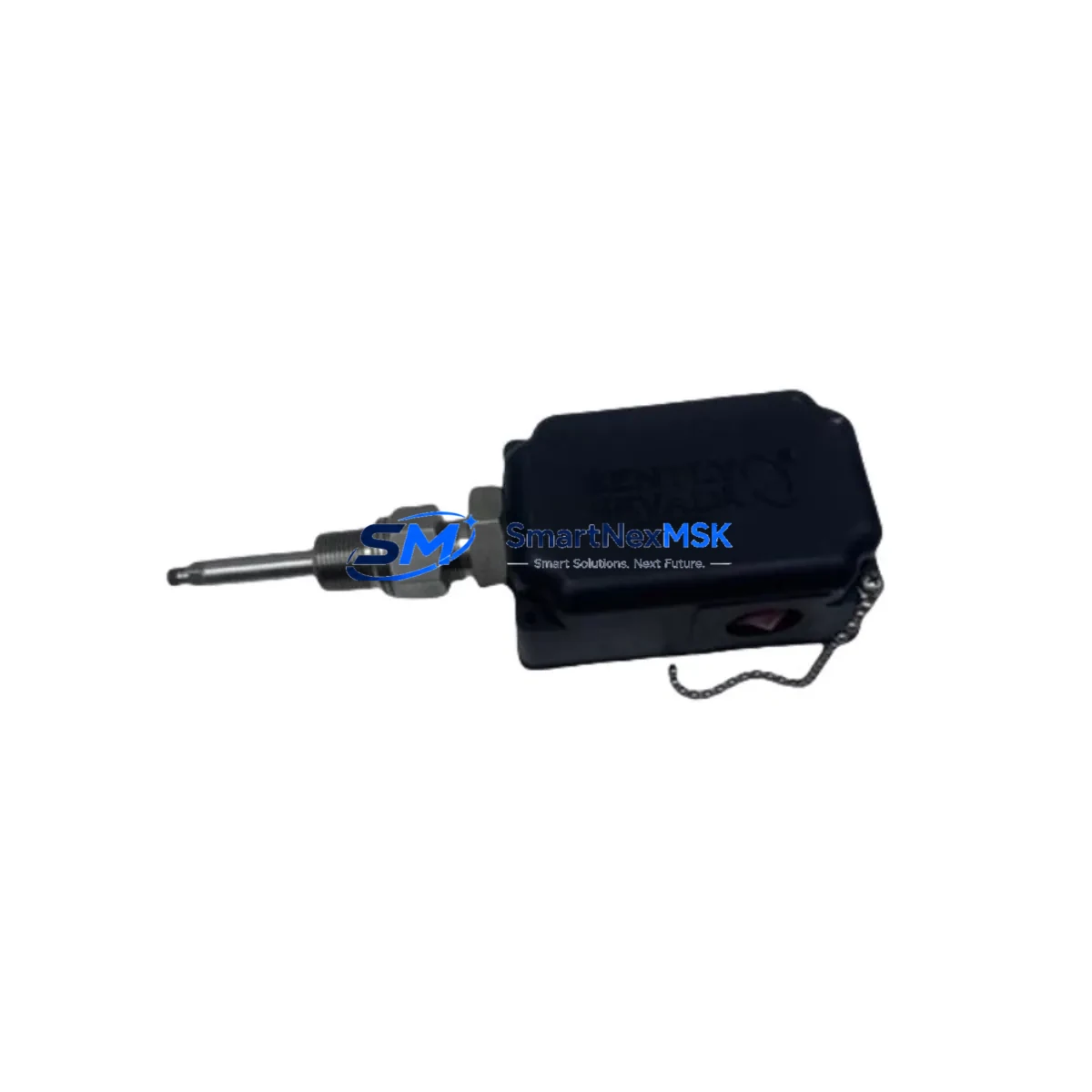

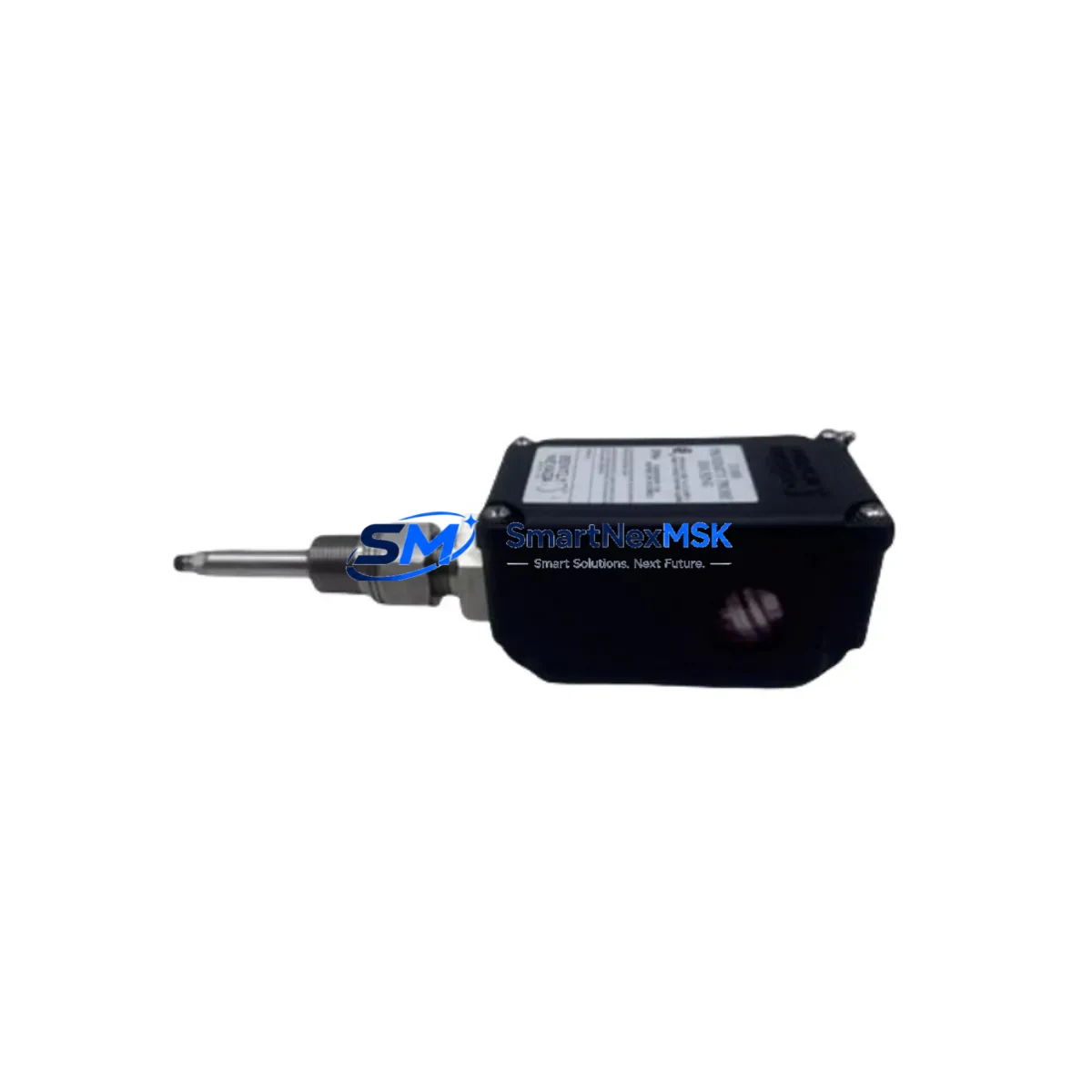

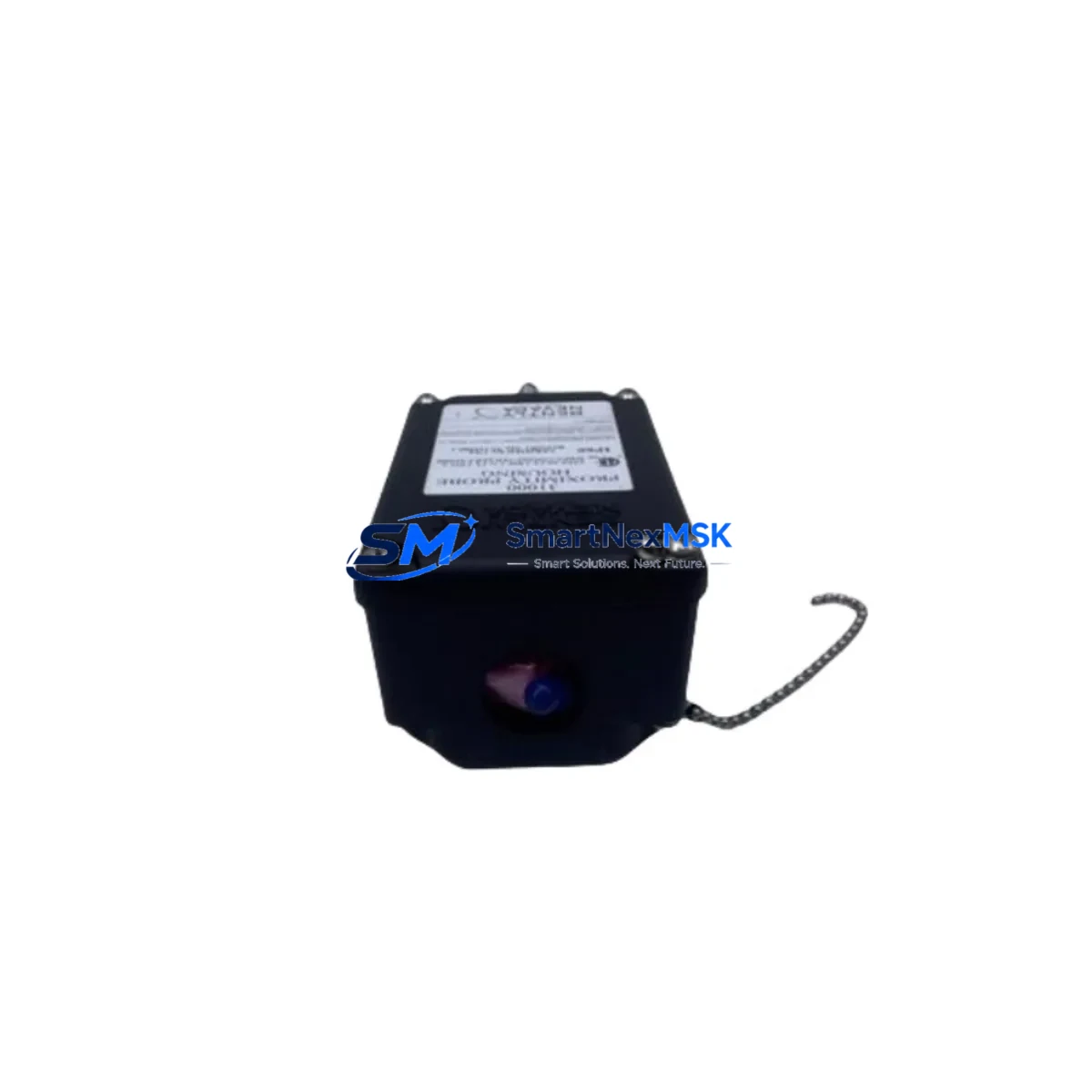

The Bently Nevada 31000-16-05-15-040-02-02 is an 8 mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. With a 16-inch (406 mm) probe length, a 5-metre (15-foot) integral cable, and a 40-mil (1.0 mm) linear range, this probe delivers the precise radial and axial shaft displacement measurements that rotating machinery protection systems demand. Whether you are replacing a failed unit on a critical compressor train, upgrading an ageing 3300 Series installation to 3300 XL specification, or restoring a turbine protection loop after an unplanned trip, the 31000-16-05-15-040-02-02 provides a verified, drop-in retrofit path with no firmware changes required on the 3300 XL monitor rack.

Industrial sites running legacy Bently Nevada 7200 Series probes or early-generation 3300 Series probes frequently encounter obsolescence challenges: discontinued part numbers, extended lead times from OEM channels, and mounting pressure to maintain SIL-rated protection loops without full system replacement. The 31000-16-05-15-040-02-02 addresses this directly. Its standard TQ connector and 5 m cable assembly are dimensionally and electrically compatible with the 3300 XL proximitor/seismic module, allowing field technicians to swap the probe without re-routing conduit or modifying the junction box wiring. Before installation, engineers should verify the existing proximitor supply voltage (typically −24 VDC), confirm the gap voltage target (nominally −10.4 VDC at 1.0 mm gap for 3300 XL), and check that the DCS or safety system input card is scaled to the standard 200 mV/mil (7.87 V/mm) sensitivity output.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 31000-16-05-15-040-02-02 into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing 3300 XL monitor rack: confirm that the 3300 XL proximitor/seismic module paired with this probe is still within its calibration interval, and that the rack’s power supply module is delivering a stable −24 VDC rail. If the power supply module shows signs of ripple or voltage sag, replacing it concurrently with the probe prevents a repeat outage. Similarly, inspect the 3300 XL I/O module terminal blocks for corrosion or loose ferrules — a common failure point on installations older than ten years.

For sites that have already migrated their safety system to a 3500 Series rack, the 31000-16-05-15-040-02-02 is equally compatible with the 3500/40M proximitor monitor and the 3500/42M Proximitor/Seismic Monitor, provided the proximitor extension cable — typically a 3300 XL extension cable in 5 m or 9 m lengths — is in good condition. If the extension cable shows insulation breakdown or connector wear, it should be replaced as part of the same work order to avoid introducing a new fault into the loop.

On the control side, verify that the DCS analogue input card assigned to this probe channel is configured for the correct engineering unit range. Most legacy DCS configurations map the 3300 XL probe output to a 0–100 mil (0–2.54 mm) displacement range; if the HMI faceplate or historian tag is scaled differently, the process engineer must update the scaling block before the new probe is energised. For plants using a Modbus RTU or PROFIBUS DP gateway to aggregate vibration data from the 3300 XL rack, no gateway reconfiguration is needed — the analogue signal chain is unchanged. However, if the site is migrating from a 3300 Series rack to a 3500 Series rack as part of the same project, the Modbus register map will change and the SCADA or DCS driver must be updated accordingly.

I/O expansion projects that add new measurement points to an existing 3300 XL rack should also account for the 3300 XL barrier termination module, which provides the intrinsic safety interface for hazardous-area installations. Confirm that the barrier module’s entity parameters are compatible with the 31000-16-05-15-040-02-02 probe before energising the loop in a Zone 1 or Division 1 area. For non-hazardous installations, the standard 3300 XL junction box and armoured probe cable assembly are sufficient.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured hot-swap or cold-swap strategy. For machinery that can be taken offline, the preferred approach is a cold swap: de-energise the 3300 XL monitor channel, remove the failed probe, install the 31000-16-05-15-040-02-02, set the gap voltage to the nominal −10.4 VDC target using a calibrated gap-setting tool, and verify the OK LED on the proximitor module before re-energising the channel. The entire procedure typically takes 30–60 minutes per probe point when the replacement unit is on-site and pre-tested.

For critical machinery that cannot be taken offline, a bypass relay or channel inhibit function on the 3500 Series monitor allows the protection channel to be placed in bypass mode while the probe is replaced, preserving the overall protection loop integrity and preventing a spurious trip. The bypass duration should be logged in the plant’s safety management system, and the channel must be restored to active protection status immediately after the gap voltage is confirmed. Original program logic in the DCS or safety PLC does not require modification — the probe replacement is transparent to the control layer as long as the analogue signal is within the expected range when the channel is re-enabled.

All units supplied by SMARTNEXMSK are bench-tested prior to shipment, with gap voltage, sensitivity, and OK status verified against 3300 XL specification. This pre-shipment testing eliminates the most common cause of extended downtime during probe replacement: receiving a unit that fails on first energisation. A 12-month warranty covers all supplied probes against manufacturing defects, giving maintenance teams confidence that the replacement will perform reliably through the next planned outage cycle.

Retrofit Support FAQ

Q1: Is the 31000-16-05-15-040-02-02 a direct replacement for earlier 3300 Series probes with the same cable length?
Yes. The 31000-16-05-15-040-02-02 is dimensionally and electrically compatible with earlier 3300 Series 8 mm probes of the same cable length. The TQ connector, thread size, and output sensitivity are identical. The only commissioning step required is re-setting the gap voltage to the 3300 XL nominal target, as the linear range centre point may differ slightly from the legacy unit.

Q2: What wiring changes are needed when installing this probe in an existing 3300 XL rack?
No wiring changes are required. The probe connects to the existing 3300 XL proximitor/seismic module using the standard TQ connector. If the existing extension cable is in good condition, it can be reused. Terminal block connections at the junction box and the monitor rack I/O module remain unchanged.

Q3: How is compatibility with the 3500/40M and 3500/42M monitors verified?
The 31000-16-05-15-040-02-02 is compatible with the 3500/40M and 3500/42M monitors when used with the appropriate 3300 XL proximitor. Verify that the proximitor part number is listed in the 3500/40M or 3500/42M acceptance list, confirm the supply voltage and sensitivity settings in the monitor configuration, and perform a gap voltage check after installation. No firmware update to the 3500 Series rack is required.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All units are bench-tested before shipment: gap voltage, output sensitivity (200 mV/mil), OK LED status, and cable continuity are verified against 3300 XL specification. The 12-month warranty covers manufacturing defects in the probe, cable, and connector assembly. Units that fail within the warranty period are replaced or refunded. Warranty claims should be directed to sales@smartnexmsk.com with the order reference and a description of the fault.
