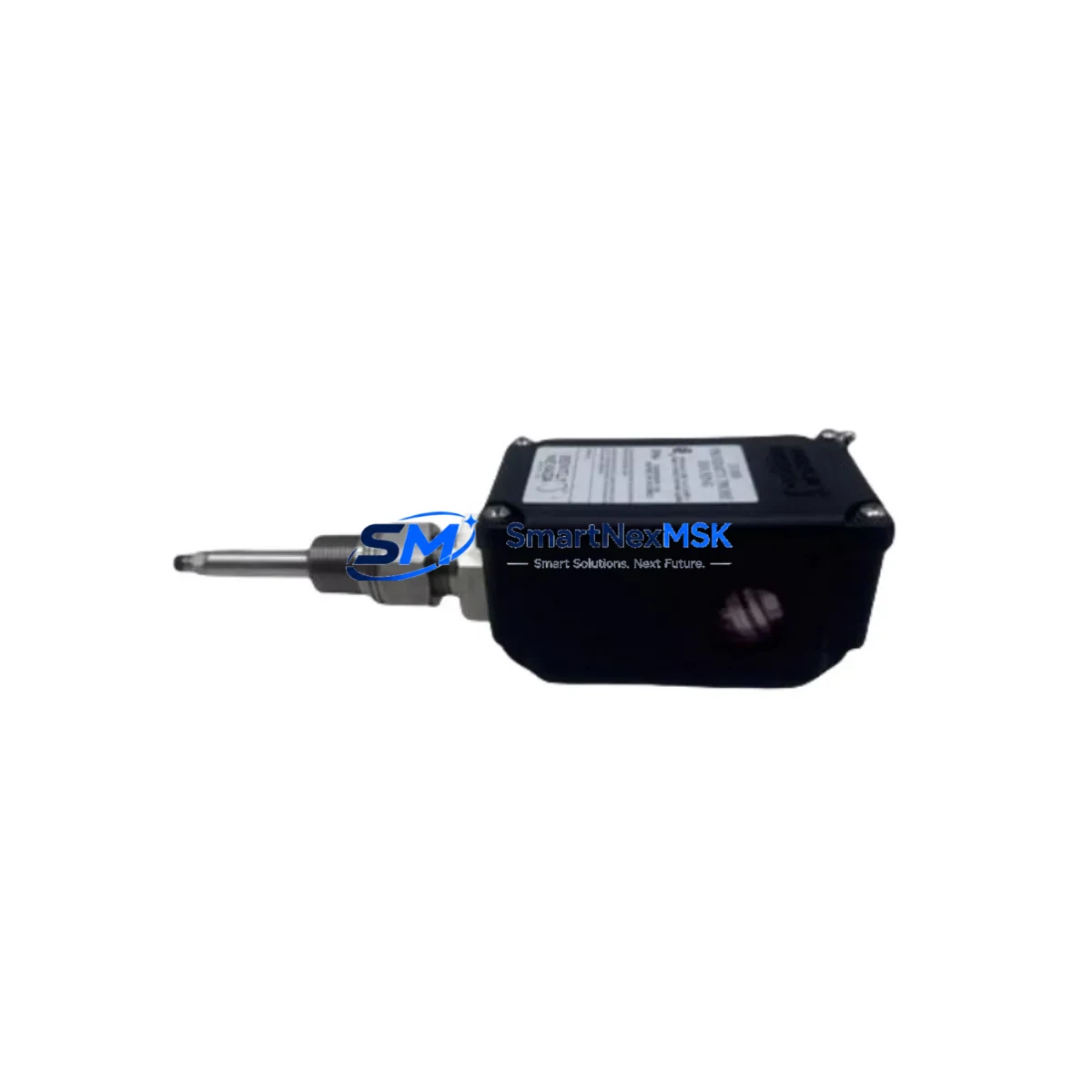

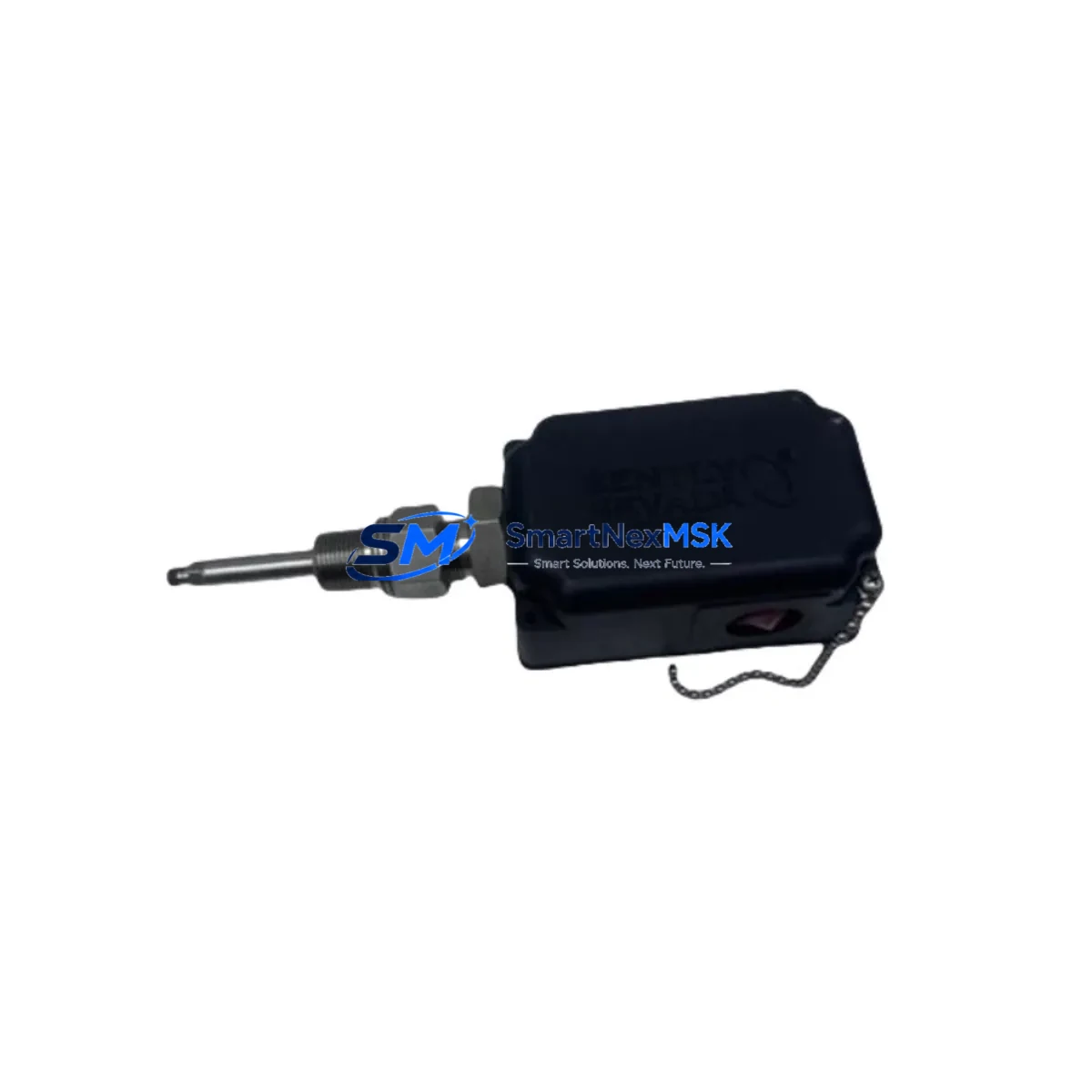

Bently Nevada 31000-16-10-00-085-03-02 Safety Proximity Probe

Bently Nevada 31000-16-10-00-085-03-02 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 31000-16-10-00-085-03-02 is a ruggedized proximity probe assembly engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 Series proximity system, this probe delivers exceptional signal integrity, mechanical durability, and long-term reliability — making it a cornerstone component in rotating machinery protection, critical interlock loops, and high-availability control architectures.

In high-load, high-interference production facilities — including petrochemical plants, power generation stations, mining operations, and metallurgical complexes — control interruptions caused by sensor degradation or signal drift can trigger costly unplanned shutdowns or, worse, safety incidents. The 31000-16-10-00-085-03-02 is specifically designed to eliminate these risks through its ruggedized construction, stable eddy-current sensing technology, and compatibility with the full Bently Nevada 3300 Series signal conditioning ecosystem.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins well before the probe tip — it depends on a fully integrated, safety-validated signal chain from the field sensor to the control room. The Bently Nevada 31000-16-10-00-085-03-02 is designed to operate as part of a coordinated protection architecture. In a typical heavy-industry control cabinet, this probe interfaces directly with the Bently Nevada 3300 XL 8mm Proximity Transducer System driver, which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500/42M Proximitor I/O Module.

To protect the signal path from power surges and ground loops — common in arc furnace environments, large motor drives, and variable-frequency drive (VFD) installations — the probe system should be paired with a Bently Nevada 3300 Series Zener Barrier or galvanic isolator. These components prevent surge energy from propagating back through the coaxial cable and corrupting the proximity signal, which could cause false trips or, more dangerously, missed trips in a critical interlock loop.

Within the control cabinet, the Bently Nevada 3500 Rack System serves as the central monitoring platform, accepting inputs from multiple proximity probes — including radial vibration, axial thrust, and differential expansion channels. The 3500/15 Power Supply Module provides clean, regulated DC power to the rack, while the 3500/22M Transient Data Interface captures high-resolution waveform data for post-event analysis and predictive maintenance workflows. For facilities requiring SIL-rated protection, the Bently Nevada 3500/33 16-Channel Relay Module provides configurable trip and alarm relay outputs that integrate directly with the plant’s safety instrumented system (SIS) or emergency shutdown (ESD) logic.

In installations where the probe cable must traverse long distances through cable trays shared with power conductors, the use of Bently Nevada armored extension cables — matched to the 31000-series probe — is strongly recommended to maintain signal integrity and prevent capacitive coupling interference. The complete system, when properly assembled and commissioned, delivers a robust, low-drift vibration monitoring solution capable of continuous operation in the harshest industrial sites.

Critical Industrial Safety Applications

The Bently Nevada 31000-16-10-00-085-03-02 proximity probe is deployed across a wide range of safety-critical and continuous-process industries where rotating machinery failure carries severe operational and safety consequences.

Petrochemical and Refining: In compressor trains, centrifugal pumps, and turbine-driven process units, this probe monitors shaft radial vibration and provides early warning of bearing wear, rotor imbalance, and oil whirl instability. Integrated with the plant DCS and SIS, it enables automatic shutdown before catastrophic failure — protecting personnel, equipment, and environmental compliance.

Power Generation: Steam turbines, gas turbines, and large generator sets in power plants rely on proximity probe systems for continuous shaft monitoring. The 31000-16-10-00-085-03-02, with its high-temperature rating and armored cable, is well-suited for turbine bearing pedestals where ambient temperatures and vibration levels are extreme.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to severe mechanical shock, dust ingress, and chemical exposure. The IP67-rated, ruggedized construction of this probe ensures reliable signal output even in these aggressive conditions.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blower units in water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could disrupt municipal water supply. The probe’s non-contact sensing eliminates wear and maintenance intervals associated with contact-type sensors.

Metallurgy and Steel Production: In rolling mills, continuous casting lines, and electric arc furnace auxiliary drives, electromagnetic interference levels are among the highest in any industrial environment. The shielded, armored cable assembly of the 31000-16-10-00-085-03-02 provides the EMI rejection necessary to maintain signal fidelity in these conditions.

Port and Marine Infrastructure: Large crane drives, ship-loader conveyors, and port compressor stations benefit from the probe’s wide operating temperature range and sealed construction, ensuring reliable operation in coastal humidity and salt-air environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 31000-16-10-00-085-03-02?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched from stock to minimize your downtime.

Q2: What pre-shipment testing and inspection is performed on each unit?
Every 31000-16-10-00-085-03-02 unit undergoes functional verification prior to shipment, including output voltage check, cable continuity and insulation resistance test, and connector integrity inspection. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 31000-16-10-00-085-03-02 is fully compatible with the Bently Nevada 3300 XL 8mm proximity transducer system and integrates directly with 3500 Series monitoring racks, including the 3500/42M I/O module. No additional signal conditioning adapters are required for standard installations.

Q4: Can SMARTNEXMSK support long-term and repeat supply of this part?
Yes. SMARTNEXMSK maintains dedicated inventory of Bently Nevada 3300 Series proximity system components, including the 31000-16-10-00-085-03-02, to support planned maintenance schedules, emergency replacements, and capital project procurement. Contact our team for volume pricing, lead time confirmation, and consignment stock arrangements.
