Bently Nevada 31000-16-10-00-159-00-02 Spare for 3300 Automation

Bently Nevada 31000-16-10-00-159-00-02 Spare for 3300 Automation: Precision Spare Parts for Industrial Downtime Recovery

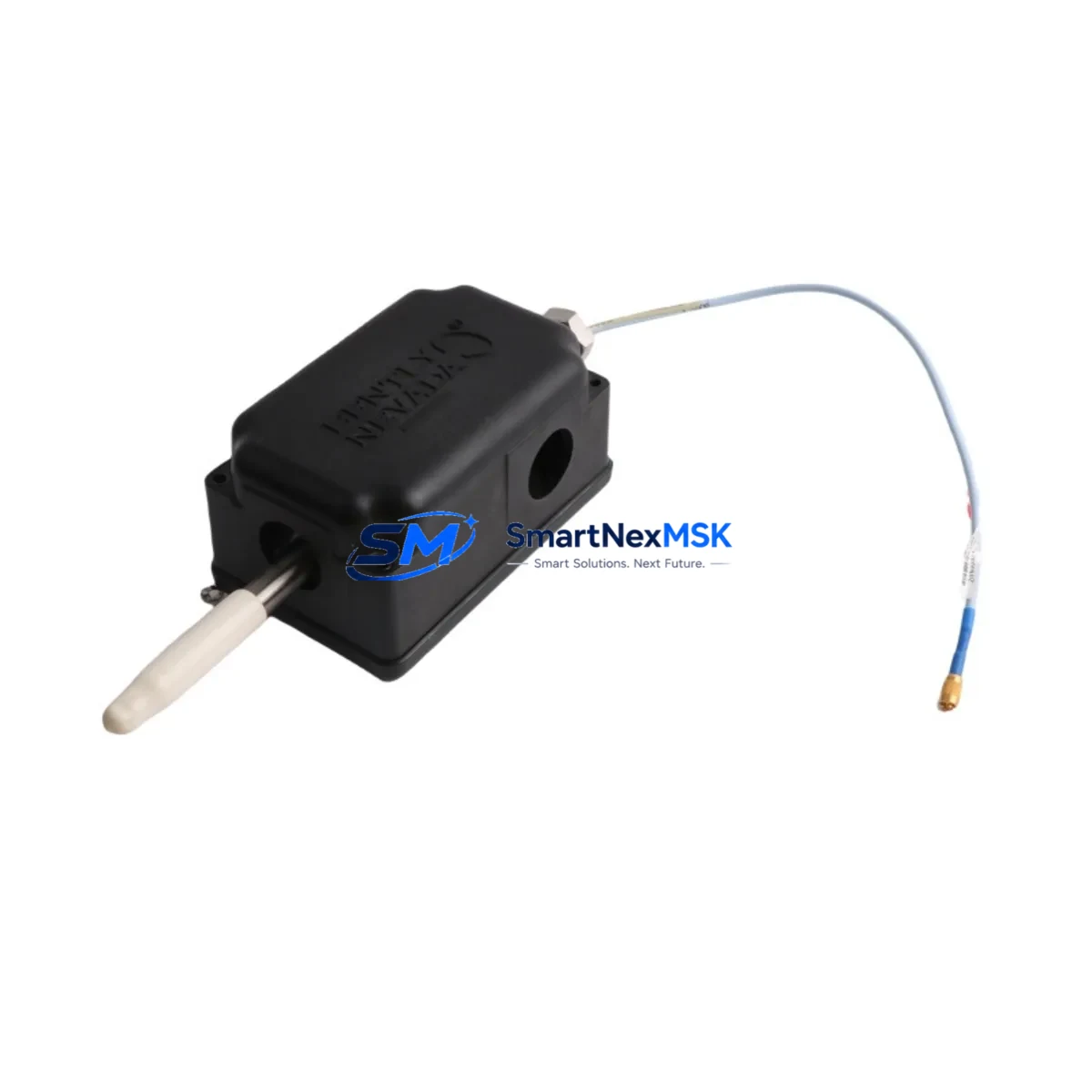

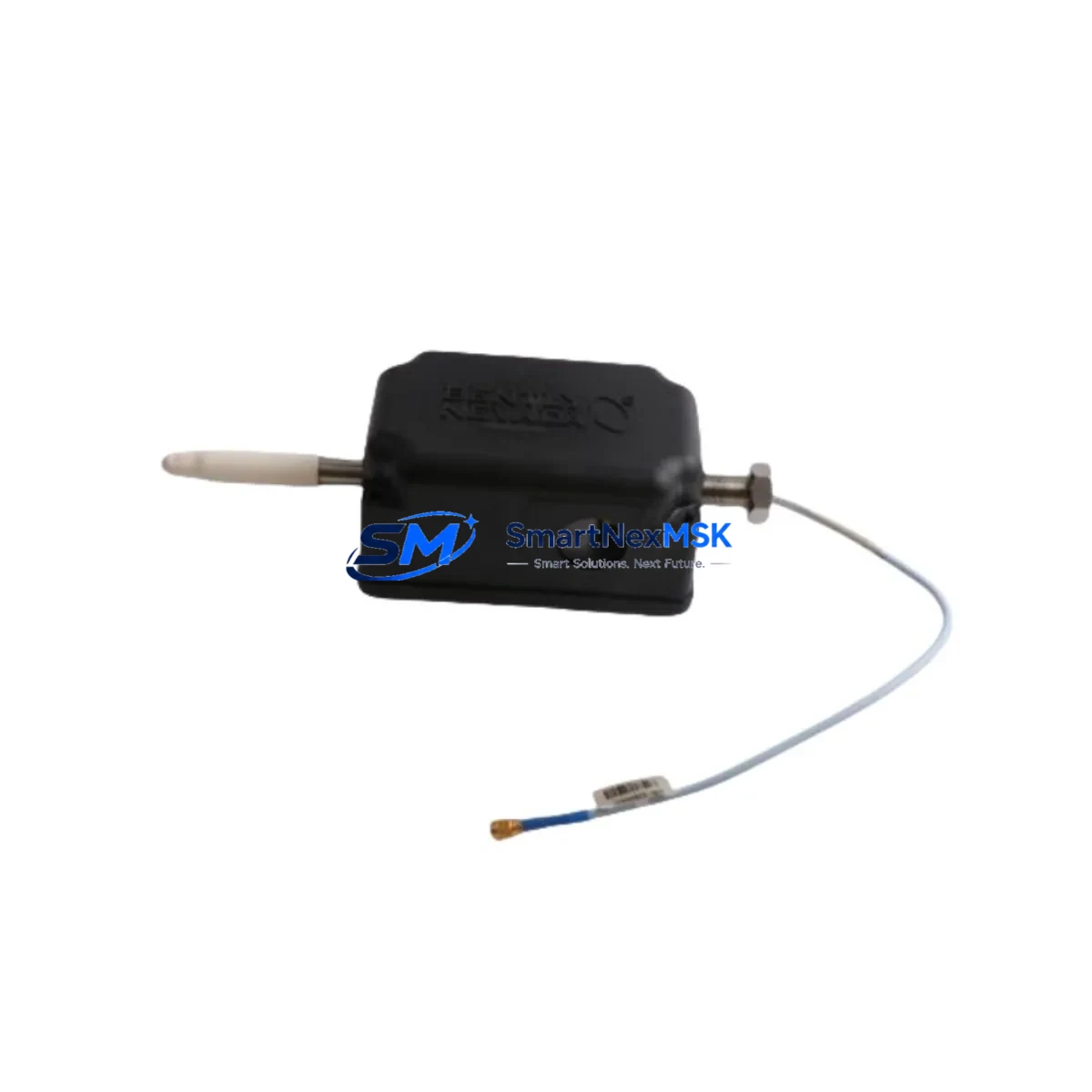

The Bently Nevada 31000-16-10-00-159-00-02 is an original proximity probe housing designed for the 3300 Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for critical rotating machinery, this component delivers the dimensional accuracy, material integrity, and signal-path reliability that the 3300 system demands.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, compressors, pumps, and gearboxes depend on the 3300 Series for real-time shaft displacement and vibration data. A failed or degraded proximity probe housing introduces measurement uncertainty that can mask developing faults or trigger nuisance trips — both outcomes carry significant operational and safety risk. Stocking the 31000-16-10-00-159-00-02 as a ready-to-install spare eliminates the lead-time gap that turns a minor component failure into an extended outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-16-10-00-159-00-02 proximity probe housing, a disciplined maintenance engineer will treat the intervention as an opportunity to audit the entire vibration monitoring loop. The probe housing is one element in a signal chain that includes the Bently Nevada 3300 XL proximitor / extension cable assembly, the field-routed coaxial extension cable (typically 5-metre or 9-metre lengths matched to the proximitor input impedance), and the 3300/16 or 3300/25 monitor card seated in the rack.

At the panel level, inspect the 3300 Series rack power supply module — input voltage fluctuations or ripple on the –24 VDC rail are a common root cause of erratic gap voltage readings that are incorrectly attributed to probe wear. Verify terminal block integrity on the 3300 I/O terminal strip; loose or corroded terminations introduce resistance that shifts the static gap voltage and can cause false danger or alert setpoints to activate.

For facilities running hybrid protection architectures, cross-check the 3500 Series monitor rack if the 3300 system feeds relay outputs into a shared trip logic panel — confirm that relay modules such as the 3500/32 four-channel relay module are operating within specification and that their output contacts are not exhibiting high contact resistance. Where the vibration signal is also routed to a DCS historian or safety system, inspect the signal isolator or barrier (commonly a Pepperl+Fuchs or MTL zener barrier) in the intrinsically safe loop to ensure it has not degraded.

On older installations, the Bently Nevada 7200 Series proximitor may still be in service alongside 3300 hardware. If the site is running a mixed-generation monitoring system, confirm that cable impedance and proximitor gap ranges are compatible before installing the replacement housing. Fuse holders and DIN-rail mounted miniature circuit breakers protecting the monitor rack supply should also be checked — a marginal fuse that has not yet blown can cause intermittent supply dropout that mimics probe failure.

Finally, if the machine is equipped with a Keyphasor transducer (such as the Bently Nevada 3300 XL Keyphasor probe), verify that the Keyphasor gap voltage is within the –10 to –18 VDC window after the probe housing replacement, as any mechanical disturbance to the probe bracket can shift the Keyphasor target gap and affect phase-referenced vibration analysis.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a permit to work and isolate the monitor channel at the rack. Note the existing static gap voltage (typically –10 to –18 VDC for 3300 XL systems) before disconnecting the probe to establish a baseline for post-installation verification.

Step 2 — Probe removal: Using the correct spanner, unthread the existing housing carefully to avoid damaging the coaxial cable connector. Inspect the target area on the shaft or collar for surface damage, scoring, or contamination that may have contributed to the housing failure.

Step 3 — Housing installation: Thread the 31000-16-10-00-159-00-02 replacement housing into the bracket. Set the air gap to the manufacturer-specified distance (typically 1.0 mm for standard 3300 XL probes) using a feeler gauge. Torque to specification and lock with the jam nut.

Step 4 — Cable reconnection and gap verification: Reconnect the extension cable and restore power to the monitor channel. Measure the static gap voltage at the proximitor output and confirm it falls within the calibrated linear range. Compare against the pre-removal baseline.

Step 5 — Functional test and documentation: Confirm alert and danger setpoints are active, check OK relay status, and log the replacement in the equipment maintenance record. Update the spare parts inventory to trigger reorder of a replacement 31000-16-10-00-159-00-02 unit so the buffer stock is maintained.

This workflow minimises machine downtime, preserves system calibration integrity, and ensures the 3300 Series monitoring loop is returned to full protective function before the machine is restarted.

Spare Parts Support FAQ

Q1: Is the 31000-16-10-00-159-00-02 compatible with both 3300/16 and 3300/25 proximity transducer systems?
Yes. The housing is dimensionally and mechanically compatible with the standard 3300 Series probe bracket and cable connector interface used across the 3300/16, 3300/25, and 3300/50 transducer configurations. Always verify the thread specification and gap range against your site-specific calibration sheet before installation.

Q2: What pre-shipment checks are performed on each unit?
Every 31000-16-10-00-159-00-02 unit is visually inspected for thread integrity, connector condition, and housing geometry before dispatch. Functional electrical checks are performed where applicable. Units are individually packaged to prevent transit damage. A 12-month warranty covers manufacturing defects and functional performance from the date of shipment.

Q3: How should this spare be stored in a maintenance inventory?
Store in the original packaging in a dry, temperature-controlled environment away from strong magnetic fields and corrosive atmospheres. Label with the receipt date and assign a maximum shelf life of 5 years for elastomeric seals. Rotate stock on a first-in, first-out basis and inspect annually for any signs of connector oxidation or physical damage.

Q4: Can this housing be used to extend the service life of an older 3300 Series installation that is no longer in active production?
Yes. One of the primary use cases for stocking the 31000-16-10-00-159-00-02 is life extension of legacy 3300 Series systems where the monitor racks and proximitors remain functional but mechanical wear on probe housings has accumulated over years of service. Replacing the housing restores measurement accuracy without requiring a full system upgrade, deferring capital expenditure while maintaining machinery protection integrity.
