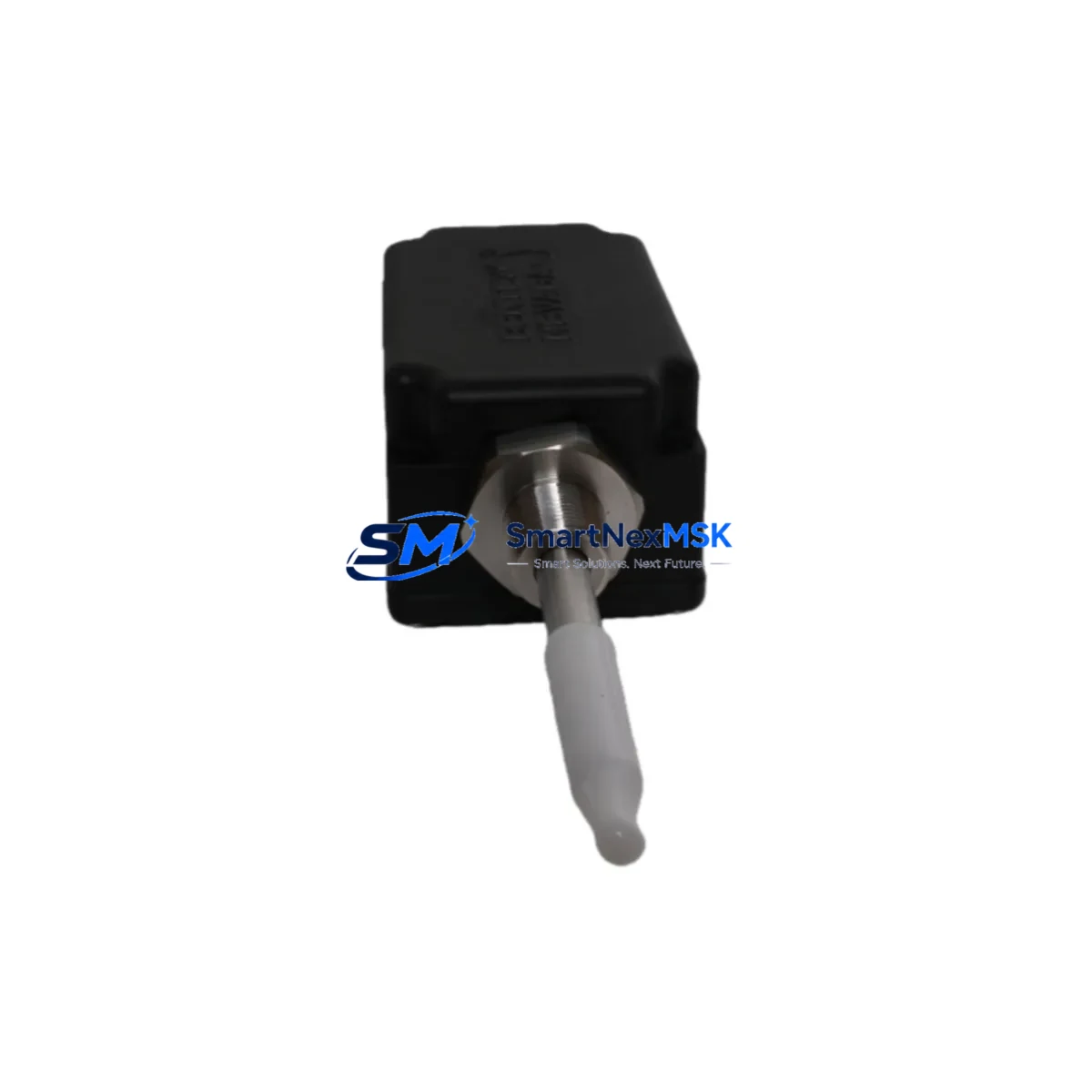

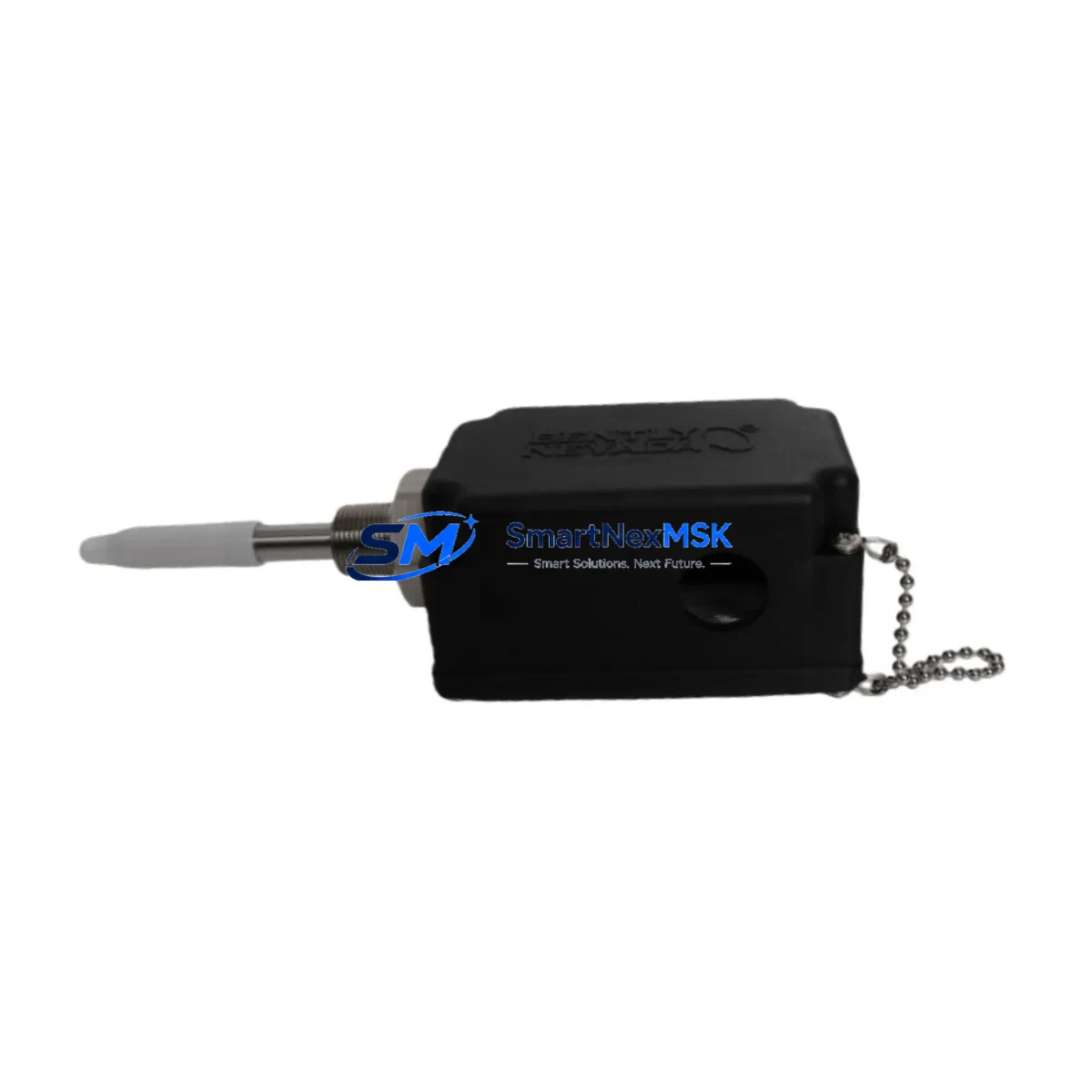

Bently Nevada 31000-16-10-15-063-03-02 Safety Proximity Probe

Bently Nevada 31000-16-10-15-063-03-02 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 31000-16-10-15-063-03-02 is a ruggedized proximity probe assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. As part of the renowned 3300 XL Series, this probe delivers exceptional signal stability, electromagnetic interference (EMI) resistance, and long-term mechanical durability — making it a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.

Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive surroundings, the 31000-16-10-15-063-03-02 maintains precise eddy-current sensing performance even under continuous load cycles. Its robust stainless-steel housing and armored cable construction resist mechanical stress, fluid ingress, and thermal cycling — critical attributes for installations inside control cabinets, turbine enclosures, compressor skids, and safety interlock circuits where unplanned downtime carries severe operational and safety consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the 31000-16-10-15-063-03-02 probe does not operate in isolation. It functions as the primary sensing element within a layered safety architecture that begins at the shaft surface and extends through the signal chain to the control room. The probe connects directly to a Bently Nevada 330180-91-05 Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for processing by the Bently Nevada 3500/42M Proximitor / Seismic Monitor module — a rack-mounted unit that provides continuous vibration and position alarming within the 3500 Series Machinery Protection System.

Within the control cabinet, signal integrity is protected by proper grounding practices and shielded cable routing. Surge and transient protection is provided by dedicated Phoenix Contact TRABTECH surge protection devices installed at the cabinet entry points, guarding against voltage spikes from nearby motor starts, welding operations, or lightning-induced transients. Power supply stability — essential for consistent Proximitor bias voltage — is maintained by a Bently Nevada 3500/15 Power Supply module, which provides regulated, redundant DC power to the entire 3500 rack.

For facilities requiring SIL-rated safety loops, the probe assembly integrates with Pilz PNOZ safety relays or Rockwell Automation GuardLogix safety PLCs to form certified interlock circuits that trigger emergency shutdowns when vibration thresholds are exceeded. Communication of alarm states to the DCS is typically handled via Bently Nevada 3500/92 Communication Gateway modules, enabling Modbus TCP or OPC-DA data transfer to Emerson DeltaV or Honeywell Experion PKS distributed control systems. This end-to-end architecture ensures that a single probe failure or signal anomaly is detected, alarmed, and acted upon before it escalates into a catastrophic machinery event.

Critical Industrial Safety Applications

The Bently Nevada 31000-16-10-15-063-03-02 proximity probe is deployed across a wide spectrum of heavy industrial applications where continuous shaft monitoring is non-negotiable for operational safety and regulatory compliance.

In petrochemical and refinery plants, it monitors radial shaft vibration and axial position on centrifugal compressors, steam turbines, and boiler feed pumps — providing early warning of rotor imbalance, bearing wear, and seal degradation before they cause unplanned shutdowns or hazardous releases. In power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, the probe forms part of the overspeed and vibration trip system mandated by IEC 61511 and API 670 standards.

In mining and mineral processing operations, where crusher drives, ball mills, and slurry pumps operate under extreme mechanical stress and dusty, wet conditions, the IP67-rated stainless-steel construction of this probe ensures reliable signal output without sensor degradation. Water and wastewater treatment facilities rely on it for continuous monitoring of high-speed blower shafts and pump impellers, where vibration anomalies can indicate cavitation or impeller fouling.

In metallurgical and steel production environments — characterized by intense electromagnetic noise from arc furnaces and induction heaters — the probe’s shielded armored cable and EMI-resistant design maintain signal fidelity where lesser sensors would produce erratic readings. Port and bulk material handling facilities use it on conveyor drive gearboxes and ship unloader slewing mechanisms, where bearing failure detection prevents costly structural damage and cargo handling delays.

Across all these applications, the 31000-16-10-15-063-03-02 supports predictive maintenance programs by providing the high-resolution, low-noise vibration data required by condition monitoring software to trend machinery health over time — reducing unplanned downtime, extending equipment life, and supporting safe, continuous production.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 31000-16-10-15-063-03-02?
The 12-month warranty covers all manufacturing defects, functional failures under normal operating conditions, and calibration deviations from factory specifications. If the probe fails to deliver accurate eddy-current output within the specified sensitivity range during the warranty period, we provide a replacement unit or full refund. Warranty claims are processed within 5 business days upon receipt of the returned item.

Q2: What pre-shipment testing is performed on each unit?
Every 31000-16-10-15-063-03-02 unit undergoes a multi-point functional inspection before dispatch, including sensitivity verification, cable continuity and insulation resistance testing, connector integrity check, and visual inspection for housing damage or cable armor defects. Units that do not meet Bently Nevada 3300 XL system specifications are quarantined and not shipped. A test report is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series racks?
Yes. The 31000-16-10-15-063-03-02 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family (including 330180 and 330130 series) and integrates directly with 3500 Series monitor modules such as the 3500/42M. The probe’s 8 mm tip diameter and standard connector configuration ensure drop-in replacement capability without recalibration of the Proximitor or monitor module in most installations.

Q4: Can you guarantee long-term supply and replacement support for this part?
Yes. We maintain dedicated stock of the 31000-16-10-15-063-03-02 and related 3300 XL Series components to support both planned maintenance schedules and emergency replacement requirements. Our inventory is replenished on a rolling basis to prevent supply gaps. For facilities with critical spare parts programs, we offer reserved stock arrangements and priority dispatch to ensure that a replacement probe reaches your site within the shortest possible lead time, minimizing machinery downtime and safety risk.
