Bently Nevada 31000-28-05-00-059-02-02 Spare 3300 XL

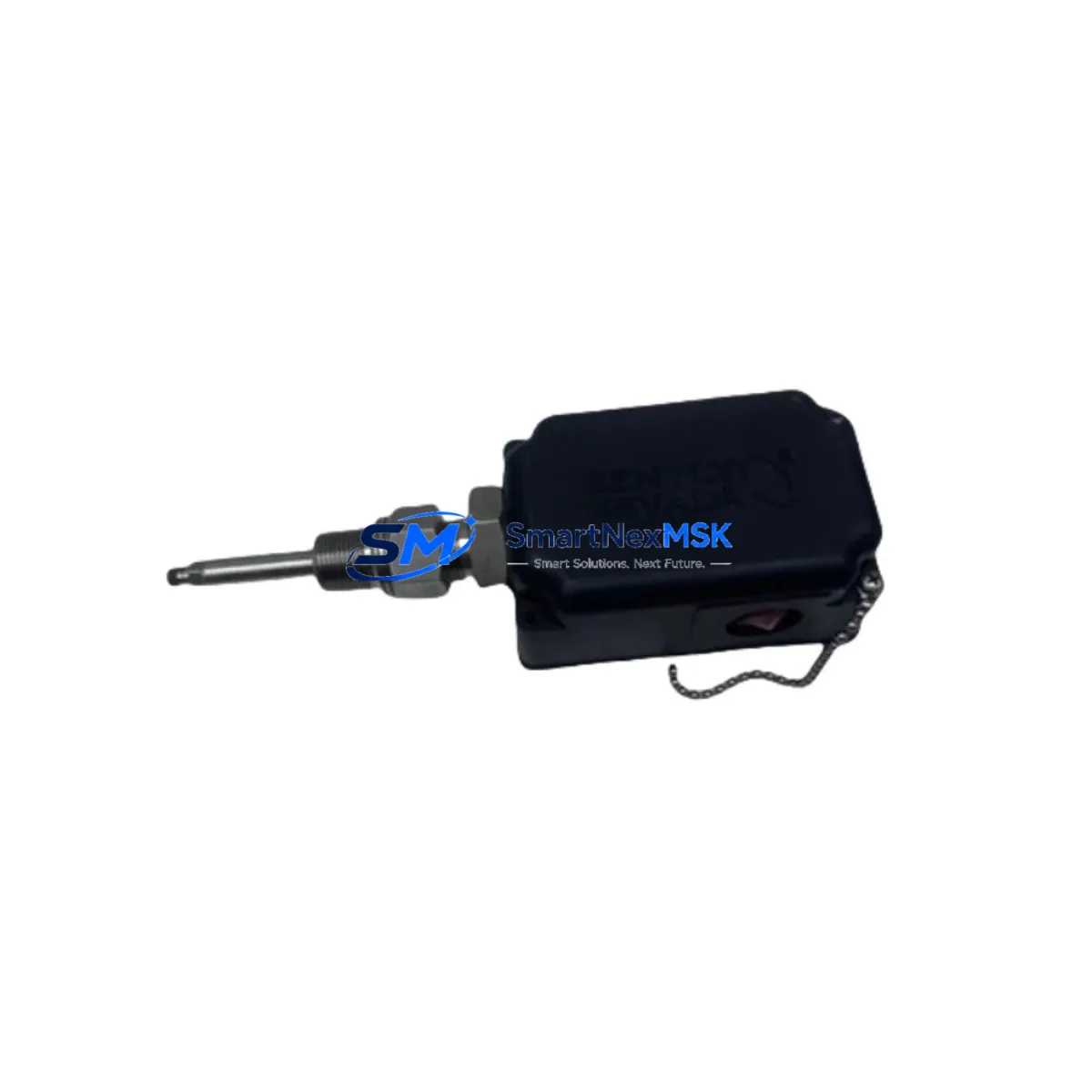

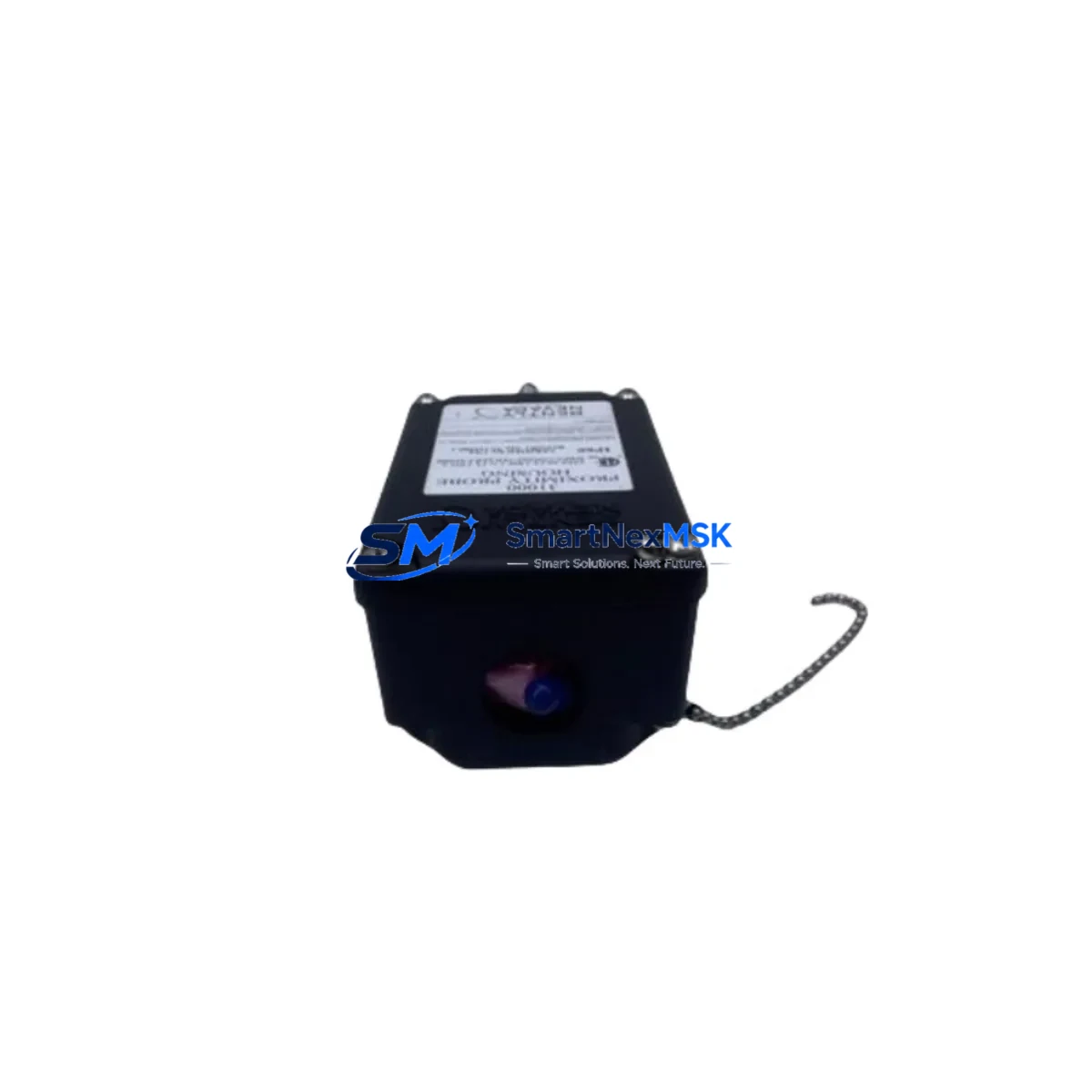

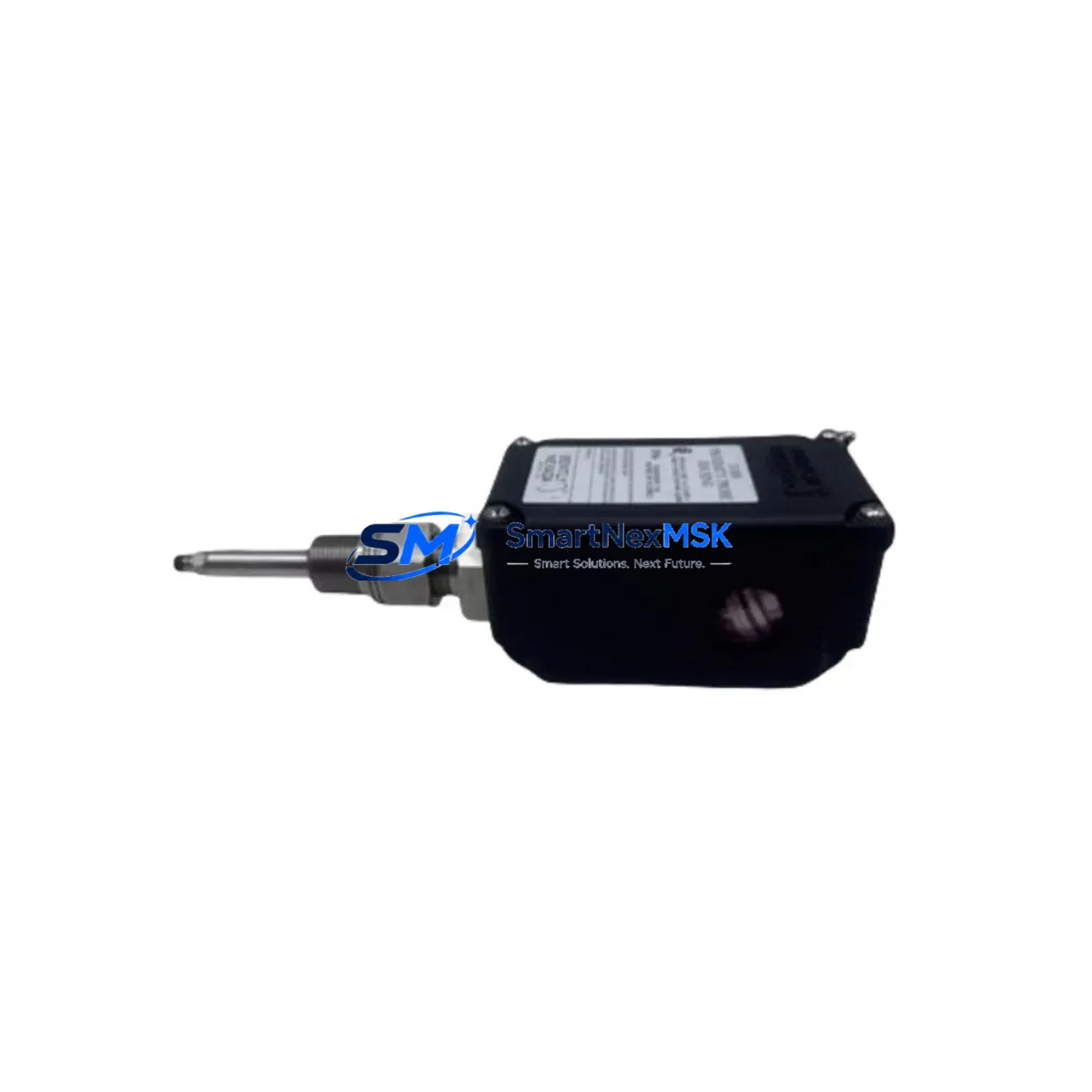

Bently Nevada 31000-28-05-00-059-02-02 Spare 3300 XL: Proximity Probe Housing for Industrial Downtime Control

The Bently Nevada 31000-28-05-00-059-02-02 is an original proximity probe housing assembly engineered for the 3300 XL Series machinery monitoring platform — one of the most widely deployed vibration and position monitoring systems in rotating equipment applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process facilities, this component represents a critical link in the machinery protection chain. Unplanned failure of the probe housing assembly can compromise gap voltage stability, introduce signal noise, and ultimately trigger false trips or missed fault detection — all of which carry significant operational and safety consequences.

Sourced as an original spare, the 31000-28-05-00-059-02-02 is manufactured to Bently Nevada’s precision tolerances for the 3300 XL transducer system. It is designed for direct replacement in existing installations without requiring recalibration of the full monitoring loop, provided the associated proximitor and extension cable remain within specification. Maintenance teams operating legacy 3300 XL systems — including those running alongside the 3500 Series rack-based monitors — will find this housing assembly essential for sustaining probe-to-target gap integrity and long-term signal reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-28-05-00-059-02-02 proximity probe housing, a thorough site inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should begin by verifying the condition of the associated 3300 XL proximitor module (such as the 330180 or 330130 series), as housing wear often correlates with proximitor drift or output offset errors. The extension cable connecting the probe to the proximitor — typically a 3300 XL armored or standard cable assembly — should be inspected for jacket damage, connector corrosion, and continuity before the new housing is commissioned.

At the rack level, confirm that the 3300 XL monitor module receiving the vibration or position signal is operating within its input voltage window. If the installation includes a 3500/42M Proximitor Monitor or a 3500/40M Proximitor Monitor in a hybrid rack configuration, verify that channel configuration and alert/danger setpoints remain valid after the probe replacement. Power supply integrity is equally critical: the 3500/15 Power Supply module or equivalent rack power conditioner should be checked for output ripple and voltage stability, as supply fluctuations directly affect gap voltage accuracy.

For installations where the probe monitors axial position or differential expansion, cross-check the 3300 XL thrust position monitor channel calibration after housing replacement. In high-temperature or high-vibration environments, inspect the probe tip and target surface for runout, pitting, or contamination that may have contributed to the original housing failure. Where applicable, review the condition of terminal blocks and field wiring in the junction box — corroded terminals or loose connections are a common secondary cause of signal instability that a housing replacement alone will not resolve.

Facilities running extended maintenance intervals should consider stocking the 31000-28-05-00-059-02-02 alongside complementary spares including 3300 XL proximitor modules, standard and armored extension cables, and 3500 Series I/O module assemblies to support rapid loop restoration during unplanned outages. For older systems approaching end-of-support, maintaining a documented spare parts register with verified cross-references to current Bently Nevada catalog numbers is strongly recommended.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow site lock-out/tag-out (LOTO) procedures. Confirm the machinery is at rest and the monitoring channel is bypassed or in alert-inhibit mode at the 3500 rack before disconnecting the probe assembly.

Step 2 — Documentation: Record the existing gap voltage reading from the proximitor output (typically measured at the OK relay or monitor front panel) before removal. This baseline value will be used to verify correct installation of the replacement housing.

Step 3 — Removal: Disconnect the extension cable from the probe. Unthread the 31000-28-05-00-059-02-02 housing carefully, noting the number of turns to the original gap setting. Inspect the target surface for damage.

Step 4 — Installation: Thread the replacement housing to the same approximate depth. Reconnect the extension cable. Apply power and measure the gap voltage at the proximitor output. Adjust probe depth until the gap voltage matches the original baseline (or the value specified in the machinery datasheet). Lock the housing in position with the jam nut to the specified torque.

Step 5 — Verification: Confirm OK relay status at the monitor. Remove the alert inhibit. Log the replacement in the maintenance management system (CMMS) with the new part number, installation date, and final gap voltage.

Step 6 — Return to Service: Monitor the channel for the first 24–48 hours of operation to confirm signal stability and absence of spurious alerts.

Spare Parts Support FAQ

Q: Is the 31000-28-05-00-059-02-02 compatible with both 3300 XL and 3500 Series monitoring systems?
A: The housing assembly is a 3300 XL transducer component. It is compatible with 3300 XL proximitor modules and extension cables. When used in conjunction with a 3500 Series rack monitor, compatibility depends on the specific 3500 monitor module and its input configuration — verify against the 3500 system TDI (Transducer Driven Input) specifications before installation.

Q: How is the spare verified before shipment?
A: Each unit undergoes dimensional inspection and functional verification prior to dispatch. Original packaging and labeling are preserved where available. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions.

Q: What is the recommended inventory strategy for this component?
A: For facilities with multiple 3300 XL measurement points, maintaining a minimum of two housing assemblies per critical machine train is recommended. High-criticality assets — such as main steam turbines or process compressors — warrant a dedicated on-site spare to support same-shift replacement without waiting for procurement lead times.

Q: Can this housing replace older or discontinued Bently Nevada probe assemblies?
A: The 31000-28-05-00-059-02-02 is a current 3300 XL series part. Cross-referencing with legacy part numbers (such as earlier 330101 or 330103 series probes) requires verification of thread pitch, housing diameter, and cable connector type. Contact our technical team with your existing part number for a confirmed compatibility assessment before ordering.
