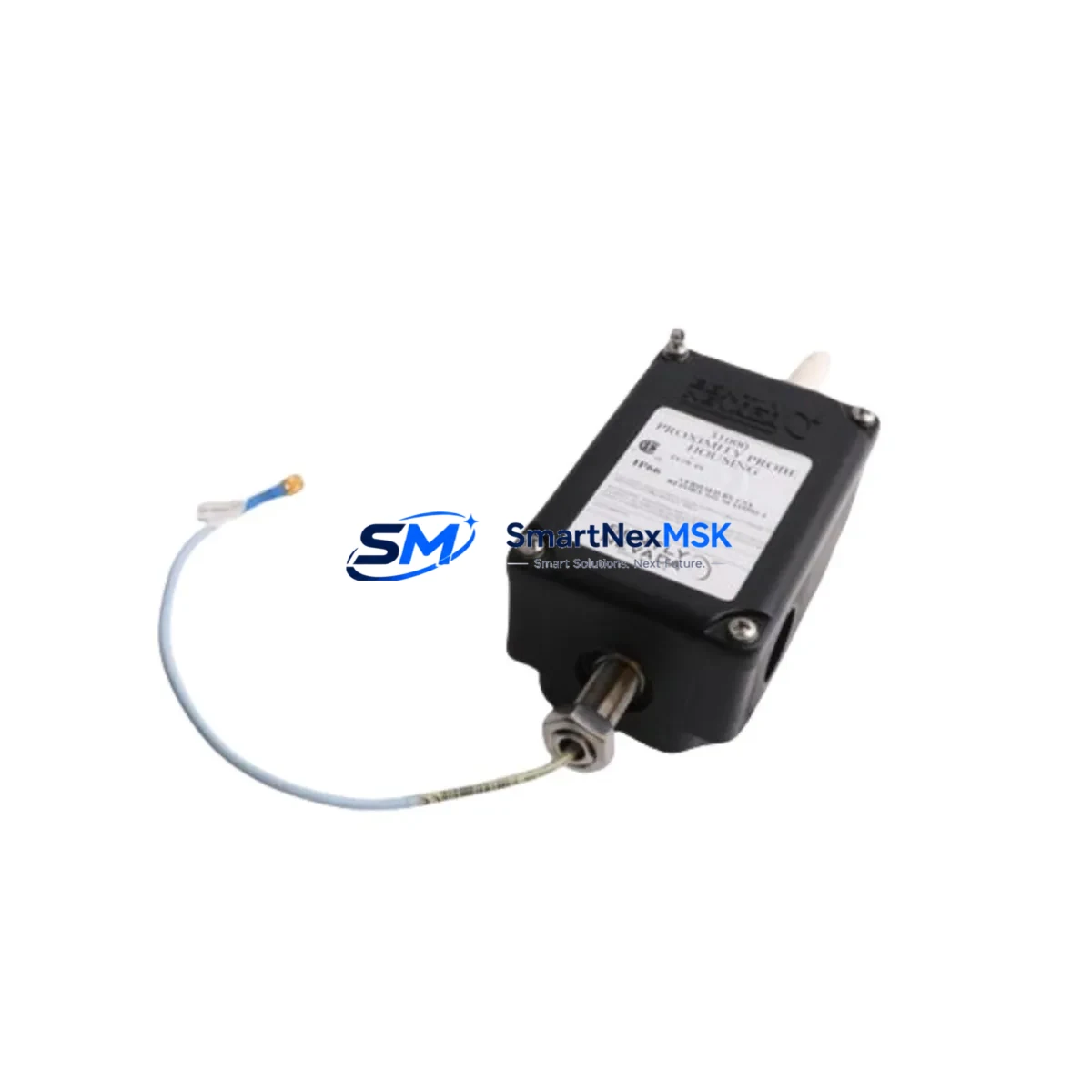

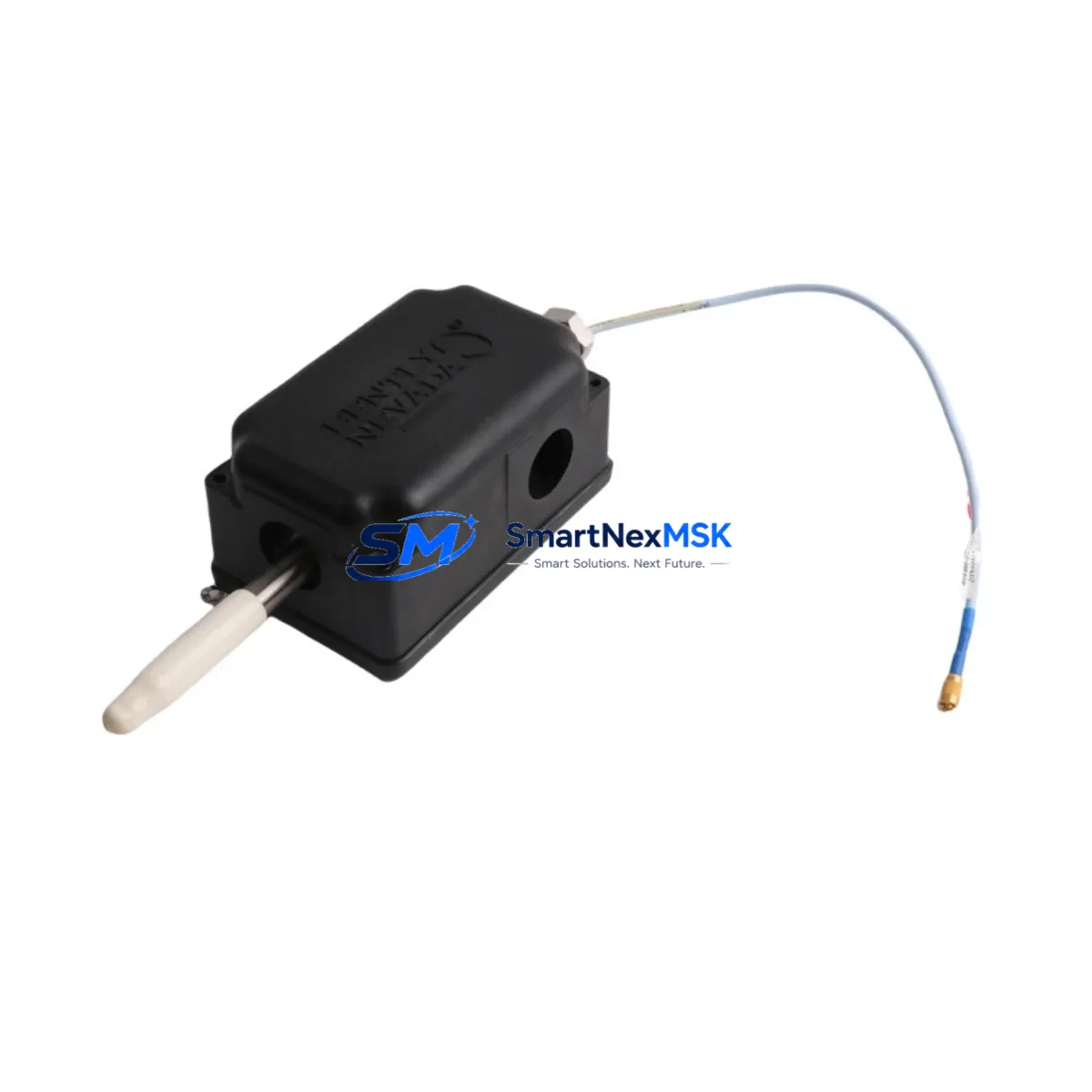

Bently Nevada 31000-28-05-15-026-06-02 Safety Probe

Bently Nevada 31000-28-05-15-026-06-02 Safety Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

The Bently Nevada 31000-28-05-15-026-06-02 is a ruggedized proximity probe module engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 XL Series, this module delivers exceptional signal integrity, outstanding electromagnetic interference (EMI) resistance, and long-term mechanical stability — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port cranes, and continuous process manufacturing lines.

Designed to operate reliably under high-load, high-vibration, and high-temperature conditions, the 31000-28-05-15-026-06-02 minimizes the risk of control interruption, signal drift, and module malfunction in critical interlock loops. Its eddy-current sensing technology ensures non-contact, wear-free measurement of shaft displacement and radial vibration — providing real-time data to the control system without physical degradation over time. This is essential in facilities where unplanned downtime carries significant safety and financial consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the Bently Nevada 31000-28-05-15-026-06-02 probe module does not operate in isolation. It functions as the primary sensing element within a layered safety architecture that begins at the shaft and extends through the entire control cabinet. The probe connects via a matched Bently Nevada 3300 XL Extension Cable to a dedicated Bently Nevada 3300 XL Proximitor Sensor (oscillator-demodulator), which conditions the raw eddy-current signal into a clean DC voltage proportional to shaft gap distance.

This conditioned signal feeds directly into a Bently Nevada 3500/40M Proximitor/Seismic Monitor or a 3500/42M Proximitor/Seismic Monitor housed within a Bently Nevada 3500 Rack. The rack’s internal power supply — typically a Bently Nevada 3500/15 Power Supply Module — must maintain stable, ripple-free DC output to prevent false trips caused by power fluctuation. Any voltage instability at this stage can propagate as apparent signal drift, triggering nuisance shutdowns or, more critically, masking genuine vibration anomalies.

To protect the entire monitoring loop from surge events and transient overvoltages common in heavy industrial environments, engineers frequently install Phoenix Contact TRABTECH surge protection devices on both the signal lines and the 24 VDC supply rail feeding the rack. In facilities with significant electromagnetic interference — such as those operating large variable frequency drives (VFDs), arc furnaces, or high-current bus bars — additional shielding and grounding of the Bently Nevada coaxial probe cable is essential to maintain signal integrity below the 1 mV noise floor required for accurate vibration measurement.

Communication between the 3500 rack and the plant DCS or safety instrumented system (SIS) is typically handled via Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus TCP, Profibus DP, or OPC-DA protocols depending on the plant’s control architecture. For facilities running a Honeywell Experion PKS or Emerson DeltaV SIS platform, the gateway ensures that vibration trip signals are transmitted with deterministic latency — a non-negotiable requirement for SIL 2 interlock loops protecting high-speed compressors, steam turbines, and boiler feed pumps.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units and catalytic cracking columns, centrifugal compressors and process pumps run continuously at high speed under corrosive, high-temperature conditions. The 31000-28-05-15-026-06-02 monitors radial shaft vibration and axial position in real time, providing the early warning data needed to prevent catastrophic bearing failure, seal damage, and uncontrolled process release. Its IP67-rated probe tip withstands hydrocarbon condensate, H₂S exposure, and thermal cycling without signal degradation.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants demand continuous, uninterrupted vibration monitoring across all bearing pedestals. A single missed vibration event can result in blade liberation, rotor bow, or catastrophic shaft failure. The 3300 XL probe system, anchored by the 31000-28-05-15-026-06-02, provides the sub-millisecond response time required to trigger emergency shutdown before mechanical damage propagates.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, vibration, and electrical noise from high-power drives. The ruggedized construction of the 31000-28-05-15-026-06-02 — with its hardened probe body and shielded coaxial cable — maintains measurement accuracy even when installed adjacent to high-current motor starters and VFD panels.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in municipal water treatment facilities require reliable vibration monitoring to prevent unplanned outages that could compromise public health infrastructure. The non-contact eddy-current technology of this probe eliminates wear-related drift, ensuring consistent baseline measurements over multi-year service intervals.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and converter fans in steel plants generate intense electromagnetic fields and mechanical shock loads. The 31000-28-05-15-026-06-02 is rated for these conditions, providing stable output even in the presence of strong magnetic fields from induction furnaces and large DC drives.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the Bently Nevada 31000-28-05-15-026-06-02?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched within 5 business days of confirmed fault diagnosis.

Q2: What pre-shipment testing is performed on this module?
Every 31000-28-05-15-026-06-02 unit undergoes functional verification prior to shipment, including gap-versus-output linearity checks, insulation resistance testing of the coaxial cable, and visual inspection of the probe tip and connector. Test records are available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 31000-28-05-15-026-06-02 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and integrates seamlessly with the 3500 Series rack monitors, including the 3500/40M and 3500/42M monitor modules. It is a direct replacement for equivalent 3300 XL probe configurations and requires no rack reconfiguration when substituting a failed unit.

Q4: Can SMARTNEXMSK support long-term or repeat supply of this part?
Yes. SMARTNEXMSK maintains dedicated inventory of high-demand Bently Nevada 3300 XL Series components, including the 31000-28-05-15-026-06-02, to support planned maintenance schedules, emergency replacements, and MRO procurement programs. Customers with ongoing requirements are encouraged to contact our sales team to discuss blanket order arrangements and priority allocation.
