Bently Nevada 31000-28-05-15-030-00-02 Spare for 3300 Automation

Bently Nevada 31000-28-05-15-030-00-02 Maintenance-Ready Spare for 3300 Automation

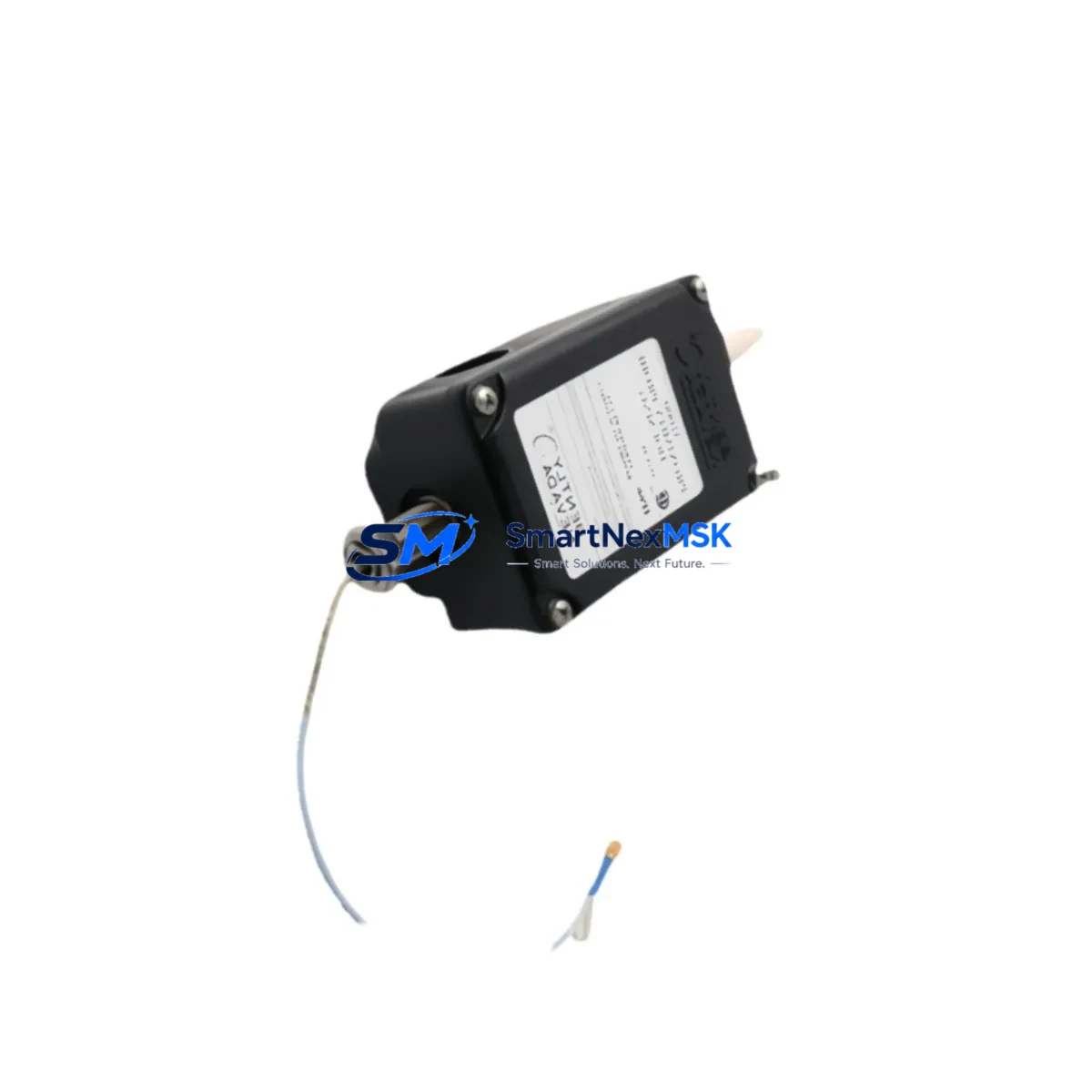

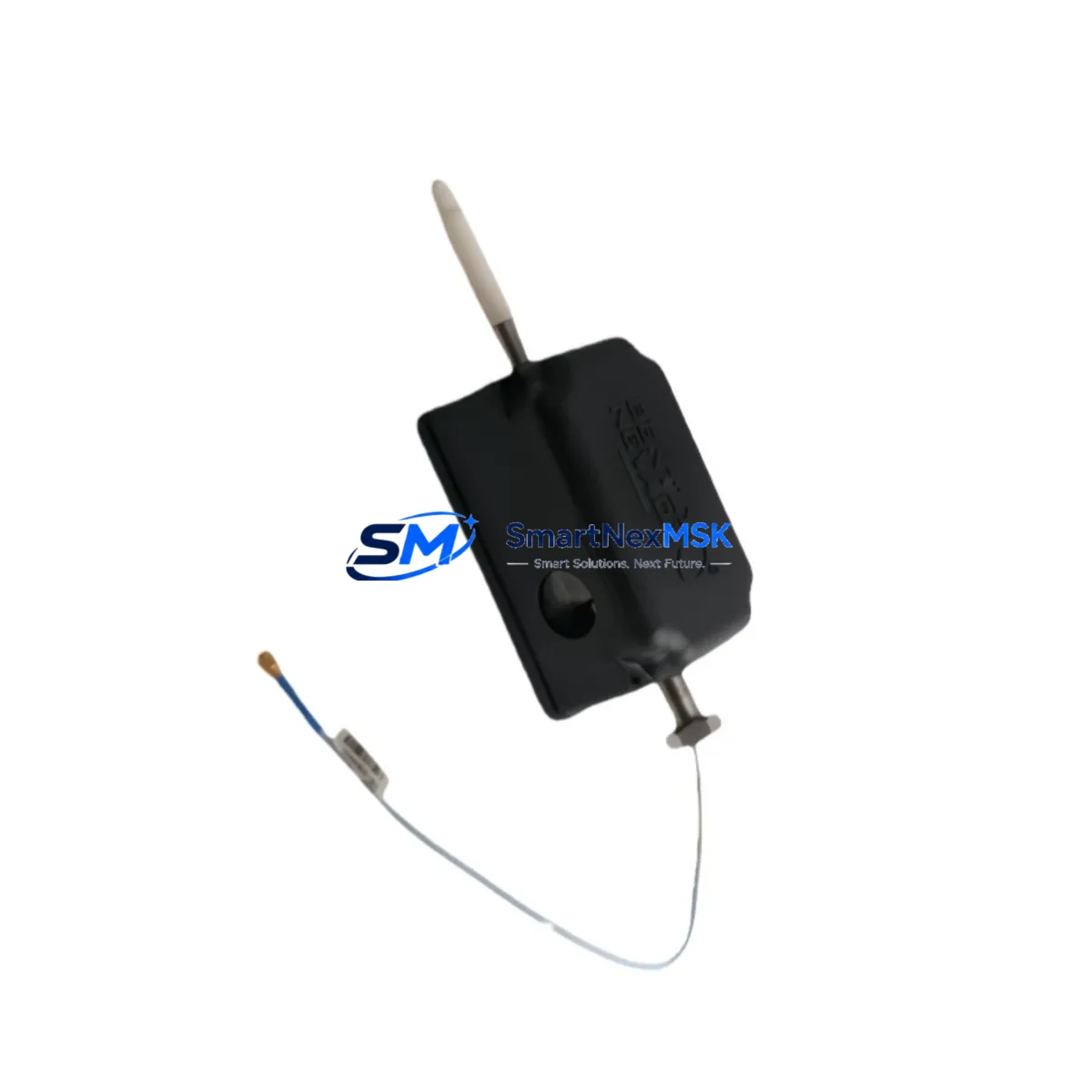

The Bently Nevada 31000-28-05-15-030-00-02 is an original proximity probe assembly engineered for the 3300 Series eddy current displacement monitoring system — one of the most widely deployed vibration and position measurement platforms in rotating machinery protection globally. This spare is stocked, pre-shipment tested, and available for immediate dispatch to support planned maintenance schedules, emergency breakdown recovery, and long-term MRO inventory programs at power generation, petrochemical, and heavy industrial facilities.

Proximity probes in the 3300 Series are the primary sensing element in turbine protection panels, compressor monitoring racks, and pump vibration systems. A degraded or failed probe compromises the entire measurement channel — triggering false alarms or, more critically, masking real shaft displacement events that precede catastrophic bearing failure. Maintaining a verified spare of the 31000-28-05-15-030-00-02 in your control room or MRO store eliminates unplanned downtime caused by probe failure and ensures your Bently Nevada monitoring system remains fully operational between scheduled outages. Every unit shipped carries a 12-month warranty from date of shipment and is verified for output voltage and sensitivity before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-28-05-15-030-00-02 proximity probe, a thorough maintenance engineer treats the event as an opportunity to inspect the entire measurement chain — not just the probe tip. The 3300 Series eddy current system is a three-component assembly: the probe itself, the extension cable (such as the 330130-XX-XX extension cable), and the driver/oscillator (such as the 330180-91-05 3300 XL 8 mm driver). All three components must be matched in total cable length and sensitivity for the system to produce accurate output. If the probe is being replaced due to degraded sensitivity or erratic gap voltage, the extension cable and driver should be bench-tested simultaneously — a worn extension cable or a drifting driver produces identical symptoms to a failed probe, and replacing only the probe without inspecting the full chain risks repeat failure within weeks.

Beyond the probe chain, maintenance planners should verify the condition of the 3300/16 or 3300/20 vibration monitor card installed in the rack to confirm the input channel is not the fault source. Rack power supply modules — such as the 3300/05 power supply — should be checked for output voltage stability, as low supply voltage is a common cause of false probe gap alarms and erratic vibration readings. Terminal blocks and field wiring connectors in the junction box should be inspected for corrosion, loose terminations, and moisture ingress, particularly in outdoor or high-humidity installations where cable gland seals and junction box gaskets degrade over time.

For facilities running older turbine control systems, the 3300 Series probe is often installed alongside Bently Nevada 3500 Series rack components, Woodward 505 or 505E speed controllers, or legacy DCS I/O cards from Honeywell, Emerson, or ABB. When performing a probe replacement during a planned outage, it is good practice to verify the calibration of any signal isolators or 4–20 mA signal conditioners in the vibration monitoring loop, and to confirm that the driver output voltage is within specification before returning the machine to service. Spare fuses for the rack power supply, a replacement set of coaxial BNC adapters, and a spare 3300 XL proximitor/driver should be kept in the same spare parts kit as the probe assembly to avoid secondary delays during field replacement. Facilities with aging 3300 Series installations should also consider stocking a spare 3300/55 keyphasor module and a 3300/46 monitor as part of a comprehensive rotating machinery spare parts program.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Before removing the probe, isolate the measurement channel at the 3300 Series monitor rack and apply LOTO procedures at the machine. Record the existing gap voltage (typically −10.0 VDC ± 0.5 V for a correctly gapped 8 mm probe) as a baseline for the new installation. Photograph the existing probe orientation and cable routing for reference.

Step 2 — Probe Removal: Disconnect the extension cable at the junction box. Unthread the probe from the probe holder using the correct spanner — never grip the cable. Inspect the probe holder threads and the target surface for wear, scoring, or contamination. A damaged target surface will cause persistent vibration reading errors regardless of probe condition.

Step 3 — New Probe Installation: Install the 31000-28-05-15-030-00-02 replacement probe, setting the air gap to the manufacturer-specified linear range (typically 1.0 mm for an 8 mm probe, confirmed against the driver calibration curve). Reconnect the 330130 extension cable and verify all coaxial connections are tight and free of contamination. Apply anti-seize compound to probe threads in high-temperature installations.

Step 4 — System Verification: Power up the 3300 XL driver and confirm gap voltage at the monitor input. Verify the channel reads within the linear range and that the vibration baseline matches pre-fault historical data from the DCS or condition monitoring historian. Clear any latched alarms at the 3300 Series monitor card before returning the machine to service. If gap voltage is outside specification, re-check total cable length compatibility between probe, extension, and driver.

Step 5 — Documentation and Inventory Update: Record the replacement in the equipment maintenance log, including the new probe serial number, installation gap, and gap voltage reading. Update the spare parts inventory to trigger reorder of a replacement 31000-28-05-15-030-00-02 for the next event. This workflow minimizes machine downtime to under two hours for a trained maintenance team and ensures full system compatibility without requiring recalibration of the monitor rack.

Spare Parts Support FAQ

Q1: Is the 31000-28-05-15-030-00-02 compatible with both the 3300 Series and 3500 Series Bently Nevada racks?
The probe is natively designed for the 3300 Series eddy current system. It can be used with 3500 Series racks when paired with a correctly matched 3500-series compatible driver and extension cable that match the total system cable length. Always verify total cable length and driver sensitivity before cross-series installation to avoid measurement errors or monitor card faults.

Q2: What does the 12-month warranty cover, and how are claims handled?
Every unit shipped is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes output voltage and sensitivity verification before dispatch. Warranty claims are handled directly through our sales team at [email protected] with a typical response within one business day.

Q3: How quickly can this spare part be shipped, and what documentation is provided?
In-stock units are dispatched within 1–3 business days. Each shipment includes a test report confirming gap voltage output and sensitivity, a packing list, and a certificate of conformance where applicable. Express freight options are available for emergency breakdown situations — contact us directly for urgent requirements.

Q4: How should the 31000-28-05-15-030-00-02 be stored as a long-term MRO spare?
Store the probe in its original packaging in a dry, temperature-controlled environment (10°C–30°C, <70% RH). Avoid storing near strong magnetic fields or sources of mechanical vibration. Inspect the coaxial connector and probe tip annually for corrosion or physical damage. Properly stored, the probe maintains full specification for 5+ years, making it suitable for long-term MRO inventory programs at facilities with extended planned maintenance intervals.
