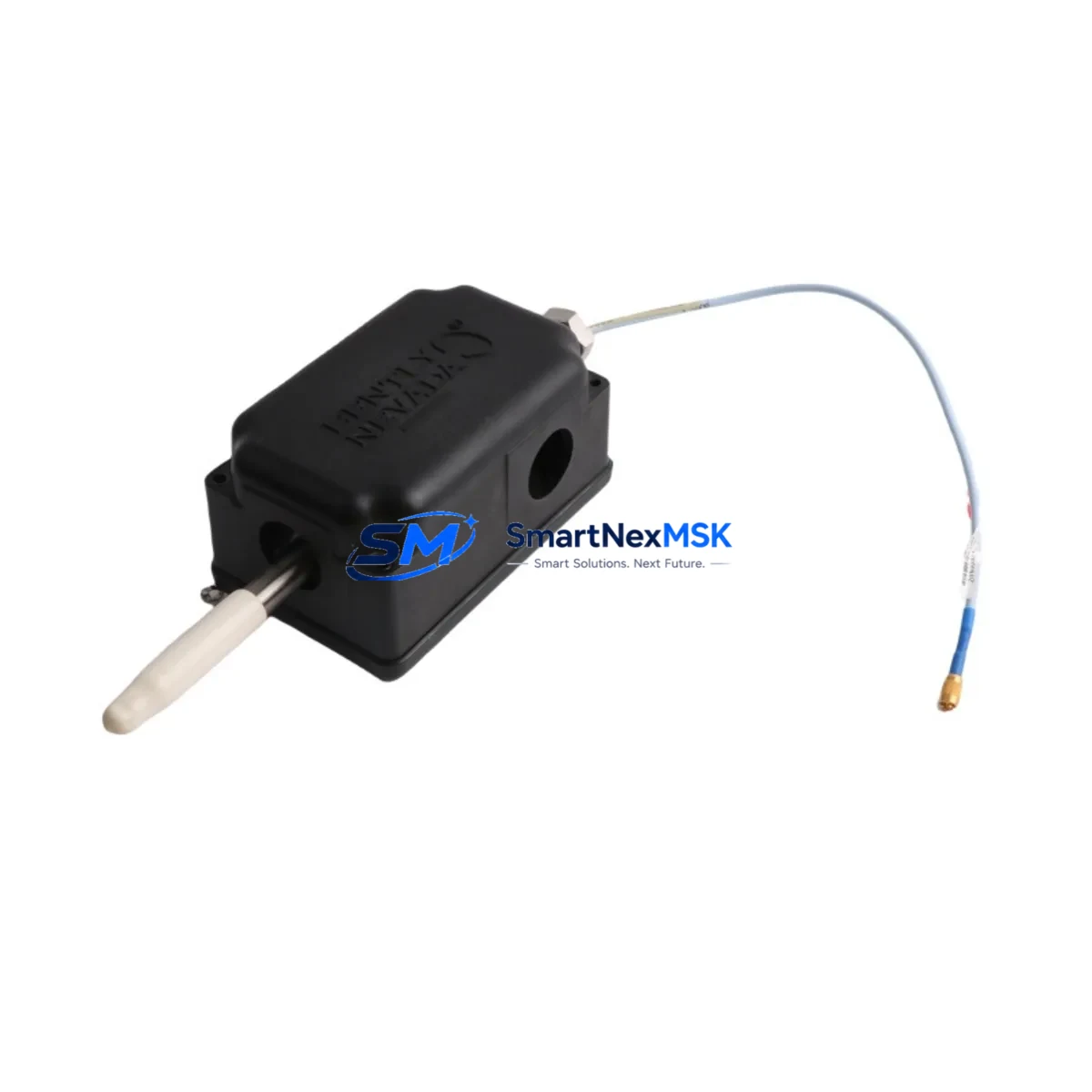

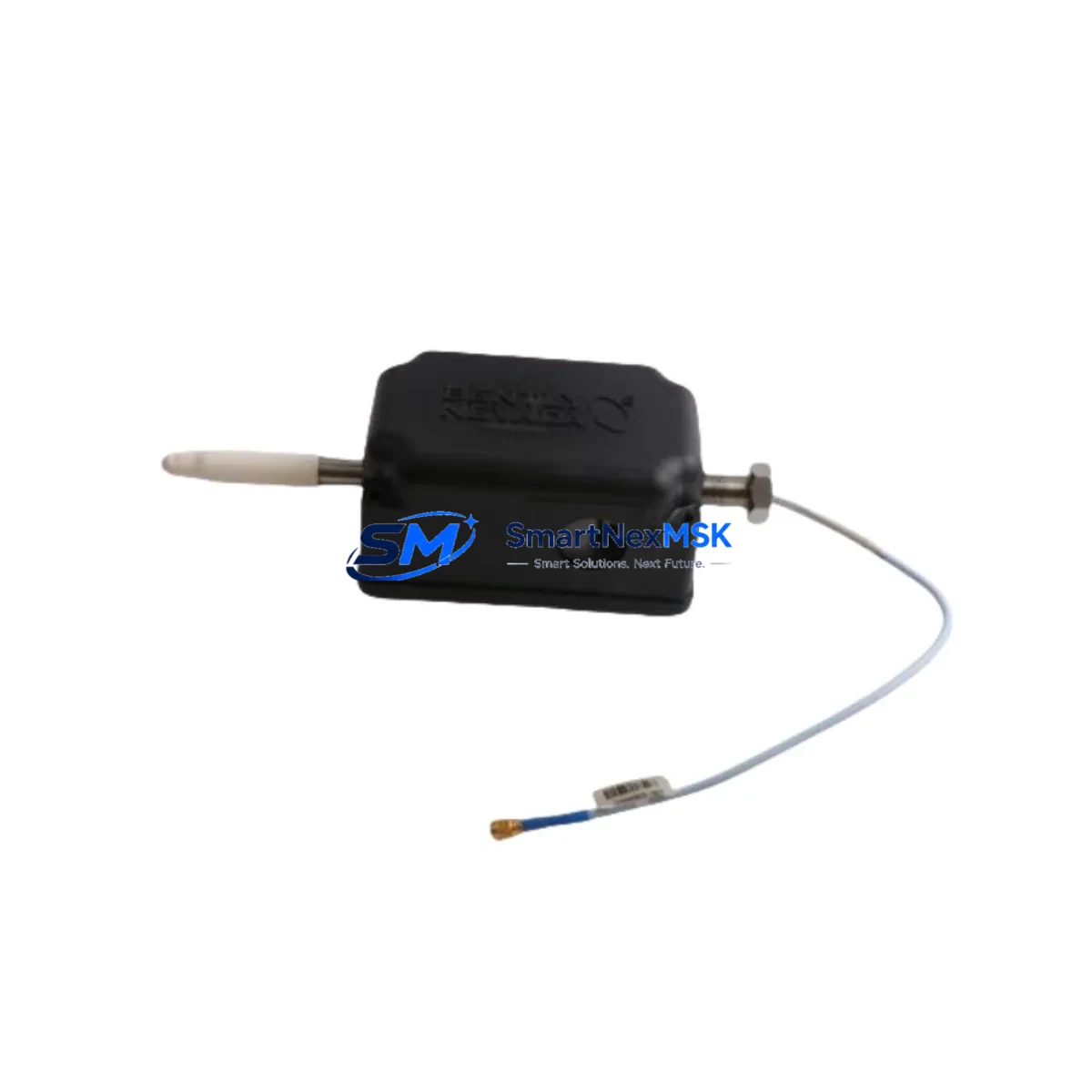

Bently Nevada 31000-28-10-00-146-00-02 Safety-Enhanced Proximity Probe Housing

Bently Nevada 31000-28-10-00-146-00-02 Safety-Enhanced Proximity Probe Housing for Harsh Industrial Sites

The Bently Nevada 31000-28-10-00-146-00-02 is a ruggedized proximity probe housing assembly engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in critical rotating machinery protection. Designed to operate reliably in high-vibration, high-temperature, chemically aggressive, and electromagnetically noisy industrial environments, this housing assembly plays a foundational role in maintaining continuous, uninterrupted shaft monitoring across compressors, turbines, pumps, and motors in safety-critical facilities.

In heavy industrial operations — including petrochemical plants, power generation stations, offshore platforms, and metallurgical facilities — the integrity of the proximity probe housing directly determines the quality and continuity of the vibration signal reaching the 3300 XL monitor rack. A compromised housing can introduce signal drift, false trips, or complete loss of measurement, any of which may trigger unplanned shutdowns or, worse, allow dangerous machinery conditions to go undetected. The 31000-28-10-00-146-00-02 eliminates these risks through its precision-machined stainless steel construction, sealed cable entry, and dimensional compatibility with the full 3300 XL probe-extension-driver chain.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection architecture, the 31000-28-10-00-146-00-02 housing is never an isolated component — it is the field-side anchor of a complete vibration monitoring chain. The housing secures the Bently Nevada 3300 XL 8 mm proximity probe in its correct radial or axial measurement position, while the matched 3300 XL extension cable routes the signal through the machine casing to the 3300 XL proximitor / driver module mounted in the control cabinet. Any mechanical looseness or housing degradation at the probe tip directly corrupts the eddy-current gap measurement, producing false vibration readings that can either mask real shaft instability or generate nuisance trips.

Within the control cabinet, the proximitor output feeds into the Bently Nevada 3500 Series rack-based machinery protection system, where dedicated 3500/42M Proximitor / Seismic Monitor cards process the raw gap voltage into calibrated vibration amplitude and phase data. These cards interface with the 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to the plant DCS or safety PLC. To maintain signal quality across the full chain, the cabinet power supply — typically a 3500/15 Power Supply Module — must deliver clean, regulated DC to the proximitor, free from ripple or transient spikes that could be misinterpreted as vibration events.

In facilities running parallel protection layers, the 3300 XL probe assembly is often installed alongside Bently Nevada 330180 series velocity transducers or 330500 series accelerometers on the same bearing housing, providing redundant vibration sensing for API 670-compliant protection loops. The housing’s dimensional precision ensures that probe gap setting — typically 1.0 to 1.5 mm for 8 mm probes — can be established and locked without field re-calibration, reducing commissioning time and eliminating a common source of measurement error in replacement scenarios. For installations in hazardous classified areas, the housing is compatible with Bently Nevada 3300 XL intrinsically safe barrier assemblies, maintaining ATEX / IECEx compliance across the probe-to-rack signal path.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In fluid catalytic cracking units, centrifugal compressor trains, and boiler feed pump systems, continuous shaft vibration monitoring is a non-negotiable safety requirement. The 31000-28-10-00-146-00-02 housing maintains probe alignment under thermal cycling and process pressure fluctuations, ensuring that the 3300 XL system delivers uninterrupted radial vibration data to the plant safety instrumented system (SIS). Any loss of probe signal in these environments can trigger a safe-state shutdown of the entire compressor train — a costly event that proper housing integrity prevents.

Power Generation — Steam and Gas Turbines: Turbine shaft monitoring demands sub-micron measurement stability across wide temperature ranges and intense electromagnetic fields generated by generator windings. The ruggedized housing shields the probe tip from oil contamination and mechanical impact during maintenance cycles, preserving the factory-set gap and eliminating the need for re-gapping after routine inspections. This directly reduces maintenance downtime and protects the turbine from undetected rotor instability during startup transients.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pump drives operate in environments with extreme dust loading, water ingress, and structural vibration transmitted through the machine foundation. The sealed housing construction of the 31000-28-10-00-146-00-02 prevents particulate contamination of the probe face, which would otherwise shift the gap calibration and produce false high-vibration alarms — leading to unnecessary production stoppages in continuous ore processing circuits.

Water and Wastewater Treatment: High-service pumps and blower trains in water treatment facilities run continuously for months without planned maintenance windows. The corrosion-resistant stainless steel housing withstands humid, chemically treated air environments, ensuring that the proximity probe remains functional and accurately positioned throughout extended service intervals. Reliable vibration data from these assets supports predictive maintenance scheduling and prevents catastrophic bearing failures that would interrupt water supply.

Metallurgy and Steel Production: Rolling mill drives, continuous caster pinch rolls, and induction furnace cooling pumps operate under severe thermal and mechanical stress. In these environments, the 31000-28-10-00-146-00-02 housing provides the mechanical robustness needed to maintain probe integrity during thermal expansion cycles, preventing the signal loss events that could allow undetected rotor eccentricity to develop into a destructive failure.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 31000-28-10-00-146-00-02?
The 12-month warranty covers all manufacturing defects, dimensional non-conformance, and functional failures under normal operating conditions. If the unit fails to maintain probe alignment, exhibits housing seal failure, or shows corrosion under standard industrial exposure within the warranty period, we will replace or refund the unit. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on each unit?
Every 31000-28-10-00-146-00-02 housing assembly undergoes a full outgoing inspection that includes dimensional verification of thread pitch and probe seating depth, visual inspection of the housing body and cable entry seal, and functional fit-check against a reference 3300 XL 8 mm probe. Units that do not meet Bently Nevada dimensional specifications are quarantined and not shipped. A test record is available upon request for critical installation projects.

Q3: Is this housing compatible with both new and legacy 3300 XL probe configurations?
Yes. The 31000-28-10-00-146-00-02 is dimensionally compatible with the full range of Bently Nevada 3300 XL 8 mm proximity probes, including both current production and legacy variants. It is also compatible with standard 3300 XL armored extension cables and proximitor mounting arrangements, making it a direct drop-in replacement in existing installations without requiring bracket modification or re-calibration of the driver module.

Q4: Can you guarantee long-term supply for ongoing maintenance programs?
Yes. We maintain dedicated stock of the 31000-28-10-00-146-00-02 to support planned maintenance schedules, emergency replacements, and multi-unit procurement for spare parts programs. For facilities managing large fleets of 3300 XL-equipped machines, we offer reserved inventory arrangements and priority dispatch to ensure that a housing failure never becomes a production bottleneck. Contact our team to discuss volume pricing and consignment stock options.
