Bently Nevada 31000-29-05-00-090-01-02 Retrofit-Ready Proximity Probe Housing

Bently Nevada 31000-29-05-00-090-01-02 Retrofit-Ready Proximity Probe Housing for 31000 Series Control Systems

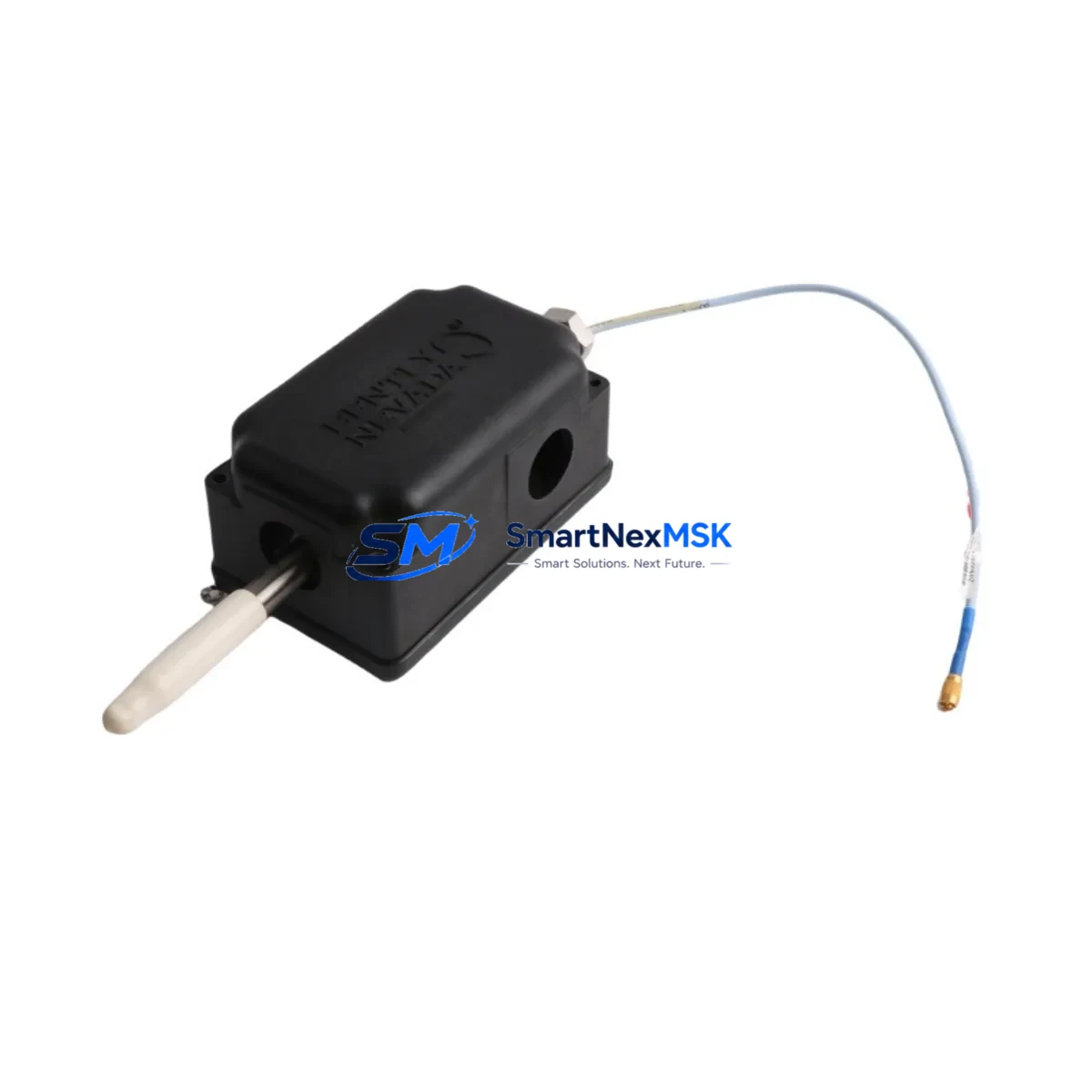

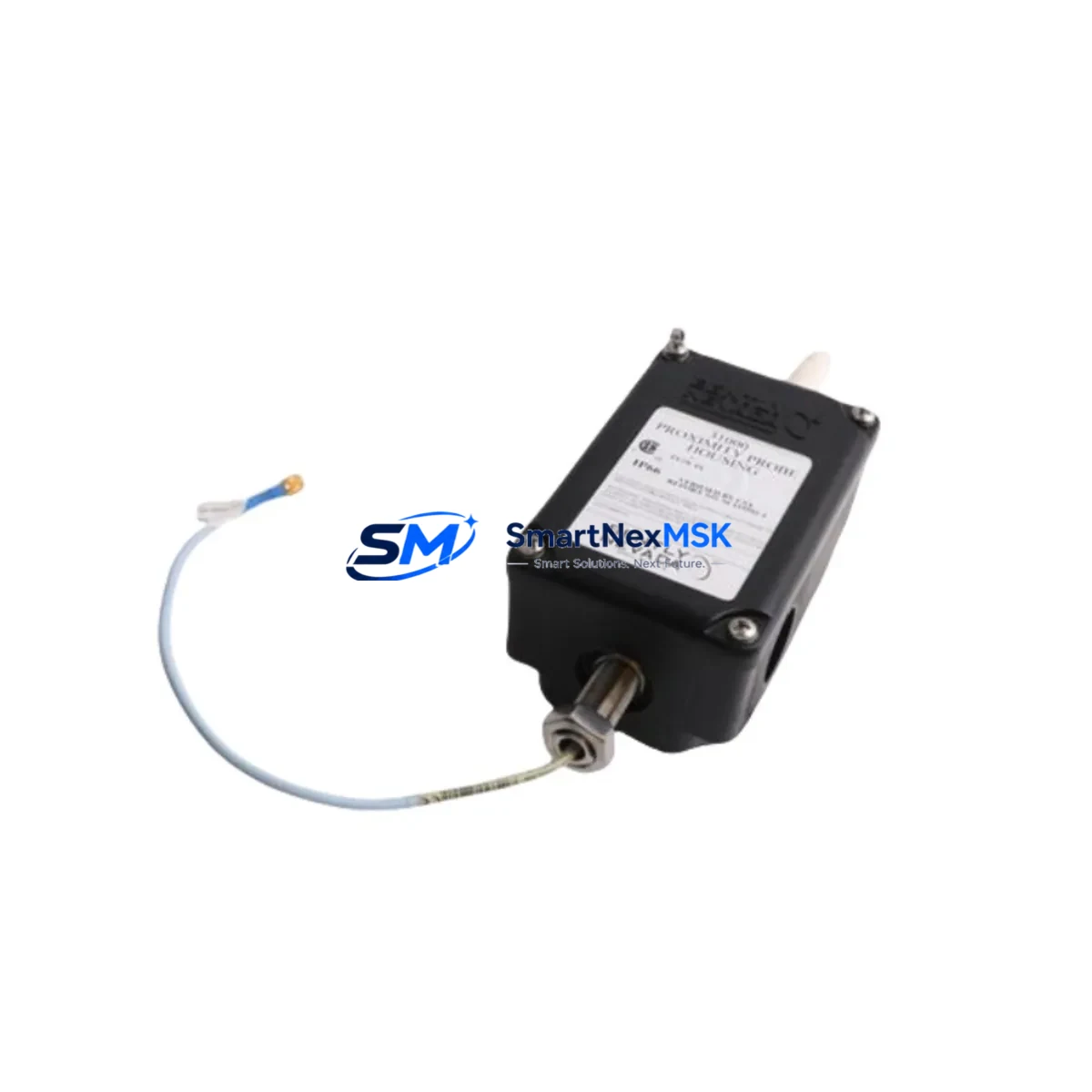

The Bently Nevada 31000-29-05-00-090-01-02 is a precision proximity probe housing engineered for seamless integration into Bently Nevada 3500 Series and 3300 Series machinery protection systems. As legacy 31000 Series components approach end-of-life or become increasingly difficult to source, this retrofit-ready housing provides a verified drop-in replacement path that preserves existing wiring, mounting geometry, and signal chain integrity — minimizing engineering rework and unplanned downtime during system modernization.

Designed for rotating machinery monitoring applications including turbines, compressors, pumps, and motors, the 31000-29-05-00-090-01-02 housing maintains the eddy-current sensing gap tolerances required by Bently Nevada’s Proximitor® signal conditioning modules. Whether you are replacing a failed unit on an emergency basis or executing a planned upgrade of an aging control cabinet, this component supports a controlled, low-risk migration path.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 31000-29-05-00-090-01-02 begins well before the physical swap. Engineers should first audit the existing wiring harness and armored extension cable — typically an 990-05-70-01-00 or equivalent Bently Nevada cable assembly — to confirm continuity and insulation integrity. Damaged cable jackets are a common source of signal noise that can be misattributed to a faulty probe housing.

Next, verify the Proximitor® module installed in the 3500 rack — commonly a 3500/40M proximitor or 3500/42M dual-channel proximitor — is configured for the correct probe type and gap range. If the rack also houses a 3500/22M transient data interface or a 3500/32 relay module, confirm that alarm setpoints and relay logic remain consistent with the new probe’s output characteristics after calibration.

For systems where the 31000 Series probe feeds into a DCS via a 3500/20 rack interface module or a legacy 3300/16 Proximitor, check the analog input scaling on the DCS side. Many older DCS configurations use hardcoded engineering unit conversions that must be updated if the replacement probe has a slightly different sensitivity factor (mV/mil or V/mm).

In control cabinets where the probe signal is also monitored by a vibration monitoring HMI or a condition monitoring platform, update the tag configuration and alarm thresholds to reflect the new probe’s calibrated output. This is particularly important in systems using Bently Nevada System 1 software or third-party SCADA platforms that trend vibration data over time.

If the retrofit is part of a broader I/O expansion or control system upgrade — for example, migrating from a legacy 3300 Series rack to a modern 3500 Series rack — plan for the addition of a 3500/01 power supply module and a 3500/05 system rack to accommodate additional monitoring channels. Ensure the new rack’s backplane addressing does not conflict with existing module slot assignments.

Finally, for sites running Modbus RTU or FOUNDATION Fieldbus communication between the machinery protection system and the plant DCS, verify that the communication module — such as a 3500/92 communication gateway — is correctly mapped to the new probe channel after the swap. A communication mapping error can result in the DCS receiving stale or incorrect vibration data without triggering any hardware fault alarm.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe housing replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, pre-configure and bench-test the replacement 31000-29-05-00-090-01-02 unit alongside the target Proximitor module. Confirm the gap voltage output at the nominal installation gap using a calibrated target disc of the same material as the production shaft.

During the outage, follow a strict sequence: isolate the probe channel at the 3500 rack, remove the armored cable from the junction box, extract the old housing, install the new unit, reconnect the cable, and restore power to the Proximitor. Use a calibrated gap tool to set the probe-to-shaft gap before the machine is returned to service. Document the as-found and as-left gap voltage readings for the maintenance record.

To protect existing program logic, do not modify PLC or DCS ladder logic during the probe swap unless a known incompatibility has been identified. If the replacement probe requires a sensitivity adjustment, make the change at the Proximitor module level rather than in the control program — this preserves the original alarm logic and avoids the need for a full program re-validation cycle.

For critical machinery where continuous monitoring is required, consider deploying a portable vibration analyzer in parallel during the swap window to maintain visibility of shaft vibration levels. This approach allows the maintenance team to confirm that the machine is operating within safe vibration limits before the permanent monitoring system is fully restored and verified.

All replacement units are pre-tested prior to shipment and include a 12-month warranty covering manufacturing defects and signal performance under normal operating conditions. In-stock units typically ship within 1–3 business days, supporting tight maintenance schedules and emergency replacement scenarios.

Retrofit Support FAQ

Q1: Is the 31000-29-05-00-090-01-02 a direct replacement for the original Bently Nevada part?
A: Yes. This unit is a verified retrofit-ready replacement for the original 31000-29-05-00-090-01-02 proximity probe housing. It maintains the same threaded tip geometry, cable connector interface, and eddy-current sensing characteristics. A gap calibration check is recommended after installation to confirm the Proximitor output is within the specified range.

Q2: What wiring changes are required during installation?
A: In most cases, no wiring changes are required. The replacement housing uses the same connector pinout as the original. Reconnect the existing armored extension cable to the new housing, verify cable continuity, and confirm the Proximitor module output voltage at the nominal gap before returning the channel to service.

Q3: How do I verify compatibility with my existing 3500 Series rack?
A: Confirm the Proximitor module type installed in your 3500 rack (e.g., 3500/40M or 3500/42M) and cross-reference the probe sensitivity specification. The 31000-29-05-00-090-01-02 is compatible with standard Bently Nevada Proximitor modules configured for 5 mm or 8 mm probe ranges. If your system uses a non-standard sensitivity setting, contact our technical team before ordering.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, connector integrity, and signal performance under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental ratings. Warranty claims are processed within 5 business days of receipt of the returned unit.
