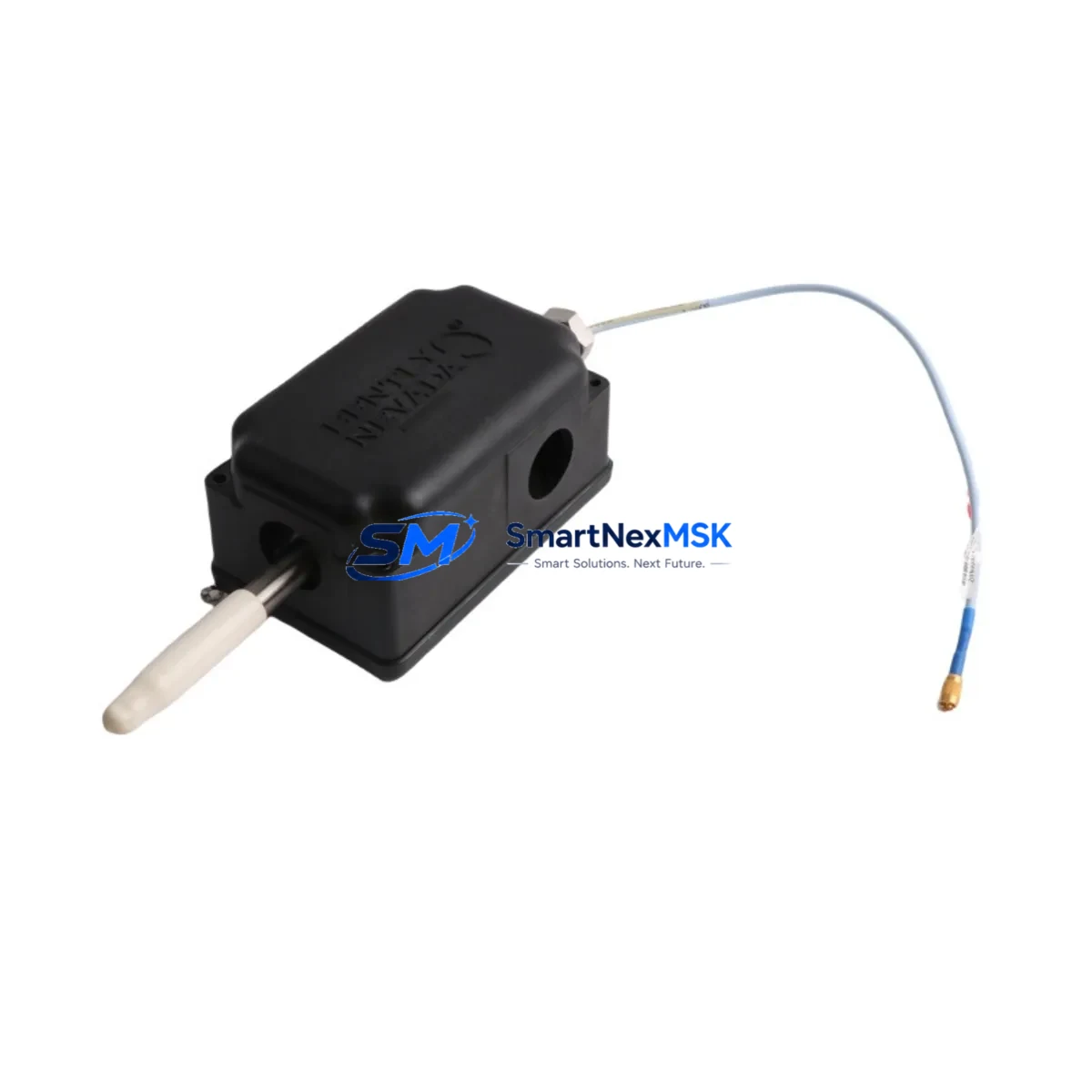

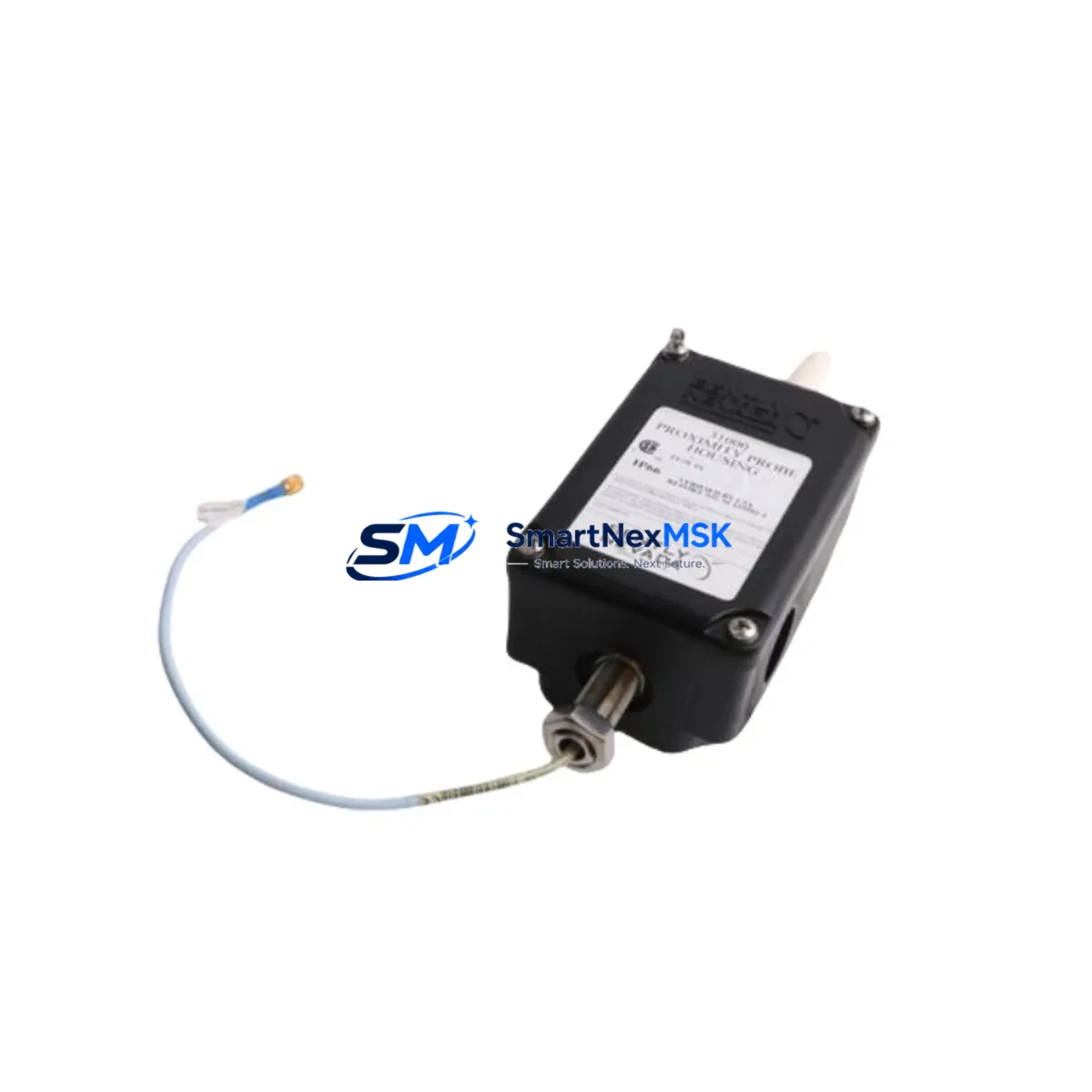

Bently Nevada 31000-29-10-20-025-02-02 Safety Proximity Probe

Bently Nevada 31000-29-10-20-025-02-02 Safety-Enhanced Proximity Probe Housing for Harsh Industrial Sites

The Bently Nevada 31000-29-10-20-025-02-02 is a ruggedized proximity probe housing assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Series condition monitoring system, this probe housing delivers exceptional mechanical integrity and signal stability in high-load, high-interference, and hazardous-area installations. Whether deployed in rotating machinery protection circuits, critical interlock loops, or continuous production lines, the 31000-29-10-20-025-02-02 is built to eliminate control interruptions and minimize unplanned downtime.

In heavy industrial settings — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port machinery, and continuous manufacturing lines — vibration monitoring is not optional. It is a frontline safety function. Signal drift, probe misalignment, cable degradation, or housing failure can cascade into turbine trips, compressor shutdowns, or catastrophic mechanical failures. The 31000-29-10-20-025-02-02 housing is precision-machined to maintain consistent eddy-current probe positioning, ensuring that the 3300 XL proximitor/monitor receives clean, drift-free signals at all times.

This housing assembly is fully compatible with Bently Nevada’s standard 25 mm proximity probe systems and integrates directly with the 3300 XL 8mm Proximity Transducer System and associated 3300 XL proximitor extension cables. When paired with the Bently Nevada 3300/55 Dual Voting Trip Module or the 3300/16 Keyphasor Module, the complete protection chain achieves the redundancy and voting logic required for SIL-rated machinery protection. The housing’s robust stainless-steel construction resists corrosion, mechanical shock, and thermal cycling — critical properties in environments where ambient temperatures fluctuate widely and chemical exposure is routine.

Control cabinet engineers specifying this component for turbine protection panels or compressor control skids will find that the 31000-29-10-20-025-02-02 integrates seamlessly with Bently Nevada 3500 Series rack-based monitoring systems, including the 3500/42M Proximitor/Seismic Monitor and 3500/22M Transient Data Interface. For installations requiring intrinsic safety barriers or galvanic isolation in Zone 1 or Zone 2 hazardous areas, the probe housing is compatible with approved MTL or Pepperl+Fuchs Zener barrier assemblies, ensuring the entire signal path from probe tip to control room DCS remains within safe energy limits.

Surge protection is a persistent concern in heavy industrial control cabinets. Proximity probe circuits are susceptible to induced transients from nearby VFDs, large motor starts, and switching operations. The mechanical and electrical design of the 31000-29-10-20-025-02-02 housing minimizes antenna effect and shields the probe body from electromagnetic interference, reducing the risk of spurious trips or false readings that could trigger unnecessary shutdowns. When used alongside Bently Nevada 990 Direct Vibration Monitor modules or 3500/40M Proximitor Monitor cards, the system provides a complete, interference-resistant vibration protection solution.

For power system integrity within the monitoring rack, pairing this probe assembly with a Bently Nevada 3500/15 Power Supply or a redundant power supply configuration ensures that voltage fluctuations on the plant bus do not propagate into the measurement chain. Communication anomalies between the monitoring rack and the plant DCS — whether via Modbus RTU, FOUNDATION Fieldbus, or Bently Nevada’s System 1 software interface — are further mitigated by the clean signal quality delivered by a properly housed and aligned proximity probe.

Every unit of the 31000-29-10-20-025-02-02 shipped by SMARTNEXMSK undergoes pre-shipment inspection covering dimensional verification, thread integrity, and material certification review. Stock is maintained to support both planned maintenance outages and emergency spare-part requirements. Our inventory management ensures rapid dispatch for critical plant shutdowns where probe replacement is on the critical path to restart.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the Bently Nevada 3500 Series rack relies on the integrity of every component in the signal chain. The 31000-29-10-20-025-02-02 probe housing anchors the field-side of this chain. Within the rack, the 3500/42M Proximitor/Seismic Monitor processes the raw proximity signal and compares it against configured alert and danger setpoints. The 3500/32 4-Channel Relay Module then executes the trip logic, driving shutdown actuators or DCS interlock inputs when vibration exceeds safe limits.

To protect the rack from power-side disturbances, the Bently Nevada 3500/15 Dual-Output Power Supply provides regulated, isolated DC power to all monitor cards. In critical applications, a redundant power supply in hot-standby configuration eliminates the power supply as a single point of failure. On the communication side, the 3500/22M Transient Data Interface captures high-resolution waveform data for post-event analysis, while the 3500/92 Communication Gateway Module bridges the monitoring rack to plant DCS systems via Modbus or OPC protocols.

For installations in classified hazardous areas, MTL 764x Series Zener barriers or Pepperl+Fuchs KFD2-series galvanic isolators are inserted between the field probe and the rack input to maintain intrinsic safety compliance. Surge protection devices rated for the proximity probe signal range are installed at the cabinet entry point to absorb transients from long cable runs through electrically noisy plant areas. The Bently Nevada 3300/16 Keyphasor Module provides the once-per-revolution reference signal essential for phase-referenced vibration analysis and balancing operations, completing the protection and diagnostic architecture.

Critical Industrial Safety Applications

The 31000-29-10-20-025-02-02 is deployed across a wide spectrum of safety-critical industrial applications. In petrochemical and refinery operations, it monitors shaft vibration on centrifugal compressors, pumps, and expanders in continuous service, where an undetected bearing failure can result in fire, explosion, or toxic release. In power generation — including gas turbines, steam turbines, and large synchronous generators — proximity probes in ruggedized housings provide the primary vibration signal to the turbine protection system, enabling automatic trip before catastrophic rotor damage occurs.

In mining and mineral processing, the probe housing withstands the high dust loading, vibration, and temperature extremes typical of crusher drives, mill pinion bearings, and conveyor head-pulley assemblies. Water and wastewater treatment facilities rely on continuous pump and blower monitoring to prevent unplanned outages that could compromise public health infrastructure. In metallurgical plants — including electric arc furnace operations and rolling mill drives — the probe housing’s resistance to electromagnetic interference from high-current switching is essential for reliable signal transmission.

Port and bulk-handling machinery, including ship-to-shore cranes and stacker-reclaimers, operate in corrosive marine environments where housing material integrity is paramount. In continuous manufacturing — paper mills, cement plants, and chemical reactors — the 31000-29-10-20-025-02-02 supports the always-on monitoring philosophy that underpins modern predictive maintenance programs, reducing unplanned downtime and extending mean time between failures across the rotating equipment fleet.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 31000-29-10-20-025-02-02?
The 12-month warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions from the date of shipment. If the unit fails to perform as specified within the warranty period, SMARTNEXMSK will arrange replacement or repair at no additional cost. Warranty claims are processed promptly to minimize impact on plant operations.

Q2: What pre-shipment checks are performed before dispatch?
Each unit undergoes dimensional verification to confirm probe thread pitch and housing geometry, thread integrity inspection to ensure proper probe engagement without cross-threading risk, and material certification review to confirm stainless-steel grade compliance. Units that do not pass inspection are quarantined and not shipped.

Q3: Is the 31000-29-10-20-025-02-02 compatible with existing 3300 XL and 3500 Series installations?
Yes. This housing is designed to the Bently Nevada 3300 XL mechanical specification and is a direct fit replacement for existing installations using 25 mm proximity probe systems. It is compatible with the full range of 3300 XL proximitor extension cables and integrates with 3500 Series monitor cards without modification to the rack configuration or system software.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains standing inventory of the 31000-29-10-20-025-02-02 to support both scheduled turnaround maintenance and emergency spare-part requirements. We work with multiple sourcing channels to ensure supply continuity even during periods of OEM lead-time extension. Customers with large installed bases are encouraged to discuss consignment or blanket-order arrangements to secure priority allocation.
