Bently Nevada 31000-30-05-15-049-03-02 3300 XL Spare: Proximity Probe Replacement for Industrial Downtime Control

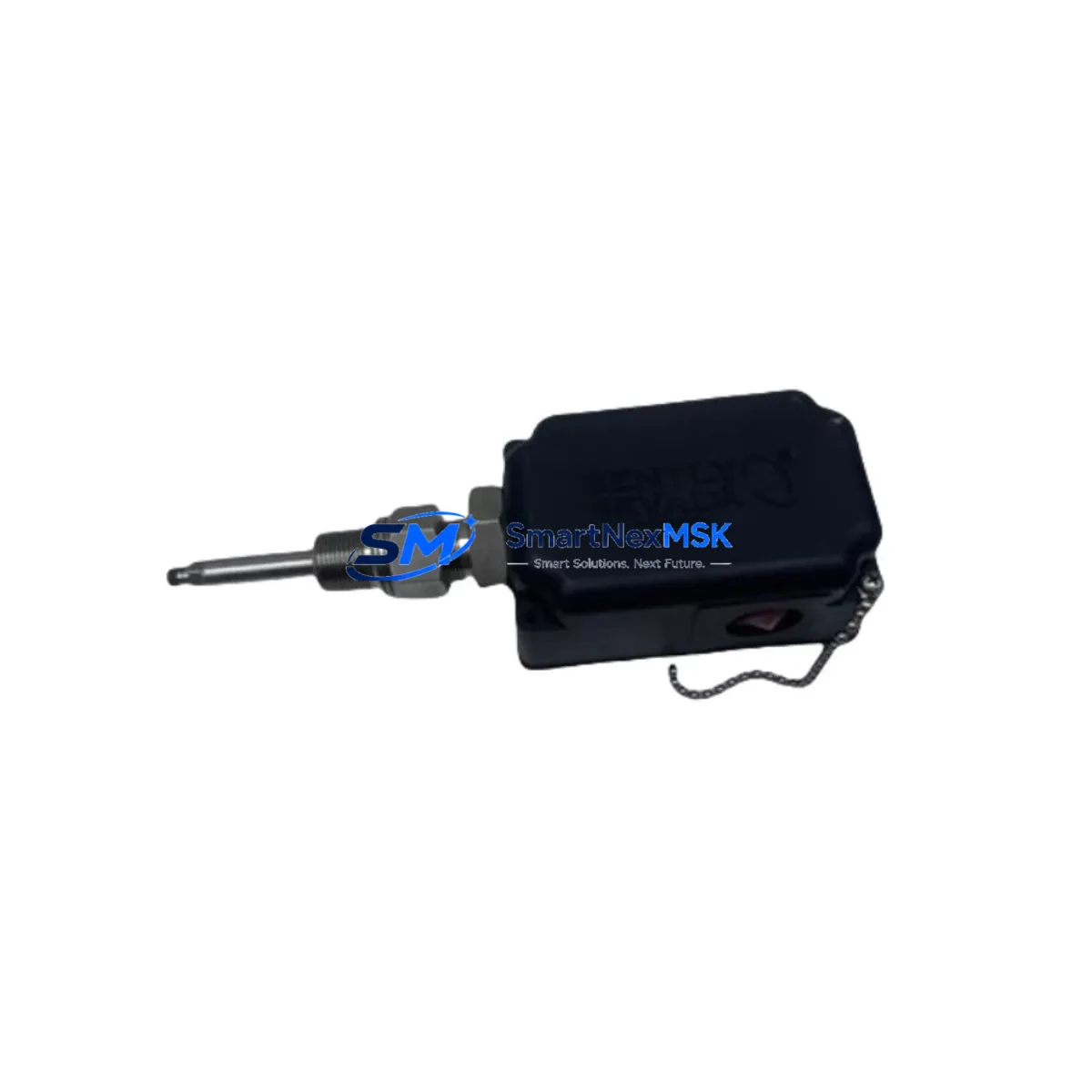

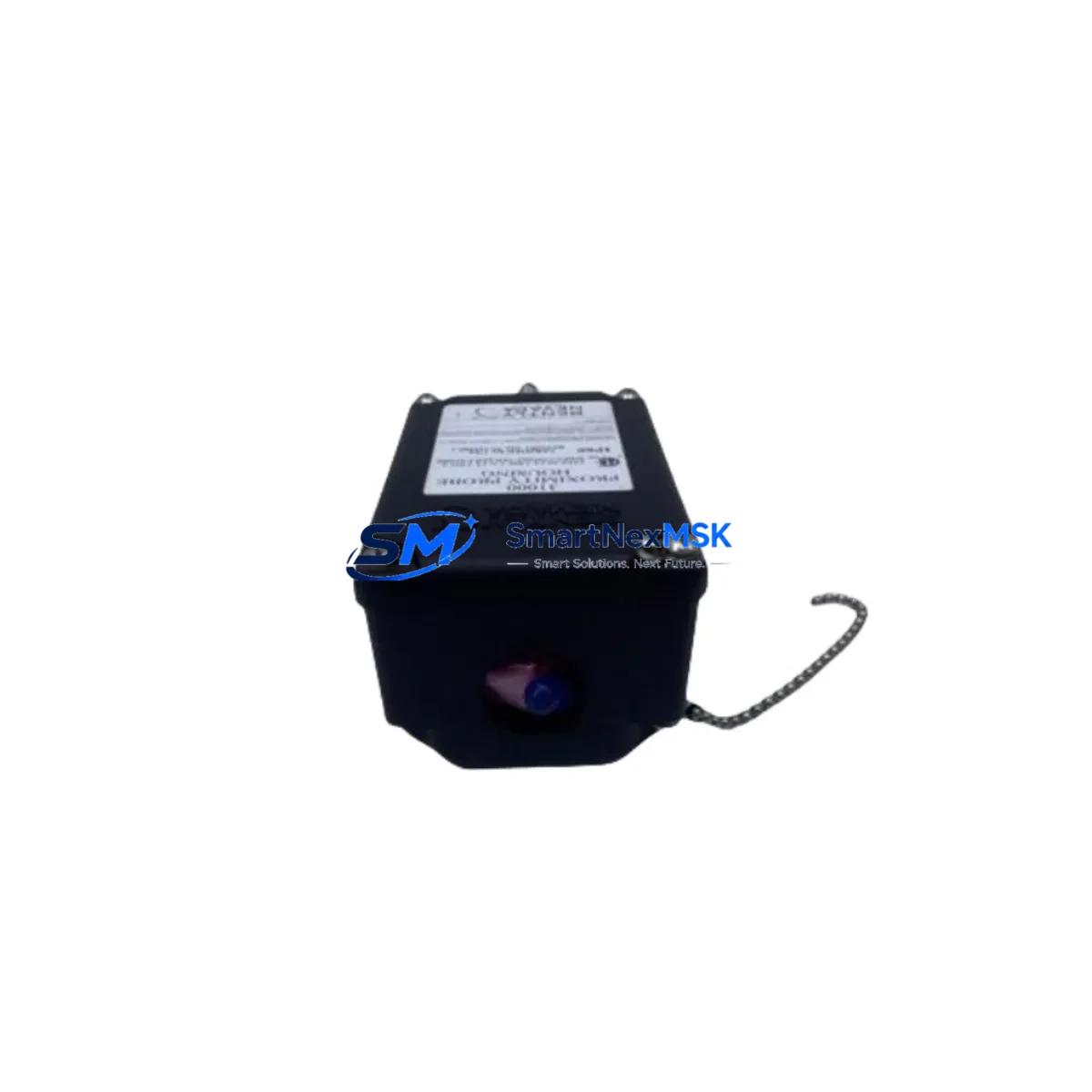

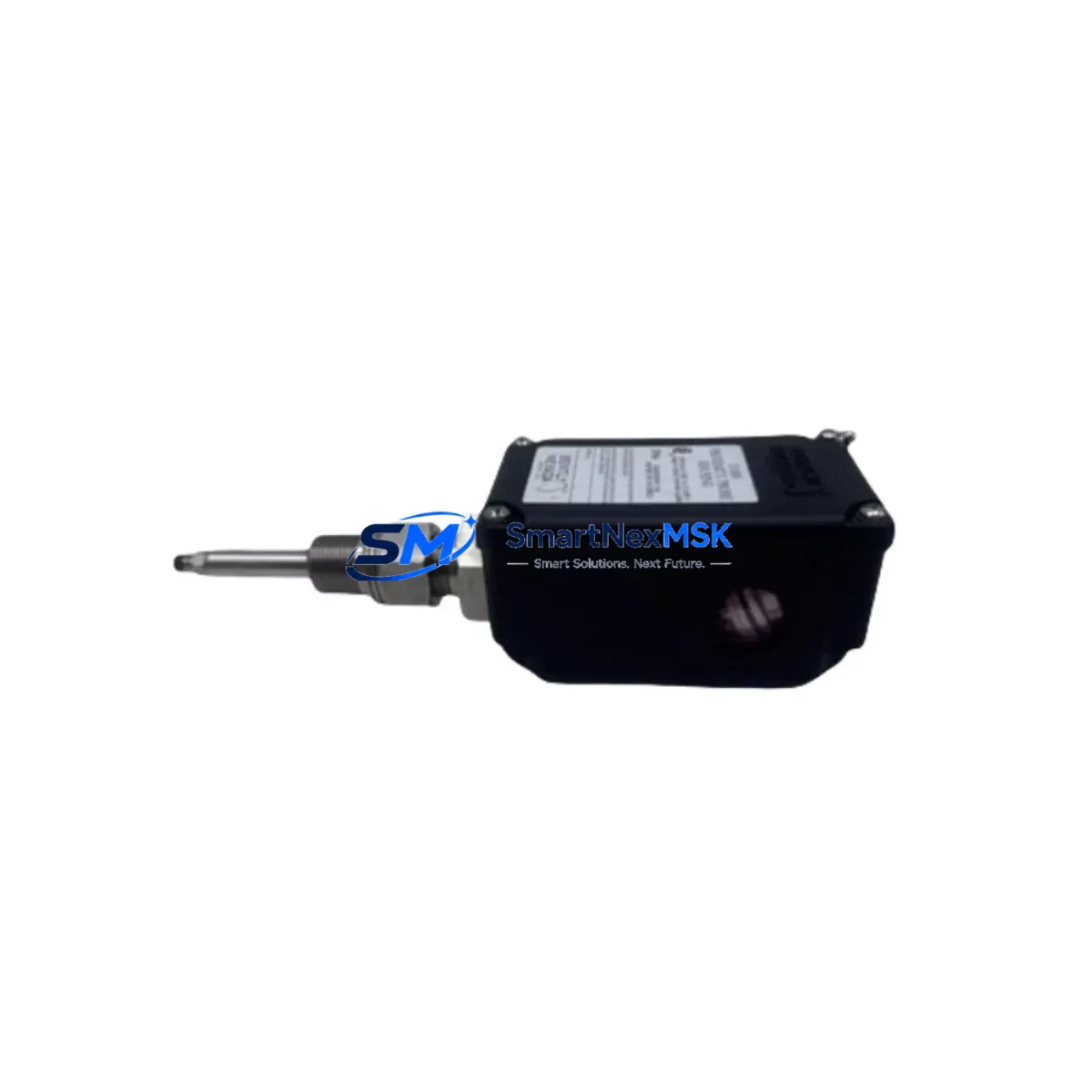

The Bently Nevada 31000-30-05-15-049-03-02 is an original proximity probe housing and extension cable assembly engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in power generation, petrochemical, oil & gas, and heavy industrial environments, this spare part is a critical component in any maintenance-ready inventory strategy. When a proximity probe fails or degrades, the entire shaft vibration and position monitoring loop is compromised — making rapid, verified replacement essential to restoring safe machine operation and avoiding unplanned downtime.

At SMARTNEXMSK, every 31000-30-05-15-049-03-02 unit is sourced from authorized supply channels, electrically tested prior to dispatch, and shipped with a 12-month warranty. Long-term supply continuity is maintained for legacy 3300 XL installations, including aging systems where OEM support has been reduced or discontinued.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a degraded or failed 31000-30-05-15-049-03-02 proximity probe during routine vibration trending or alarm response, the replacement scope should extend beyond the probe itself. A complete loop inspection is strongly recommended to prevent repeat failures and ensure measurement accuracy is fully restored.

Begin by verifying the condition of the paired 3300 XL 8 mm Proximitor Sensor (driver module), as probe and driver are a matched system — replacing only one without confirming the other’s calibration can introduce measurement offset errors. Inspect the 3300 XL monitor card (e.g., 3300/16 or 3300/20) for any alarm history, relay output faults, or communication errors that may indicate a broader loop issue rather than an isolated probe failure.

Check the coaxial extension cable routing for mechanical damage, moisture ingress at connectors, or shield continuity loss — cable degradation is a common root cause of intermittent vibration signal noise. Inspect the terminal block and field wiring within the control cabinet for corrosion, loose terminations, or incorrect shielding grounding, all of which can corrupt the -18 VDC eddy-current signal.

For systems with multiple measurement planes, simultaneously audit adjacent proximity probes on the same shaft — particularly the complementary radial probe at 90° or the axial/thrust position probe — since mechanical events that damage one probe often stress nearby sensors. Review the Keyphasor transducer (e.g., 3300 XL Keyphasor module) if phase-referenced vibration analysis is part of your monitoring strategy.

At the rack level, confirm the 3300 XL power supply module output voltage is within specification, as low supply voltage is a frequent but overlooked cause of proximity system drift. If the installation includes a 3300/55 Dual Voting Trip or relay output module, test relay operation and confirm setpoint integrity after probe replacement. For facilities running System 1 or System 1 Evolution software, verify that the new probe’s gap voltage and sensitivity constants are correctly entered in the configuration database to maintain accurate engineering unit conversion.

Stocking a minimum of two 31000-30-05-15-049-03-02 units per critical machine train, alongside spare Proximitor sensors and at least one spare monitor card, is a recognized best practice for facilities operating under API 670 machinery protection standards.

Site Replacement Workflow

Step 1 — Isolation & Permit: Coordinate with operations to place the affected machine in a safe state. Issue a work permit and confirm the monitor channel is bypassed or the trip function is inhibited before probe removal to prevent spurious shutdowns.

Step 2 — Probe Removal: Disconnect the coaxial cable at the Proximitor sensor. Carefully unthread the probe from the mounting bracket, noting the installed gap distance (typically 1.0–1.5 mm for 8 mm probes on steel targets). Record the gap voltage reading if the system was still partially functional.

Step 3 — Replacement Installation: Install the new 31000-30-05-15-049-03-02 probe, setting the gap to the OEM-specified distance. Reconnect the extension cable and Proximitor sensor. Confirm the gap voltage reads within the linear range (-10 VDC ± 1 VDC at nominal gap is a common reference point — verify against your specific system documentation).

Step 4 — Loop Verification: With the machine at rest, confirm the static gap voltage at the monitor. Restore the trip function and verify alarm setpoints are active. If possible, perform a slow-roll check to confirm dynamic signal quality before returning the machine to full-speed operation.

Step 5 — Documentation: Record the replacement in the CMMS, update the spare parts inventory, and log the as-found gap voltage and any associated alarm history. This data supports future failure trend analysis and maintenance interval optimization.

This workflow minimizes mean time to repair (MTTR), maintains system compatibility, and ensures the 3300 XL monitoring loop is fully restored to its original protective function without requiring system reconfiguration or software changes.

Spare Parts Support FAQ

Q1: Is the 31000-30-05-15-049-03-02 still available for legacy 3300 XL systems?
Yes. SMARTNEXMSK maintains long-term supply for Bently Nevada 3300 XL series components, including probes, Proximitor sensors, and monitor cards, specifically to support facilities where OEM availability has become limited. Stock is maintained for immediate dispatch.

Q2: How is compatibility with my existing 3300 XL system confirmed before shipment?
The part number suffix (-30-05-15-049-03-02) encodes probe diameter, cable length, and connector configuration. Our technical team cross-references your system’s monitor model and existing probe configuration to confirm compatibility before order confirmation. A datasheet and test report are available upon request.

Q3: What pre-shipment testing is performed on each unit?
Every 31000-30-05-15-049-03-02 unit undergoes electrical continuity testing, coaxial cable shield integrity verification, and gap voltage output confirmation against a reference target. Units that do not meet Bently Nevada specification are quarantined and not shipped.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the failure mode. Replacement or repair is coordinated within 5 business days of claim verification.
