Bently Nevada 32000-29-05-10-080-07-02 Safety Proximity Probe

Bently Nevada 32000-29-05-10-080-07-02 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Control Environments

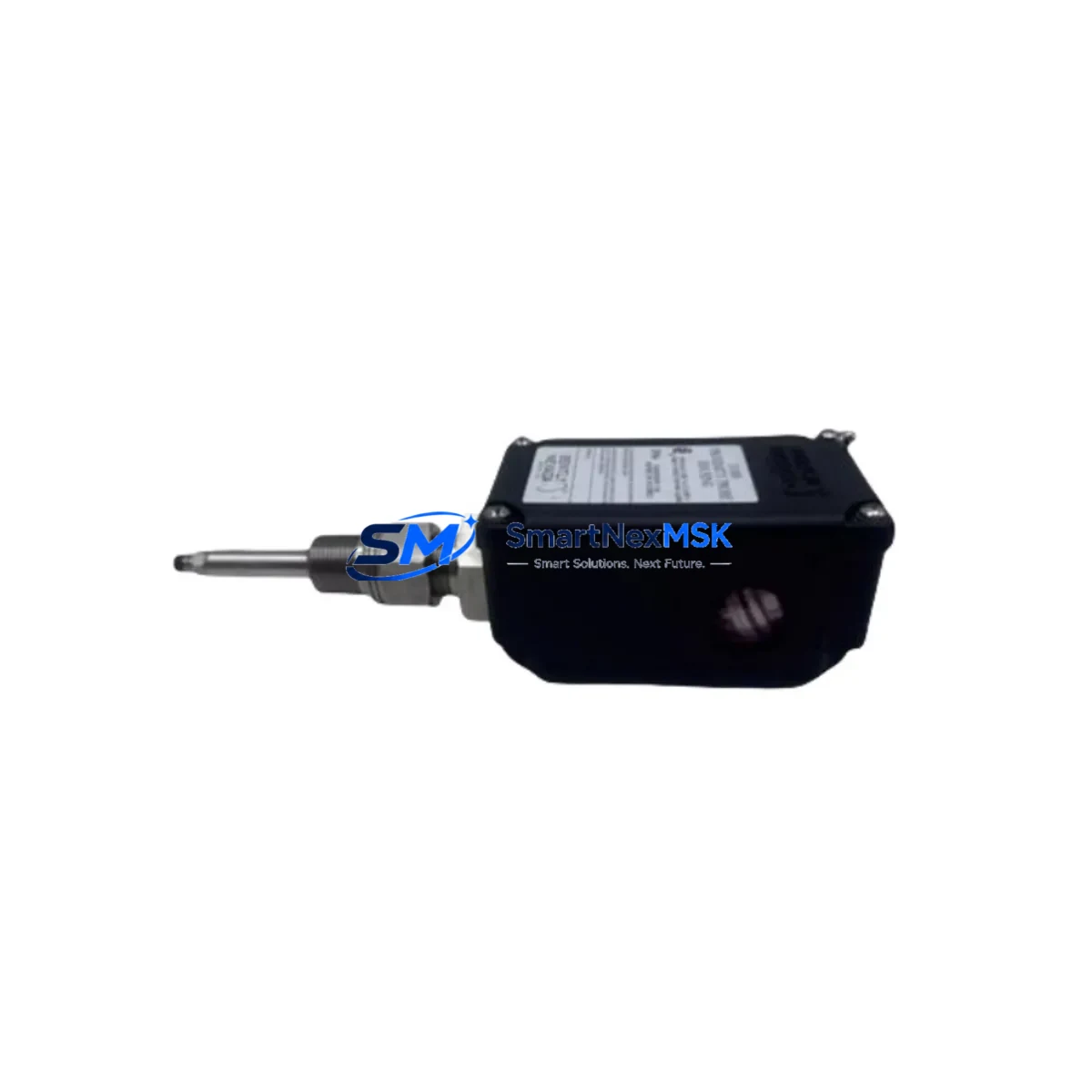

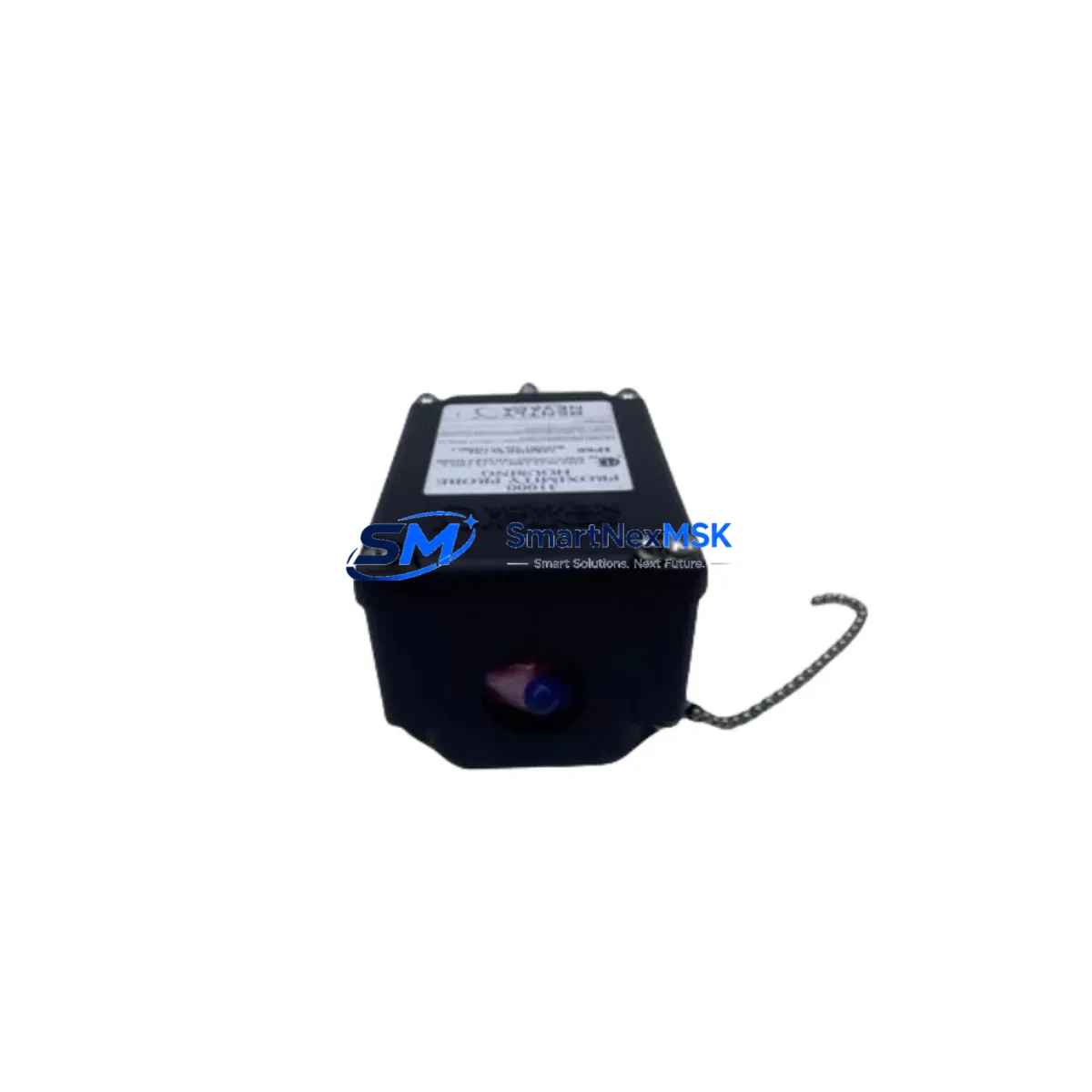

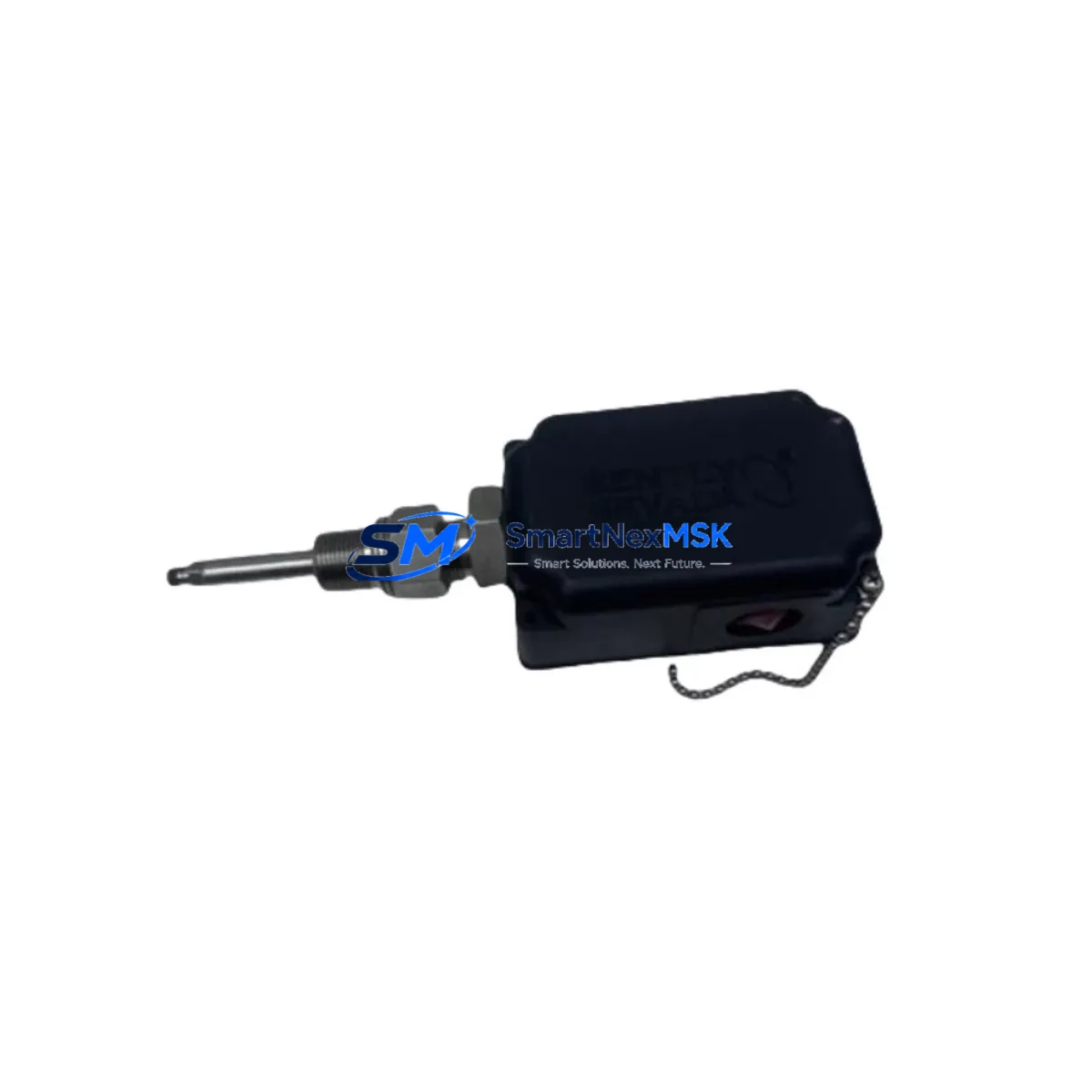

The Bently Nevada 32000-29-05-10-080-07-02 is a ruggedized proximity probe housing assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 XL Series, this unit is designed to deliver uninterrupted shaft displacement and radial vibration measurement in high-load rotating machinery, where control loop integrity and personnel safety are non-negotiable.

In petrochemical refineries, power generation turbines, mining hoists, water treatment pump stations, metallurgical rolling mills, and port crane drives, undetected shaft vibration anomalies can escalate from minor signal drift to catastrophic machinery failure within seconds. The 32000-29-05-10-080-07-02 addresses this risk by providing a mechanically stable, electromagnetically shielded probe housing that maintains consistent eddy-current gap measurement even under severe mechanical shock, thermal cycling, and high-frequency electrical interference from adjacent variable frequency drives (VFDs) and high-power switchgear.

This probe housing is fully compatible with the Bently Nevada 3300 XL 8mm Proximity Transducer System, including the 330130 extension cable, 330180 proximitor sensor, and 3500/42M Proximitor/Seismic Monitor module. When integrated into a complete 3500 Series machinery protection rack — alongside the 3500/20 Rack Interface Module, 3500/15 Power Supply, and 3500/22M Transient Data Interface — the 32000-29-05-10-080-07-02 forms a critical node in a certified machinery protection and safety interlock architecture.

For installations requiring compliance with API 670 machinery protection standards, this probe housing supports the required mechanical mounting configurations and gap voltage linearity specifications. Its stainless steel body and PTFE-jacketed cable entry resist corrosive atmospheres, hydrocarbon vapors, and high-humidity environments typical of offshore platforms and chemical processing units. The housing’s IP67-rated sealing prevents moisture ingress that could cause signal drift or insulation breakdown in the coaxial cable assembly.

In critical interlock circuits — such as high-vibration trip loops protecting steam turbines, compressors, and boiler feed pumps — signal reliability from the proximity probe directly determines whether the safety instrumented system (SIS) receives a valid process variable. A degraded or intermittent probe signal can cause spurious trips, leading to unplanned shutdowns, or worse, fail-to-danger conditions where actual high-vibration events go undetected. The 32000-29-05-10-080-07-02’s precision-machined housing maintains probe tip concentricity and target gap consistency, eliminating a common source of false alarms and missed detections in rotating machinery protection systems.

Control cabinet integrators specifying vibration monitoring for large synchronous motors, induced draft fans, or centrifugal pumps will find this housing compatible with standard 1-inch NPT conduit entries and DIN-rail-mounted signal conditioning enclosures. When paired with the Bently Nevada 3300 RAM Proximitor and routed through shielded instrumentation cable to a 3500/40M Proximitor/Seismic Monitor, the complete measurement chain delivers the sub-micron resolution required for early-warning trending and predictive maintenance programs.

SMARTNEXMSK maintains verified stock of the 32000-29-05-10-080-07-02 and its associated 3300 XL Series accessories, sourced from authorized distribution channels and subject to pre-shipment functional verification. Each unit undergoes dimensional inspection and electrical continuity testing before dispatch, ensuring that field engineers receive a probe housing that meets OEM specifications without requiring on-site rework or adjustment.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust rotating machinery protection architecture requires more than a single probe. The 32000-29-05-10-080-07-02 is most effective when deployed as part of a layered control cabinet strategy. In a typical turbine or compressor protection panel, the probe housing connects via the Bently Nevada 330130-045-00-00 extension cable to a 330180-91-05 proximitor sensor mounted inside the junction box. The proximitor’s 4–20 mA or voltage output feeds directly into a Bently Nevada 3500/42M Proximitor/Seismic Monitor card seated in the 3500/05 Rack.

Power integrity for the monitoring rack is maintained by the 3500/15 Power Supply Module, which provides regulated ±24 VDC to all transducer channels and isolates the measurement system from plant power fluctuations and surge events. For installations in hazardous classified areas (Zone 1 or Division 1), Zener barrier assemblies or galvanic isolators — such as the MTL 787S+ safety barrier — are inserted between the proximitor output and the DCS analog input card to prevent energy transfer into the hazardous zone.

On the communications side, the 3500/22M Transient Data Interface module captures high-speed waveform data during transient events (startups, coastdowns, trips) and transmits it to the System 1 Evolution condition monitoring software via Ethernet, enabling post-event analysis without interrupting the protection function. For plants running legacy MODBUS RTU or PROFIBUS DP architectures, the 3500/92 Communication Gateway bridges the 3500 rack to the plant DCS, ensuring that vibration alarm and trip status are visible to the control room operator in real time.

Surge protection for field wiring entering the control cabinet is provided by transient voltage suppression (TVS) modules installed at the cabinet entry gland plate, preventing lightning-induced surges from propagating to the sensitive proximitor electronics. This complete protection strategy — from probe housing to DCS integration — ensures that the 32000-29-05-10-080-07-02 delivers its full measurement accuracy and safety function throughout the machinery’s operational life.

Critical Industrial Safety Applications

The 32000-29-05-10-080-07-02 is specified across a wide range of heavy industrial sectors where rotating machinery reliability directly impacts process safety and production continuity.

Petrochemical and Refining: In crude distillation units and catalytic cracker wet gas compressors, this probe housing monitors shaft radial vibration on high-speed centrifugal compressors operating at 8,000–15,000 RPM. Early detection of rotor imbalance, bearing wear, or seal degradation allows operators to schedule maintenance during planned turnarounds rather than responding to emergency shutdowns.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on API 670-compliant proximity probe systems for overspeed protection and bearing condition monitoring. The 32000-29-05-10-080-07-02’s high-temperature rating supports installation in turbine bearing pedestals where ambient temperatures routinely exceed 120°C.

Mining and Mineral Processing: Ball mill drives, SAG mill pinion bearings, and slurry pump shafts in copper, gold, and iron ore processing plants operate in environments with extreme dust loading, vibration, and moisture. The IP67-sealed housing and stainless steel construction of the 32000-29-05-10-080-07-02 resist these conditions without requiring additional protective enclosures.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment facilities benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing failure before they cause service interruptions affecting public water supply.

Metallurgy and Steel Production: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains operate under high cyclic loads and thermal stress. Proximity probe monitoring of these machines supports predictive maintenance programs that reduce unplanned downtime in continuous production environments.

Port and Material Handling: Ship-to-shore crane hoist motors and conveyor drive gearboxes in port terminals require reliable vibration monitoring to prevent mechanical failures that could halt cargo operations. The 32000-29-05-10-080-07-02’s rugged construction withstands the salt-air corrosion and mechanical shock typical of port environments.

Safety and Quality FAQ

Q1: What warranty does the 32000-29-05-10-080-07-02 carry, and what does it cover?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions. Units that fail within the warranty period are replaced or refunded at no additional cost, with priority dispatch to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 32000-29-05-10-080-07-02 undergoes dimensional inspection to verify probe tip geometry and housing thread integrity, followed by electrical continuity and insulation resistance testing of the coaxial cable assembly. Units that do not meet OEM specifications are quarantined and not dispatched. A test record is available upon request for quality-critical installations.

Q3: Is this probe housing compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 32000-29-05-10-080-07-02 is a direct OEM-equivalent replacement for existing 3300 XL 8mm proximity probe installations. It is mechanically and electrically compatible with all standard 3300 XL extension cables, proximitor sensors, and 3500 Series monitor cards without requiring recalibration of the measurement system, provided the installation gap is set to the OEM-specified value.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains strategic inventory of the 32000-29-05-10-080-07-02 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and capital project procurement. Customers with recurring demand can arrange blanket purchase orders or consignment stock agreements to ensure parts availability without lead-time risk.
