Bently Nevada 32000-29-10-00-234-03-02 Safety-Enhanced Proximity Probe

Bently Nevada 32000-29-10-00-234-03-02 Safety-Enhanced Proximity Probe Housing: Reliable Control in Harsh Industrial Sites

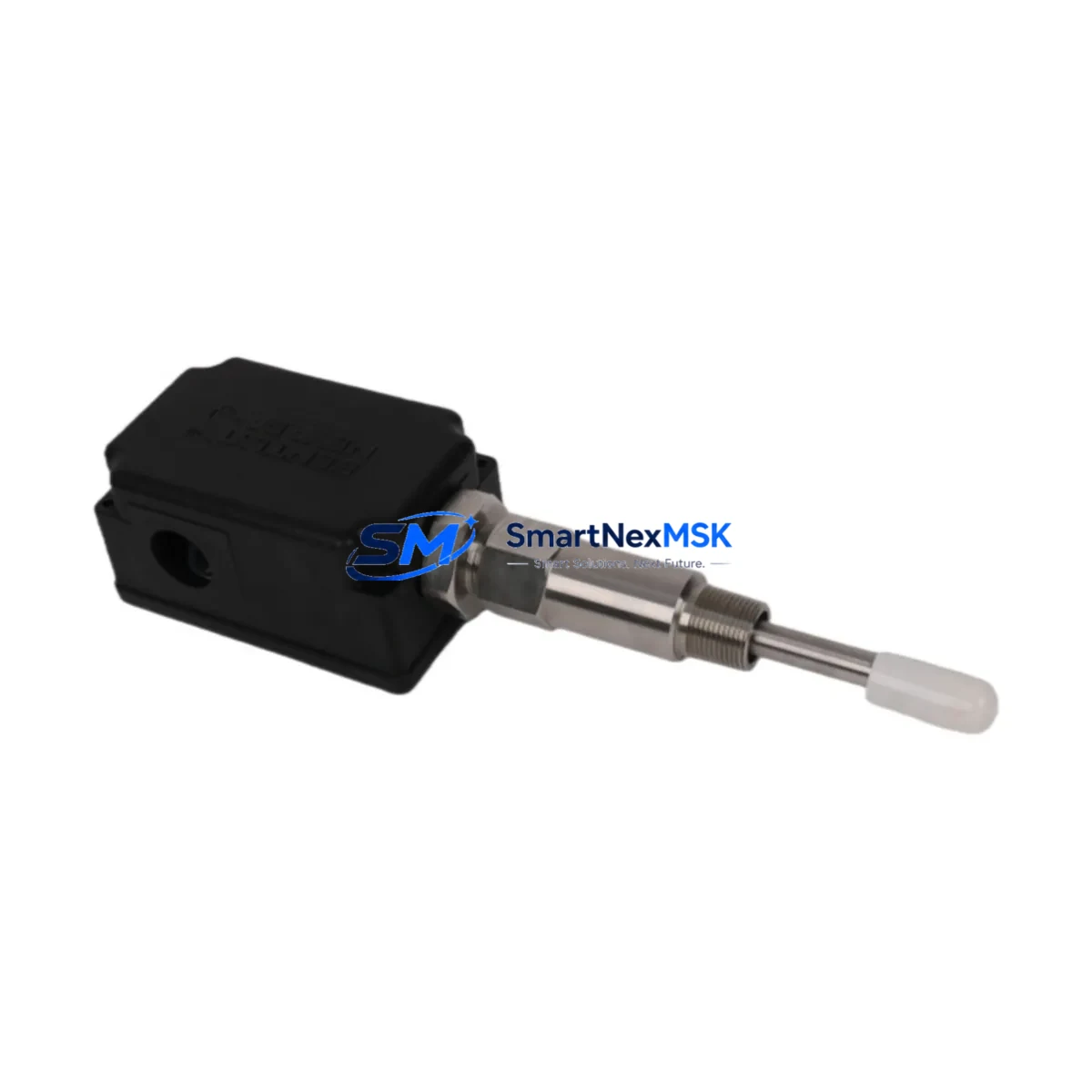

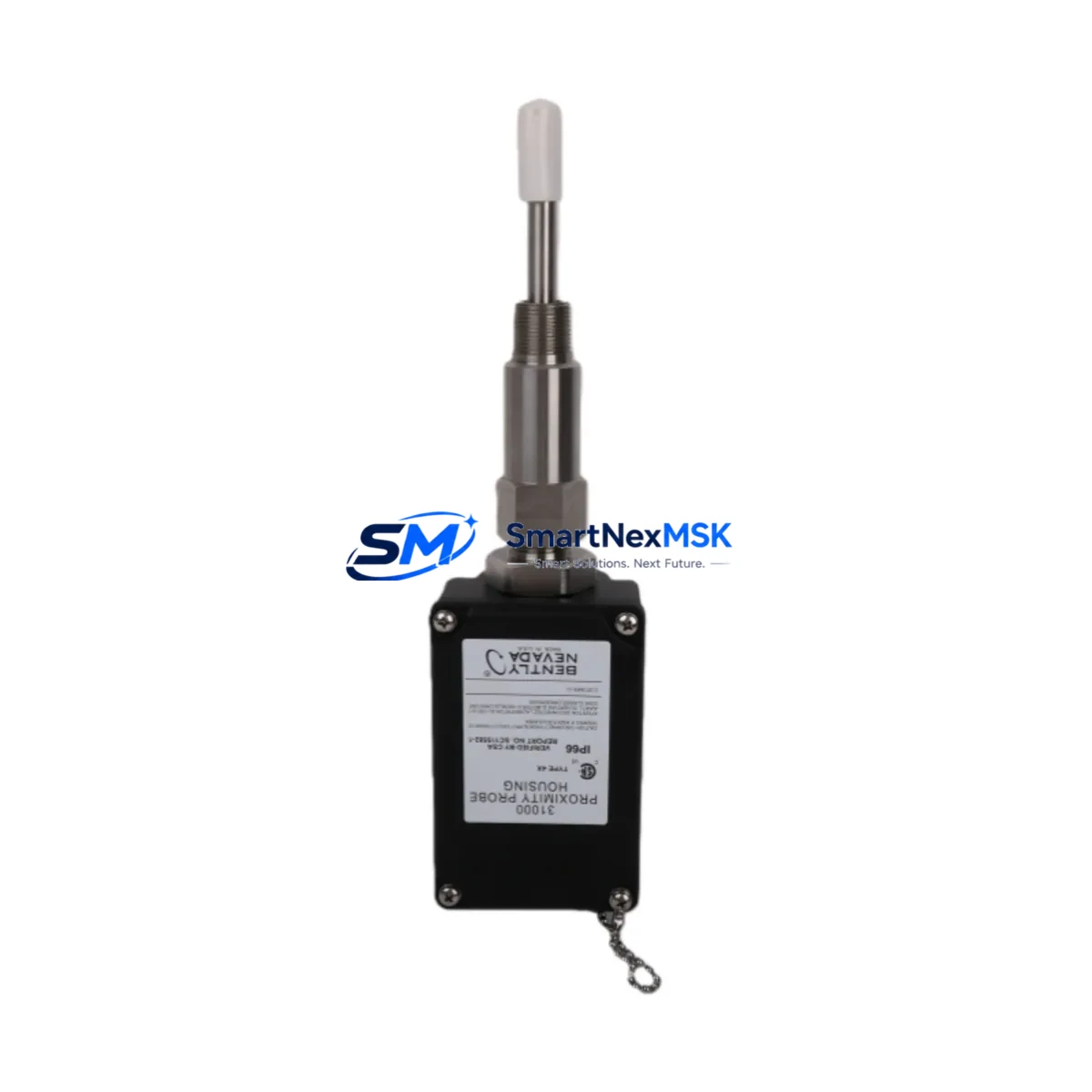

The Bently Nevada 32000-29-10-00-234-03-02 is a ruggedized proximity probe housing assembly engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed as part of the Bently Nevada 3300 XL and 32000 Series proximity transducer system, this housing provides the mechanical and electrical protection necessary to maintain accurate shaft displacement and vibration measurements in high-temperature, high-vibration, and chemically aggressive plant conditions.

In heavy industrial facilities — from petrochemical refineries and power generation stations to mining operations and metallurgical plants — control system integrity depends on the uninterrupted performance of every component in the monitoring chain. A compromised proximity probe housing can lead to signal drift, false trip events, or missed vibration anomalies, any of which can escalate into unplanned shutdowns, equipment damage, or safety incidents. The 32000-29-10-00-234-03-02 is built to eliminate these failure modes through robust construction, precise dimensional tolerancing, and full compatibility with Bently Nevada’s established transducer ecosystem.

Safety Reliability Table

Control Cabinet Protection Strategy

The 32000-29-10-00-234-03-02 proximity probe housing does not operate in isolation — it is a critical front-end sensor element within a layered machinery protection architecture. In a properly configured control cabinet or machinery protection panel, this probe housing interfaces directly with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180 or 330130 series), which conditions the raw eddy-current signal into a calibrated DC voltage output for the monitoring system.

That conditioned signal feeds into a Bently Nevada 3500 Series Machinery Protection System rack — typically a 3500/42M Proximitor®/Seismic Monitor or a 3500/40M Proximitor® Monitor — where configurable alarm and trip setpoints are enforced. The 3500 rack communicates over Modbus RTU or Ethernet/IP to the plant DCS or safety PLC, ensuring that vibration exceedances trigger protective actions before mechanical damage occurs.

To maintain signal integrity from probe tip to control room, the installation relies on matched Bently Nevada extension cables (such as the 330130-045-00-00 series) and armored conduit assemblies rated for the local hazardous area classification. In ATEX or IECEx Zone 1 or Zone 2 installations, the probe housing must be paired with appropriate Zener barrier or galvanic isolator modules — such as those from the MTL or P+F series — installed in the marshalling cabinet to limit intrinsic energy at the sensor head.

Power supply stability is equally critical. The Proximitor® sensors in this system are typically powered by a ±24 VDC regulated instrument power supply, often with redundant feeds and UPS backup. Surge protection devices — such as Phoenix Contact TRABTECH or Weidmüller VSSC series transient voltage suppressors — should be installed on both the power rails and signal lines entering the monitoring rack to protect against lightning-induced surges and switching transients common in heavy industrial switchgear rooms.

For facilities running GE Speedtronic Mark VI or Emerson Ovation DCS platforms, the 3500 rack’s digital outputs integrate cleanly via hardwired relay contacts or fieldbus modules, enabling the vibration trip signal to participate in the plant-wide safety interlock logic without additional signal conversion hardware.

Critical Industrial Safety Applications

The Bently Nevada 32000-29-10-00-234-03-02 proximity probe housing is deployed across a wide range of safety-critical rotating machinery applications in continuous-process and heavy industries:

Petrochemical and Refinery Plants: Installed on centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors, where undetected shaft vibration or rotor rub can lead to catastrophic seal failure, hydrocarbon release, and fire risk. The ruggedized housing withstands the H₂S-laden, high-temperature atmospheres common in these units.

Power Generation: Used on steam turbine journal bearings and generator shaft monitoring systems in coal-fired, gas turbine, and combined-cycle power plants. Accurate radial vibration data from this probe feeds directly into the turbine protection system, enabling automatic trip before blade-tip clearance is lost.

Mining and Mineral Processing: Applied to large SAG mill pinion drives, slurry pump shafts, and conveyor drive gearboxes operating in dusty, wet, and high-shock environments. The probe housing’s mechanical robustness ensures continuous signal availability even under the severe vibration profiles generated by these machines.

Water and Wastewater Treatment: Fitted to high-speed centrifugal blowers and vertical turbine pumps in municipal water infrastructure, where continuous uptime is a public safety obligation. Early vibration detection prevents bearing failures that would otherwise require emergency dewatering and service interruption.

Metallurgy and Steel Production: Deployed on rolling mill main drive motors, continuous caster pinch rolls, and blast furnace top gas compressors, where the combination of high ambient temperature, electromagnetic interference from large drives, and mechanical shock demands a probe housing with superior shielding and thermal tolerance.

Port and Marine Terminal Equipment: Used on ship-to-shore crane hoist motors and bulk material handling conveyor drives, where salt-laden air and variable load cycles accelerate bearing wear. Continuous proximity monitoring enables condition-based maintenance scheduling, reducing unplanned downtime during peak cargo operations.

Safety and Quality FAQ

Q1: What warranty does the 32000-29-10-00-234-03-02 carry, and what does it cover?
This unit is supplied with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If the unit fails to perform to Bently Nevada OEM specifications within the warranty period, we will provide a replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 32000-29-10-00-234-03-02 housing assembly undergoes a full dimensional inspection and functional verification before dispatch. This includes thread gauge inspection, housing integrity check, and where applicable, signal output verification when tested with a compatible Proximitor® sensor. A test report is available upon request for critical installations.

Q3: Is this housing compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 32000-29-10-00-234-03-02 is a direct OEM-equivalent replacement for existing Bently Nevada 32000 Series probe housing assemblies. It is dimensionally and electrically compatible with the 3300 XL Proximitor® Sensor and integrates without modification into 3500 Series machinery protection racks. Always verify the extension cable length and gap voltage setting during installation commissioning.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
We maintain dedicated stock of the 32000-29-10-00-234-03-02 and related Bently Nevada 32000 Series components to support planned maintenance shutdowns, insurance spare inventories, and emergency replacement requirements. For facilities requiring a standing supply agreement or blanket purchase order, please contact our sales team to discuss volume pricing and reserved stock arrangements.
