Bently Nevada 32000-29-10-04-048-03-02 Spare for 3300 XL

Bently Nevada 32000-29-10-04-048-03-02 Spare for 3300 XL Automation: Minimizing Downtime in Vibration Monitoring Systems

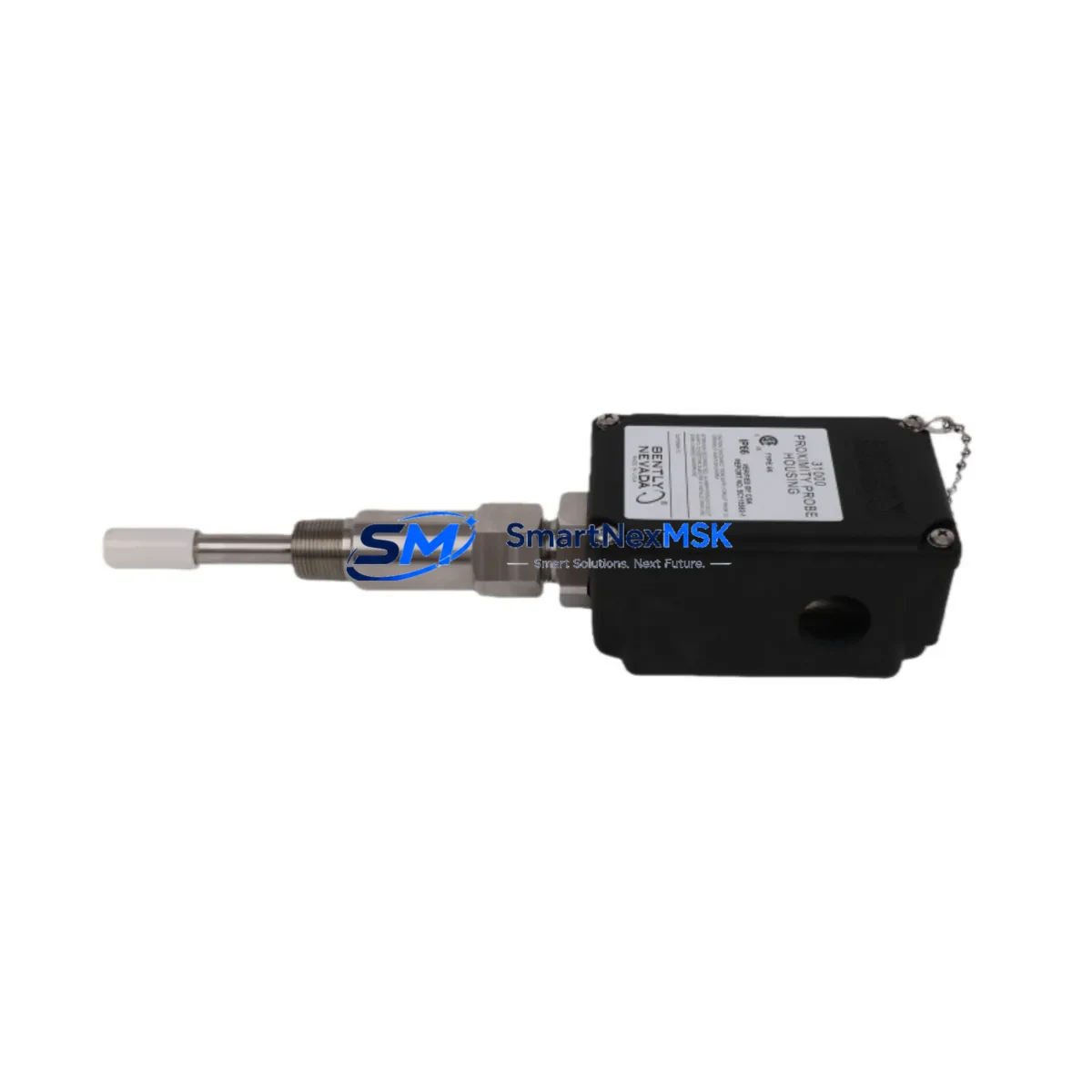

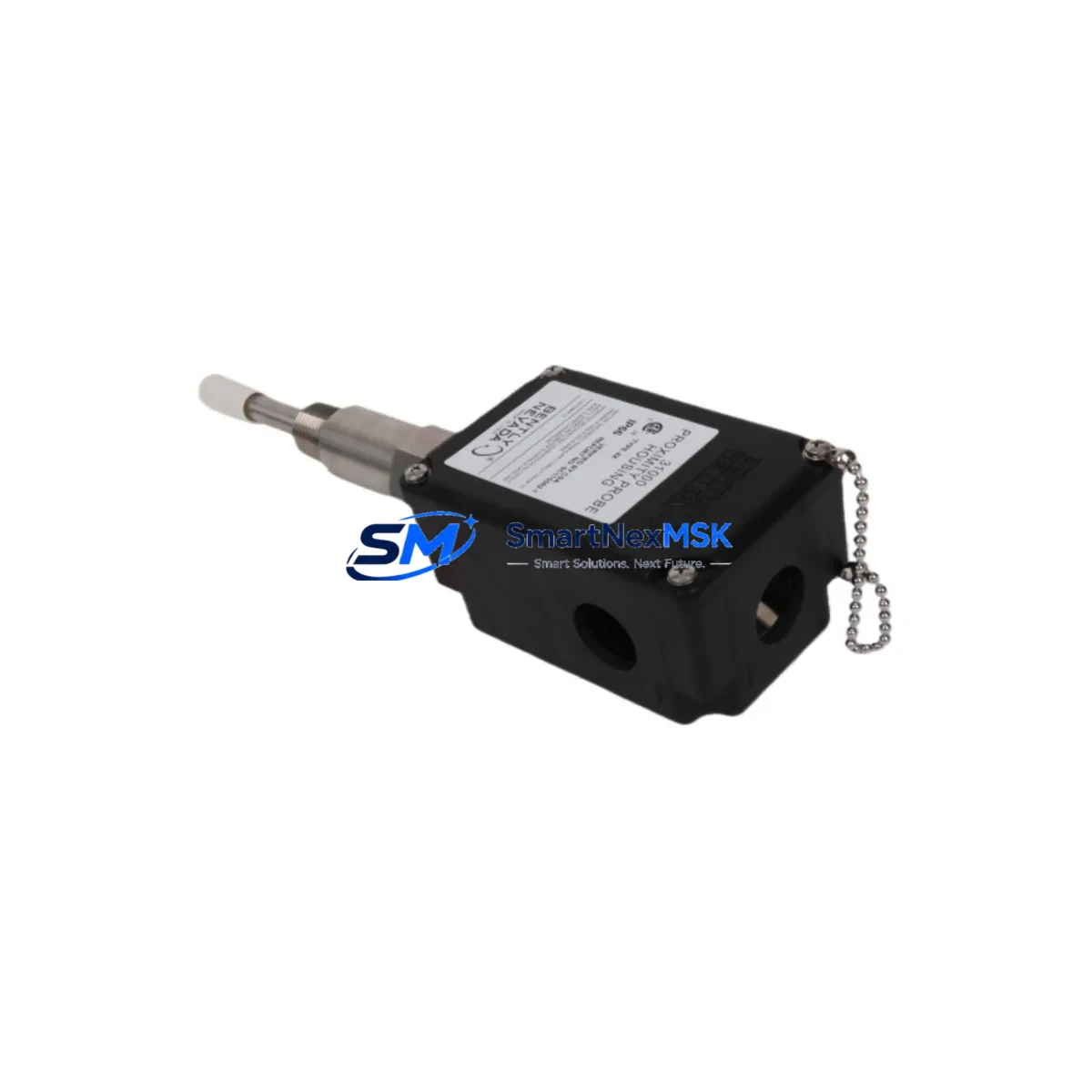

The Bently Nevada 32000-29-10-04-048-03-02 is a metric proximity probe housing designed for the 3300 XL Series continuous vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications including turbines, compressors, pumps, and gearboxes. Maintaining an on-hand spare of this component is a foundational element of any credible predictive maintenance (PdM) or reliability-centered maintenance (RCM) program.

When this probe housing degrades or fails, the entire vibration channel is compromised. Without a verified replacement in stock, maintenance teams face extended unplanned downtime, emergency procurement delays, and potential safety exposure on critical rotating machinery. Sourcing this spare in advance — with full compatibility verification and pre-shipment testing — is the single most effective way to protect your uptime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 32000-29-10-04-048-03-02 probe housing is rarely an isolated task. Experienced maintenance engineers know that a degraded or failed proximity probe is often a symptom of broader wear in the vibration monitoring loop. During any planned or corrective replacement of this component, the following associated items should be inspected or replaced as part of a complete channel restoration:

• 3300 XL Proximitor Sensor (e.g., 330180-91-05) — the driver/oscillator module that powers the probe. If the probe housing has been exposed to contamination or mechanical shock, the proximitor may have sustained damage. Verify output voltage and linearity before returning the channel to service.
• Extension Cable Assembly (e.g., 330130-045-00-CN) — the interconnecting cable between probe and proximitor. Inspect for jacket damage, connector corrosion, and continuity. A faulty extension cable is a common source of intermittent channel faults that are misdiagnosed as probe failure.
• 3300 XL Monitor Module (e.g., 3300/16-13-01-01-00-00-00) — the rack-mounted monitor that processes the proximitor signal. Confirm that the monitor’s gap voltage reading is within the calibrated range after probe replacement and gap adjustment.
• Power Supply Module (e.g., 3300/20) — the -24 VDC rack power supply feeding the proximitor. Measure output voltage under load; a sagging supply will cause false readings across all channels in the rack.
• I/O Terminal Block and Field Wiring — inspect terminal connections for oxidation, loose crimps, and correct wire routing. Vibration and thermal cycling in machinery enclosures accelerate terminal degradation.
• Relay Output Module (e.g., 3300/25) — if the vibration channel feeds a relay-based trip or alarm circuit, verify relay contact integrity and setpoint configuration after channel restoration.
• Communication Gateway or Rack Interface Module — for systems integrated with DCS or SCADA via Modbus or proprietary protocols, confirm that the channel data is correctly mapped and that no communication faults were latched during the outage.
• Signal Conditioner / Isolator — if the proximitor output is routed through a signal isolator before reaching the DCS analog input card, verify isolator output scaling and isolation integrity.
• Spare Locknut and Mounting Hardware — always replace the probe locknut when reinstalling. Reused locknuts may not achieve proper torque retention, leading to probe migration and gap drift over time.

Procurement engineers should treat the 32000-29-10-04-048-03-02 as part of a channel-level spare kit rather than a standalone component. Stocking the probe housing together with a matched extension cable and a proximitor sensor ensures that any single-channel failure can be resolved within a single maintenance window, without waiting for multiple sequential deliveries.

Site Replacement Workflow

The 3300 XL proximity transducer system has been in continuous production and field deployment for decades, and many facilities are operating original installations that are approaching or have exceeded their design service life. The 32000-29-10-04-048-03-02 is a direct metric replacement for worn or damaged probe housings in these legacy systems, and its installation does not require monitor reconfiguration provided the replacement probe is from the same 3300 XL metric family.

Step 1 — Isolation and Lockout: De-energize the proximitor supply and confirm zero voltage at the probe connector before any mechanical work. Follow site LOTO procedures for the associated machinery.

Step 2 — Gap Measurement and Documentation: Record the existing gap voltage before removal. This provides a baseline for the replacement installation and helps identify whether the original probe had drifted from its calibrated gap.

Step 3 — Probe Removal: Loosen the locknut and carefully unthread the probe housing. Inspect the mounting boss for thread damage or contamination. Clean the bore before installing the replacement.

Step 4 — Replacement Installation: Thread the 32000-29-10-04-048-03-02 into the mounting boss. Adjust the gap to achieve the target gap voltage (typically -10 VDC ± 0.5 VDC for standard 3300 XL metric probes at the nominal gap). Secure the locknut to the specified torque.

Step 5 — Channel Verification: Re-energize the proximitor and confirm gap voltage, vibration reading, and alarm/trip setpoint response at the monitor. Document the as-left gap voltage in the maintenance record.

Step 6 — System Return to Service: Confirm with the control room that the channel is reading correctly and that no latched alarms or bypasses remain active. Update the spare parts inventory to reflect consumption of the replacement unit.

This workflow is applicable to both planned outage replacements and emergency corrective maintenance scenarios. Having the 32000-29-10-04-048-03-02 pre-staged in the site spare parts store reduces the elapsed time from fault detection to channel restoration to under two hours in most installations.

Spare Parts Support FAQ

Q1: Is the 32000-29-10-04-048-03-02 compatible with both 3300 XL 8mm and 11mm Proximitor Sensors?
The 32000-29-10-04-048-03-02 is a 10mm tip diameter metric probe housing designed for the 3300 XL transducer system. Compatibility with a specific proximitor model depends on the matched system configuration (probe + extension cable + proximitor). Always verify the complete system part number combination against the Bently Nevada 3300 XL system compatibility matrix before installation. We can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes electrical continuity verification, insulation resistance check, and dimensional inspection prior to shipment. Units are shipped with a test record and are covered by a 12-month warranty from the date of shipment. If a unit fails to perform within specification upon installation, we provide replacement or full refund support.

Q3: How should this spare be stored to maximize shelf life?
Store in the original packaging or an ESD-safe bag in a clean, dry environment at 15°C–35°C with relative humidity below 75% non-condensing. Avoid storage near strong magnetic fields or vibration sources. Inspect the connector and probe tip annually if the spare is held in long-term storage. Properly stored 3300 XL probe housings maintain full functionality for 5+ years.

Q4: Can this part replace older Bently Nevada 3300 series (non-XL) probe housings?
The 3300 XL series uses a different sensitivity specification and system architecture compared to the earlier 3300 series. Direct substitution between 3300 and 3300 XL probe housings is not recommended without a full system compatibility review. If you are maintaining a legacy 3300 (non-XL) installation, contact us with your existing part numbers and we will identify the correct replacement or advise on a system upgrade path.
